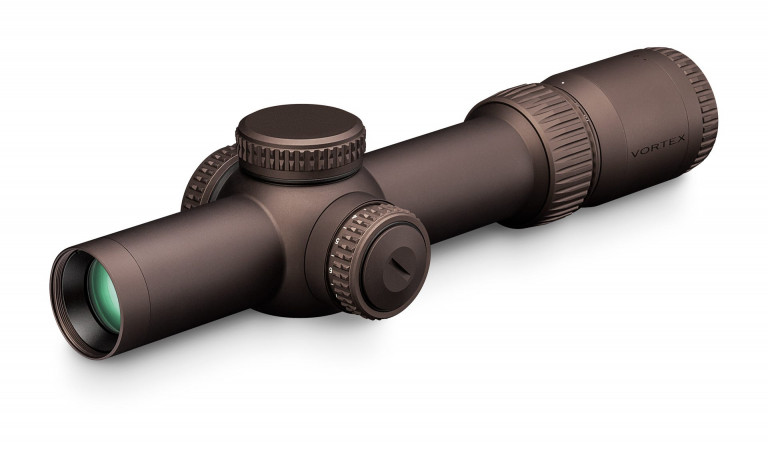

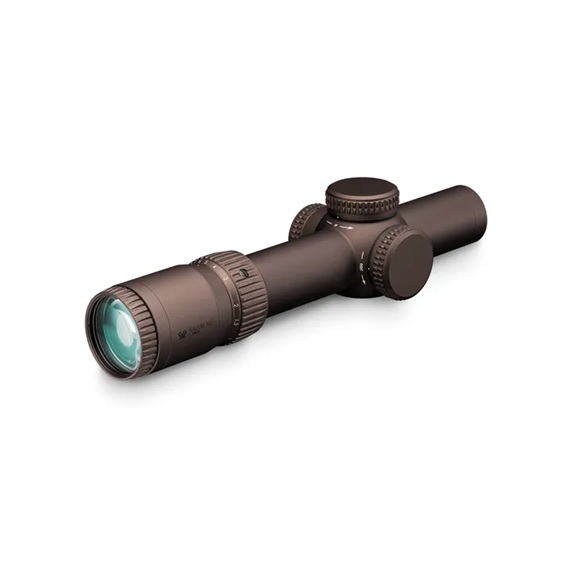

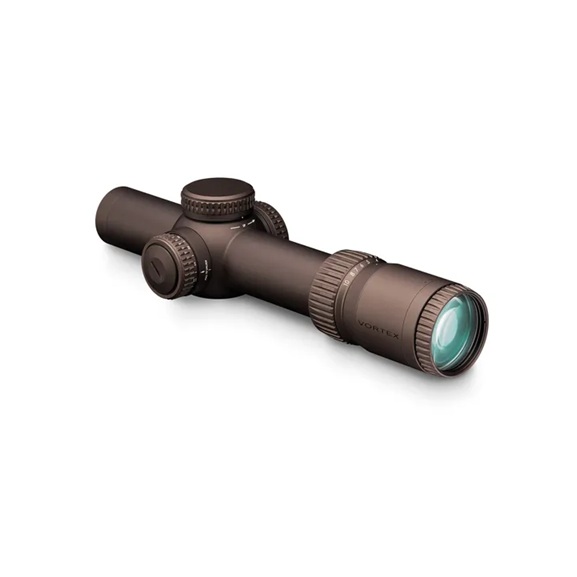

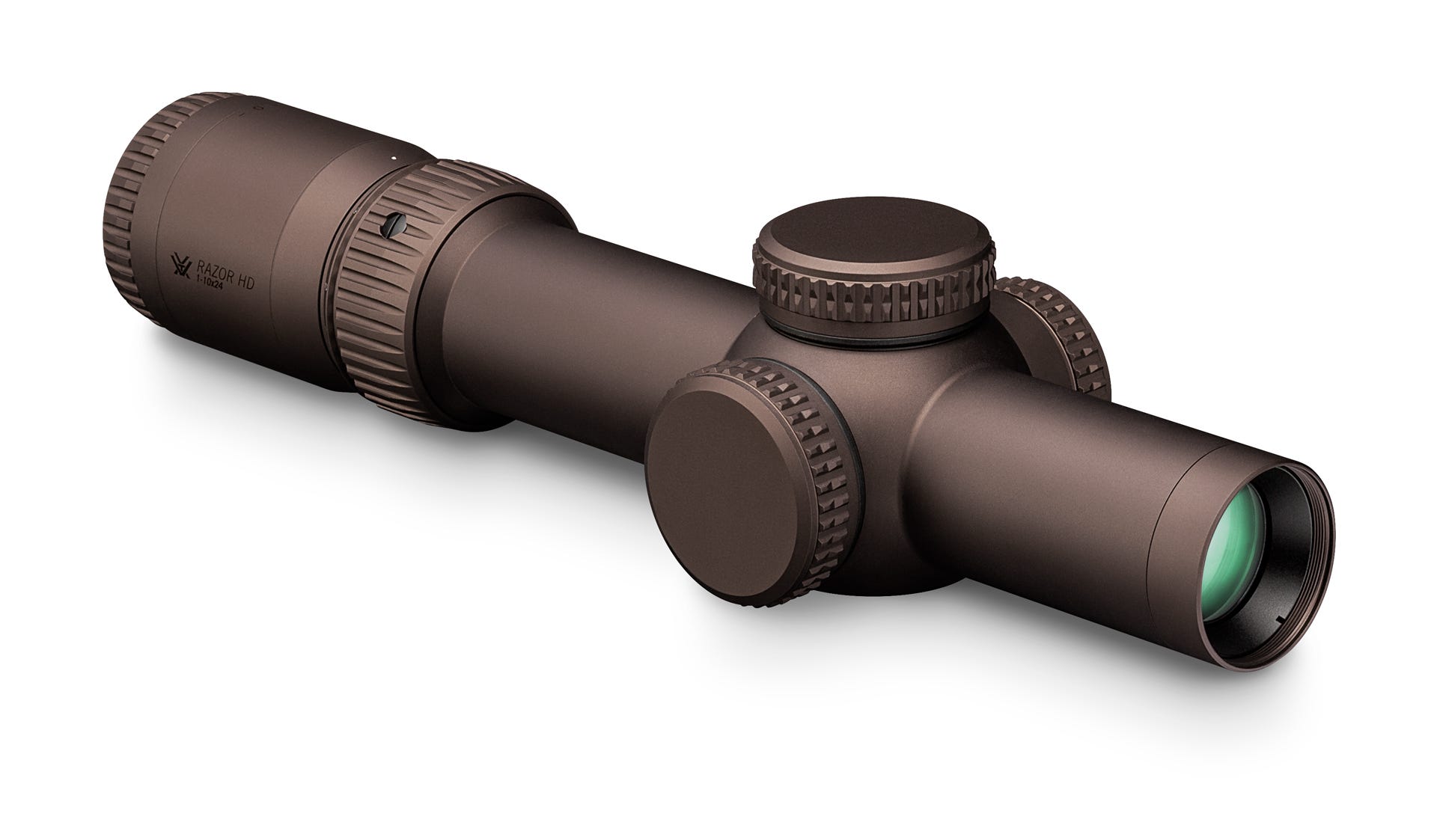

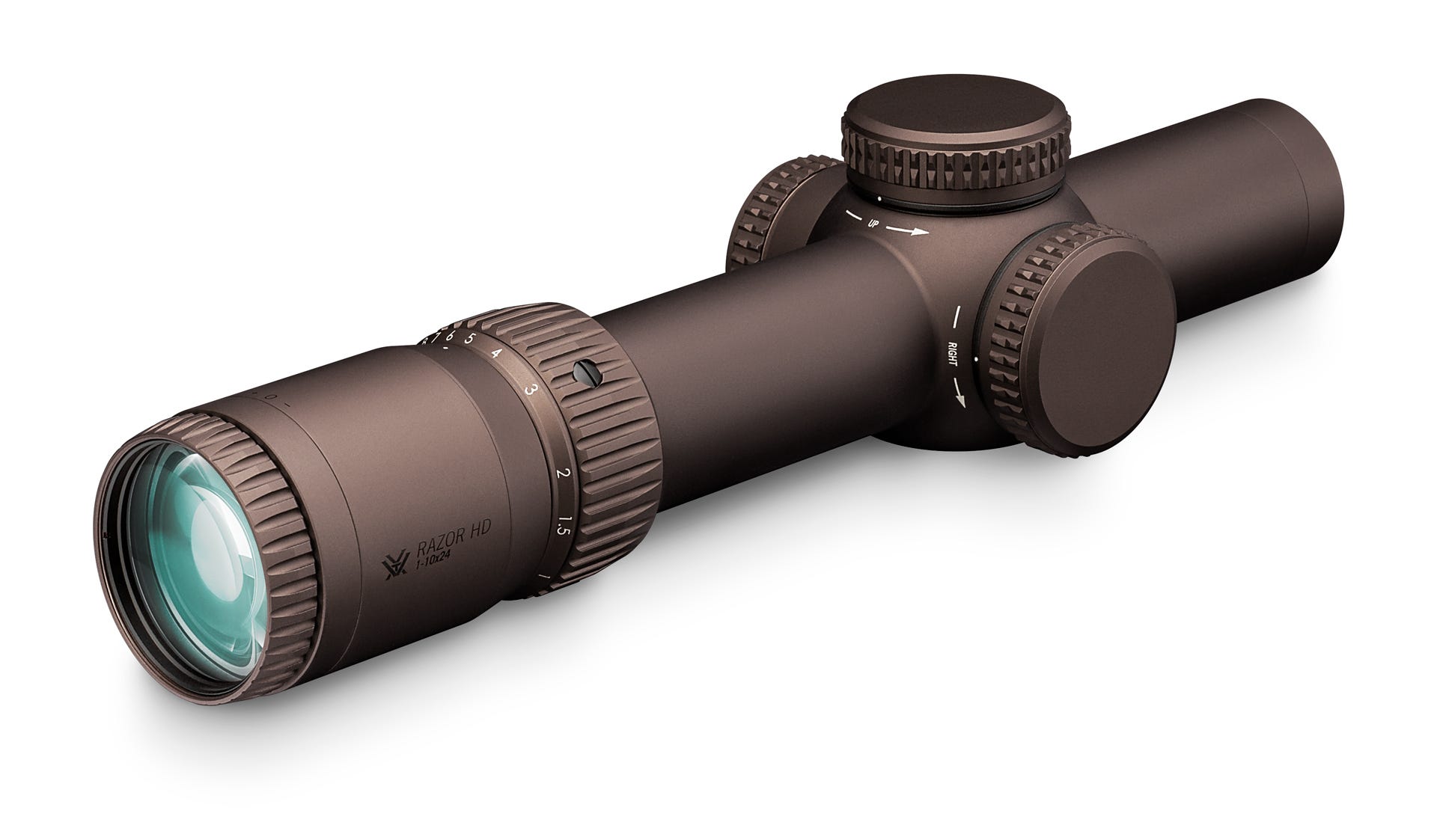

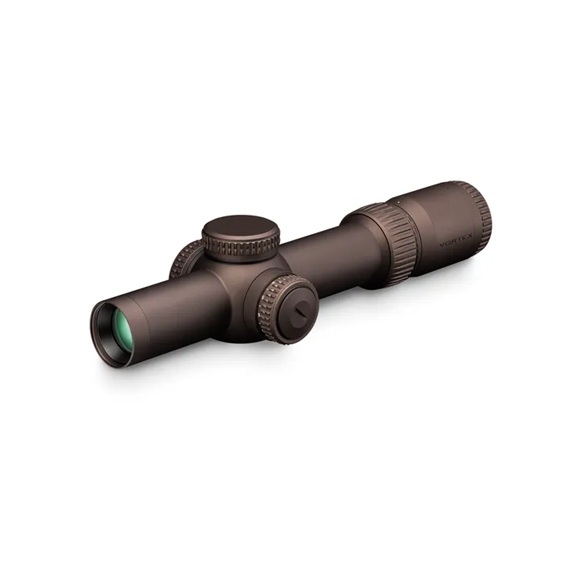

Vortex Razor HD Gen III 1-10x24 FFP EBR-9 MRAD Rifle Scope
The next evolution of our wildly popular Razor line, the Razor HD Gen III 1-10x24 brings the highest level of first focal plane performance to those who demand the versatility of 1-10x power.
Military, law enforcement, and competition shooters alike will love the clarity of an HD optical system and a crisp, illuminated reticle in a package that weighs the same as our 1-6x, but doesn’t sacrifice any durability. A true 1x on the low end and daylight bright illumination for reliable performance in all conditions makes this a single solution for close-quarters and long-range.
Magnification | 1-10x |
Objective Lens Diameter | 24 mm |
Eye Relief | 3.6 inches |
Field of View | 116-11.7 ft @100 yds |
Tube Size | 34 mm |
Turret Style | Low Capped |
Adjustment Graduation | .1 MRAD |
Travel Per Rotation | 10 MRAD |
Max Elevation Adjustment | 30 MRAD |
Max Windage Adjustment |
30 MRAD
|
Parallax Setting | Fixed @150 yds |
Length | 10.1 inches |
Weight | 21.5 oz |
Optical Features
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission. |
XR™ Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
APO System | Index-matched lenses correct color across the entire visual spectrum. |
Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
First Focal Plane Reticle | The scale of the reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
Daylight Bright Illumination | Daylight bright, illuminated reticle aids in faster target acquisition in bright daylight conditions |
Construction Features
ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Shockproof | Rugged construction withstands recoil and impact. |
Waterproof - IPX7 | Designed to meet IPX7 waterproofing standards. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Tube Size | 34 mm diameter provides maximized internal adjustment and strength. |
Hard Anodized Stealth Shadow Finish | Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Internal Mechanism Design Features
Friction Reduction System | Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665 |
Erector Tube System | Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished. |
L-Tec™ Tool | Included with your scope for precise adjustments to the turret. |
Locking Side Illumination | Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting. |
- EBR-9 (MRAD)

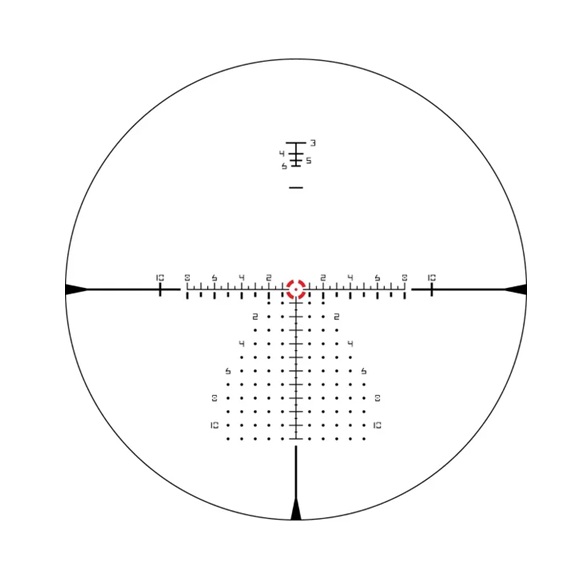

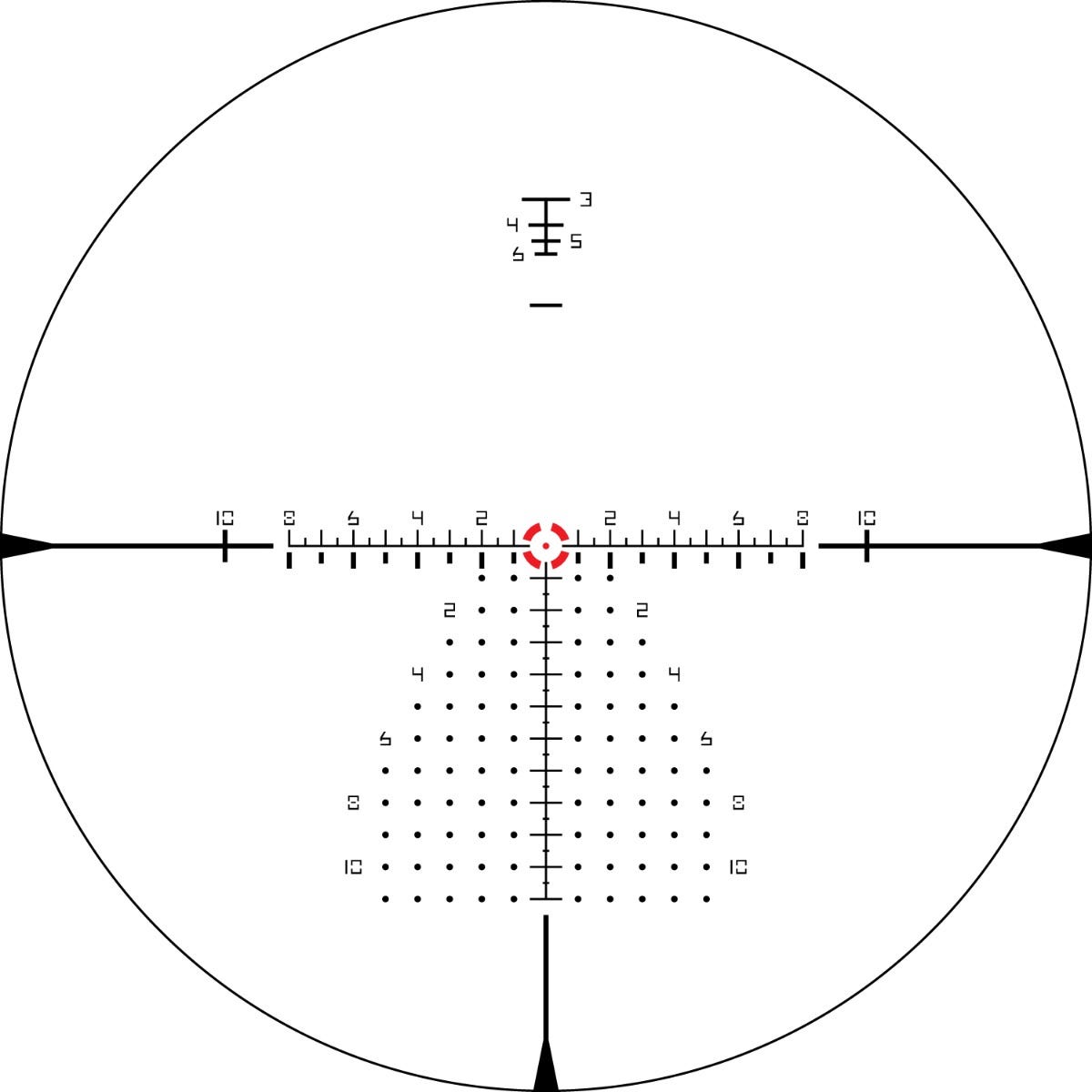

The EBR-9 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MRAD based subtension lines for ranging, holdover, and windage corrections.
- Razor HD Gen III 1-10x24 FFP EBR-9 MRAD Rifle Scope
- Sunshade
- Lens cloth
- CR2032 Battery
- Throw lever
- L-TEC Tool
- INTERNATIONAL VIP WARRANTY
The Vortex Worldwide Lifetime VIP Warranty covers your purchase worldwide through the distributor or dealer in the country where you purchased your product.
