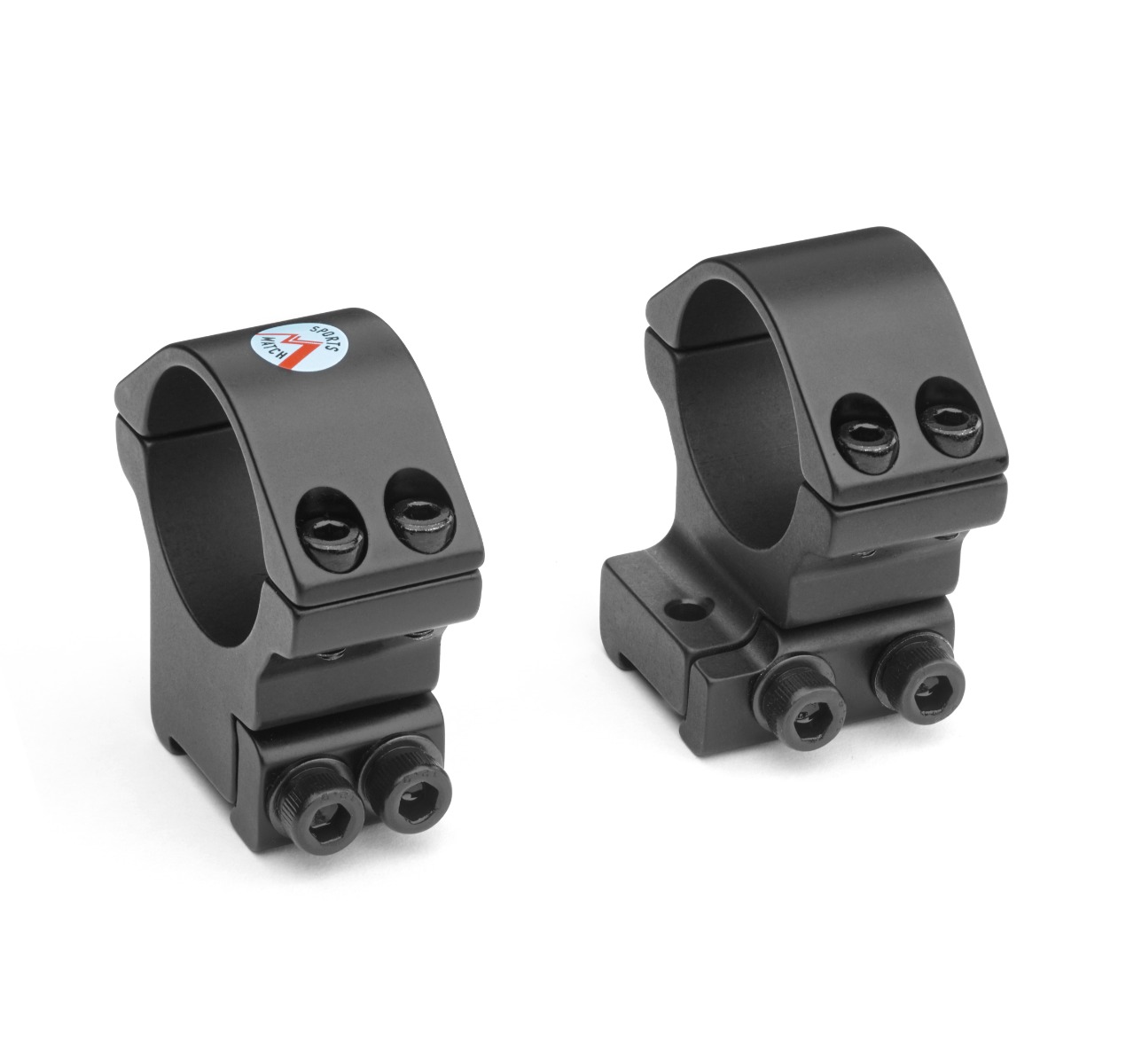

Sportsmatch HTO96 Sako 90 2 Piece High 30mm Rifle Scope Ring Hunter, Bavarian 15-17mm Dovetail
Purpose-built for Sako 90 dovetails - secure fit with proper clearance
- 2 piece high profile
- For Sako 90 Hunter, Bavarian etc, with integral dovetails.
- Suitable dovetails will measure 17mm at the widest point (top)
- Includes removeable arrester pin.
Sportsmatch HTO96 – 30mm 2-Piece Mount for 17mm Dovetails (Sako 90 Hunter, Bavarian etc.)
Precision-made for rifles with 15-17mm integral dovetails, such as the Sako 90 Hunter and Bavarian models, the Sportsmatch HTO96 offers a secure and dependable solution for mounting 30mm tube scopes.
This 2-piece setup is engineered for solid performance and minimal weight while offering excellent access to the rifle’s action. A standout feature is the inclusion of a removable arrester pin for added recoil resistance on these heavy calibres.
Key Specifications:
-
Ring Diameter: 30mm (1.18")
-
Base Type: 15-17mm dovetail - fits Sako 90 Hunter, Bavarian etc. with intergal dovetail
-
Mount Type: 2-piece
-
Height:
• Base to ring bottom (A): 20mm
• Base to ring centre: 35mm -
Length (B): 21mm per mount
-
Weight: 132g
-
Special Feature: Removable arrester pin included
Specification Details:
-
30mm rings suit a wide range of modern scopes, especially those with illuminated reticles or higher magnification ranges.
-
15-17mm dovetail is tailored for rifles with integral standard dovetails like the Sako 90 series—these mounts won’t fit narrower dovetails or Picatinny/Weaver bases.
-
20mm base-to-ring-bottom height gives a total ring centre height of 35mm, offering mid-to-high clearance—ideal for scopes with medium to large objective bells while keeping a good cheek weld.
-
Being a 2-piece design, the HTO96 allows flexible positioning and keeps access open to top-loading or bolt actions. This is especially useful on rifles with fixed magazines or manual loading requirements.
-
The removable arrester pin provides an added recoil-stop option for rifles where heavier scopes or calibres are used—helping prevent mount creep under repeated firing.
Usage Suitability:
This mount is perfect for The Sako 90 rifles with integral 15–17mm dovetails, such as the Sako 90 Hunter, Bavarian, and similar models. Meaure 15mm iside and 17mm at widest, top point.
They are not compatible with and other rail
Calculating Scope to Rifle Clearance:
Mounts measure 35mm from base to ring center. On a flat base this gives clearance for a scope with an outer objective case diameter of 68mm
Approx Guide:
- 40mm objectives - fits easily
- 50mm objectives - even with AO - fits well
- 56mm objectives - generally fits (depending on barrel profile)
General rule: these are designed to handle up to around 56mm objective scopes on most setups
Fit can vary slightly with rifle rail height or barrel contour—always confirm.
About Sportsmatch
Proudly UK-made, Sportsmatch mounts are known for their precision machining and rock-solid reliability. The HTO96 is covered by a lifetime warranty, reflecting the brand’s commitment to quality and long-term performance.
- A: 20mm
- B: 21mm
- C: 8mm
- Weight: 132g
- Sportsmatch HTO96 2 Piece High Profile 15mm Dovetail 30mm Rifle Scope Rings for Sako 90 Hunter, Bavarian etc
- Removeable arrester pin
Will this fit my rifle?
Only if your rifle has a 15–17mm dovetail rail (e.g. Sako 90).
What is a 15–17mm dovetail?
It’s a wider, proprietary rail system found on certain rifles like Sako and Tikka. It is not the same as standard air rifle dovetail rails.
Will this fit Picatinny or Weaver rails?
No. This mount is specifically for dovetail rails of this size only.
What size scope does this fit?
30mm tube scopes only.
What objective size will these clear?
Typically up to around 56mm on most rifles, depending on barrel profile and rail position.
What does “high” mean here?
Approximately 35mm from rail to scope centre - a good balance between clearance and shooting position.
Why use 2-piece mounts?
They allow flexible positioning and better access to the rifle’s loading area or bolt.
What is the arrestor pin for?
It helps prevent movement under recoil by locating into the rifle’s rail or action.
Can I use these on air rifles?
Only if the rifle has a 15–17mm dovetail (most air rifles use 9–11mm, so these usually won’t fit).
Key Takeaway
If you have a Sako 90 with integral 15–17mm dovetail, these give a proper, secure fit with the right height for most common scope setups - no adapters, no compromise.
