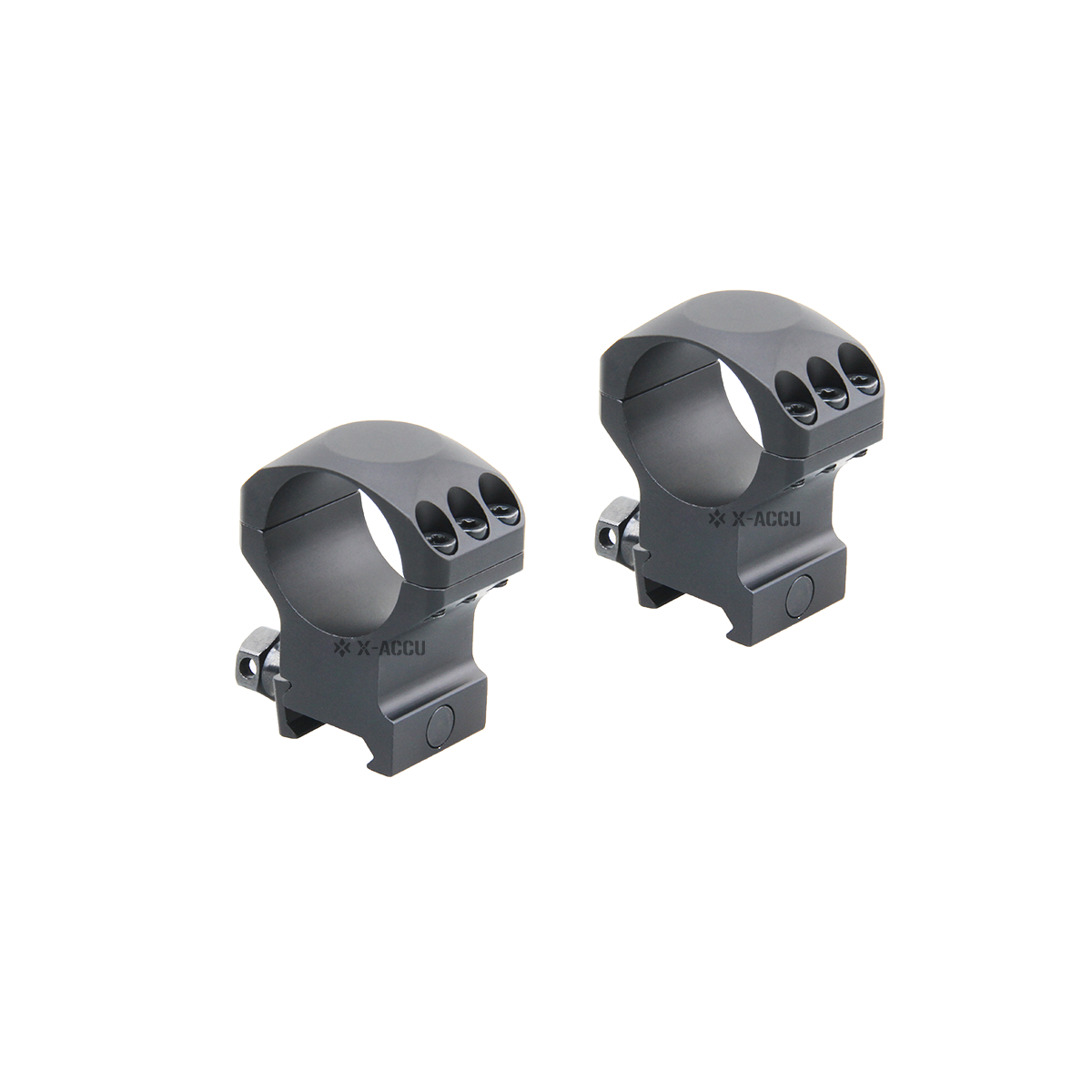

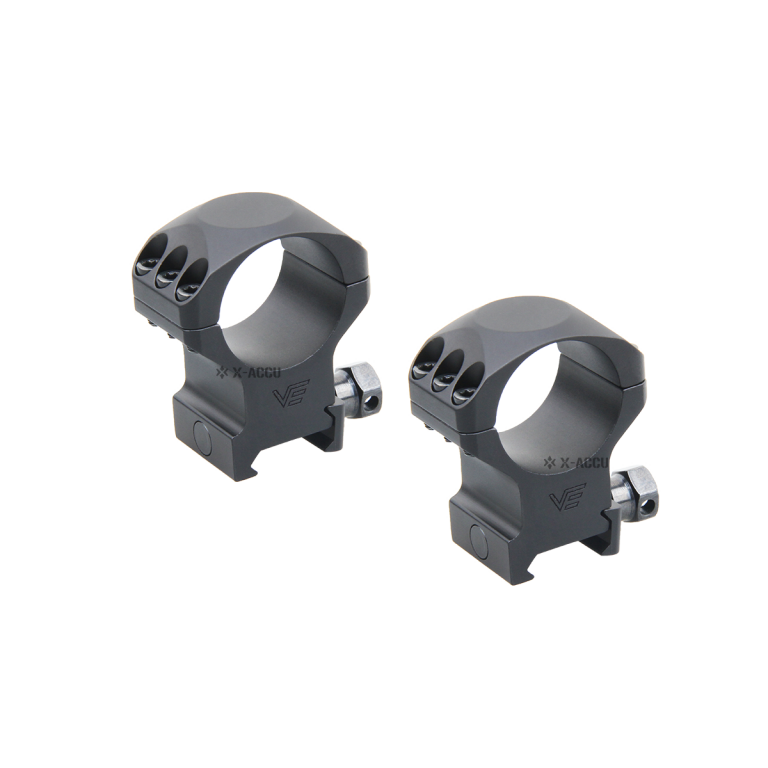

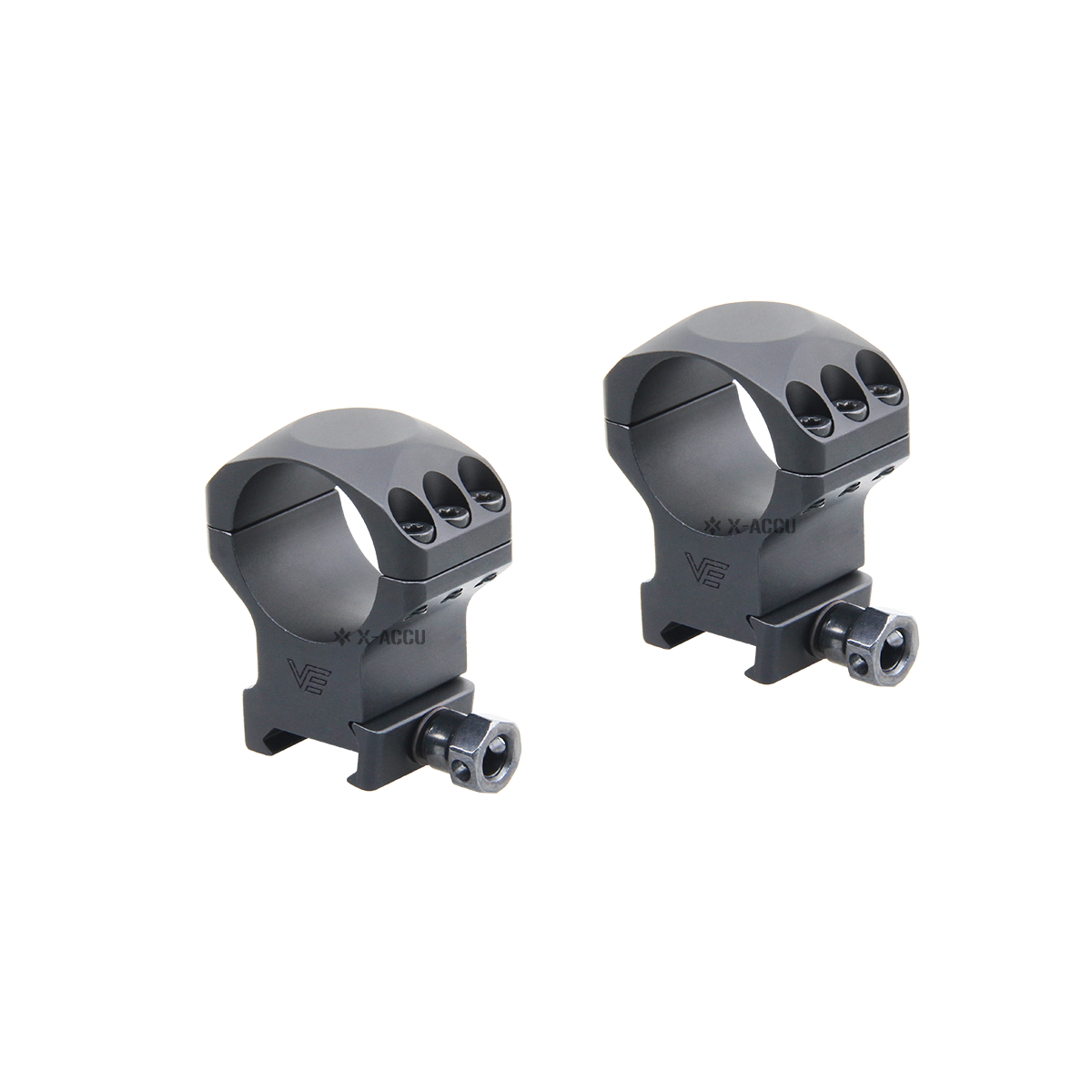

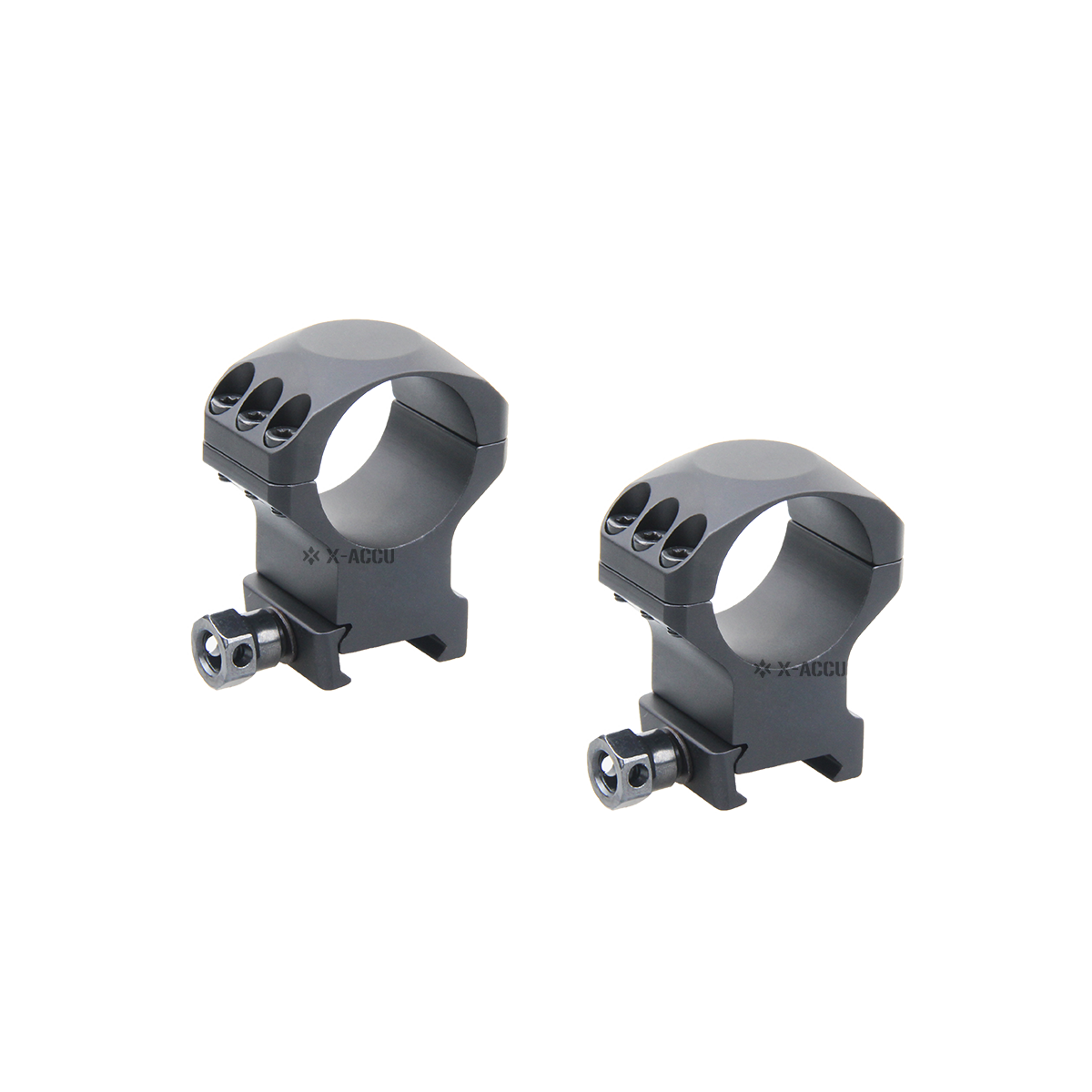

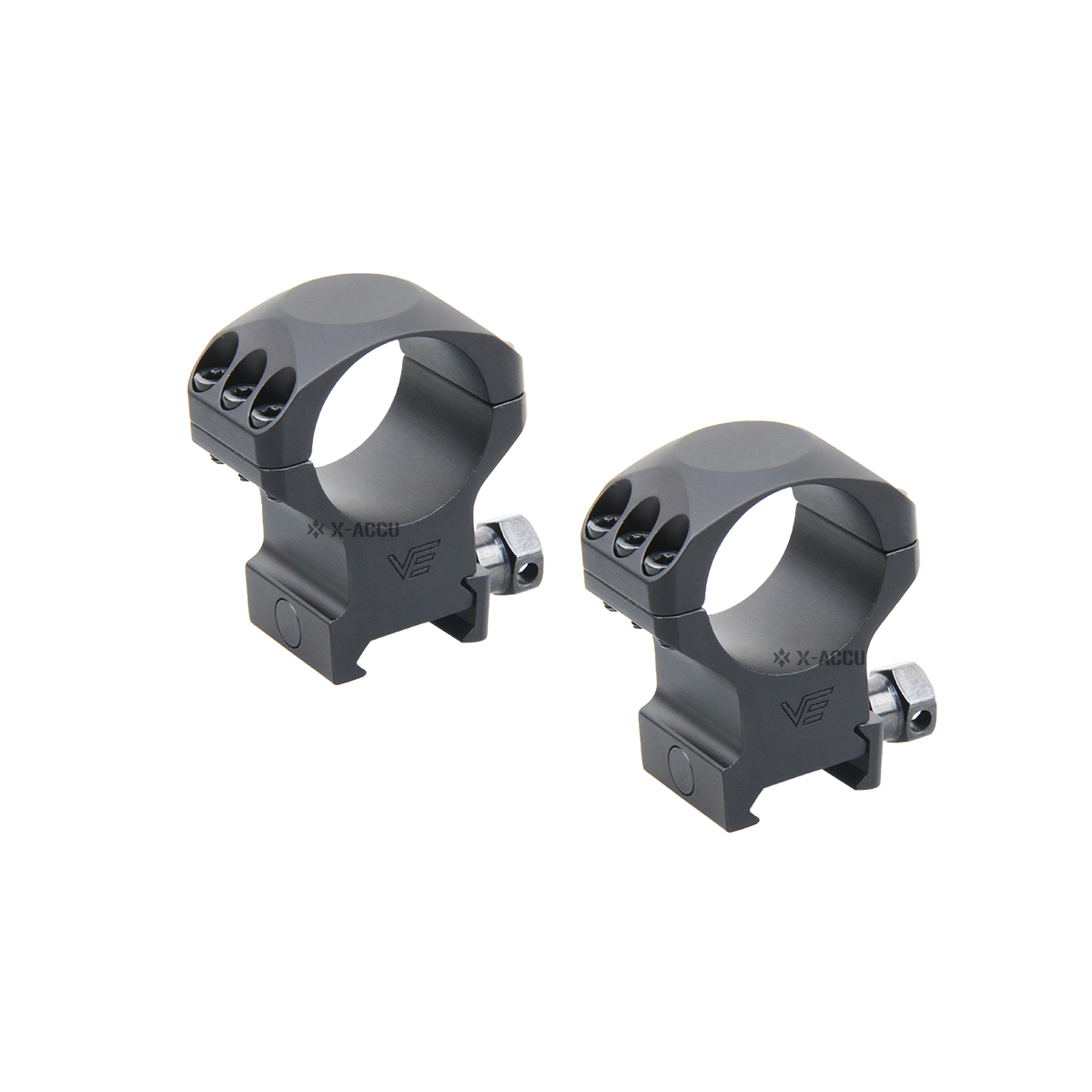

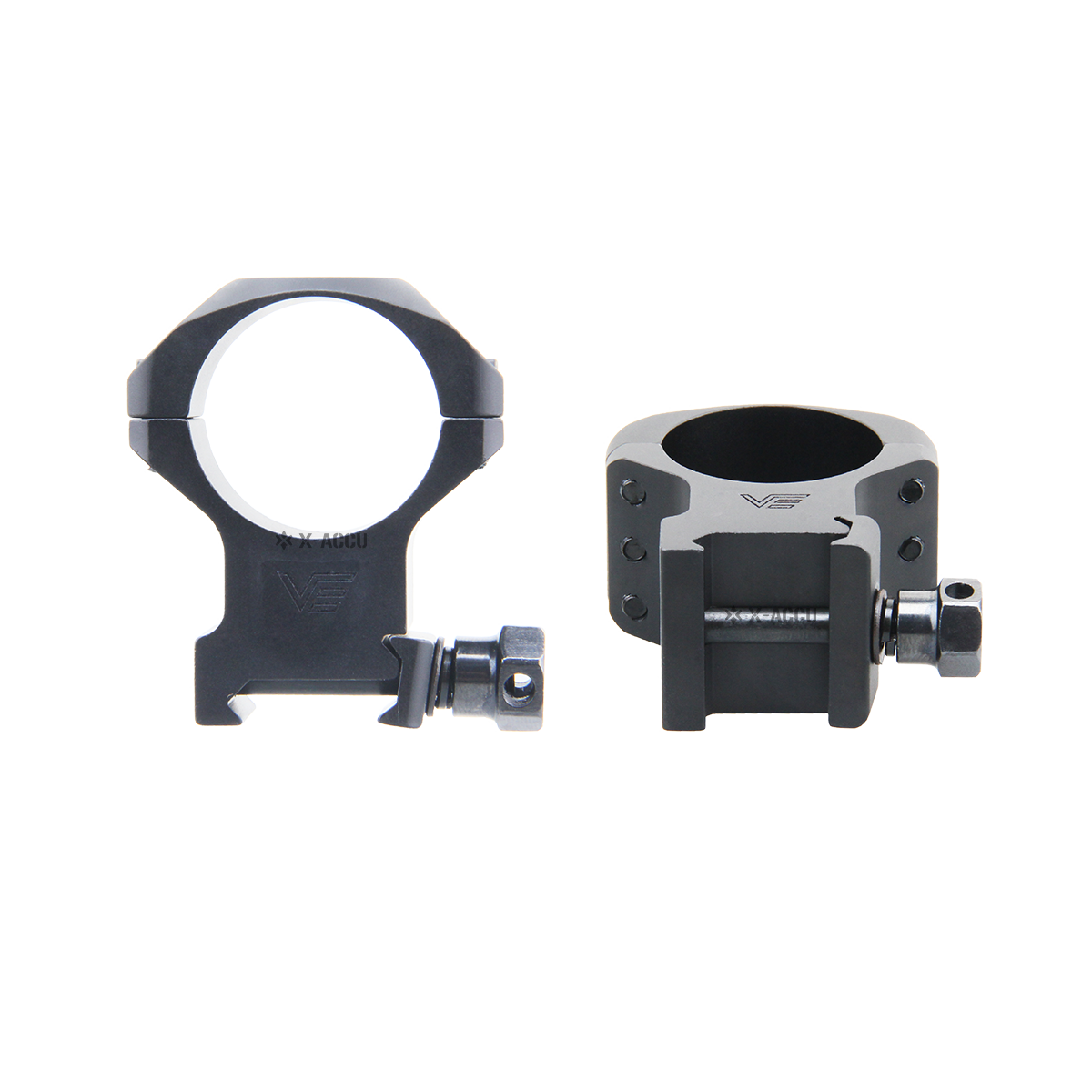

Vector Optics X-Accu 30mm 6 Screw Heavy Duty Medium Picatinny Rings

• Diameter: 30mm
• Height: 32mm 1.25" from bottom to ring centre (16.75mm to the underside of scope tube)
• Ring Width: 26mm 1"
• Weight (net): 155g / 5.5oz
• Finish: Black matte
• Material: 6061-T6
• Mount: 1913 Picatinny
• Unique construction provides strength well with steel cross-bolt
• Six Torx screws per ring will hold your scope under any conceivable situations
• Perfect alignment and superior accuracy
• Do not use over 18 inches/pounds of torque on the scope rings' screws

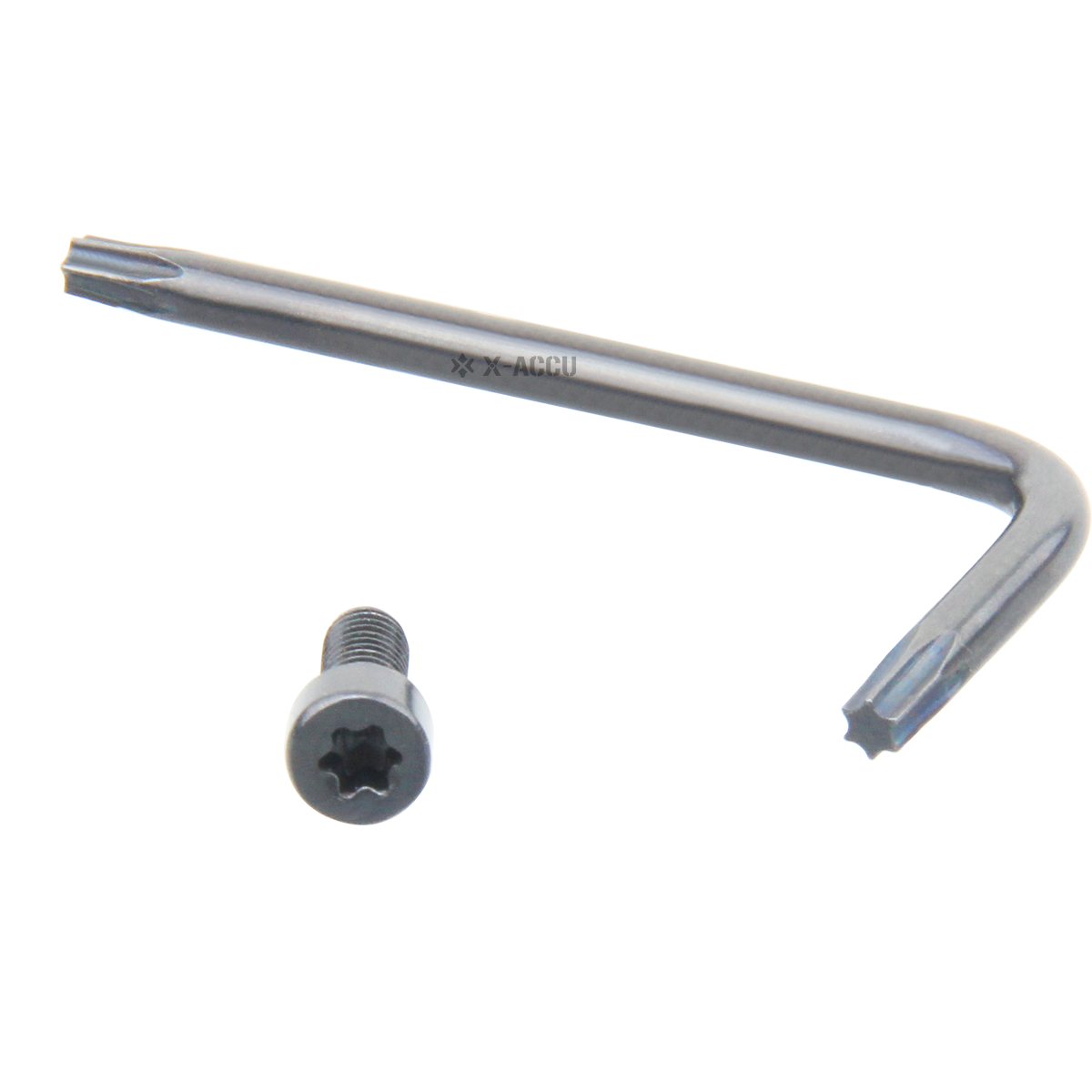

• Fittings include: Hex key
• Suggest 25 inch/pounds (can accept max 45 inch/pounds) torque force for large nut when installing the mount on the Picatinny rail

• Vector Optics X-Accu 30mm 6 Screw Heavy Duty Medium Picatinny Rings.

These mounts are true precision spec Picatiny so thie below may be relevant:

Q1: What’s the difference between Weaver and Picatinny rails?
While they look similar, there are a few key differences:

• Picatinny rails (MIL-STD-1913) have wider slots (5.23 mm) spaced at precise, consistent intervals (10 mm centre-to-centre).

• Weaver rails have narrower slots (approx. 4.6 mm) and inconsistent spacing — some rails only have two or three slots, often placed to fit a specific optic.

Q2: Will a Picatinny mount fit on a Weaver rail?
Sometimes, but not always.

• Many modern Picatinny mounts will fit a Weaver base if the crossbolt isn’t too wide and doesn't require consistent slot spacing.

• However, some precision Picatinny-spec rings/mounts have wider locking lugs that physically won’t fit into the narrower Weaver slots.

• Even when they fit, engagement might not be ideal – particularly for high-recoil rifles or tactical use.

Q3: Will a Weaver mount fit on a Picatinny rail?
Yes, almost always.
The Picatinny’s wider slots easily accept Weaver-style crossbolts. Many scope rings and red dots are designed this way for broader compatibility.

Q4: So which should I choose – Weaver or Picatinny mounts?

• If your base is Picatinny, choose Picatinny rings/mounts for best fit and stability.

• If your base is Weaver, Weaver mounts are guaranteed to fit. You may be able to use Picatinny mounts — just check the crossbolt width.

• For high recoil calibres or precision applications, avoid mixing if possible.

Q5: Is it easy to tell them apart?
It can be subtle.

• Picatinny rails usually have a full-length rail with evenly spaced slots across the entire length.

• Weaver rails often have only two or three slots, placed under where the scope would sit.

Q6: Why do some Picatinny mounts list 'Weaver-compatible'?
These use narrower crossbolts that can fit into Weaver slots. It’s a hybrid approach designed for broader fitment – common on red dots, ring mounts, and adapters.

• 5 Years Vector Optics Warranty
