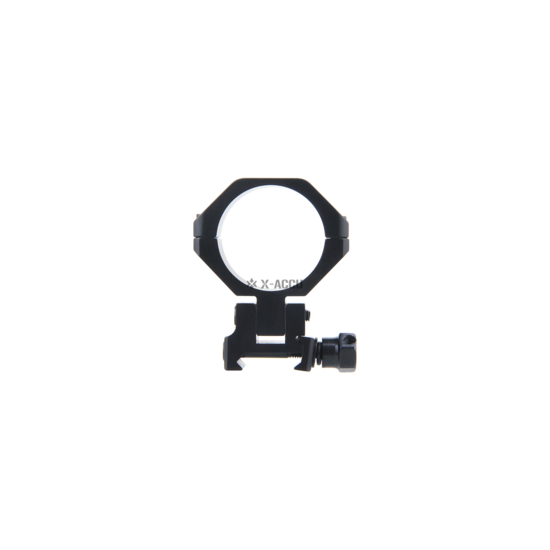

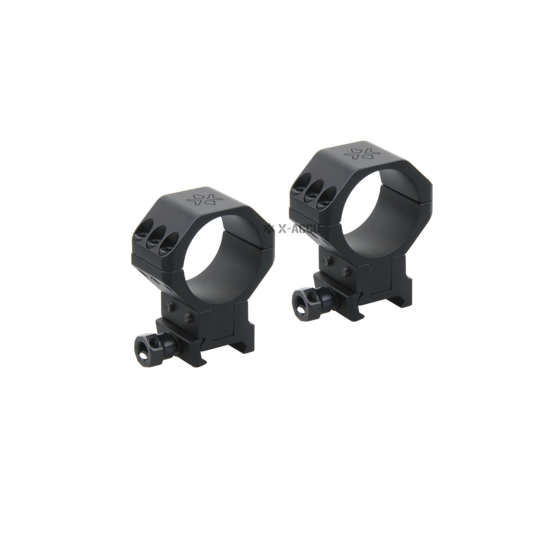

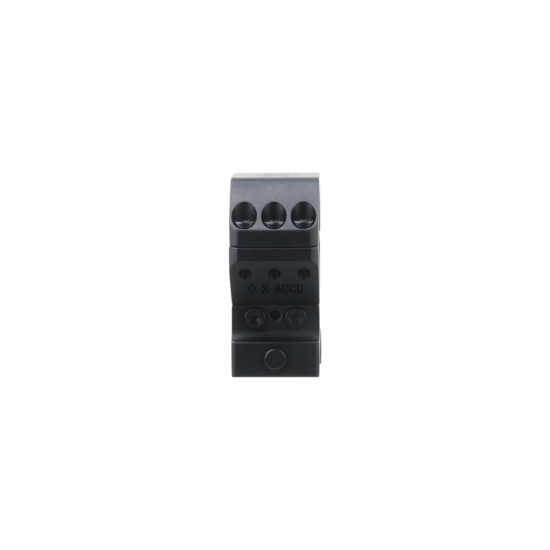

Vector Optics X-ACCU 34mm Adjustable Elevation Weaver/Picatinny Rings
Height & Angle Adjustable
For 34mm tube diameter rifles scopes for fitting to Weaver/Picatinny base rails.
Adjustable Vertical Elevation Height From 34.5 to 40.5mm (1.35-1.60“ Bottom to Ring Center) Plus angle (MOA) adjustable.
6 Torx Screws Per Ring - VERY strong
Can Fit 60mm Objective Lens Scope
CNC Precision Machined
For height and angle adjustment a bubble level and/or angle cosine measure is essential or you won't know if it is level or what angle it is at.
- Diameter: 34mm scope tube
- Height: 34.5-40.5mm (1.35-1.60in) from bottom to ring center
- Ring Width: 26mm 1"
- Weight (net): 165g / 5.8oz; 190g
- Finish: Black matte
- Material: 6061-T6
- Mount: Weaver and 1913 Picatinny
- Unique construction provides strength well with steel cross-bolt
- Six Torx screws per ring will hold your scope under any conceivable situations
- Use maximum over 18 inches/pounds of torque on the scope rings' screws
- Suggest 25 inch/pounds (absolute 45 inch/pounds) torque force for big nut when installing the mount on the Weaver/Picatinny rail
- Going over max torque settings risks damaging scope or rail.
- Fittings include: Hex key.
Q1: How much elevation adjustment do these rings provide?
These rings allow for micro elevation adjustment (in small milliradian or MOA increments) built into the ring body. Useful when your rifle/optic combo needs a bit more vertical reach without extensive turret dialing. For height and angle adjustment a bubble level and/or angle cosine measure is essential or you won't know if it is level or what angle it is at.
Q2: Will they affect zero stability?
No — when installed correctly with even torque on all screws, the design holds zero well. Use consistent torque and pair with quality rings/ring bases to ensure stability.
Q3: Why use adjustable elevation rings instead of turret dialing?
-
Reduces need to constantly adjust turrets in-field
-
Allows minor correction without resetting scope zero
-
Useful for switching between multiple ballistic profiles or ammo types quickly
-
Helps in extreme terrain or elevation changes when turrets may run out of adjustment
Q4: Do they interfere with standard scope mounting?
Not significantly — they mount like regular rings. The internal elevation mechanism is compact so it maintains a similar outer profile to crude “fixed-angle” rings.
Q5: Are they suitable for heavy scopes or high-recoil rifles?
Yes — they’re built for durability to handle heavy glass and recoil. But as always, ensure base and rail strength, along with torque and alignment, are sufficient for your setup.
