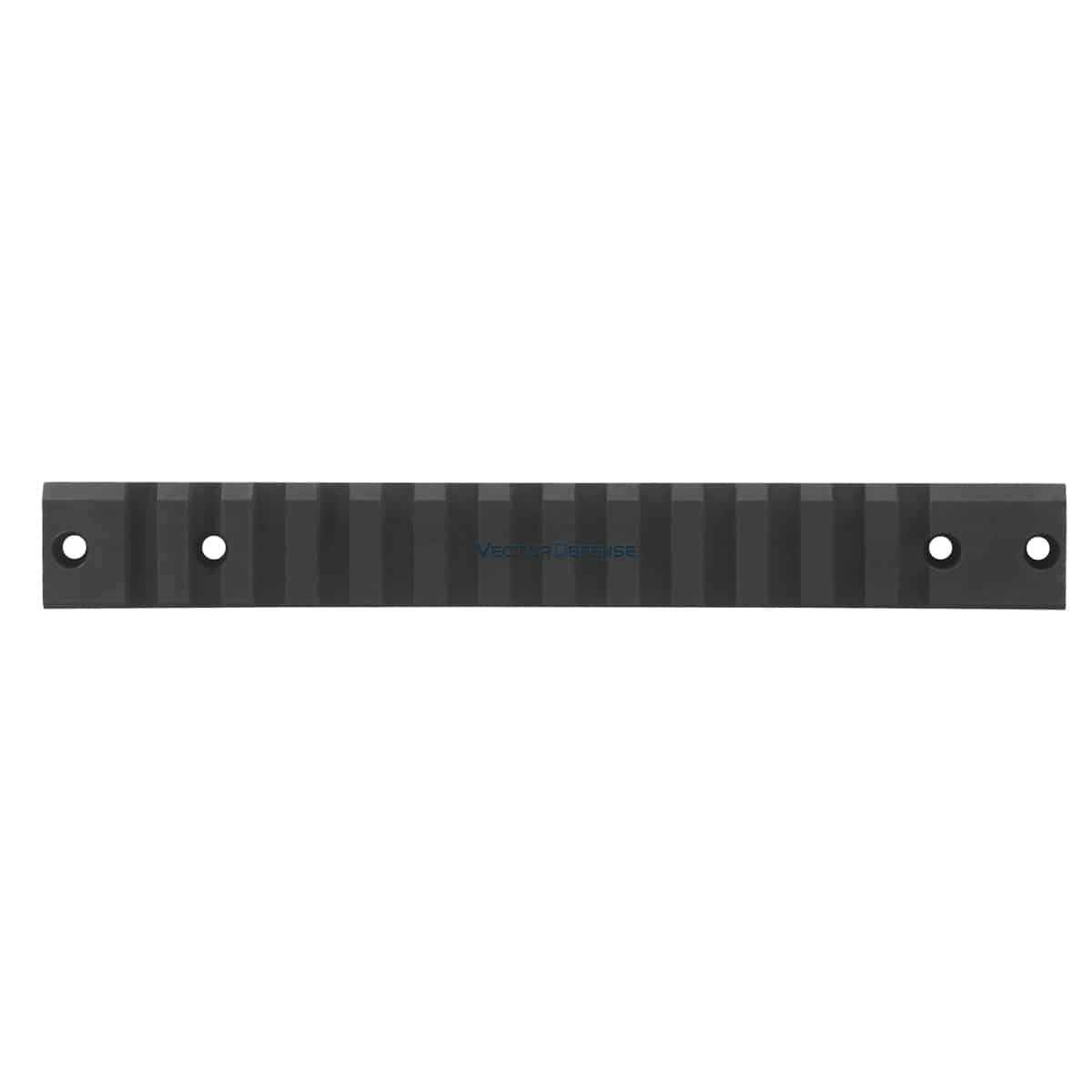

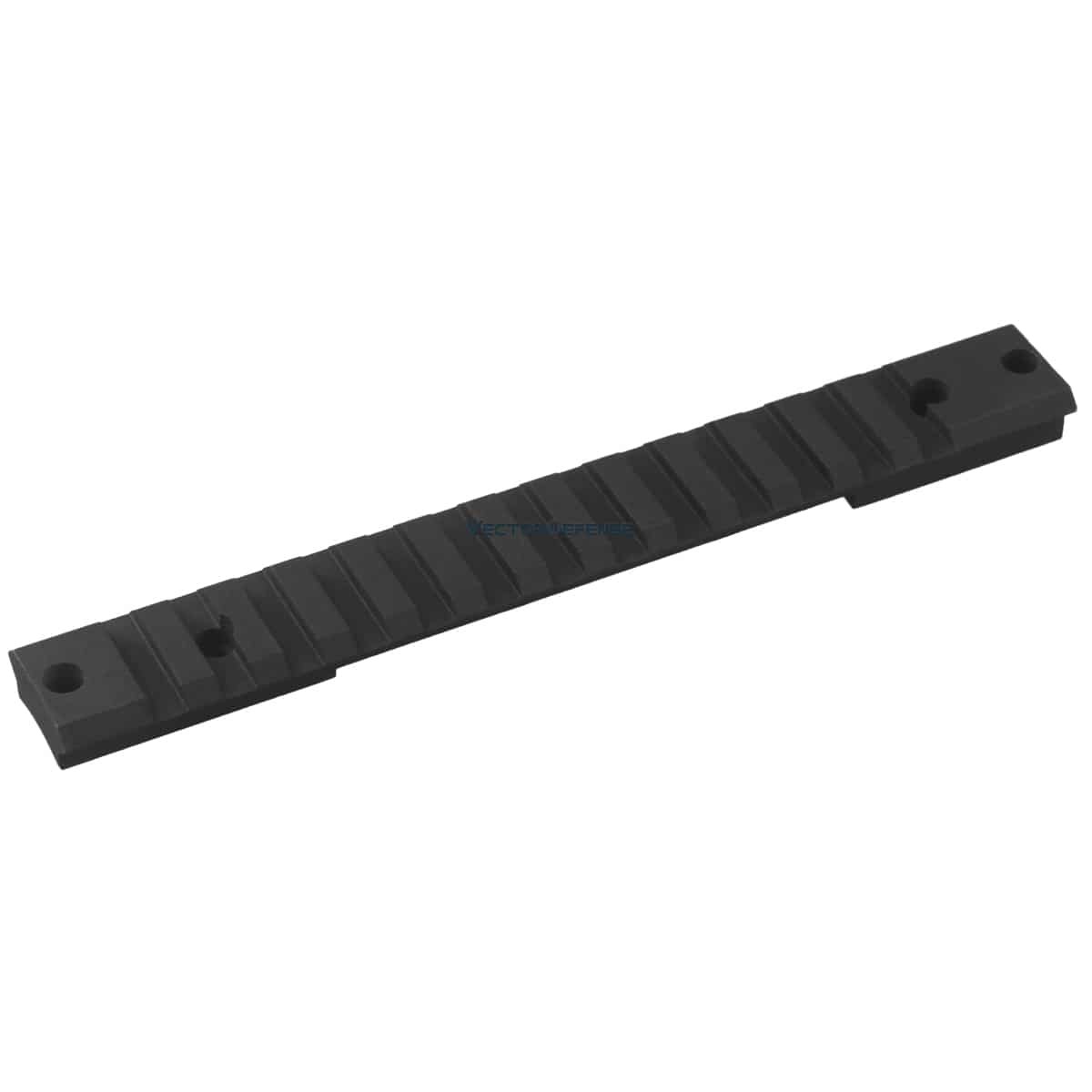

Vector Remington 700 SA Short Action 20MOA Steel Picatinny Rail
- Steel Made
- 20MOA Configuration
- Fit Remington 700 Short Action
- 21mm Picatinny Rail
Vector Optics Remington 700 SA (Short Action) 20 MOA Steel Picatinny Rail – precision angled mounting engineered for long-range accuracy
Enhance long-range performance with this rugged steel rail that provides a built-in 20 MOA cant for elevated elevation adjustment. Designed to install directly onto your Remington 700 short action receiver using factory mounting holes, no extra hardware is required. The sleek steel construction offers exceptional durability and recoil resistance, ensuring your optics stay perfectly aligned. At just 115 grams (4.0 oz) and 138 mm (5.4 in) in length, this rail supports both Weaver and Picatinny rings with its 21 mm 1913 profile.
Technical specifications:
-
Fits: Remington 700 Short Action receiver
-
Cant: 20 MOA built-in elevation (optimised for long-range trajectories)
-
Material: High-durability steel
-
Length: Approx. 138 mm (5.4 inches); Weight: ~115 grams (4 oz)
-
Mount Type: Picatinny / Weaver (21 mm 1913 standard)
-
Installation: Uses factory receiver screws—no adapters needed
-
Construction: Solid steel body for dependable under recoil
-
Warranty: Manufacturer’s standard coverage
Perfect for:
-
Long-distance shooters needing extra elevation built into the mount
-
Hunters and precision shooters upgrading optics on Remington 700 short action rifles
-
Users wanting easy, secure installation with standard Picatinny-compatible rings
- Length: 138mm (5.4 inches)
- Weight: 115g (4.0oz)
- Material: 45 steel
- Finish: Black anodizing
- For Remington 700 short action
- 21mm 1913 Picatinny rail
- Designed for hard use
- 20MOA configuration

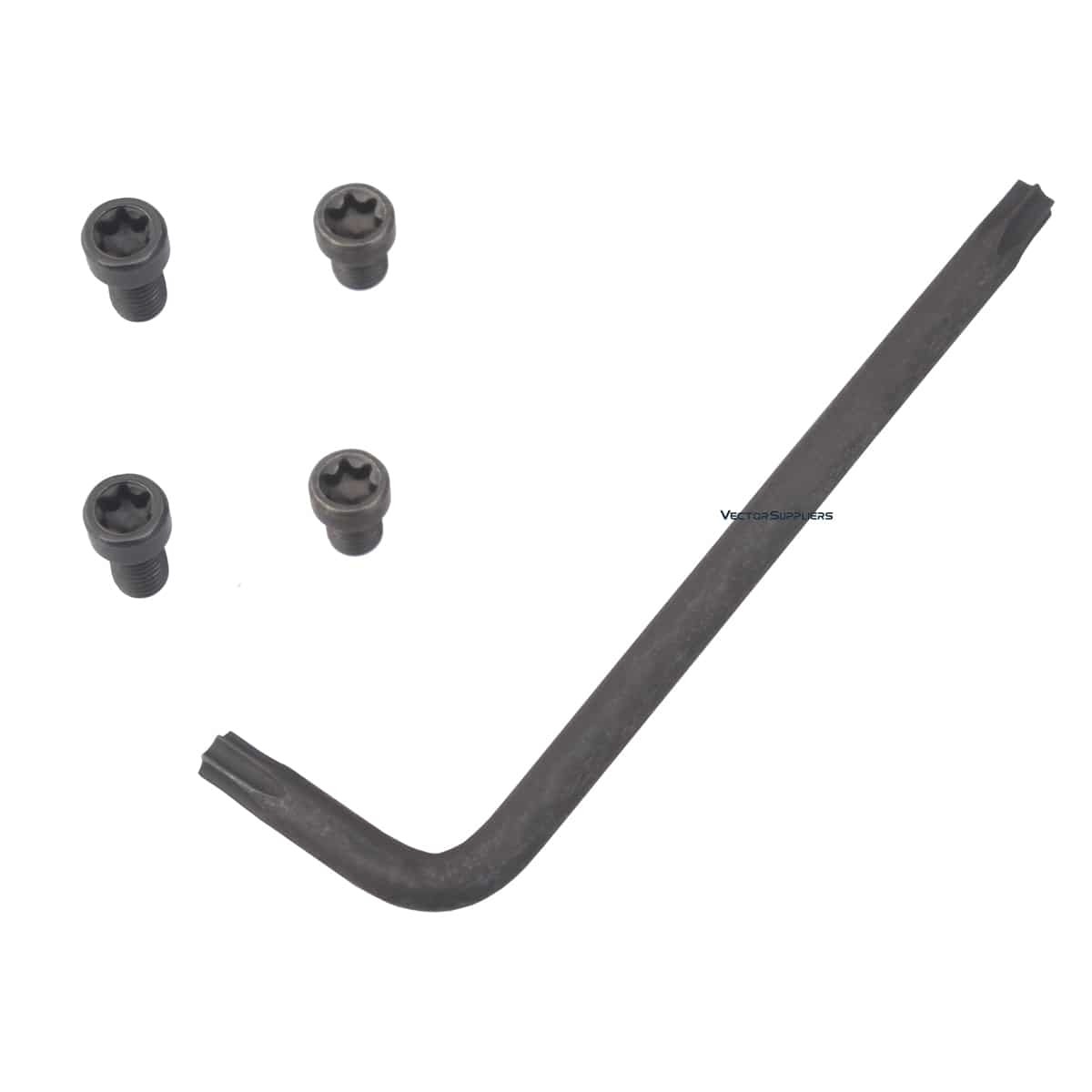

- With T-15 Torx style screws and hex key
- Steel Made
- 20MOA Configuration
- Fit Remington 700 Short Action
- 21mm Picatinny Rail
- Vector Remington 700 SA 20MOA Steel Picatinny Rail
- With T-15 Torx style screws
- hex key
Q: Is the 20 MOA cant accurate?
A: Yes—it’s factory-set to elevate your scope's zero point, ideal for long-range trajectories.
Q: Will my current rings fit?
A: They will if they are Picatinny 21 mm standard, which is Weaver-compatible.Otherwise you will need to buy weaver/picatinny mounts
Q: Does it require any extra hardware?
A: No—it mounts directly using your rifle’s factory screw holes for a secure, hassle-free fit.
Q: Is the construction strong?
A: Absolutely—the steel build stands up to recoil and maintains alignment shot after shot.
Q: How do I check if my rifle is a Short Action (SA) or Long Action (LA)?
A: The action length is determined by the cartridge your rifle is chambered for:
-
Short Action (SA): Typically chambered in calibres such as .308 Win, 6.5 Creedmoor, .243 Win, 7mm-08 Rem, .260 Rem.
-
Long Action (LA): Typically chambered in calibres such as .30-06 Springfield, 7mm Rem Mag, .270 Win, .25-06 Rem.
A quick check is to measure your rifle’s bolt travel:
-
Short Action: Around 2.8 inches (cartridges ~2.8" overall length).
-
Long Action: Around 3.34 inches (cartridges ~3.34" overall length).
If in doubt, check your rifle’s manual, calibre markings, or consult the manufacturer.
- Manufacture's 10 Year Warranty
