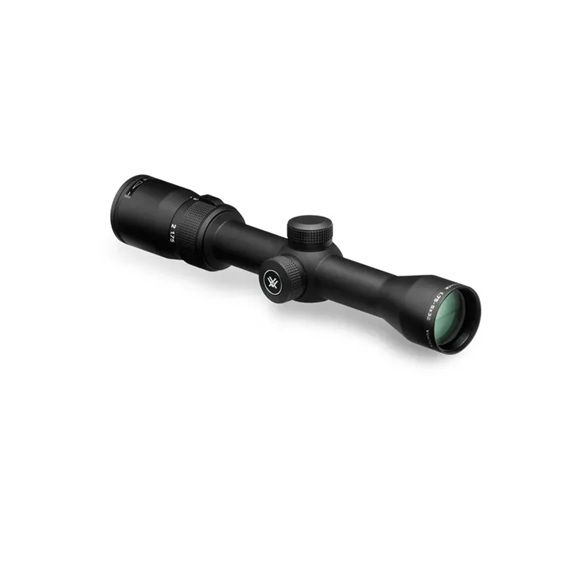

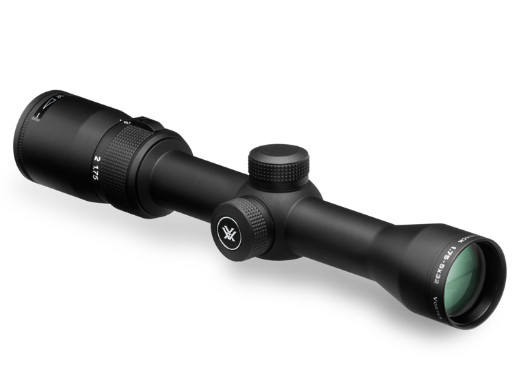

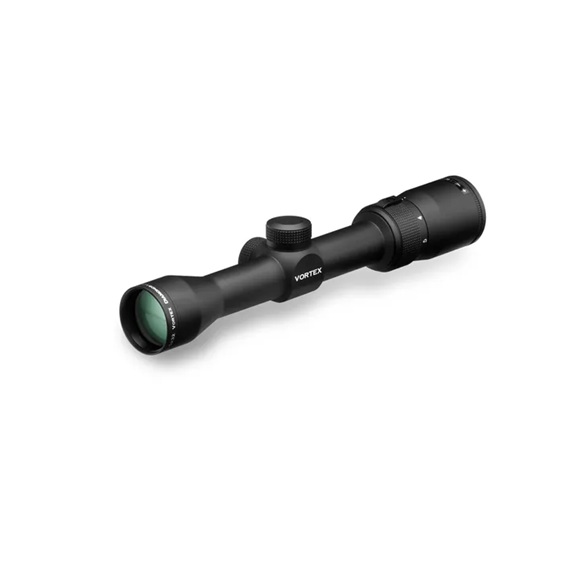

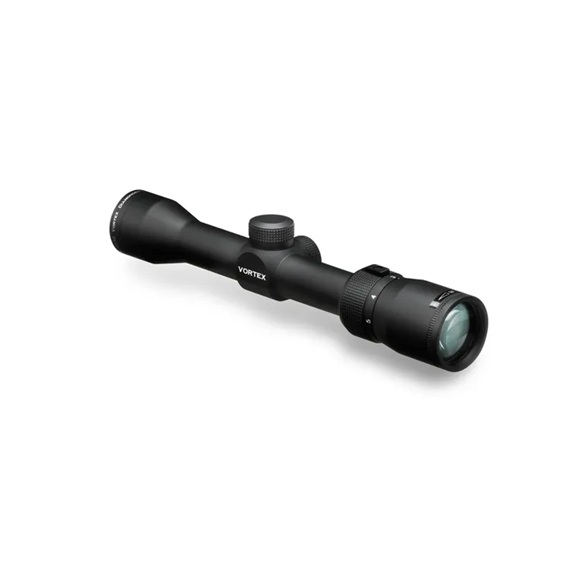

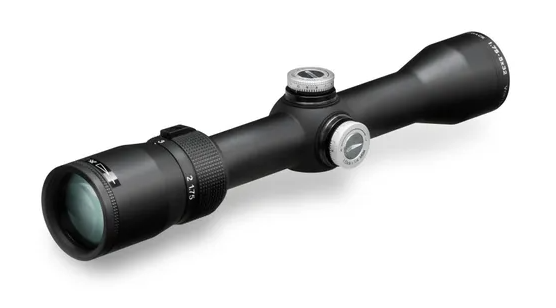

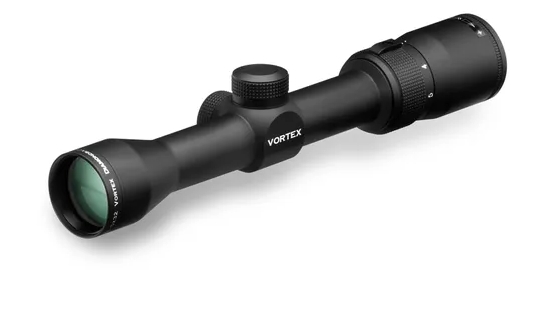

Vortex Diamondback 1.75-5x32 SFP BDC Rifle Scope
- Fully Multi-Coated: Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle: The scale of the reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Illuminated Center Dot: Provides a precise aiming point under low-light conditions.
- Tube Size: 1-inch diameter
- Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminium: Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
- Waterproof: O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof: Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof: Rugged construction withstands recoil and impact.
- Hard Anodised Finish: Highly durable low-glare matte finish helps camouflage the shooter's position.
- Precision-Glide Erector System: Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Capped Reset Turrets: Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for the turret.
- Fast Focus Eyepiece: Allows quick and easy reticle focusing
The Vortex Diamondback 1.75-5×32 is loaded with features! First, the solid one-piece aircraft-grade aluminium alloy construction makes the Vortex Diamondback 1.75-5×32 riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fog-proof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you’d expect to cost quite a bit more-but doesn’t. We can live with that.
- Vortex Diamondback 1.75-5×32 riflescope is ideal for a big game, brush, muzzleloader, turkey, slug shotgun, and dangerous game applications.
- The V-Plex reticle is the single best all-purpose hunting reticle intended for a wide variety of hunting applications.
- Magnification: 1.8-5 x
- Objective Lens Diameter: 32 mm
- Eye Relief: 3.5 inches
- Field of View: 68.3-23.1 feet/100 yards
- Tube Size: 1 inch
- Turret Style: Capped
- Adjustment Graduation: 1/4 MOA
- Travel per Rotation: 15 MOA
- Max Elevation Adjustment: 125 MOA
- Max Windage Adjustment: 125 MOA
- Parallax Setting: 100 yards
- Length: 10.2 inches
- Weight: 12.8 oz
- Made in China
- Vortex VIP Lifetime Warranty
- Fully Multi-Coated: Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
- Second Focal Plane Reticle: The scale of the reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
- Illuminated Center Dot: Provides a precise aiming point under low-light conditions.
- Tube Size: 1-inch diameter
- Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
- Aircraft-Grade Aluminium: Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
- Waterproof: O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
- Fogproof: Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
- Shockproof: Rugged construction withstands recoil and impact.
- Hard Anodised Finish: Highly durable low-glare matte finish helps camouflage the shooter's position.
- Precision-Glide Erector System: Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
- Capped Reset Turrets: Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for the turret.
- Fast Focus Eyepiece: Allows quick and easy reticle focusing

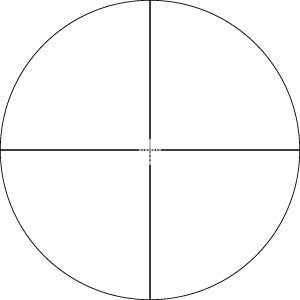

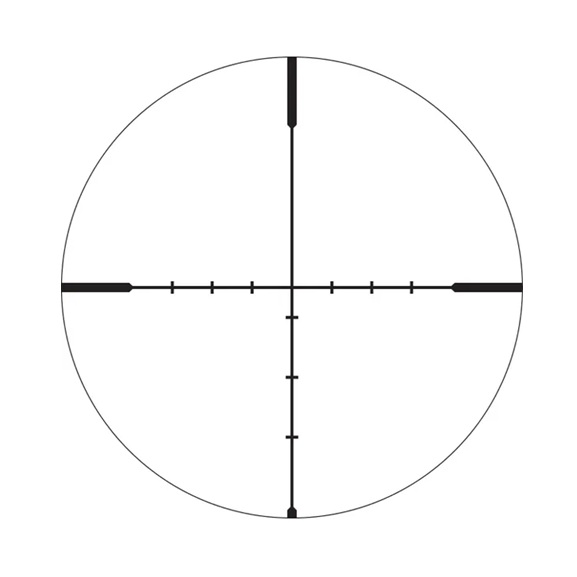

DEAD-HOLD BDC RETICLE:
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.
- Vortex Diamondback 1.75-5x32 SFP BDC Rifle Scope
- Removable lens covers
- Lens cloth
- Vortex VIP Lifetime Warranty
