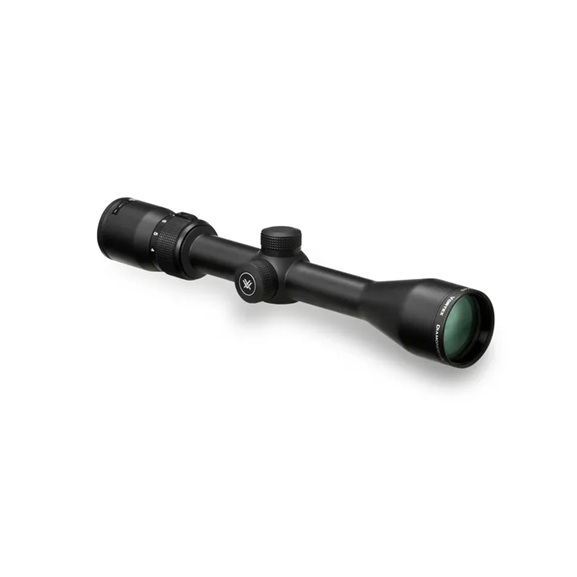

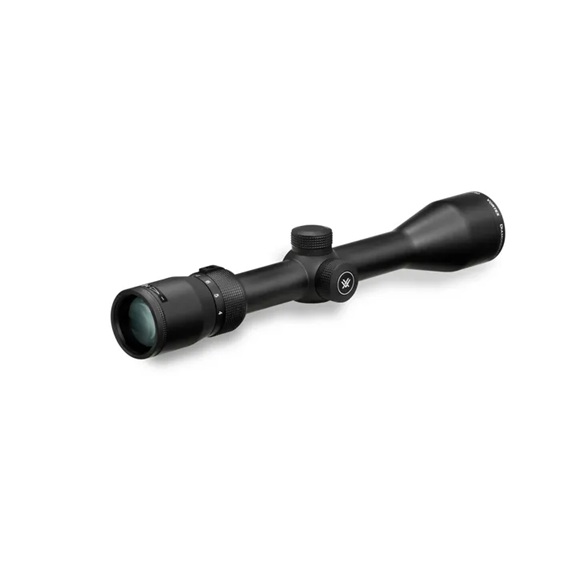

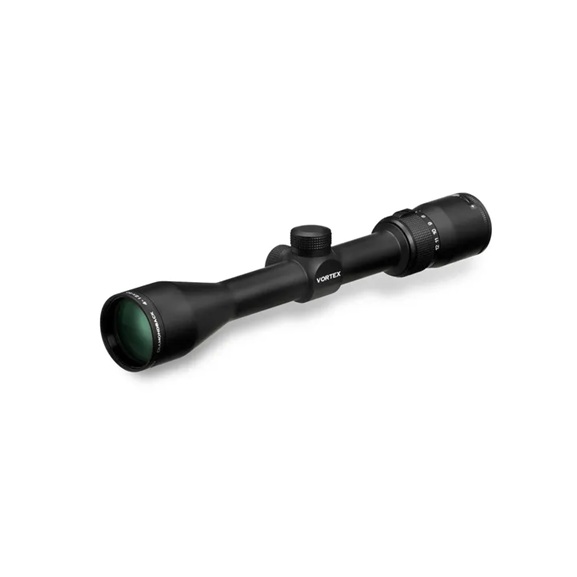

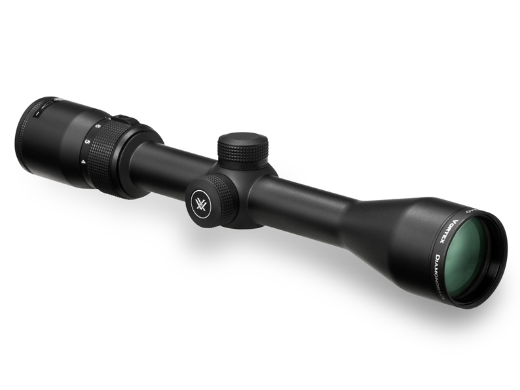

Vortex Diamondback 4-12x40 BDC Rifle Scope
The Vortex Diamondback 4-12x40 is loaded with features! First, the solid one-piece aircraft-grade aluminium alloy construction makes the Vortex Diamondback 4-12x40 riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fog proof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.
- Vortex Diamondback 4-12x40 riflescope is ideal for the big game, predator/varmint, muzzleloader, slug shotgun, long-range, and target applications.
- The V-Plex reticle is the single best all-purpose hunting reticle intended for a wide variety of hunting applications.
Vortex Diamondback 4-12x40 BDC Rifle Scope
| Magnification | 4-12 x |
| Objective Lens Diameter | 40 mm |
| Eye Relief | 3.1 inches |
| Field of View | 32.4-11.3 feet/100 yards |
| Tube Size | 1 inch |
| Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 15 MOA |
| Max Elevation Adjustment | 60 MOA |
| Max Windage Adjustment | 60 MOA |
| Parallax Setting | 100 yards |
| Length | 12 inches |
| Weight | 14.6 ounces |
| Product Manual (PDF) | Download |
DIAMONDBACK 4-12X40 DIMENSIONS
| LENGTHS | |||||
| L1 | L2 | L3 | L4 | L5 | L6 |
| 12.0 | 2.4 | 2.0 | 5.6 | 3.0 | 3.1 |
| HEIGHTS | |
| H1 | H2 |
| 1.89 | 1.69 |
Vortex Diamondback 4-12x40 BDC Rifle Scope
OPTICAL FEATURES |
|
| Fully Multi-Coated | Increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
CONSTRUCTION FEATURES |
|
| Tube Size | 1-inch diameter. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
| Capped Reset Turrets | Allow re-indexing of the turret to zero after sighting in the riflescope. Caps provide external protection for turret. |
INTERNAL MECHANISM DESIGN FEATURES |
|
| Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
CONVENIENCE FEATURES |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
V-PLEX RETICLE (MOA)
A popular all-purpose hunting reticle intended for a wide variety of hunting applications. Subtension detail for the Diamondback 4-12x40 V-Plex Reticle. >

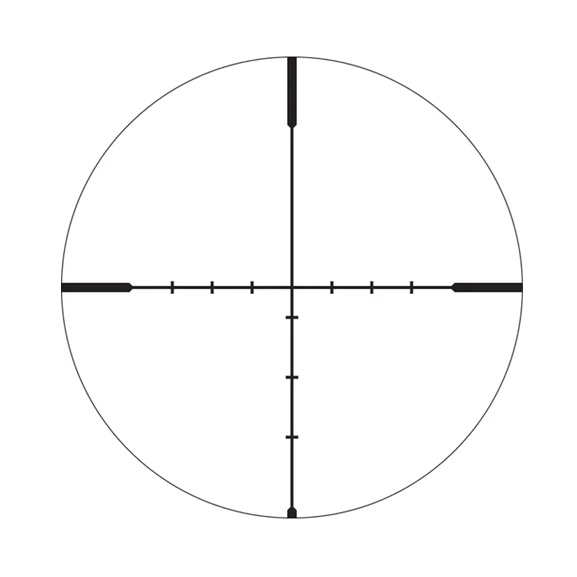

DEAD-HOLD BDC RETICLE
Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern. Subtension detail for the Diamondback 4-12x40 Dead-Hold BDC Reticle. >
Read the Dead-Hold BDC Reticle manual for details on using the reticle for bullet drop compensation and wind drift compensation and ranging.
- Vortex VIP Lifetime Warranty
