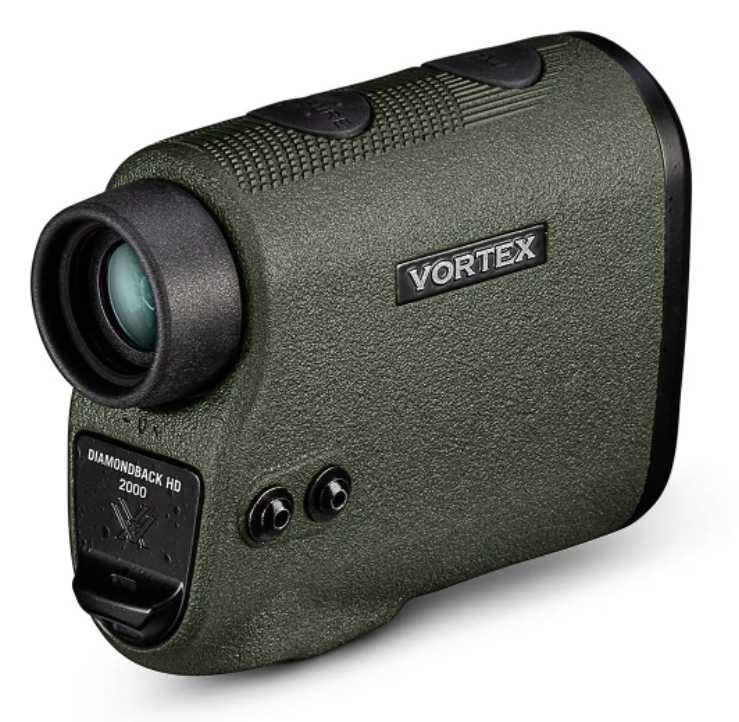

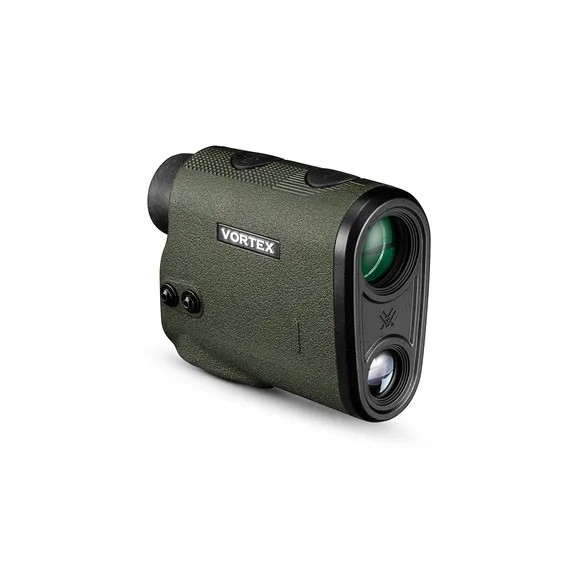

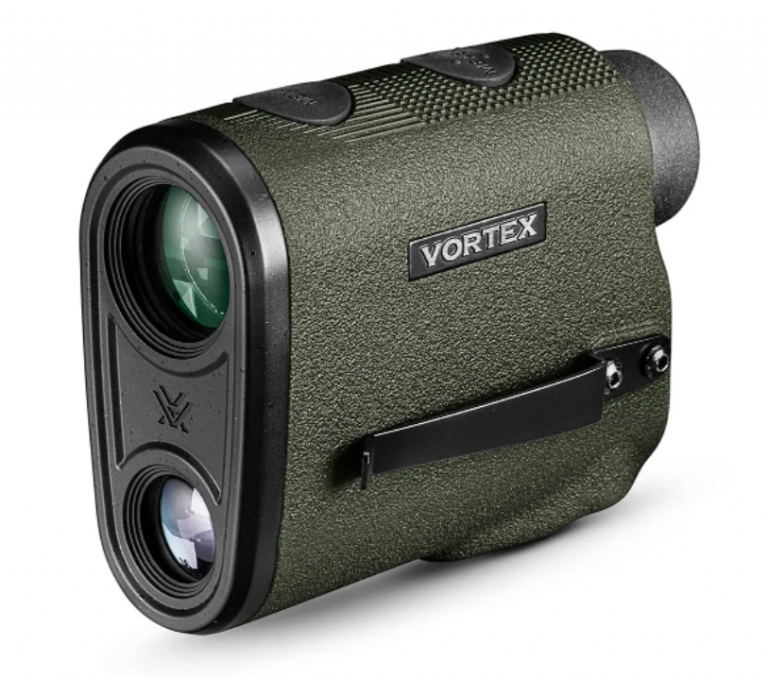

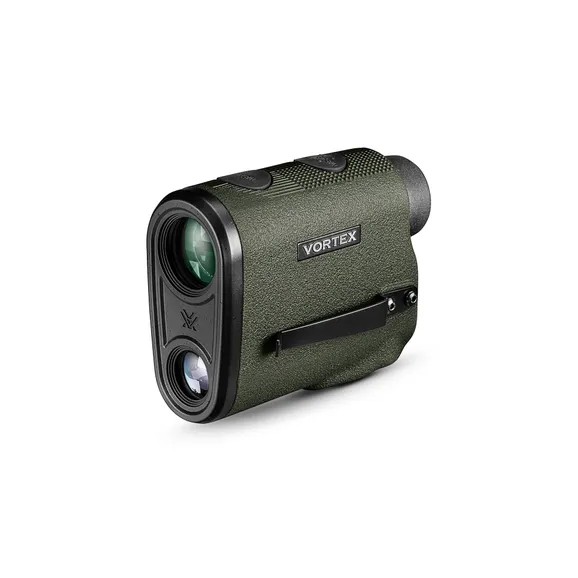

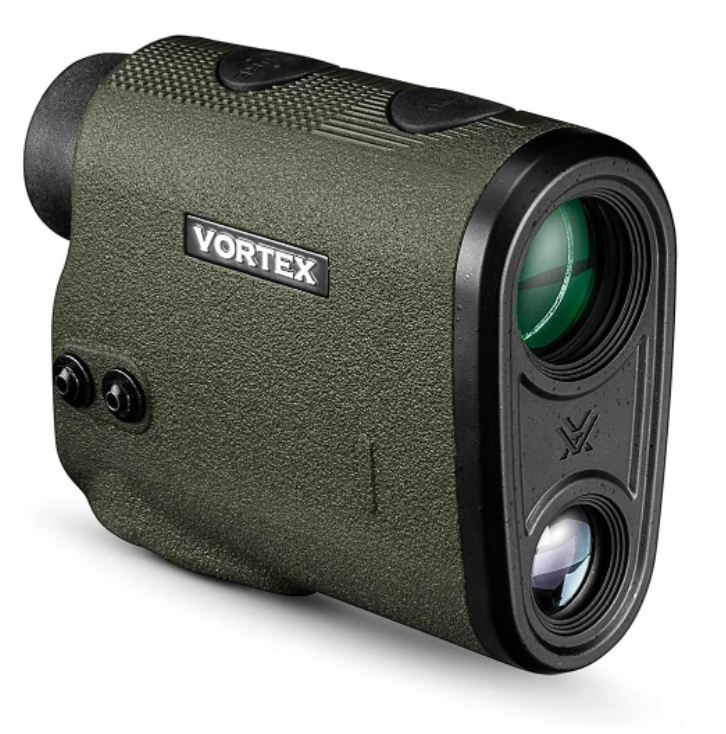

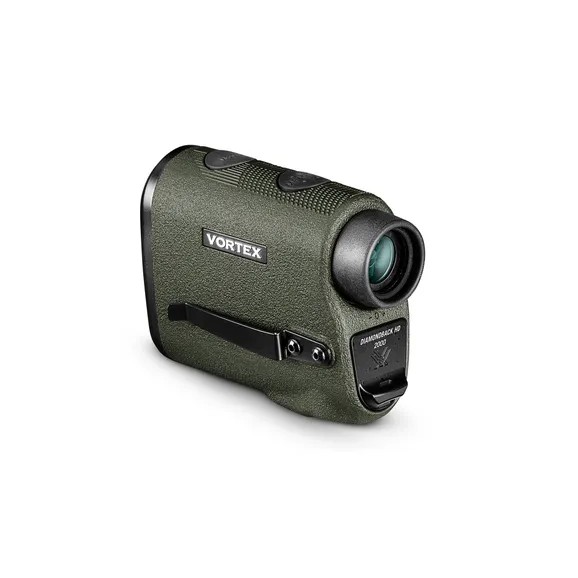

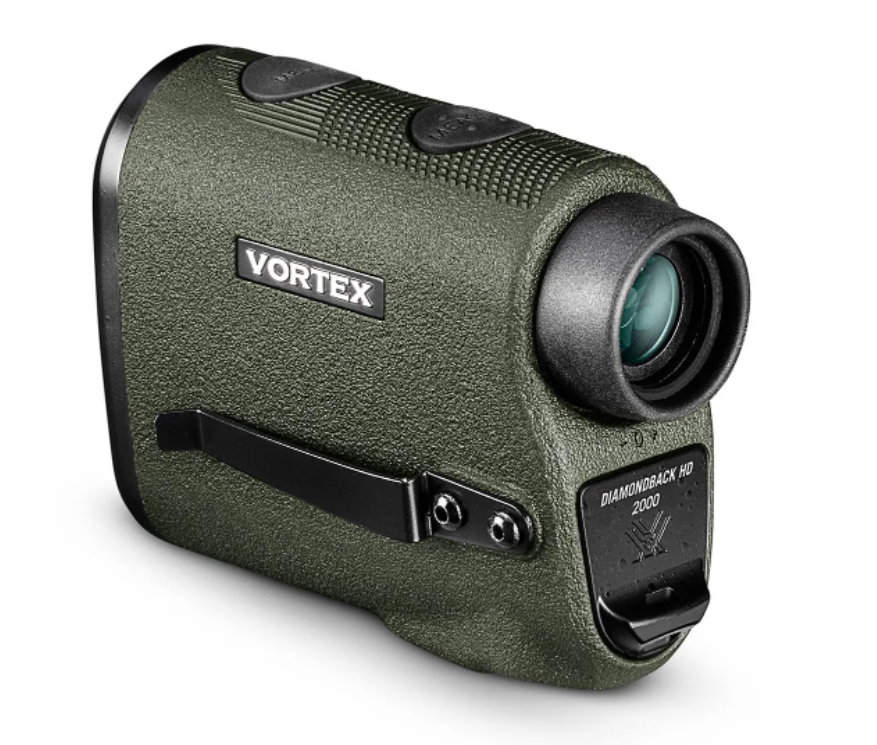

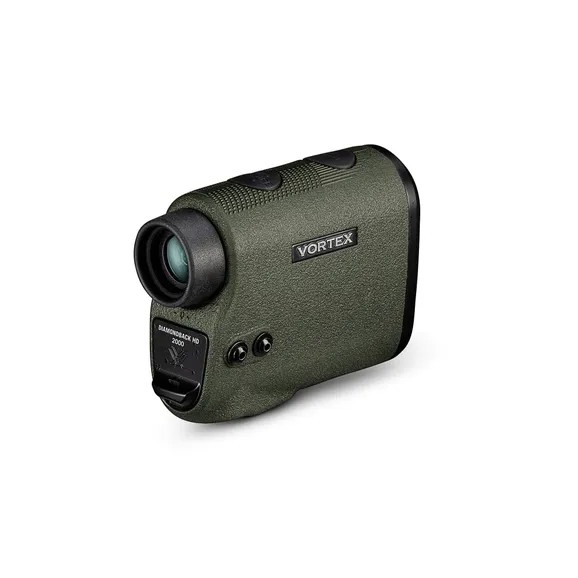

Vortex Diamondback HD 2000 Laser Rangefinder
The Vortex Diamondback HD 2000 Laser Rangefinder is a powerful, compact ranging tool built for hunters and shooters who need reliable distance readings out to long range. With up to 2000-yard reflective ranging capability and 7x magnification, it delivers fast, clear target acquisition before and during ranging. The HD optical system enhances image clarity and contrast, while the red OLED display ensures easy-to-read results in low-light conditions. Multiple target and ranging modes, including angle compensation (HCD/LOS), make it effective in both flat and steep terrain. Built with a rugged, waterproof, and fog-proof housing, it’s designed for harsh field conditions. Lightweight and easy to carry, it’s backed by Vortex’s lifetime warranty for total confidence in the field.
-Nathan (Technical Advisor)
When your hunt means ranging big game at 1,000 yards and beyond, your laser rangefinder needs the horsepower to go long and the toughness to stand up to the field.
The Diamondback HD 2000 laser rangefinder gives hunters 2,000 yards max range, and 1,400 yards on game.
7x magnification helps you see farther, and an HD optical system means you can pick apart the landscape and stay pinpointed on your quarry.
The red OLED display stays clear in low light, and to match any hunting environment, the Diamondback HD 2000 has two target modes (Normal and Last), two ranging modes (HCD and LOS), and is tripod adaptable.
Perfect for:
-
Hunters needing accurate range data on varied terrain
-
Rifle, shotgun, and archery users looking for clarity and fast readings
-
Outdoor users who demand rugged gear that works in any weather
- Magnification 7x
- Objective Lens Diameter 24 mm
- Eye Relief 16.0 mm
- Angular Field of View 6.4º
- Linear Field of View 335' @ 1000 yds
- Range Reflective (yards) Up to 2,000 yds
- Range Tree (yards) Up to 1,800 yds
- Range Deer (yards) Up to 1,400 yds
- Minimum Range 5 yds
- Accuracy 1 yd @ 100 yds
- Length 4.1"
- Height 3.1"
- Width 1.8"
- Weight 7.6 oz
- Max Angle Reading ± 60º
- HD Optical System using select glass elements for excellent resolution, reduced chromatic aberration, and outstanding colour fidelity with edge-to-edge sharpness.
- XRâ„¢ Plus Lens Coatings provide premium anti-reflective performance, enhancing brightness and clarity in low-light environments.
- ArmorTek® Protective Coating shields exterior lenses from scratches, oil and dirt for long-term field durability.
- Rubber Armour offers a secure, non-slip grip and robust physical protection in all weather conditions.
- HCD Ranging Mode supplies angle-compensated distances ideal for both bowhunters and rifle shooters.
- Line of Sight (LOS) Mode displays the true, uncompensated distance for shooters using ballistic applications or custom data.
- Scan Feature delivers continuous distance readings while sweeping across landscapes or tracking moving game.
- Normal Target Mode provides the strongest, most reliable range return for general use.
- Last Target Mode prioritises the farthest target, enabling accurate ranging beyond brush, trees or obstructions.

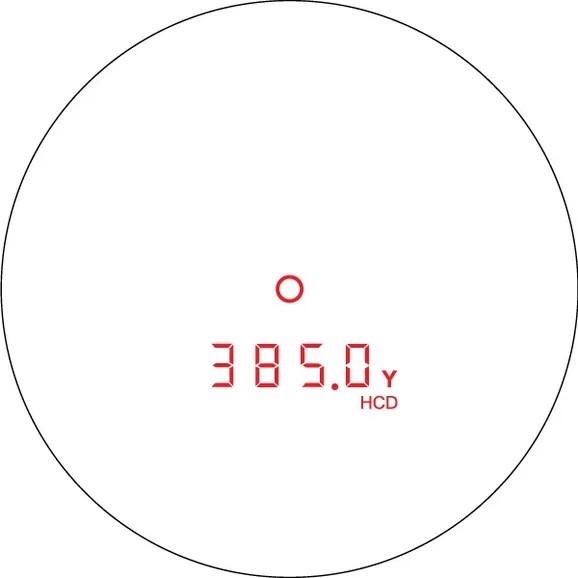

- Red OLED Display optimised for low-light readability, improving visibility at dawn, dusk and in shaded environments.
- User-Adjustable Dioptre for fine-tuning focus to the user’s eyesight.
- Selectable Ranging Format allowing measurement in yards or metres.
- Tripod Adaptable for increased stability on long-range shots (tripod adapter may be required).
- Waterproof and Shockproof Construction built to withstand demanding field abuse and severe weather.
HCD CORRECTED SHOOT-TO RANGE
The Diamondback HD 2000 uses HCD (Horizontal Component Distance) angle-compensated ranging technology to give bow and rifle shooters the critical distance data needed to make accurate shots.
- Soft Carry Case
- Wrist Lanyard
- Bungee Cord Lanyard
- Lens Cloth
- Utility Clip
- 2mm Hex Wrench
- Hook and Loop Harness Attachment
- CR2 Battery
Q: What’s HCD mode and why does it matter?
A: HCD (Horizontal Component Distance) gives you slope-compensated range—crucial for accurate downhill or uphill shots.
Q: When should I use LOS mode?
A: For ballistic solvers or when precise line-of-sight range is needed—especially at long range with elevation.
Q: How fast and accurate is it?
A: It delivers readings in about 0.25 seconds with accuracy within 1 yard out to about 100 yards.
Q: Will it keep working in harsh conditions?
A: Yes—it’s sealed against water, fog, and impact, with a robust rubber housing for extra protection.
About ranging modes:
Many rangefinders include two main ranging modes:
-
HCD (Horizontal Component Distance): Calculates slope-corrected distance, making it ideal for angled shots uphill or downhill.
-
LOS (Line Of Sight): Provides the raw, straight-line distance. Essential for ballistic calculators and advanced long-range shooters.
FAQ style insert:
Q: When should I use HCD mode?
A: For most hunting and field shooting—especially when elevation is involved.
Q: When is LOS better?
A: When pairing the rangefinder with ballistic solvers or shooting at very long distances where precise line data is critical.
Q: Do I need to switch between modes?
A: Not always—many hunters use HCD exclusively, while precision shooters may swap to LOS for solver input.
