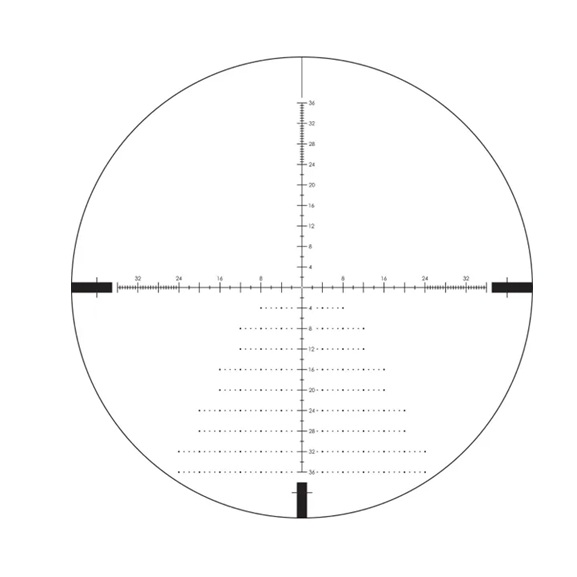

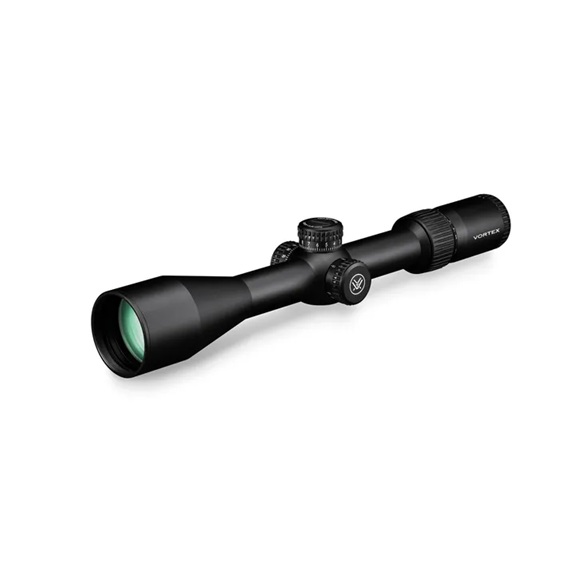

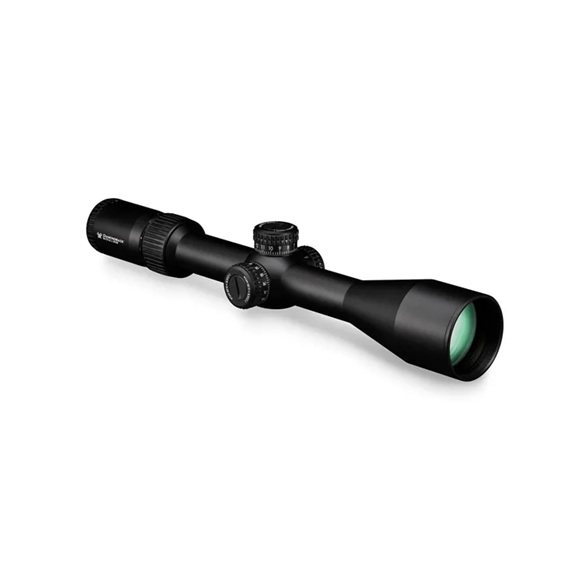

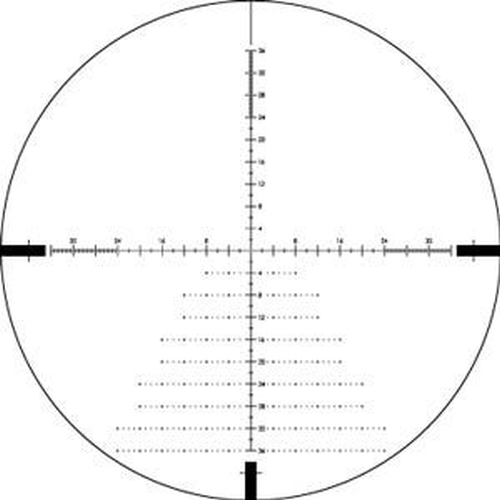

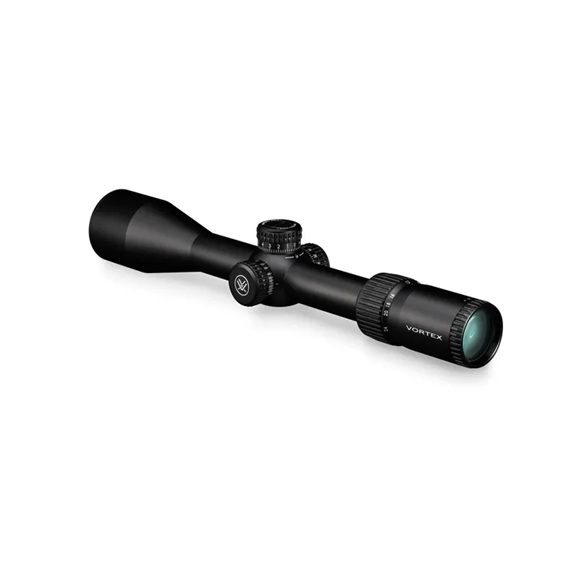

Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
- Magnification: 6-24 x
- Objective Lens Diameter: 50 mm
- Eye Relief: 3.9 inches
- Field of View: 18-4.5 feet/100 yards
- Tube Size: 30 mm
- Turret Style: Tall Exposed Tactical
- Adjustment Graduation: 1/4 MOA
- Travel per Rotation: 15 MOA
- Max Elevation Adjustment: 65 MOA
- Max Windage Adjustment: 65 MOA
- Parallax Setting: 10 yards to Infinity
- Length: 14.5 inches
- Weight: 24.6 ounces
Lengths
- L1: 14.5
- L2: 2.34
- L3: 2.73
- L4: 6.5
- L5: 4.0
- L6: 3.75
Height
- H1: 2.44
- H2: 1.73
Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
Optical Features
XD Lens Elements
Extra-low dispersion (XD) glass increases resolution and colour fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
First Focal Plane
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Construction Features
Tube Size
30 mm diameter provides maximized internal adjustment and strength.
Nitrogen Gas Purged
Gas purged and o-ring sealed for fogproof and waterproof performance in all conditions.
Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof
Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Shockproof
Rugged construction withstands recoil and impact.
Hard-Anodised Finish
Highly durable low-glare matte finish helps camouflage the shooter's position.
Precision-Glide Erector System
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Exposed Tactical Turrets
The Diamondback® Tactical scopes feature tactical windage and elevation turrets with Zero-Reset making adjustments back to zero easy and quick.
Internal Mechanism Design Features
Precision-Glide Erector System
Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.
Precision-force Spring System
Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Convenience Features
Fast Focus Eyepiece
Allows quick and easy reticle focusing.
Magnification Rib
The raised rib on the magnification ring facilitates fast magnification changes in the heat of action.
Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
- Lens Covers
- Lens Cloth
- Sunshade
Vortex Diamondback Tactical 6-24x50 FFP EBR-2C MOA Non IR Rifle Scope
Vortex VIP Lifetime Warranty
