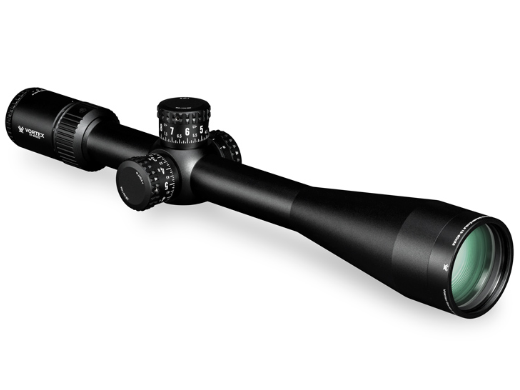

Vortex Golden Eagle HD 15-60x52 ECR-1 1/8 MOA Rifle Scope
Vortex Golden Eagle HD 15-60x52 ECR-1 1/8 MOA Rifle Scope
The Vortex Golden Eagle HD 15-60x52 was specifically designed for long-range, F-class, and other competition shooters. The Vortex Golden Eagle HD 15-60x52 comes with a 4x optical zoom, side focus, generous eye relief, and ruggedly constructed single-piece 30mm main tube will ensure you’re ready for your next match.
Competitive shooters require a very specific set of features to stay ahead of the competition, and The Vortex Golden Eagle HD 15-60x52 hits the mark (pun intended). The 15-60x magnification, fine reticle, and positive and repeatable tracking are perfect for fine tuning that record shot. Plus, its relatively lightweight—29.5 oz.—allows shooters to adhere to strict competition weight limits.
Whether you’re interested in Rimfire Bench Rest, Centerfire Bench Rest, NRA High-Power or F-Class competitions, the Vortex Golden Eagle HD 15-60x52 is for you.
BUTLER CREEK SIZES EYE 19 OBJECTIVE 45 (THESE ARE NOT INCLUDED BUT CAN BE ORDERED SEPARATELY)
Vortex Golden Eagle HD 15-60x52 ECR-1 1/8 MOA Rifle Scope
| Magnification | 15-60 x |
| Objective Lens Diameter | 52 mm |
| Eye Relief | 3.9 |
| Field of View | 6.3-1.7 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Target |
| Adjustment Graduation | 1/8 MOA |
| Travel per Rotation | 10 MOA |
| Max Elevation Adjustment | 55 MOA |
| Max Windage Adjustment | 45 MOA |
| Parallax Setting | 15 to Infinity |
| Length | 16.1 inches |
| Weight | 29.7 oz |
Vortex Golden Eagle HD 15-60x52 ECR-1 1/8 MOA Rifle Scope
OPTICAL FEATURES |
|
| APO System | Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum. |
| Optically Indexed Lenses | Optimize image sharpness and brightness from edge to edge. |
| HD Lens Elements | Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. |
| XRPlus Fully Multi-Coated | Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness. |
| Plasma Tech | Cutting edge application process provides unparalleled coating durability and performance. |
| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at 40x magnification. |
CONSTRUCTION FEATURES |
|
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength while maintaining lightweight. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
| Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Rugged construction withstands recoil and impact. |
| ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Side Focus | Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
INTERNAL MECHANISM DESIGN FEATURES |
|
| Extra-Fine Resolution Turret | The resolute increment of adjustment of just 0.125 MOA per click allows competitive shooters to make very small adjustments to fine tune their shots. |
CONVENIENCE FEATURES |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Optional 10 MOA Windage Turret | Included accessory turret allows for dialing a full 10 MOA revolution of windage before the scale repeats. |
| ASR (Aperture Stop Ring) | Broadens the depth of focus allowing the shooter to more easily observe downrange mirage and other wind indicators while keeping the target in focus. |
| Aluminum Lens Caps | Premium aluminum screw on eyepiece and objective lens covers included. |
ECR-1 RETICLE (MOA)
The ECR-1(Enhanced Battle Reticle) is a hashmarked ranging reticle using moa based subtension lines for ranging, holdover, and windage corrections. Subtension detail for Golden Eagle HD riflescope with ECR-1 MOA reticle.
Included in the Box
- Lens Cloth
- 2mm Hex Wrench
- 35mm ASR (Aperture Stop Ring)
- Extra Windage Turret with alternative laser markings
- Aluminum Objective and Eyepiece Lens Covers
- 3" Sunshade
