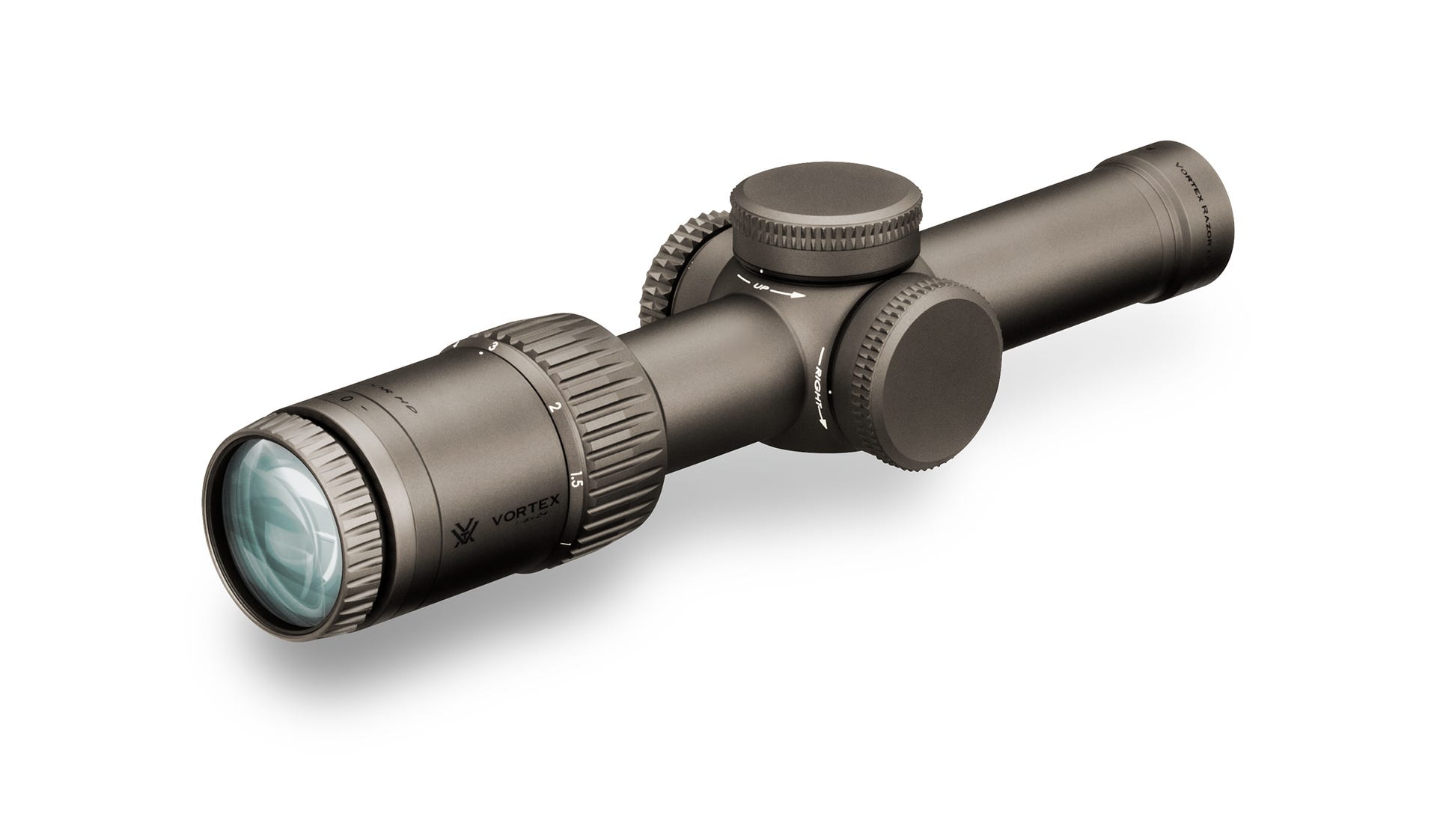

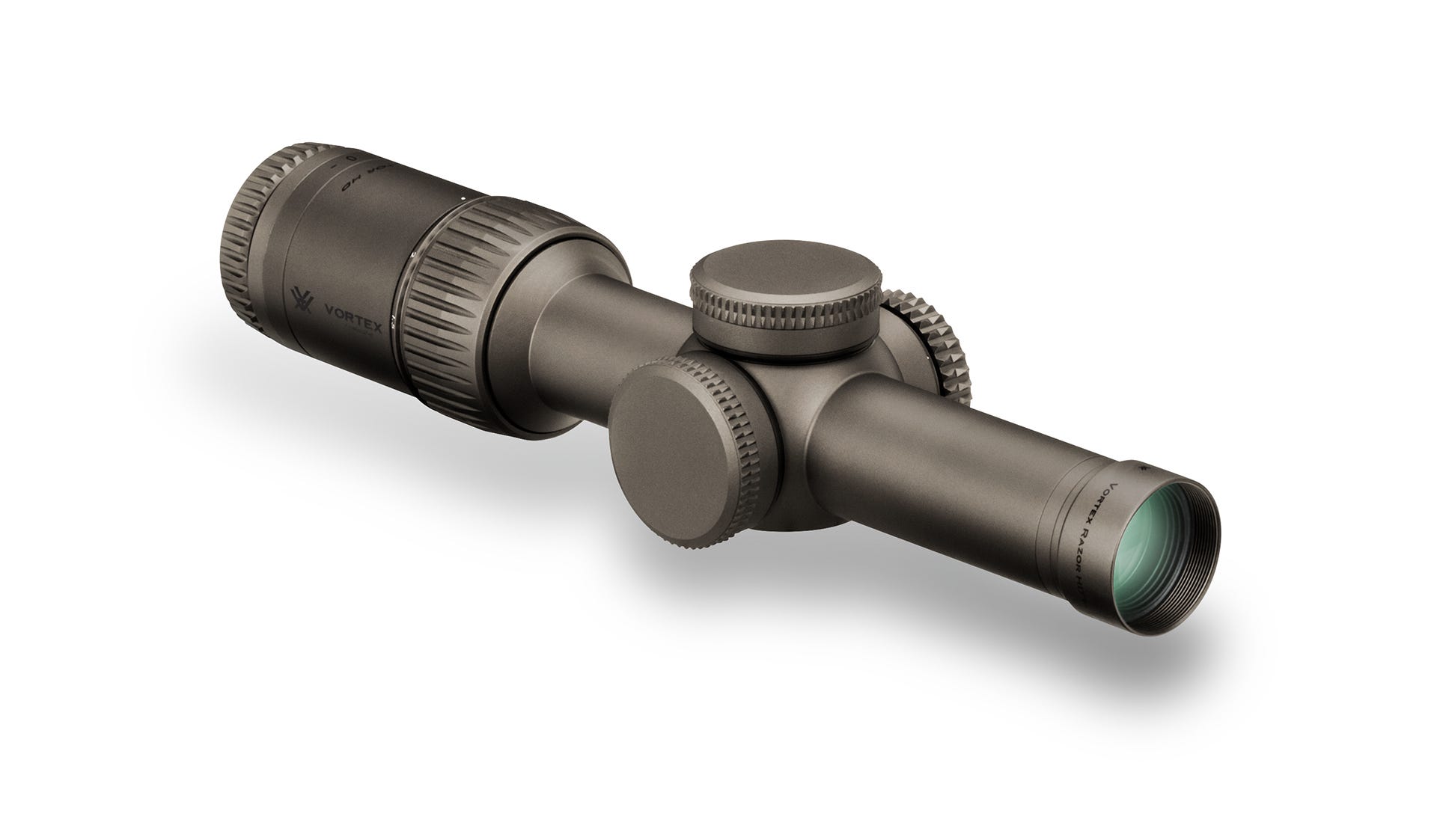

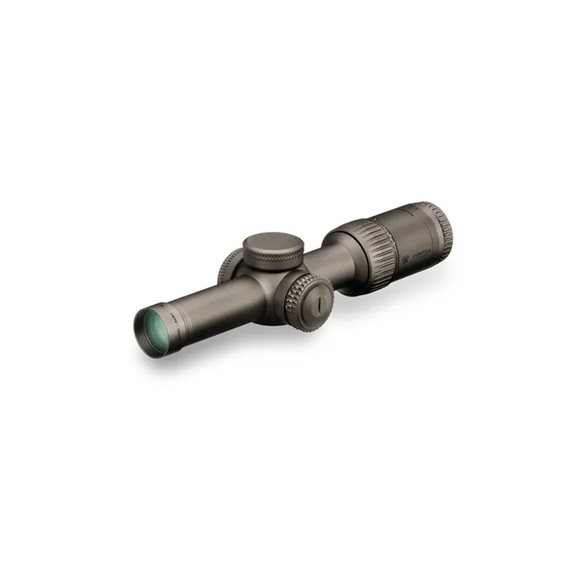

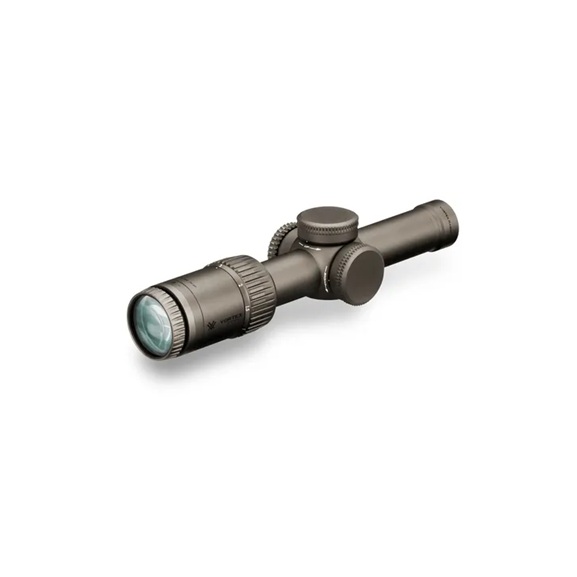

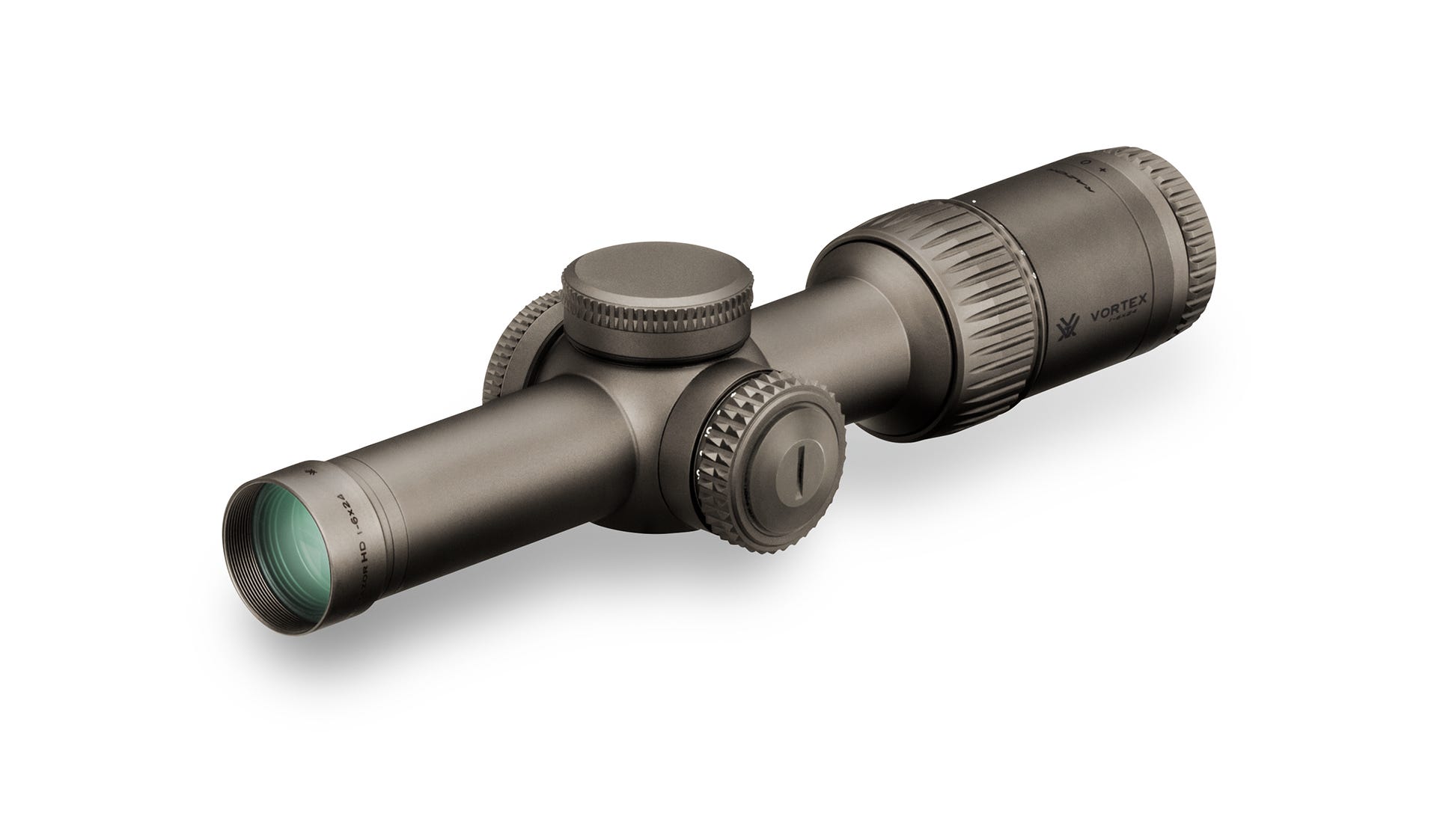

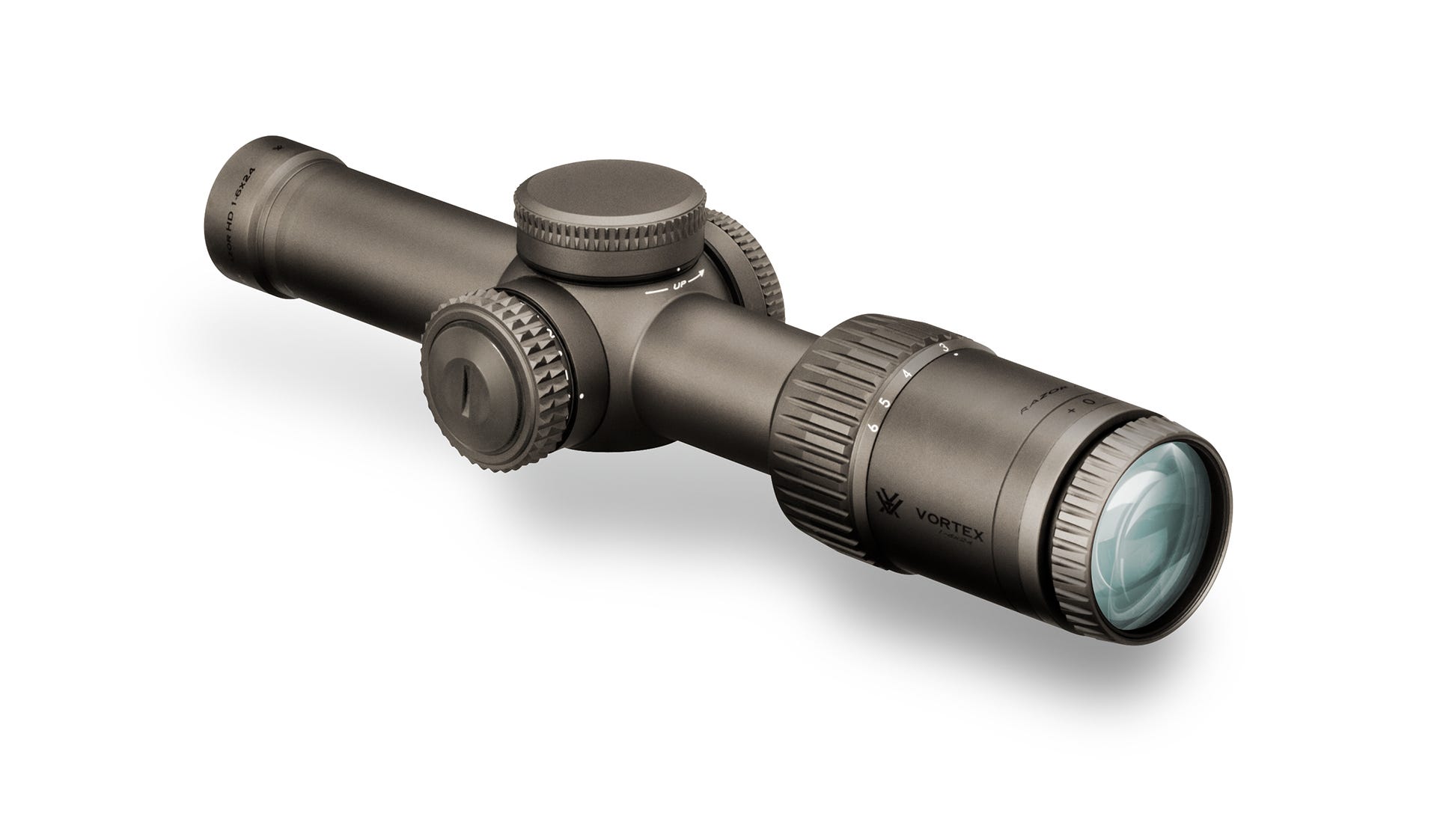

Vortex Razor 1-6x24 HD Gen II-E JM-1 BDC MOA IR 30mm Rifle Scope
New for 2020:
At nearly 1/4 pound lighter than the original Razor HD Gen II 1-6x24, the "E" (Enhanced) model allows for quicker transitions between targets and less arm fatigue during long days on the range. Perfect for the AR platform, the Gen II-E 1-6 is a top-tier optical solution for short to medium-range shooting scenarios. Optically, it delivers the highest level of clarity, resolution, colour accuracy, light transmission and edge-to-edge sharpness.

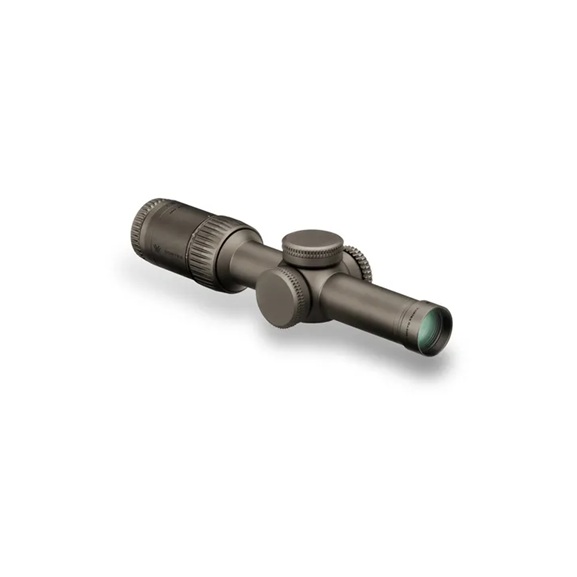

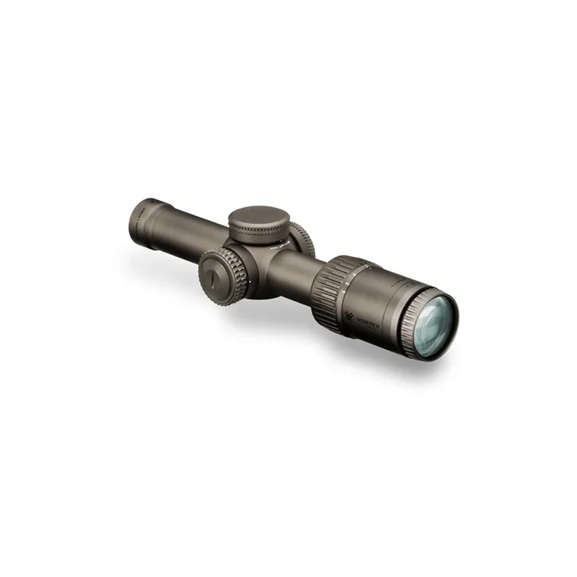

True 1x on the low end is complemented by an ultra-forgiving eye box with generous eye relief for a heads-up-display-like sight picture and daylight bright illuminated centre dot in the reticle for extremely fast target acquisition in close quarters. Ultra-sleek and built like a tank on a 30mm, aircraft-grade aluminium tube, the Razor HD Gen II-E 1-6x24 features an ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA (20 MRAD) of adjustment in a single turn, ensuring ample travel.
Vortex Razor 1-6x24 HD Gen II-E JM-1 BDC MOA IR 30mm Rifle Scope
- Magnification 1-6x
- Objective Lens Diameter 24 mm
- Eye Relief 4 inches
- Field of View 115.2-20.5 ft/100yds
- Tube Size 30 mm
- Turret Style Low Capped
- Adjustment Graduation 1/2 MOA
- Travel Per Rotation 50 MOA
- Max Elevation Adjustment of 150 MOA
- Max Windage Adjustment 150 MOA
- Parallax Setting 100 yards
- Length 10.1 inches
- Weight 21.5 oz
- Product Manual (PDF) Download
- Reticle Manual (PDF) Download
- Parts Diagram (PDF) Download
Vortex Razor 1-6x24 HD Gen II-E JM-1 BDC MOA IR 30mm Rifle Scope
OPTICAL FEATURES
APO System Index-matched lenses correct colour across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
HD Lens Elements Premium extra-low dispersion glass delivers the ultimate in resolution and colour fidelity, resulting in high-definition images.
XRâ„¢ Plus Fully Multi-Coated Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Plasma Tech Cutting edge coating application process provides unparalleled coating durability and performance

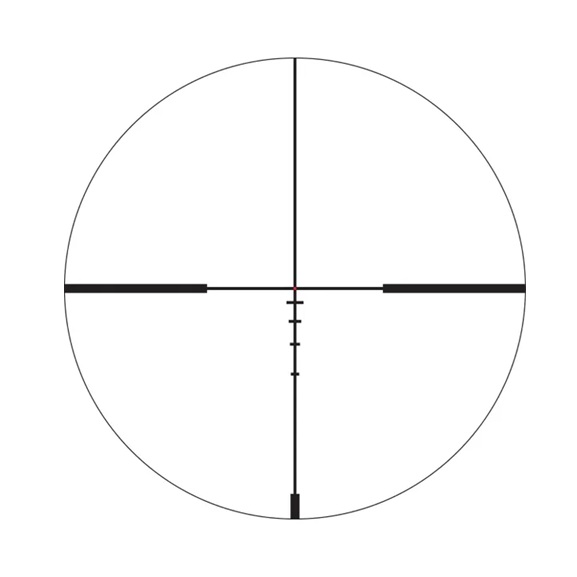

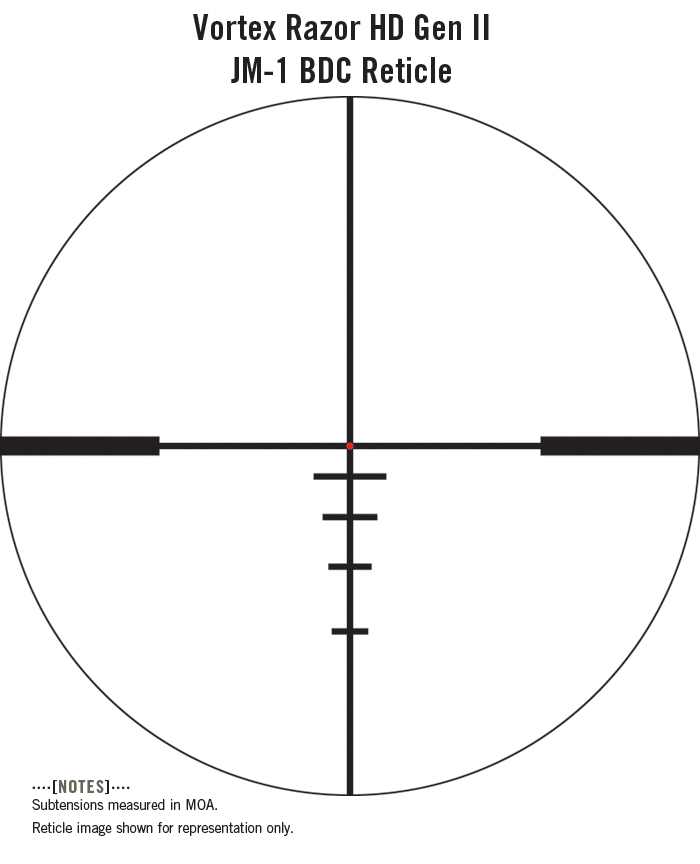

Second Focal Plane Reticle - Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center Dot Daylight bright illuminated centre dot provides a precise point-of-aim in all lighting conditions.
Locking Illumination Locks illumination at preferred setting.
CONSTRUCTION FEATURES
Tube Size: 30 mm diameter provides maximized internal adjustment and strength.
Single-Piece Tube maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard-Anodized Finish: Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Large Diameter Turrets Provide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.
INTERNAL MECHANISM DESIGN FEATURES
Friction Reduction System Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and
Turret Screws Provides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch).
Erector Tube System Precision-machined from aircraft-grade aluminium with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs.
CONVENIENCE FEATURES
Fast Focus Eyepiece Allows quick and easy reticle focusing.
Locking Side Illumination Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
Vortex Razor 1-6x24 HD Gen II-E JM-1 BDC MOA IR 30mm Rifle Scope, Lens Cloth, User Manual etc.
VIP stands for a Very Important Promise to you, our customer. We will repair or replace your Vortex® product in the event it becomes damaged or defective—at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition.
You see, it doesn't matter how it happened, whose fault it was or where you purchased it. If you ever have a problem, no matter the cause, we promise to take care of you. You can count on the VIP Warranty for all Vortex Optics riflescopes, prism scopes, red dots, rangefinders, binoculars, spotting scopes, tripods and monoculars.
- UNLIMITED LIFETIME WARRANTY
- FULLY TRANSFERABLE
- NO RECEIPT NEEDED
The VIP Warranty does not cover loss, theft, deliberate damage or cosmetic damage that does not hinder the performance of the product.
