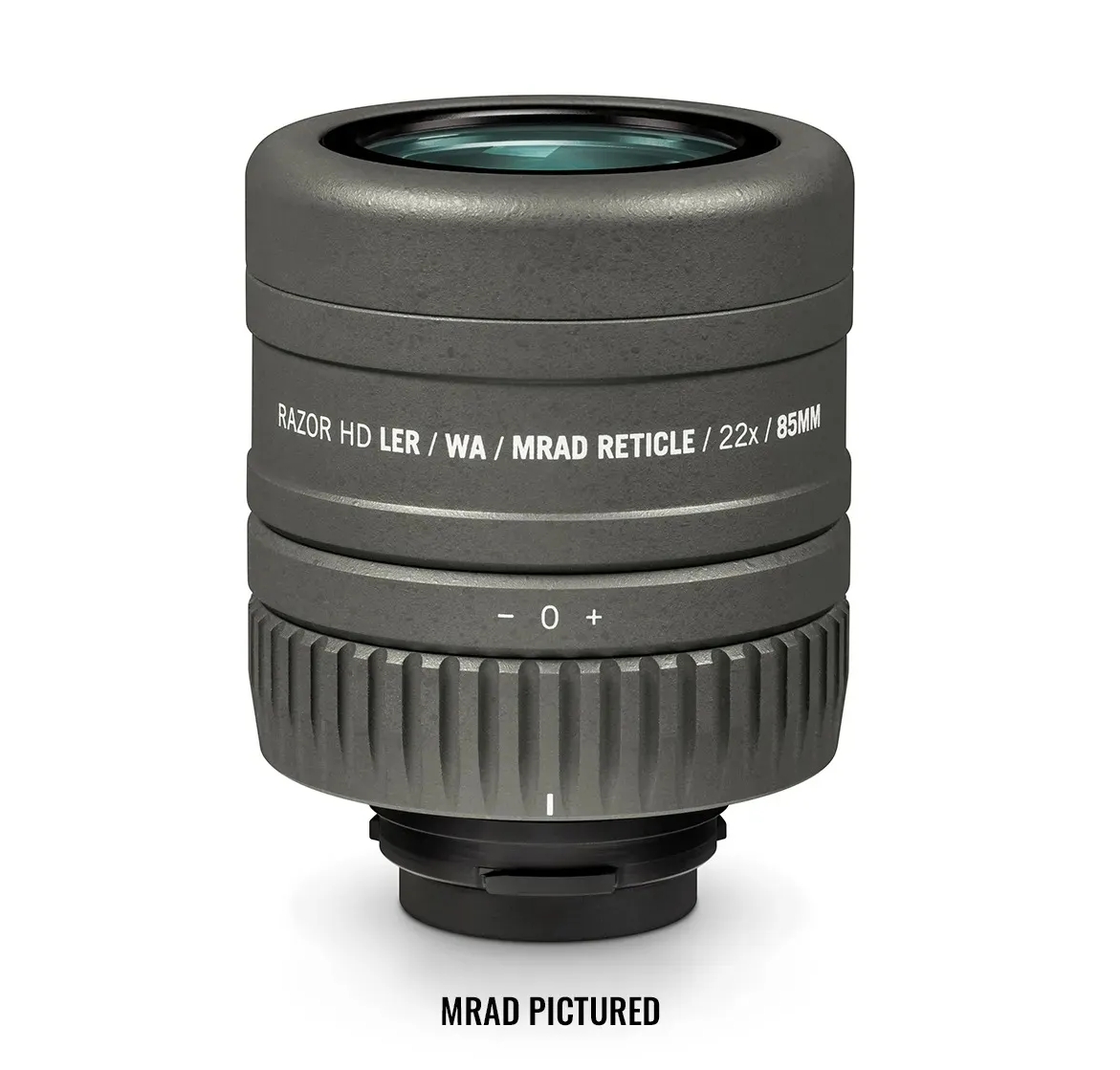

Vortex Razor HD 22x 85mm Ranging Eyepiece with MOA Reticle
The Vortex Razor HD 22x 85mm Ranging Eyepiece with MOA Reticle is a precision upgrade designed for the Razor HD 27–60x85 spotting scope, transforming it into a powerful ranging and shot-calling tool. With a fixed 22x magnification, it delivers a wide, stable field of view for fast target scanning, while the integrated MOA-based ranging reticle allows for accurate distance estimation, holdovers, and wind corrections directly through the optic. Built with HD glass and XR anti-reflective coatings, it maintains excellent brightness, contrast, and edge-to-edge clarity even in challenging light conditions. Rugged, lightweight, and purpose-built for field communication between shooter and spotter, this eyepiece turns your spotting scope into a measurement tool as much as an observation system. Backed by Vortex’s lifetime warranty, it’s a serious upgrade for long-range precision work.
-Nathan (Technical Advisor)
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Engineered to match the reticle subtension markings and turret graduations of many Vortex riflescopes, the eyepiece is available in both MOA and MRAD configurations. This compatibility ensures consistent and reliable performance across your optical equipment, providing clear and precise ranging and adjustment capabilities. The Razor HD Ranging Eyepiece is tailored specifically for the 27-60x85mm Razor HD spotting scopes, ensuring optimal performance and is not compatible with the 65mm and 50mm models. It fits perfectly with the RS-85A and RS-85S models.

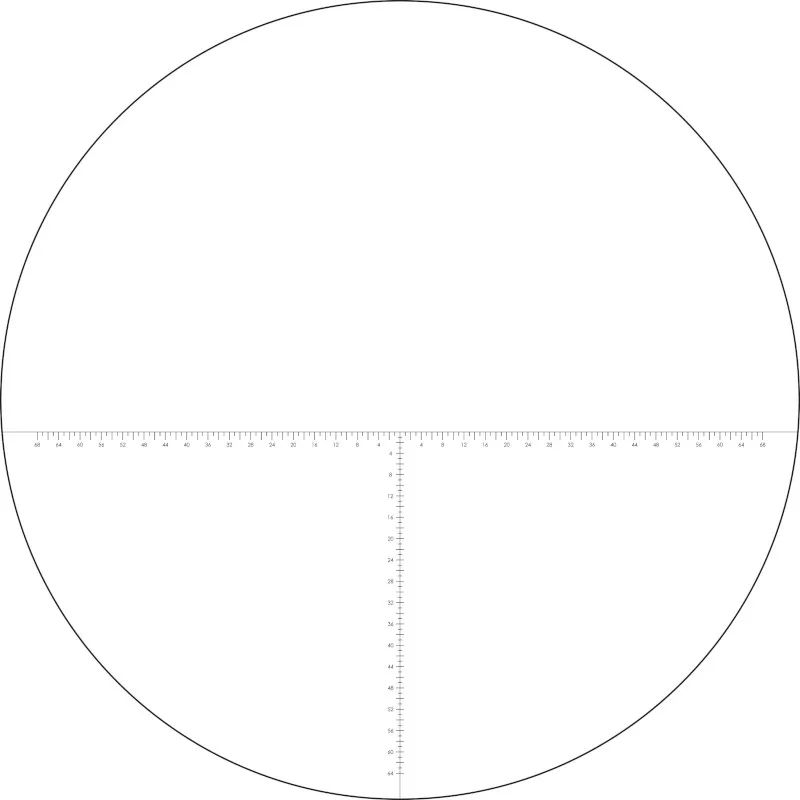

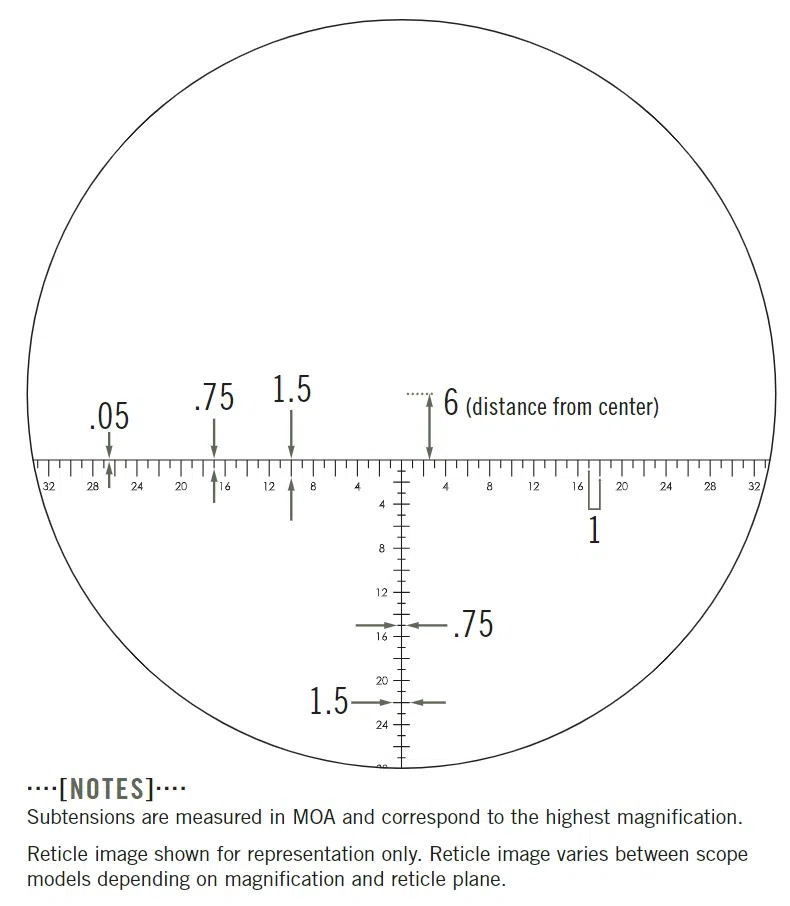

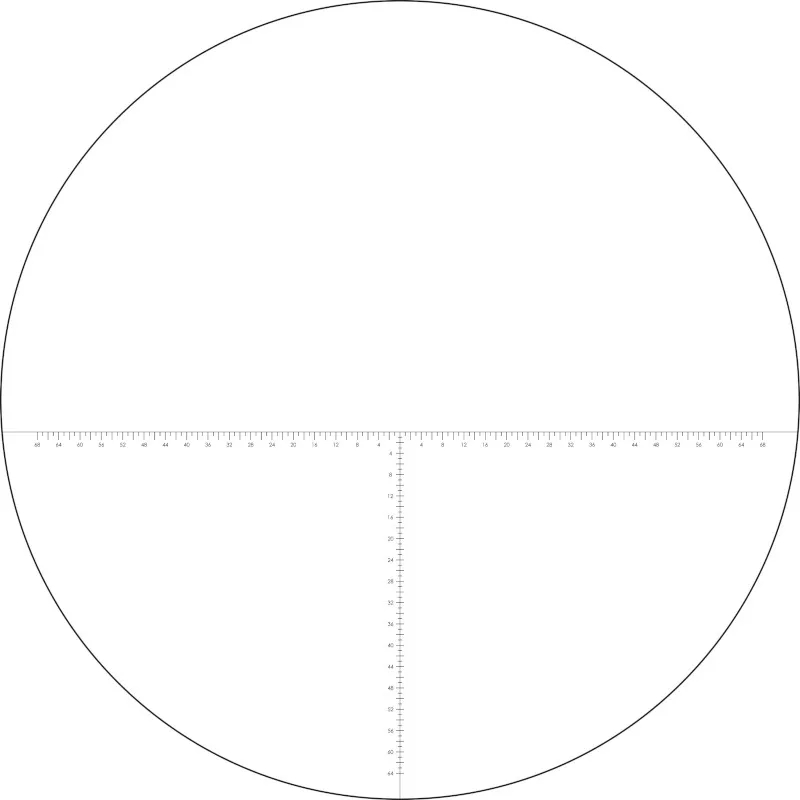

Featuring a hashmarked ranging reticle with MOA-based subtension lines, the eyepiece allows for accurate ranging, holdover, and windage corrections. The secondary ranging references enable rapid range estimation, making it an invaluable tool for shooters and spotters requiring swift and precise adjustments. With an eye relief of 31 mm, a compact length of 3.1 inches, and a lightweight design at 11.5 ounces, this eyepiece is both comfortable and convenient to use during extended viewing sessions.
Included with the Vortex Razor HD 85mm Ranging Eyepiece are a microfiber cleaning and carrying pouch and lens covers, ensuring that your eyepiece remains protected and clean, ready for any shooting or spotting scenario. Whether you're at the range or in the field, this eyepiece enhances your spotting scope's capabilities, providing the clarity and precision that Vortex is renowned for.
- Reticle Ranging (MOA)
- Eye Relief 31 mm
- Length 3.1 inches
- Weight 11.5 oz
- Compatible Models: RS-85A, RS-85S
- Reticle Type: Ranging (MOA)
- Eye Relief: 31 mm
- Length: 3.1 inches
- Weight: 11.5 oz
- Subtension Lines: MOA-based hashmarked ranging reticle for accurate ranging, holdover, and windage corrections
- Secondary Ranging References: Facilitate rapid range estimating
- Construction: Specifically designed for the latest generation Razor HD 27-60x85mm spotting scopes (not compatible with 65mm and 50mm models)
- Included Accessories: Microfiber cleaning/carry pouch and lens covers
- Vortex Razor HD 22x 85mm Ranging Eyepiece with MOA Reticle
- Microfiber cleaning/carry pouch
- Lens covers
1. What does this eyepiece do?
It replaces the standard zoom eyepiece and adds a fixed 22x magnification with a built-in MOA ranging reticle for measuring and spotting accuracy.
2. What spotting scopes is it compatible with?
It is designed specifically for the Vortex Razor HD 27–60x85mm spotting scope system.
3. What is the MOA reticle used for?
It allows you to estimate range, measure target size, and apply holdovers or wind corrections using angular measurements.
4. Does it change magnification?
No, it provides a fixed 22x magnification for a wide and stable field of view.
5. Is it better than the standard zoom eyepiece?
It is better for ranging and shot-calling, while the standard zoom eyepiece is better for flexible variable magnification.
6. Is the image quality affected?
No, HD glass and XR coatings are matched to the Razor HD system to maintain clarity and brightness.
7. Can it be used for hunting?
Yes, it is commonly used for long-range hunting where precise spotting and range estimation are needed.
8. Is it durable?
Yes, it is built for harsh field use with a rugged, weather-resistant design.
9. Does it help with communicating with a shooter?
Yes, the MOA reticle works like a measurement tool, making it easier to call shots and give corrections.
10. Does it come with a warranty?
Yes, it is covered by Vortex’s lifetime VIP warranty.
