Vortex Razor HD LHT 3-15x42 SFP HSR-5i MOA Rifle Scope

Same Day Dispatch on in-stock items before 14:30pm

SKU#RZR-31501 Vortex

Vortex Razor HD LHT 3-15x42 SFP HSR-5i MOA Rifle Scope

Preorder: 10-20 Day Delivery

VIEW PRODUCT INFO / SPECS

Select Reticle : HSR-5I MOA

HSR-5I MRAD

HSR-5I MOA

Same Day Dispatch on in-stock items before 14:30pm

Product Information FIND OUT MORE

DESCRIPTION

Vortex Razor HD LHT 3-15x42 SFP HSR-5i MOA Rifle Scope

One scope to rule them all. From dark-timber whitetails, to executing precision long-range shots on an open country mule deer, and everything in between - there’s the lightweight, second focal plane Razor HD LHT. Stunning, High Definition optical system delivers a crystal-clear sight picture with tack-sharp resolution. Turn every second of legal shooting light into opportunity. Take to the field with confidence knowing you’ve sacrificed nothing with the Razor HD LHT.

SPECS

Vortex Razor HD LHT 3-15x42 SFP HSR-5i MOA Rifle Scope

Magnification 3-15x
Objective Lens Diameter 42 mm
Eye Relief 3.8 inches
Field of View 35.3-7.0 ft/100 yds
Tube Size 30 mm
Elevation Turret Style Locking/Zero Stop
Windage Turret Style Capped
Adjustment Graduation .25 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 80 MOA
Max Windage Adjustment 80 MOA
Parallax Setting 20 yards to infinity
Length 13.3 inches
Weight 19.1 oz
Product Manual Download (PDF)
Reticle Manual Download (PDF)

Razor HD LHT 3-15x42 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
13.3	2.6	2.0	6.2	3.7	2.0

Heights
H1	H2
2.01	1.7

FEATURES

Vortex Razor HD LHT 3-15x42 SFP HSR-5i MOA Rifle Scope

OPTICAL FEATURES

HD Optical System: Optimized with select glass elements to deliver an exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission.

XR™ Plus Fully Multi-Coated: Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

APO System: Index-matched lenses correct colour across the entire visual spectrum.

Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.

Second Focal Plane Reticle: Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.

Illuminated Center Dot: Daylight bright illuminated centre dot provides a precise point-of-aim in all lighting conditions.

CONSTRUCTION FEATURES

Tube Size: 30 mm diameter provides maximized internal adjustment and strength.

Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum: Constructed from a solid block of aircraft-grade aluminium for strength and rigidity.

ArmorTek ®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

Waterproof: O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Shockproof: Rugged construction withstands recoil and impact.

Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.

Locking Elevation Turret: Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.

Large Diameter Capped Windage Turret: Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret.

CONVENIENCE FEATURES

RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.

RETICLE

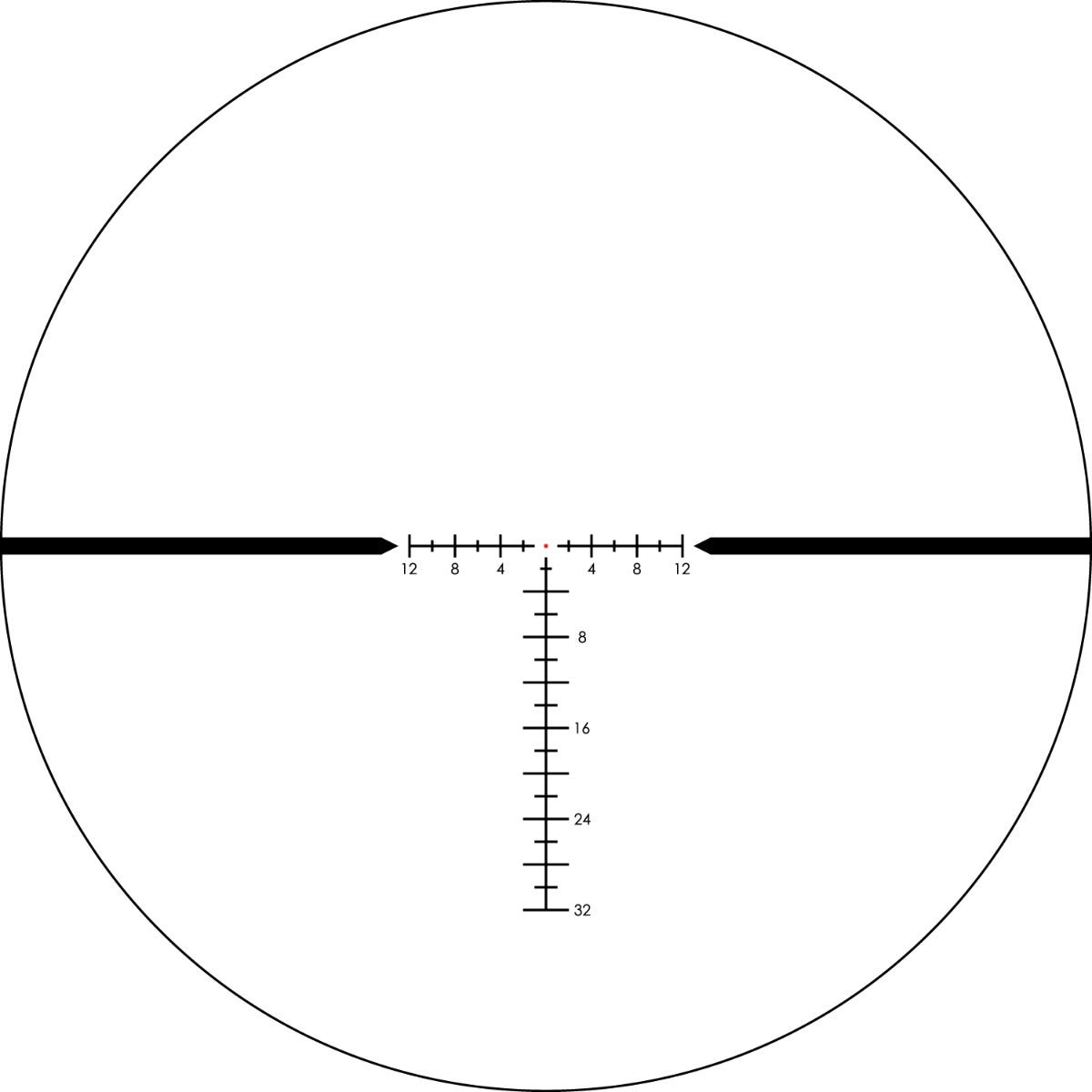

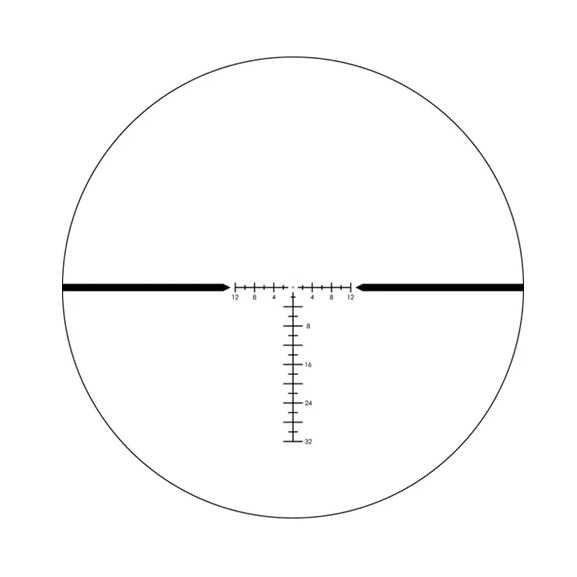

HSR-5i (MOA)

Ideal for those who want enough information to utilize personalized ballistics, but prefer a clean look. The HSR-5i reticle can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. The fine center crosshair subtensions on the HSR-5i reticle were carefully chosen to provide the optimum balance between precision aiming and low light visibility.

HSR-5i (MOA) Reticle

WHAT'S IN THE BOX

Included in the Box

Sunshade

Lens Covers

Lens Cloth

CR2032 battery

Free Custom Ballistic Strip Coupon

WARRANTY

Vortex VIP LIfetime Warranty
