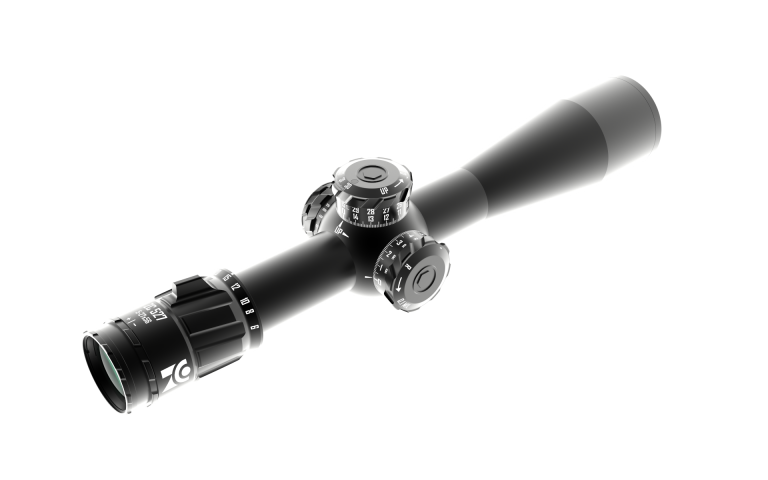

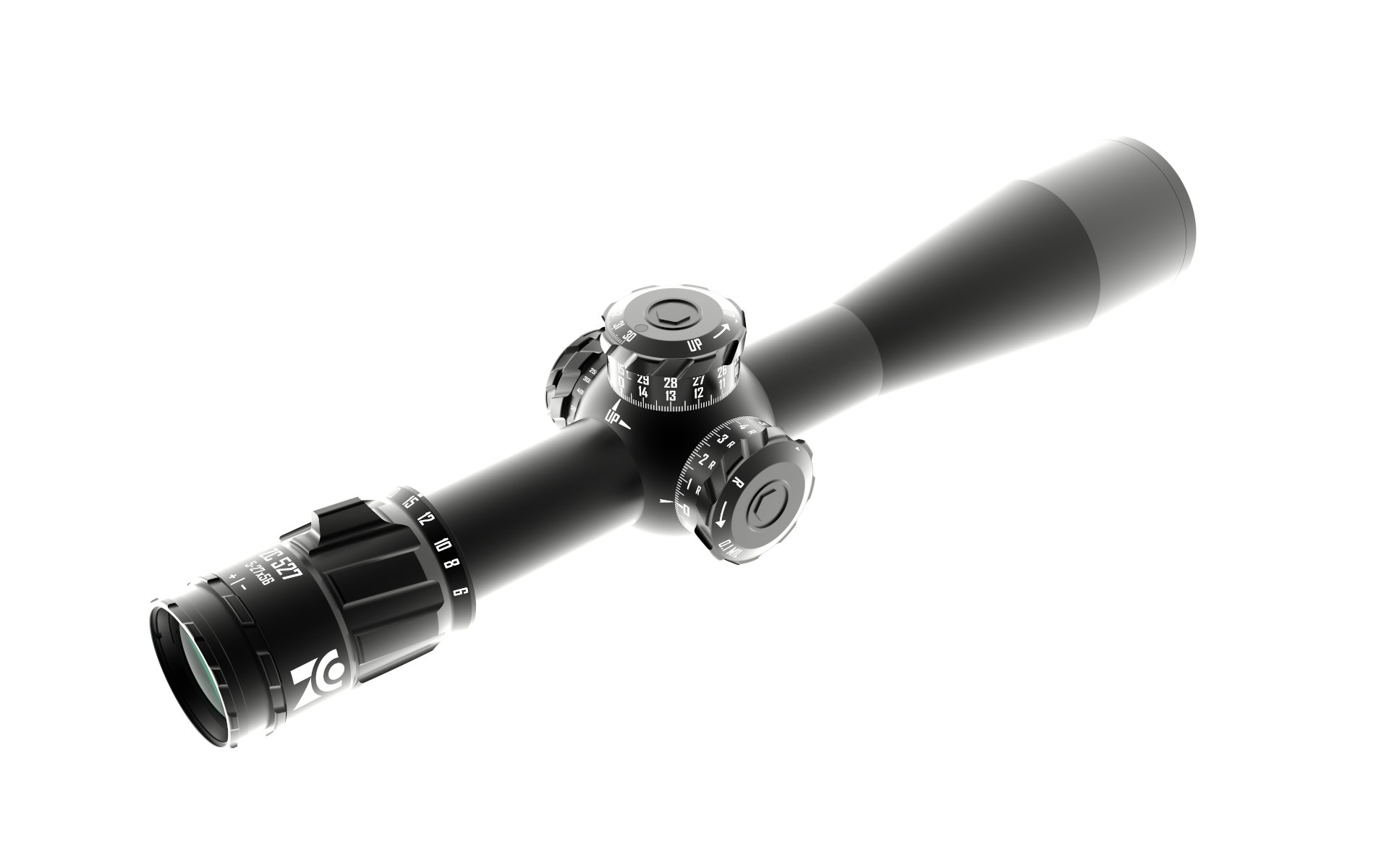

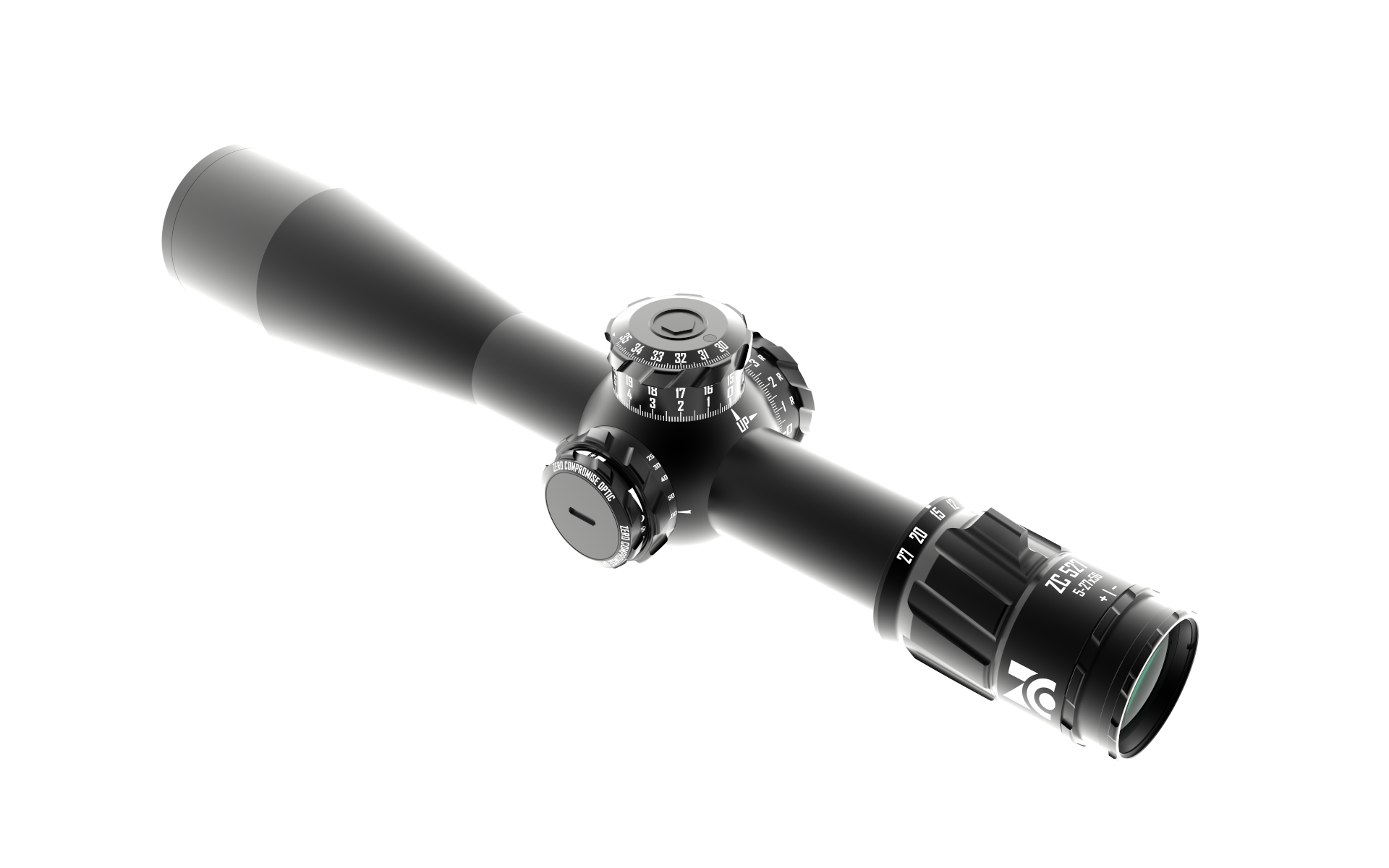

Zero Compromise Optic (ZCO) ZC527 5-27X56 FFP Illuminated Target 1 0.1 MIL Rifle Scope w/ Spuhr One Piece Mount

• Magnification (Objective): 5-27
• Objective ∅ (mm): 56
• Main Tube Diameter (mm): 36
• Click Value (MIL): 0.1
• Elevation (MIL): 35
• Elevation (m/100m): 350cm / 100m
• Elevation lock: YES
• Windage (MIL): 20
• Side Adjustment (cm/100m): 200cm / 100m
• Windage lock:  YES
• Field of View (ft/100yd): 21.0`- 4.50`
• Field of View (m/100m): 7m - 1,5m / 100m
• Eye Relief (inches): 3.54
• Pupil Distance (mm): 90
• Parallax Compensation (m): 25 - ∞
• Length (inches): 15.24
• Length (mm): 387
• Weight (oz): 37.9
• Weight (g): 1075
• Illumination: red | green
• Focal Plane: FIRST
• Light transmission (%): 92
• Diopter: -3 | +2
• Exit Pupil (mm): 10,5 - 3,2

The new Target 1 reticle from ZERO COMPROMISE OPTIC is an extension of our MIL reticle to enable the highest possible precision. The Target 1 is similar to our existing line of reticles and has several modifications. Clear target observation, rapid range finding and an ultra-thin reticle within the first MIL from center enhances precise shot placement. It offers the most important and essential choice in the respective situation.

• The basic design of the reticle with the “box” automatically guides the shooter to the center.
• The 0.2 MIL or 0.1 MIL increments provide the shooter with critical elevation and windage correction points.
• The open center offers the shooter the ideal target observation.
• The “box” can be fitted perfect on a target with 10 cm x 10 cm to 100 m or 100 cm x 100 cm to 1000m.
• The crosshairs can be precisely positioned on the target with the fine 0.016 MIL interrupted horizontal and vertical lines.
• Our revised AIM feature illuminates only the center fine lines. This keeps the focus on the target and allows even the smallest targets to be engaged effectively at long range
• Our unique funnel concept accommodates four different sizes to output a direct range display.

Our funnel concept is positioned in the upper half of the field-of-view where it is out of the way yet still fully functional and also visible when used at maximum magnification.

Acquiring rapid target ranges has never been quicker or easier with these very common target sizes of target widths of 0.15, 0.3, 0.25 and 0.5 meters. These target sizes fit numerous tactical and sport competition targets, as well as any other square, rectangular, diamond or circular targets of these widths. The user simply brackets a known target size either between the center line and the corresponding funnel edge, or inside the entire funnel. As soon as the target is correctly bracketed, simply read the meter number denoting the range to the target. For targets measuring 0.15 meter or 0.25 meter, the center line of the funnel is used for one of the target edges.

• Zero Compromise Optic (ZCO) ZC527 5-27X56 IR FFP MIL/MIL Target 1 Rifle Scope

All ZCO products are handcrafted with the utmost care and undergo numerous tests as well as inspections prior to shipment.

In the highly unlikely event that a problem occurs with your ZCO riflescope, we offer a transferable lifetime warranty that covers mechanical and optical defects due to materials or workmanship under normal use for the life of the riflescope.

At our discretion, we will either repair or replace (with a product of the same or similar model) a defective product after prior thorough inspection.

Exceptions to this warranty include intentional misuse or abuse, unauthorized alterations or repairs, modification or destruction of the serial number, improper assembly, negligence in handling the product, and damage by fire, flood, or other natural disaster.

The electronic components built into this product are covered by a limited warranty of 2 years from the date of purchase. This includes defects due to materials or workmanship under normal use.

For ZCO assemblies and ZCO assembly accessories, we offer a warranty period of 90 days from the date of purchase covering mechanical defects due to materials or workmanship under normal use.

At our discretion, we will either repair or replace (with a product of the same or similar model) a defective product after prior thorough inspection.

Sending in the product for repairs

Follow the steps below to ensure timely service:

1. remove any accessories (sunshades or similar).
2. write down the serial number of your riflescope and keep it handy for possible inquiries.
3. Describe the defect and include this document with the scope in the package.
4. Place the ZCO product in a well-padded box and packed in a shipping carton. Secure your package adequately with tape. The original product box alone is not sufficient for shipping.
5. return your product insured and with tracking number to the following address:

Zero Compromise Optic GmbH
Rep. Department
Bäckerstraße 1
2433 Margarethen am Moos
Austria
