Hawke Frontier Scopes
Hawke Frontier FFP 5-25x56 30mm SF IR Mil PRO Reticle Rifle scope 18540
Tough - Hawke vigorously stress-test every Frontier scope for both shock and moisture ingress ensuring every one will stand up to extreme conditions.
Wide 5x magnification range = increased flexibility when transitioning between close and long range shooting.
Zero Lock 'n' Stop turrets (Patent Pending) are resettable, lockable and feature a state of the art return to zero feature. They are exposed giving ease of access and offer a tactical design.
First Focal Plane (FFP) ensures your holdover aim points stay true no matter what magnification you are using. When the magnification is increased, the reticle increases in size along with the image you are looking at. Using a combination of FFP optics, mil spaced reticles and 1⁄10 MRAD turrets Hawke have made adjustment effortless on all magnifications.
- First Focal Plane optical system
- 21 layer Fully Multi-Coated 5× ratio optical system
- Side Focus control for parallax adjustment to infinity
- 30mm mono-tube chassis for superior strength
- Long eye relief for high recoil and magnum calibres
- Glass etched reticle with red illumination
- 6 levels of brightness with off positions in-between
- 1⁄10 MRAD exposed Zero Lock 'n' Stop turrets (Patent Pending)
- Zoom ring with thumb lever and locking ocular

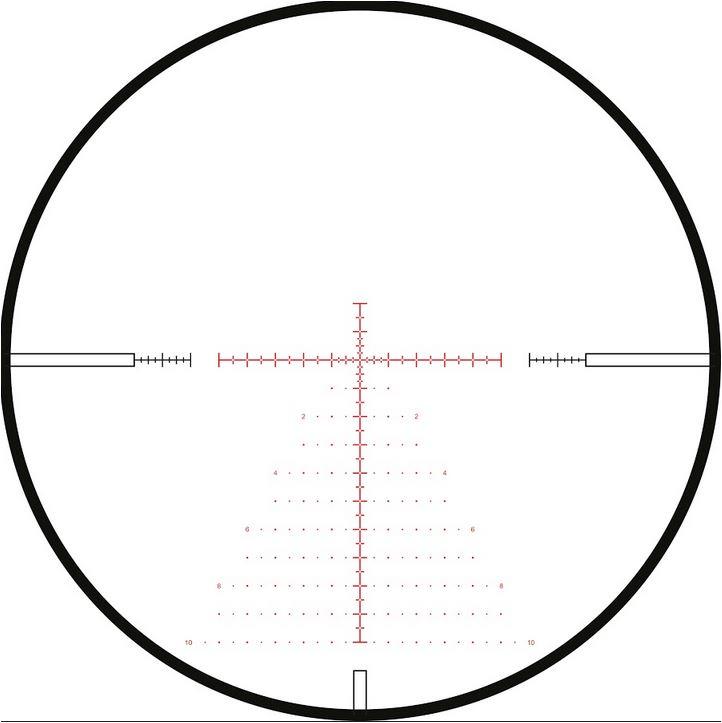

FFP Mil Pro (25×) Reticle
Reticle and guide download at page bottom here
Pictured here at 15x
The FFP Mil Pro reticle was developed specifically for first focal plane optical systems and based around the common principles of Mil spaced reticles. With half Mil spaced markings extending out to 10 Mil of holdover, the FFP Mil Pro is a versatile reticle that provides aim points no matter how extreme the distance.

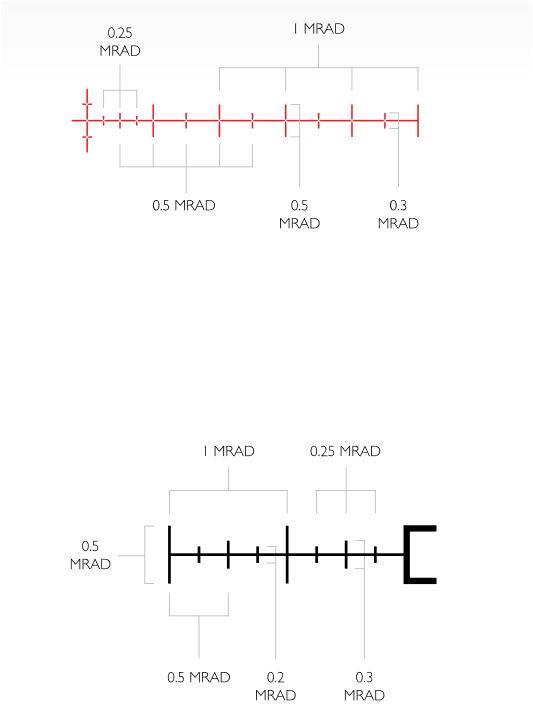

All reticle measurements are Mil spaced and offer 1 Mil, 0.5 Mil and 0.25 Mil brackets for range finding. Every second Mil spacing on the lower section is numbered to ensure quick and easy acquisition of target and ease of reference.
Each cross has a see-through gap, allowing an unobstructed view of the target. The thick outer posts are hollowed to ensure they can be seen at all magnifications, without blocking out too much of the view.
The FFP Mil Pro 25× has additional 1⁄4 Mil aim points on the center section of the reticle to give even greater precision.
- Chassis: 30mm Mono-tube
- Optical System: 5-25x
- Objective: 56mm
- Reticle: FFP Mil Pro (25×)
- Illumination: Red - 6 Levels
- Focus/Parallax: Side Focus - 14m / 15yds to Infinity
- Field of View: m @100m / ft @100yds 7.5 - 1.5m / 22.5 - 4.5ft
- Eye relief: 102mm / 4″
- Length: 365mm / 14.4″
- Weight: 698g / 24.8oz
All calibre rated - even .50
Technical Specification 2
- Material: Aluminium
- Exit Pupil: 11.2 - 2.2mm / 0.44-0.09″
- Ocular Type: Locking Fast Focus
- Lens Coating: Fully Multi-Coated - 21 Layers
- Power Selector Style: Removable Zoom Lever
- Focal Plane: First Focal Plane (FFP)
- Warranty: Hawke Worldwide Warranty
- Windage & Elevation Increment: 1⁄10 MRAD
- Windage & Elevation Range: 19 MRAD
- Turret Caps: NO
- Turret Type: Exposed Zero Lock 'n' Stop Turrets (Patent Pending)
- Zoom Lever
- 4″ Sunshade
- Pro Flip-Up Lens Covers
- CR2032 Battery
- Lens Cloth
Mounts to fit it onto a rifle ARE NOT included
See mount rings section of shop for rings. Requires 30mm diameter rings High profile height. Be sure to choose the correct base for your rifle type such as 9-11mm airgun/rimfire or 20mm weaver/picatinny. Please ask if unsure. We can also help with adapter bases for rifles such as Crosman, Ruger, Remington, Howa, Weatherby etc
|Length||365mm / 14.4″|
