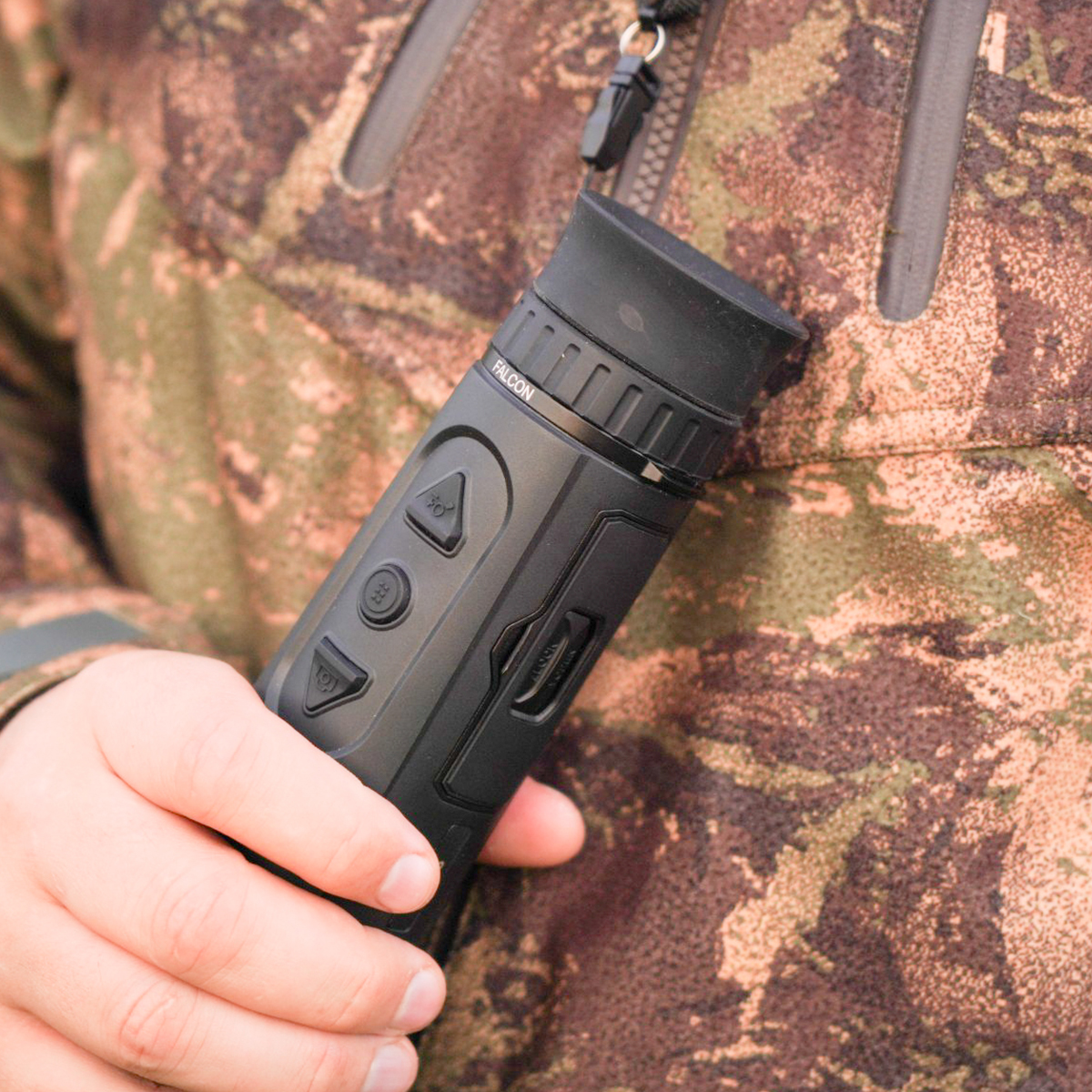

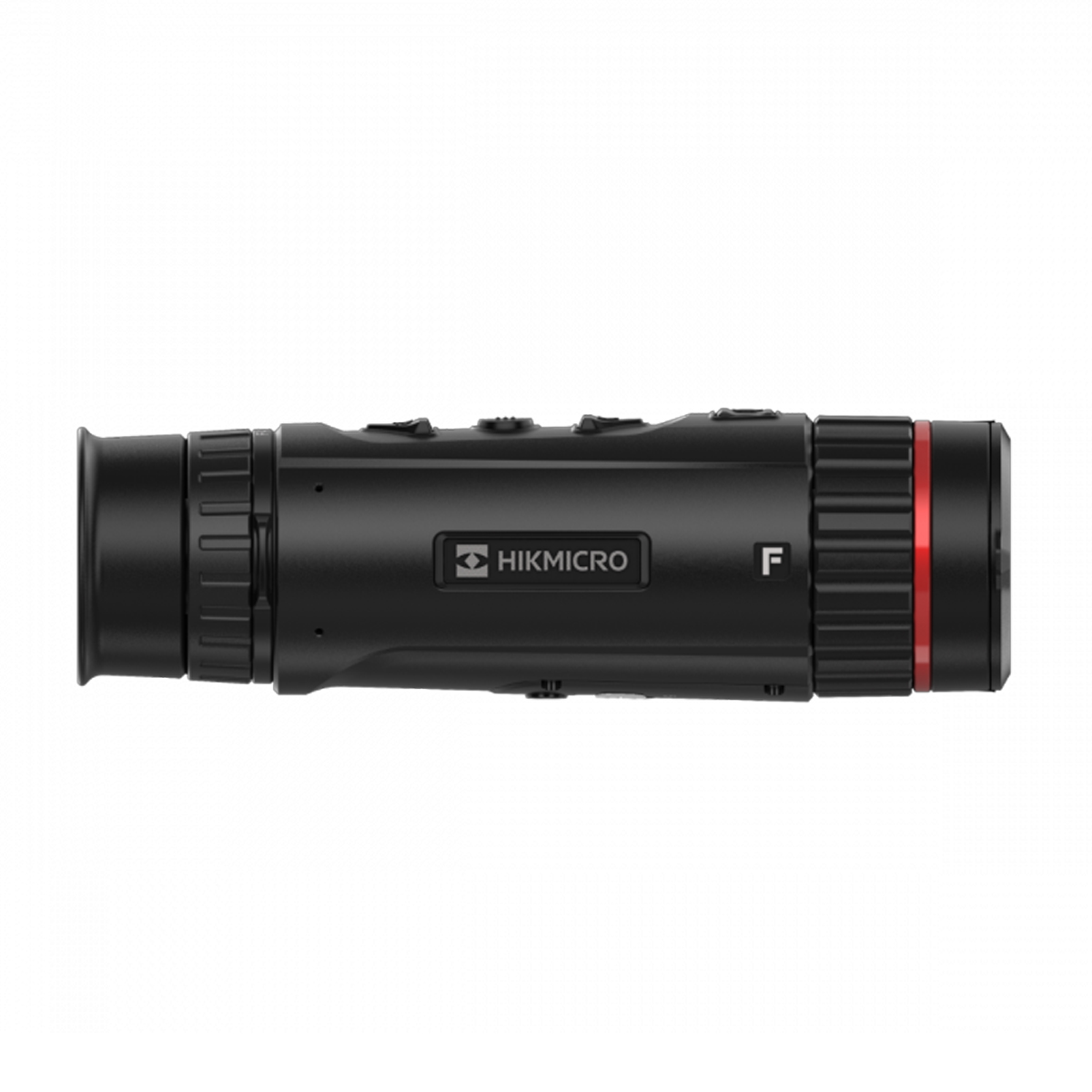

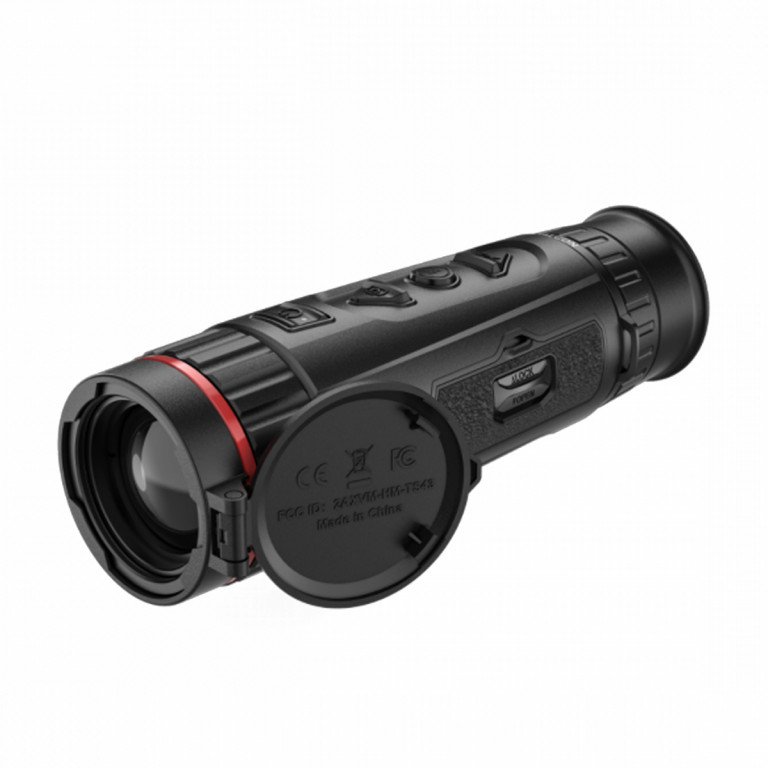

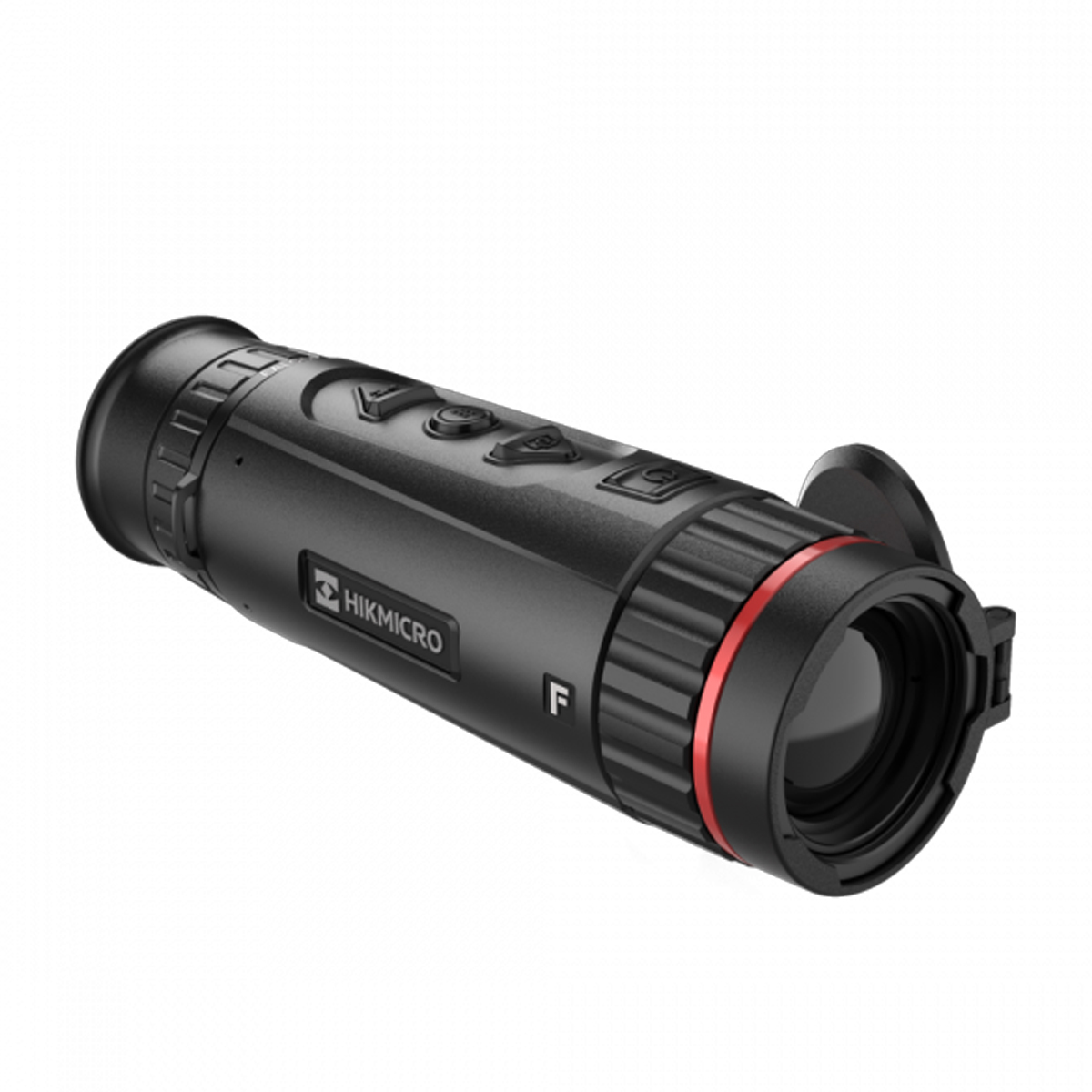

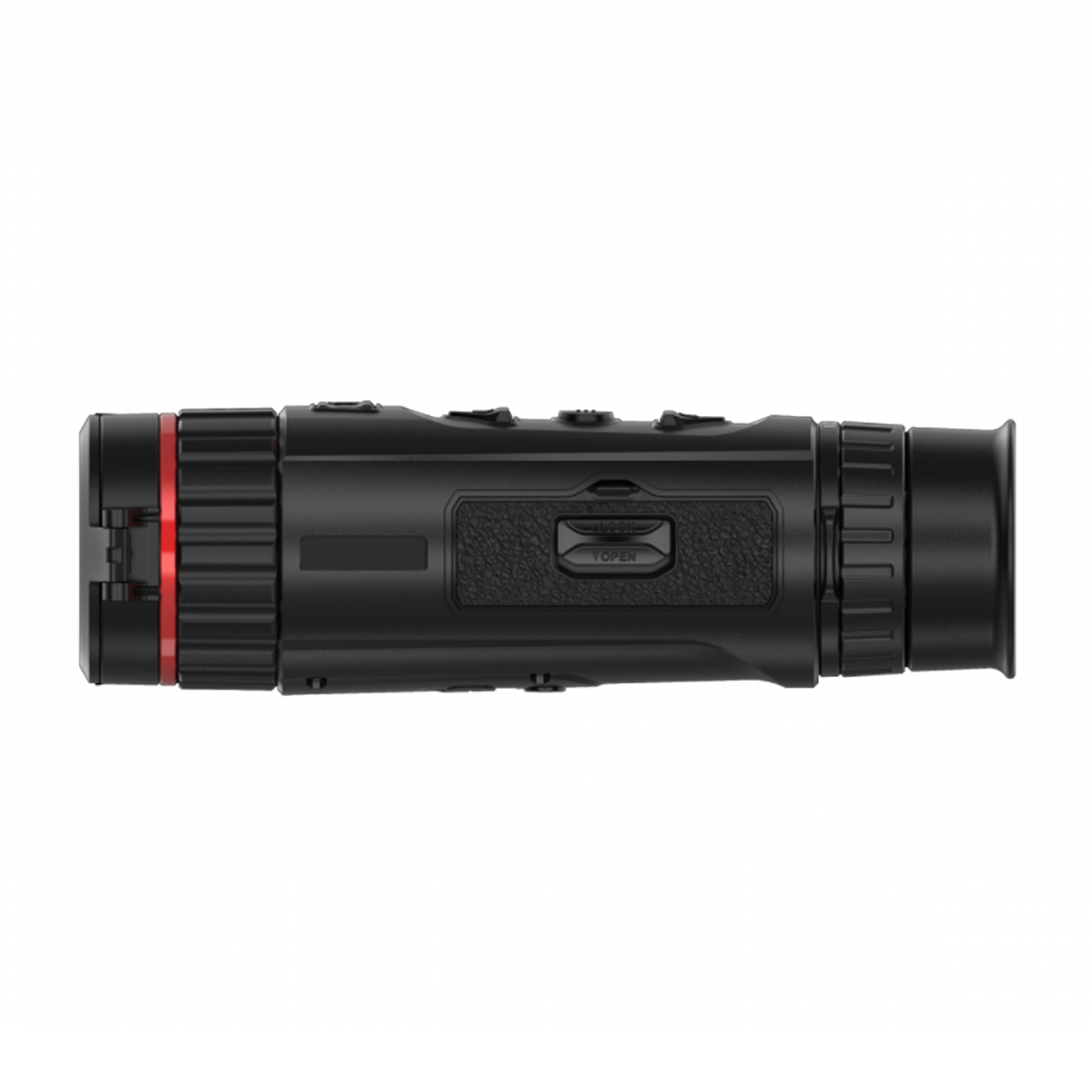

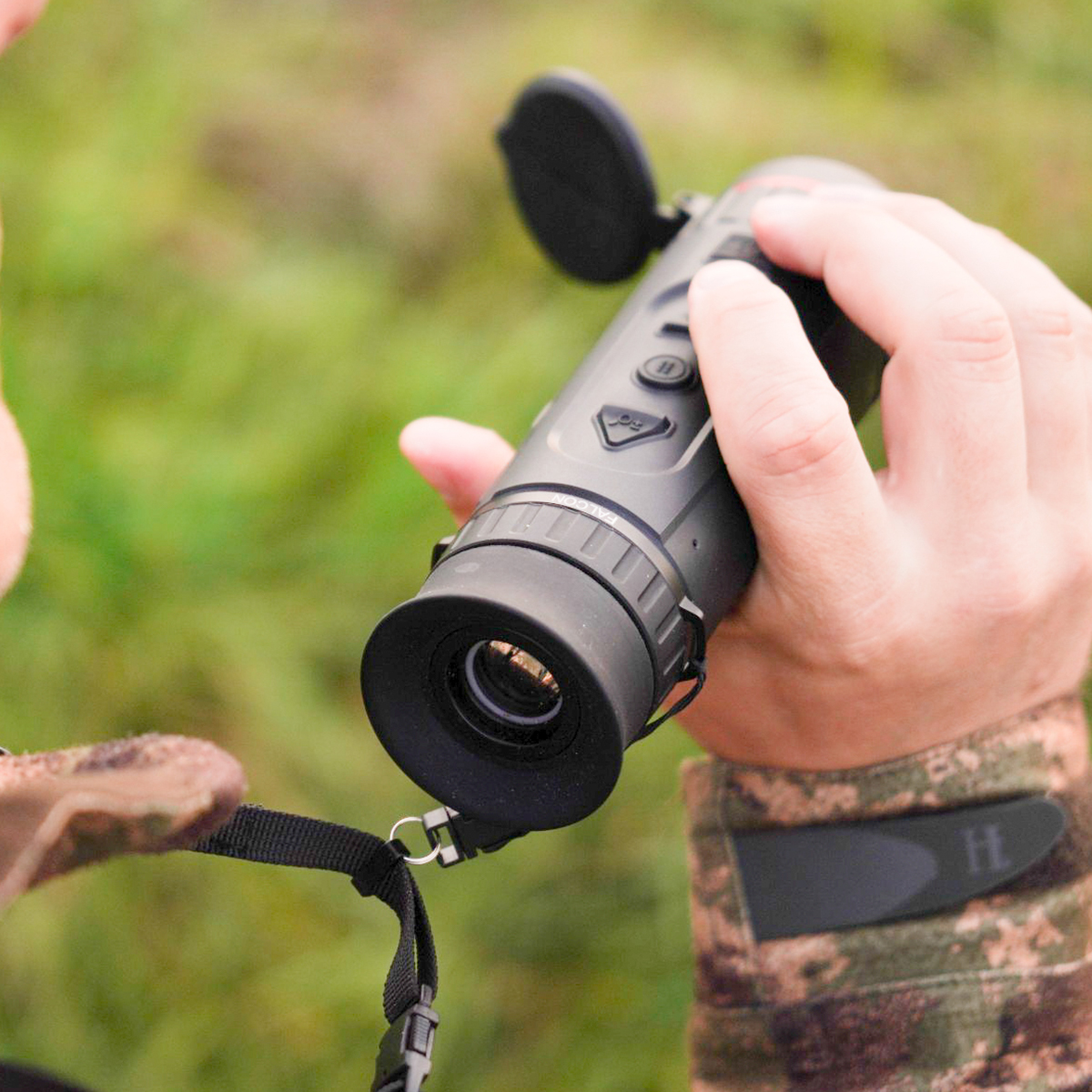

HIKMICRO Falcon FH25 Hand Held Thermal Imager Monocular
25mm 20mk 384x288px 12µm
- Ultra-sensitive thermal sensor (NETD <20mK) for clear, high-contrast images in all conditions
- 384x288 resolution, 12μm thermal detector with Image Pro 2.0 image optimisation
- Large f/0.9 aperture germanium lens for superior thermal radiation capture
- Detection range up to 1200 metres with 8x digital zoom for detailed observation
- Intuitive ergonomic design with robust IP67-rated magnesium alloy housing
- Built-in 64GB memory, photo/video recording, and HIKMICRO Sight App compatibility
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The HIKMICRO Falcon FH25 is a premium handheld thermal monocular designed to deliver extraordinary detail, even in the most challenging conditions. Ideal for woodland use, its 25mm focal lens with 2x base magnification ensures optimal performance when scanning over short to medium distances. This thermal imaging monocular is engineered with an ultra-sensitive <20mK NETD sensor and a high-definition 384x288 thermal detector, providing a rich, high-contrast thermal image in all weather conditions, including fog, rain, and total darkness.
Designed with both comfort and durability in mind, the Falcon FH25 features a robust magnesium housing, an intuitive button layout suitable for gloved use, and a replaceable high-capacity battery offering up to 7 hours of runtime. With an impressive detection range of up to 1200 metres and a large 22m field of view at 100m, This UK thermal monocular is ideal for wildlife observation, security, search and rescue, and outdoor use by those who demand top-level performance.
Whether you’re scanning wide areas or focusing in on distant targets, the Falcon FH25 thermal vision monocular delivers the clarity, reliability and control you need.
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
- Model FH25
- Sensor Type VOx uncooled focal plane arrays
- Resolution 384 × 288 pixels
- Frame Rate 50Hz
- Pixel Pitch 12μm
- Spectral Range 8μm to 14μm
- NETD (Thermal Sensitivity) <20mK (@25°C, F#=1.0)
- Lens 25mm focal length, f/0.9 aperture
- Detection Range Up to 1200 metres
- Focus Mode Manual (focus ring)
- Field of View (H × V) 10.5° × 7.9°
- Field of View at 100m 18.4m × 13.8m
- Minimum Focusing Distance 2.5 metres
- Magnification 2.2× optical, up to 17.6× with 8x digital zoom
- Zoom Type Supports continuous zooming
- Display Type 0.39-inch OLED
- Display Resolution 1024 × 768 (Full Colour HD)
- Contrast/Brightness Adjustment Yes
- Colour Palettes White Hot, Black Hot, Red Hot, Fusion
- Flat Field Correction (FFC) Auto, Manual, External
- Exit Pupil 4mm
- Eye Relief 15mm
- Dioptre Adjustment -5D to +3D
- Image Enhancement Image Pro (Version 2.0 with supported firmware)
- Ingress Protection IP67 waterproof and dustproof
- Weight (Without Battery) 450g
- Dimensions 193.8 × 66.9 × 58.3mm
- Operating Temperature -30°C to +55°C
- Humidity Resistance Up to 90%
- Photo & Video Recording Yes
- Built-in Memory 64GB
- Wi-Fi Hotspot Yes
- App Compatibility HIKMICRO Sight App
- Picture-in-Picture (PIP) Yes
- Hot Track Function Yes
- Distance Measurement Yes
- Audio Recording Yes
- Battery Type Replaceable rechargeable Li-ion battery
- Battery Runtime ≥7 hours (at 25°C with hotspot off)
- External Power Supply Supported (via 5V DC, 2A USB Type-C)
- NETD <20mK thermal sensitivity for exceptional image clarity, even in harsh weather
- 384x288 resolution with 12μm pixel pitch for sharp, high-contrast thermal imagery
- Image Pro 2.0 digital image processing (available on firmware V5.5.85_240906 and later)
- Super large f/0.9 aperture germanium lens captures 19% more infrared radiation than f/1.0 lenses
- Ergonomic cylindrical design allows comfortable one-handed use for both left- and right-handed users
- Soft-touch, skin-friendly housing provides a premium feel and secure grip
- Intuitive button layout with tactile shapes for easy use in darkness or with gloves
- Rugged magnesium alloy body resists corrosion from sweat, rain, mist and dew
- SDLC-coated objective lens prevents scratches for long-term durability
- IP67 waterproof rating – submersible up to 1 metre for 30 minutes
- Operational in extreme temperatures from -30°C to 55°C
- Replaceable and rechargeable Li-ion battery provides up to 7 hours runtime
- USB-C external power support for uninterrupted operation
- Detection range up to 1200 metres, ideal for medium-range and wooded environments
- Wide 18.4m field of view at 100m for enhanced situational awareness
- 2.2x base magnification with smooth digital zoom up to 8x (17.6x max)
- 1024x768 HD OLED display with full-colour rendering
- Four colour palettes: White Hot, Black Hot, Red Hot, Fusion
- Picture-in-Picture (PIP) mode for simultaneous overview and detail view
- Hot Track function highlights the hottest object in the frame
- Distance measurement tool for accurate range estimation
- Built-in 64GB memory for photo and video recording
- Audio recording capability for voice notes or environmental capture
- HIKMICRO Sight App compatibility for remote control, streaming and sharing
- Integrated Wi-Fi hotspot for smartphone connectivity
HIKMICRO Falcon FH25 Hand Held Thermal Imager Monocular - 25mm 20mk 384x288px 12µm
Carry Case
Quick Start Guide
USB Cable
Lens Cloth
x2 18650 Pip Top Batteries
HikMicro 2 slot BatteryCharger
Neck Strap
Wrist Strap
What is the FOV @ 100m ?
18.4m
What id the Identification range of a deer sized object?
350m
What is the detection range of a deer sized object?
1200m
What batterys does this unit use?
18650 pip top https://www.opticswarehouse.co.uk/hikmicro-18650-battery
How long do the batteries last?
Each battery should last roughly 4-5 hours
3 Years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
