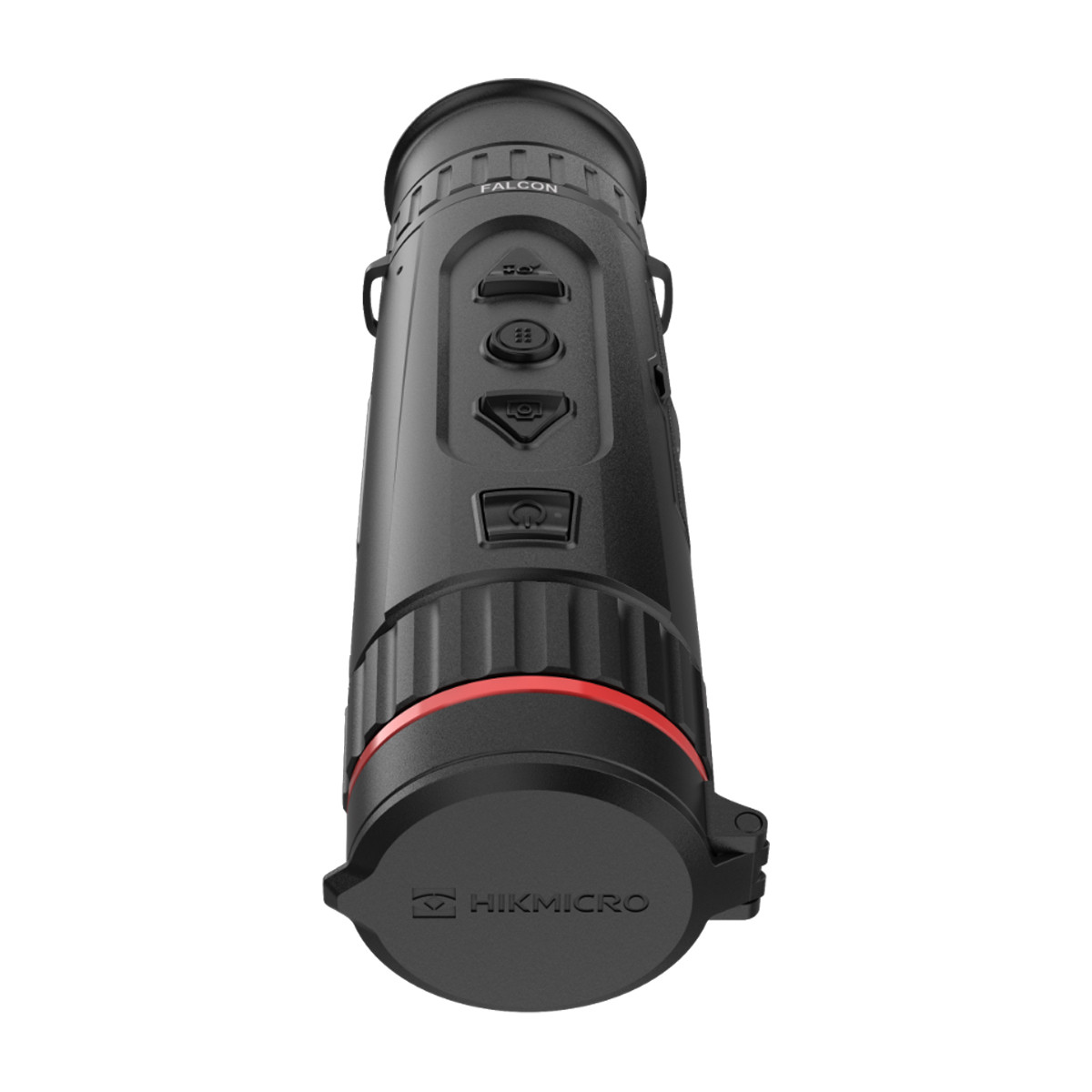

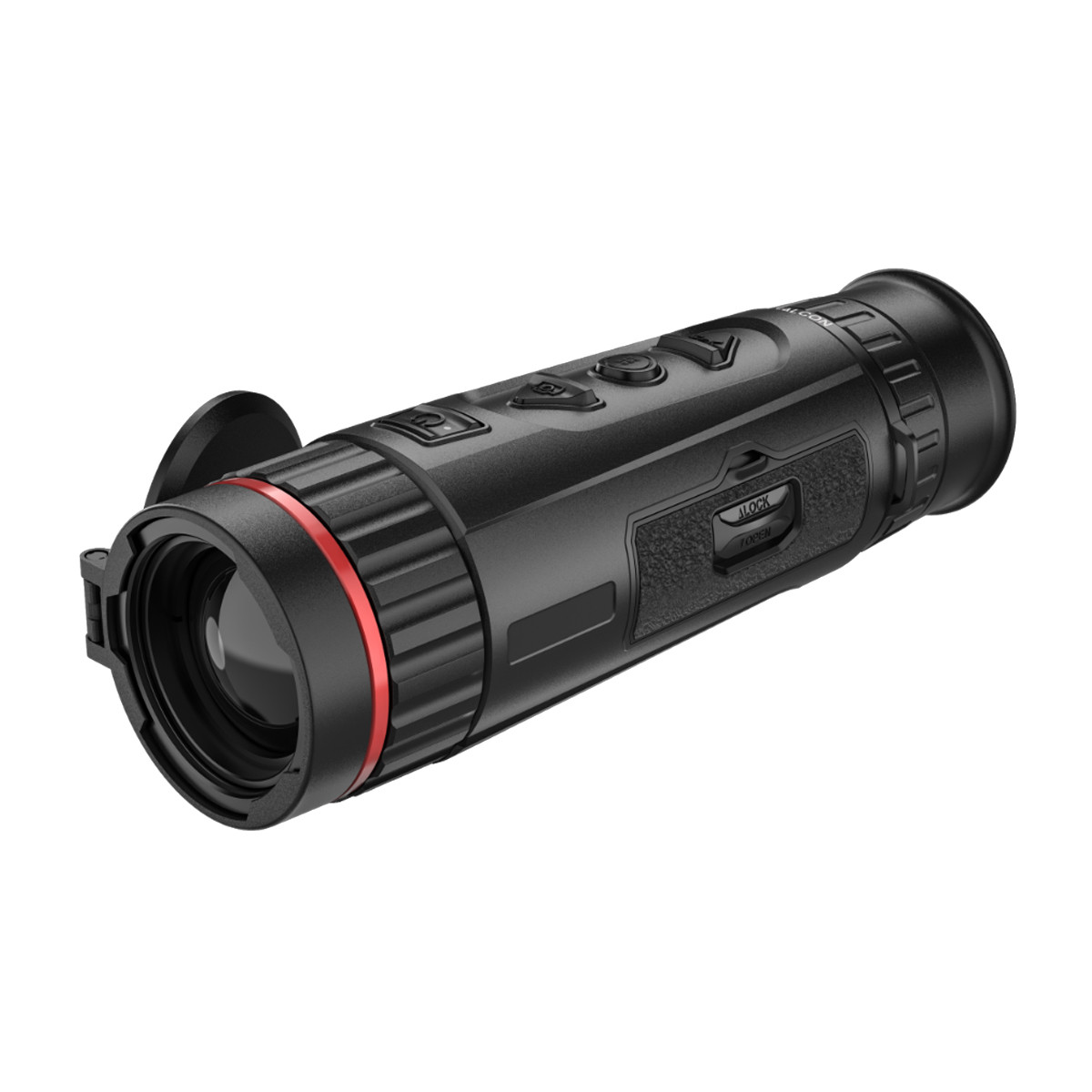

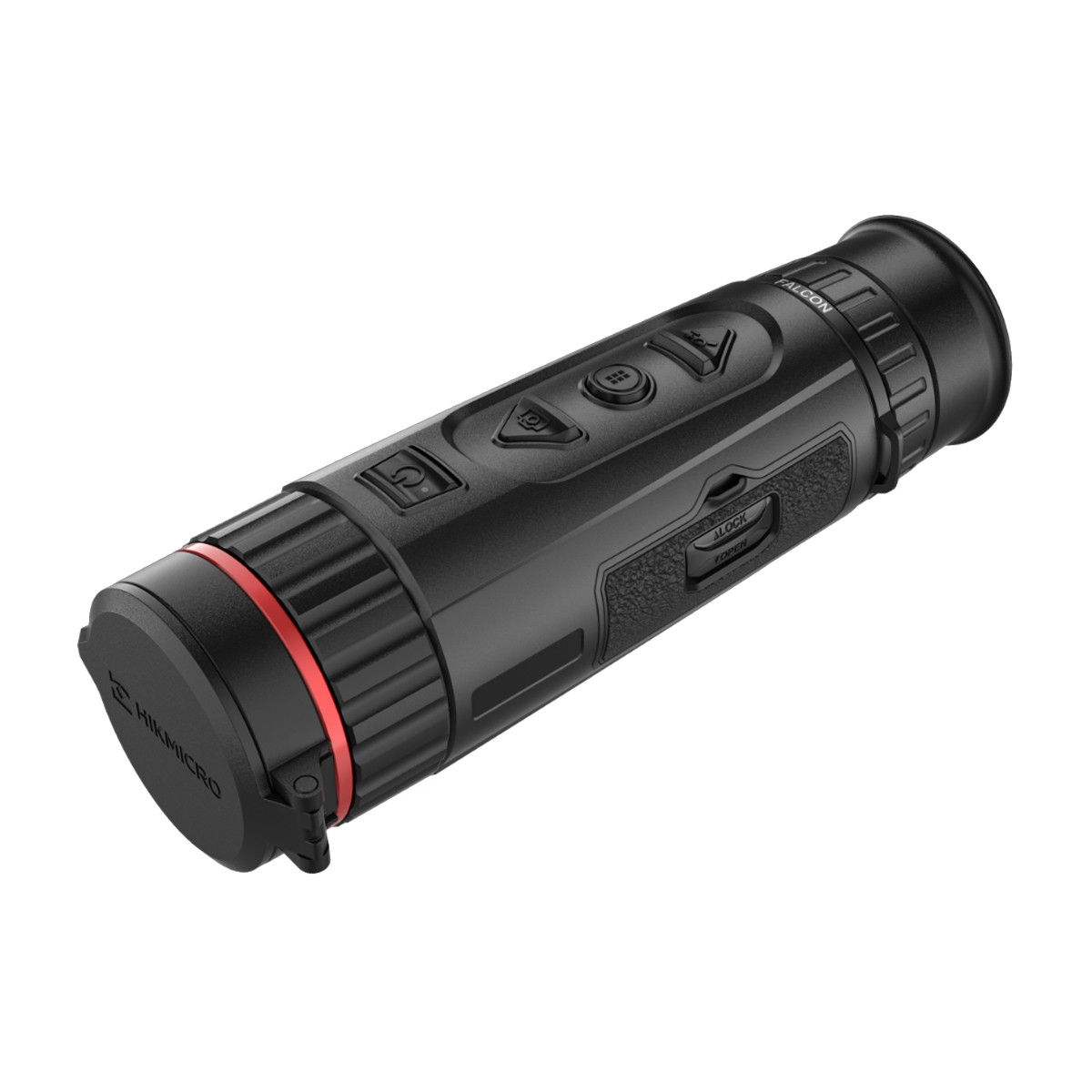

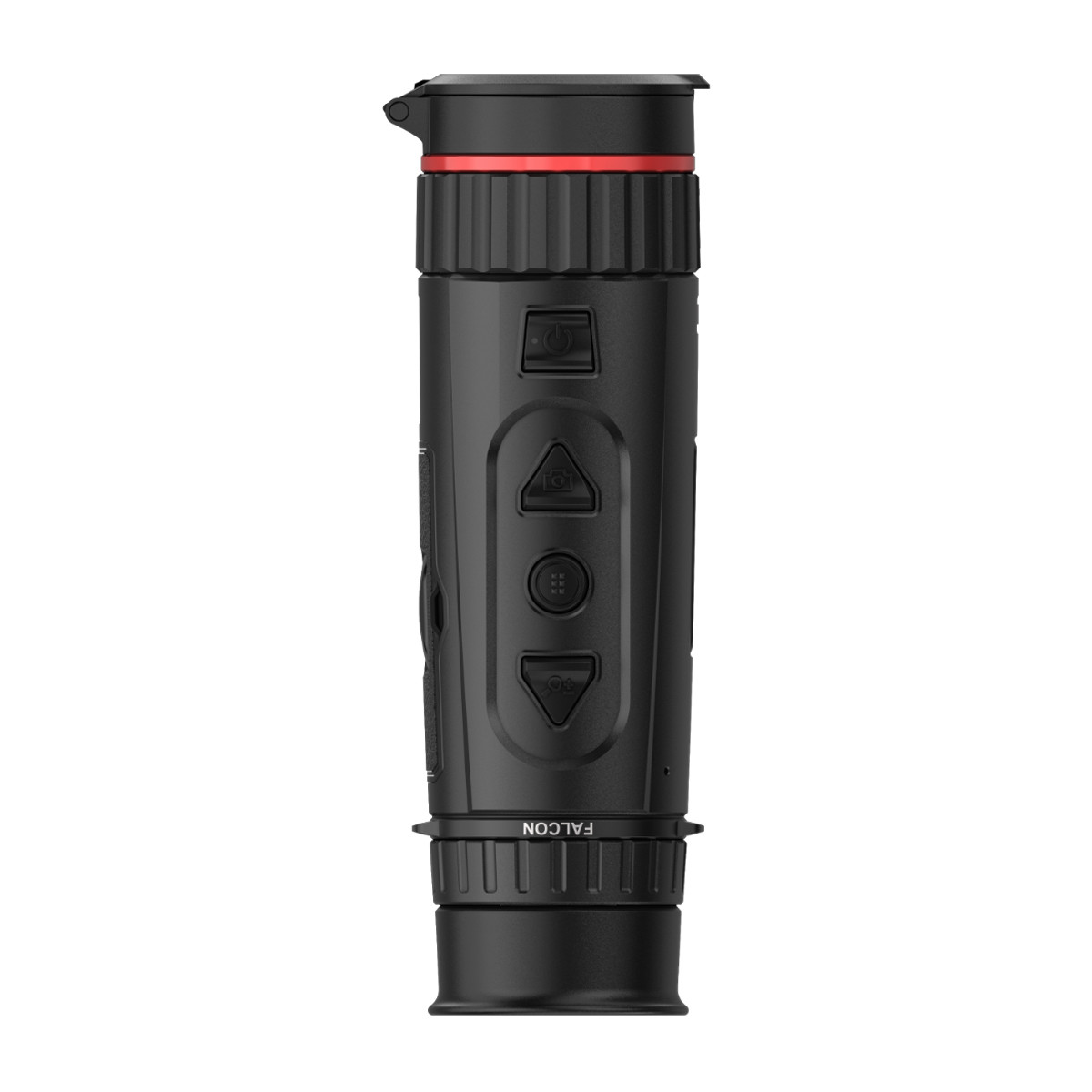

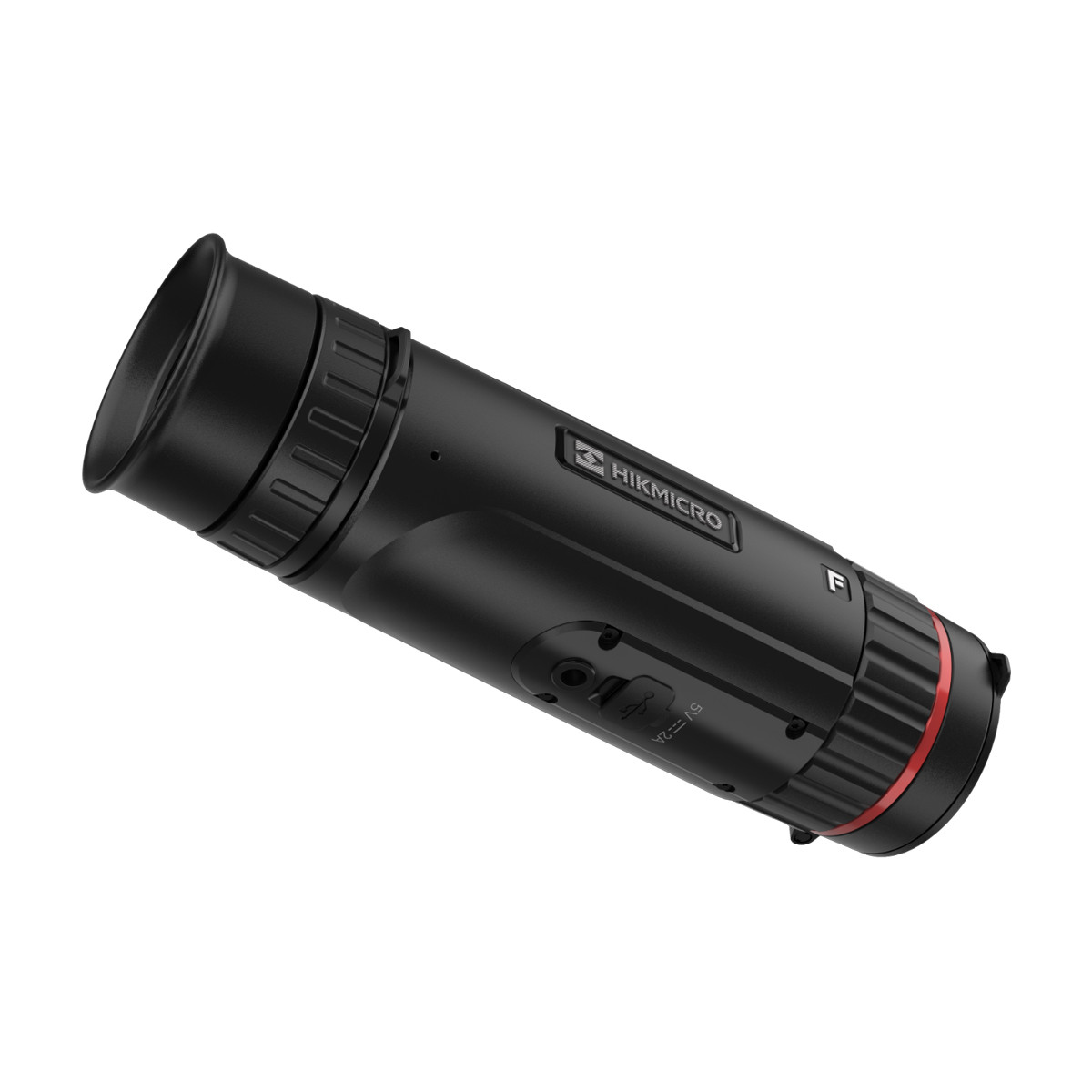

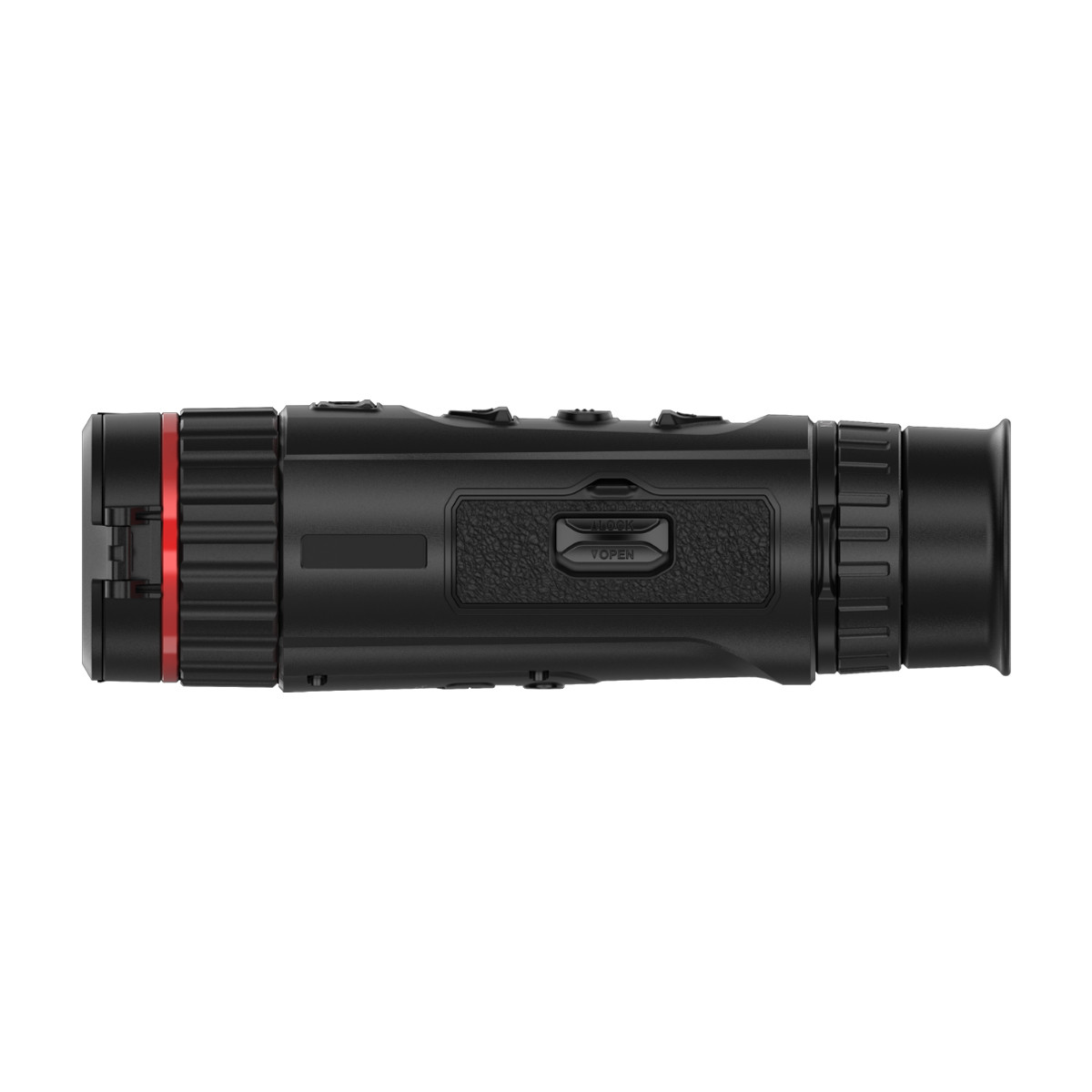

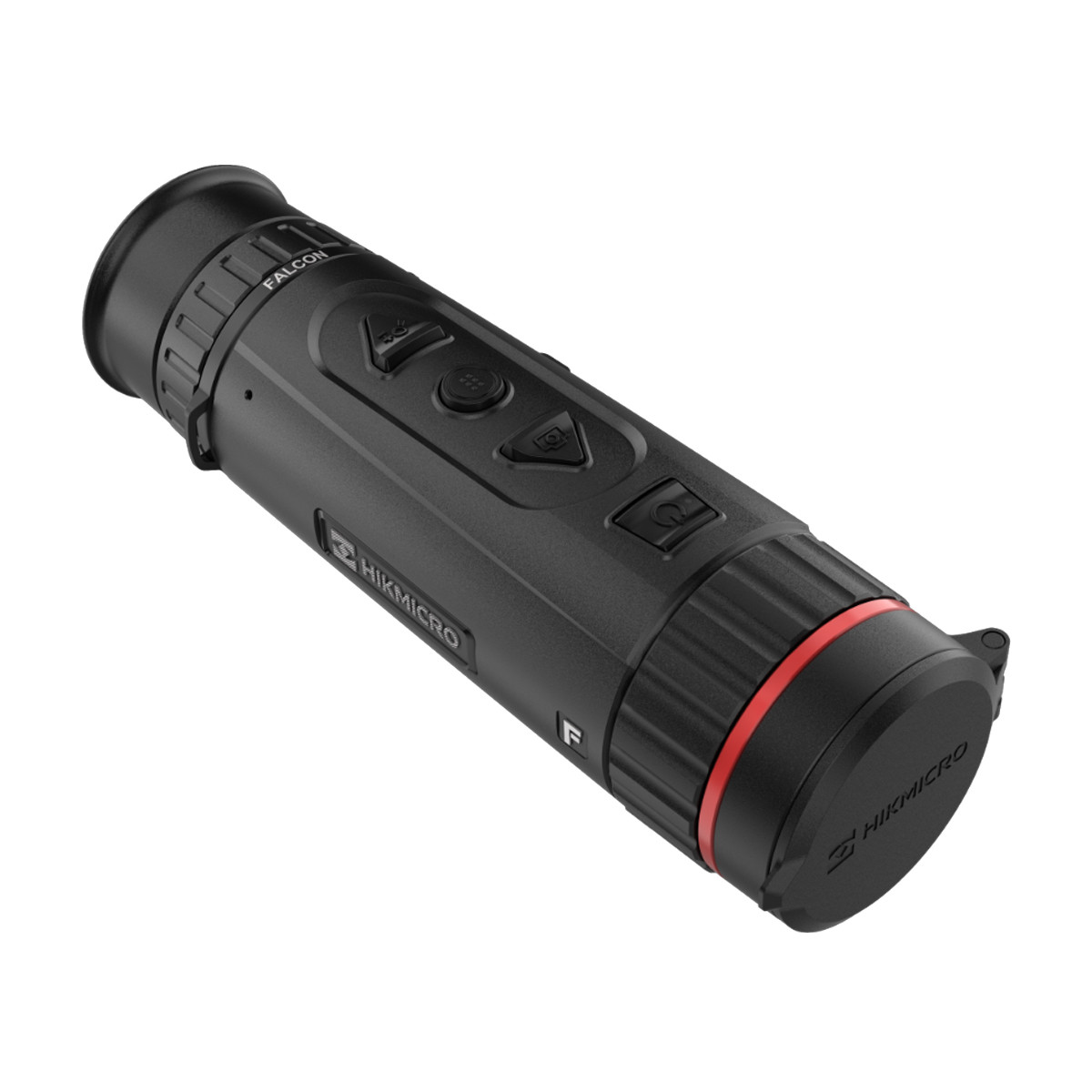

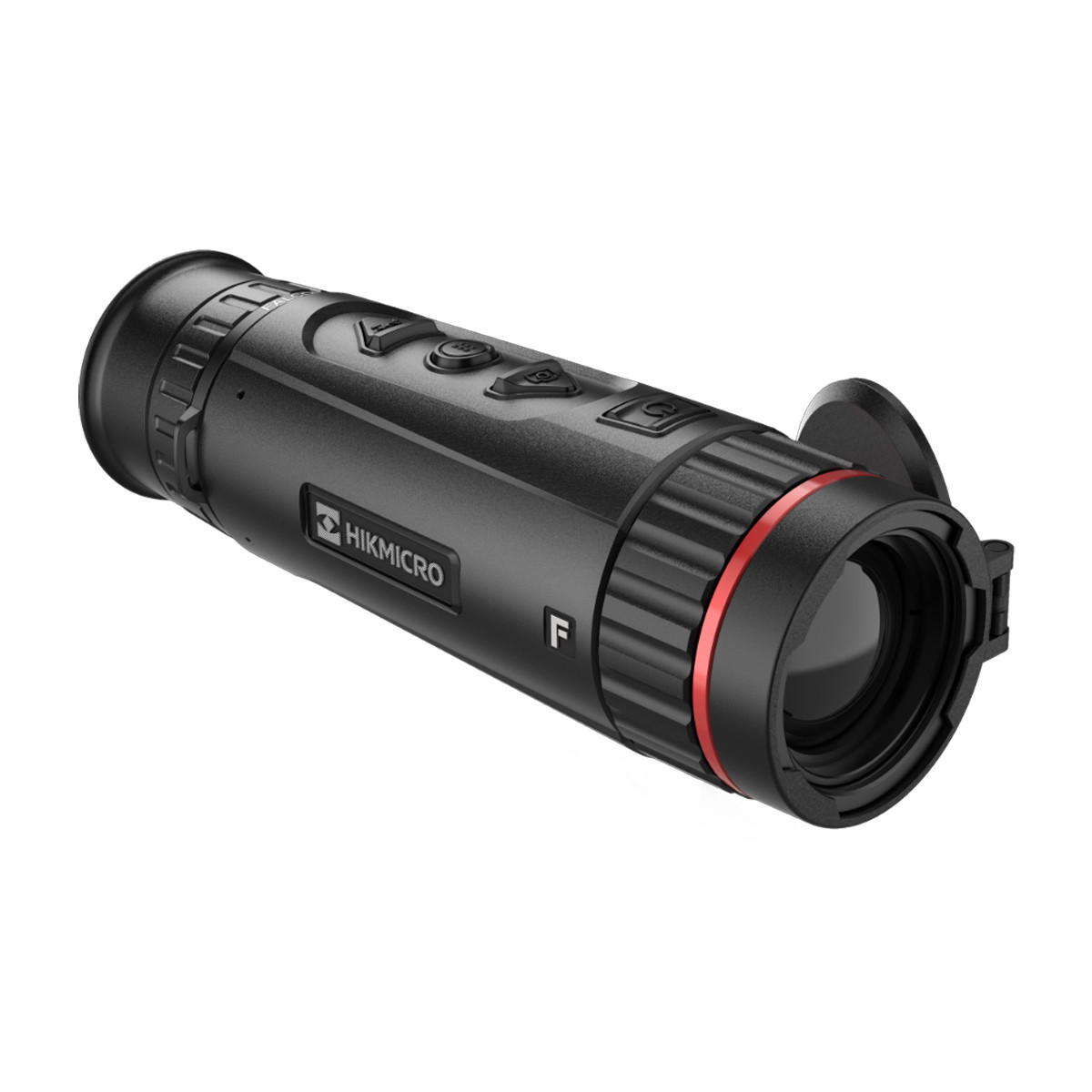

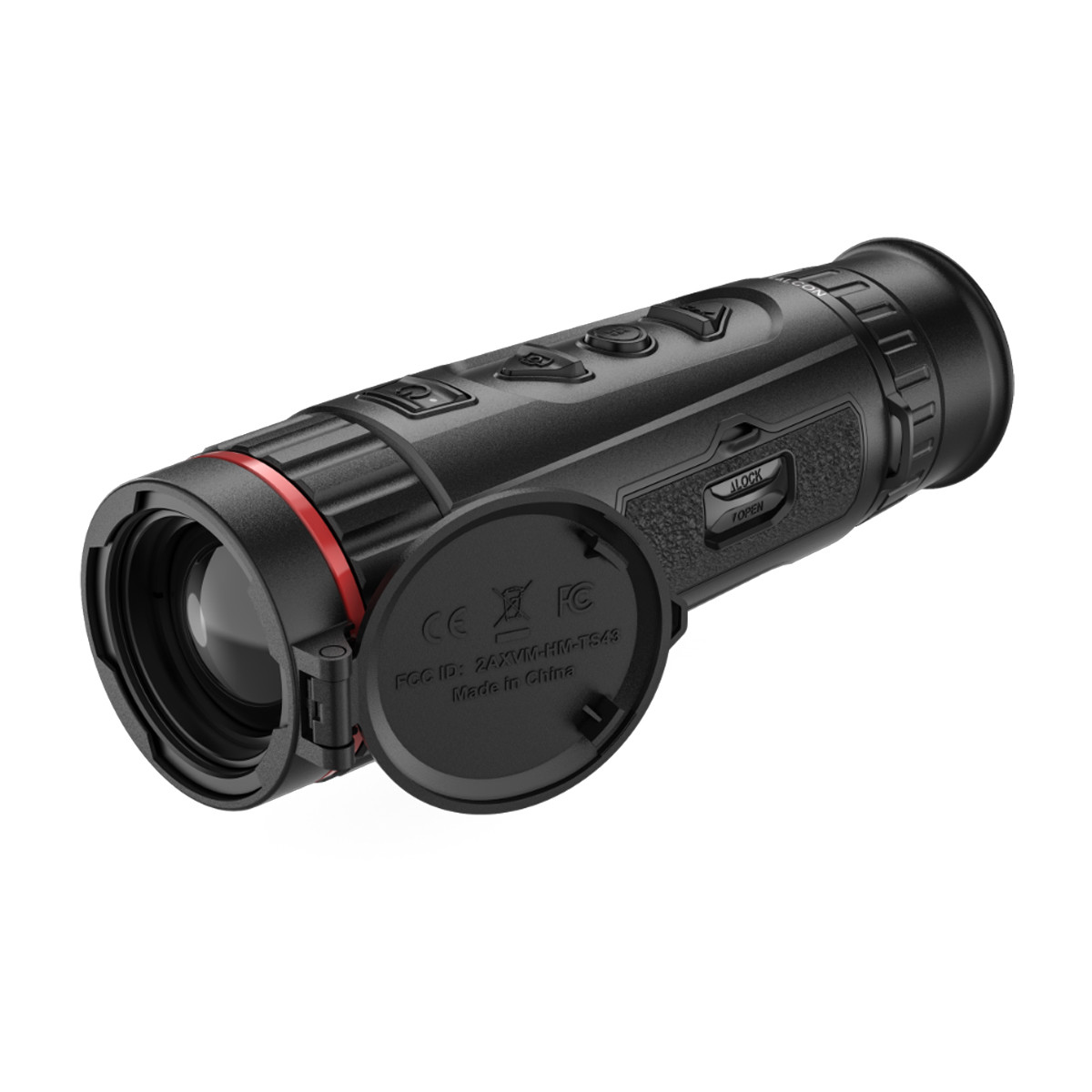

HIKMICRO Falcon FQ35 Pro Hand Held Thermal Imager Monocular
35mm 640x512px 12µm 20mk
- Ultra-sensitive <20mK NETD sensor for unrivalled detail recognition, even in challenging weather conditions
- High-definition 640x512 @ 12µm thermal detector ensures sharp, richly contrasted imaging
- Fast f/0.9 aspheric germanium lens captures more infrared radiation for clearer, high-contrast visuals
- Ergonomic cylindrical design optimised for one-handed use, suitable for left- and right-handed operators
- Intuitive button layout with tactile differentiation for seamless operation, even when wearing gloves or in darkness
- Extended operating time with replaceable Li-ion batteries (up to 7 hours) and external Type-C power support
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The HIKMICRO Falcon FQ35 Pro Thermal Imager Monocular is engineered for users who demand exceptional performance in the field. Equipped with a highly sensitive <20mK NETD sensor, a 640x512 high-definition thermal detector, and a fast f/0.9 germanium lens, it delivers crystal-clear images with outstanding detail recognition in all conditions. Whether scanning wide areas or identifying heat signatures at long distances, the Falcon FQ35 Pro provides a perfect overview with its wide field of view and flexible magnification. Its ergonomic cylindrical design ensures comfort and intuitive operation, while the long-lasting, replaceable battery system and external Type-C power compatibility keep you operating for extended sessions.
Please note: Due to distribution rights and agreements we can only sell HIK-MICRO products to residents of the UK.
- Image Sensor VOx Uncooled Focal Plane Arrays
- Max. Resolution 640x512
- Frame Rate 50Hz
- Pixel Interval 12µm
- Response Waveband 8µm to 14µm
- NETD <20mK (@25°C, F#=1.0)
- Lens (Focal Length) 35mm, f/1.0
- Detection Range 1800m
- Focus Mode Focus Ring
- Field of View (H × V) 12.5° × 10.0° / 21.9m × 17.5m @100m
- Minimum Focusing Distance 3.5m
- Magnification 1.8× – 14.4× (8x continuous zoom)
- Display 1024x768, 0.39 inch OLED
- Contrast/Brightness Adjustment Yes
- Palettes Black Hot, White Hot, Red Hot, Fusion
- FFC (Flat Field Correction) Auto, Manual, External
- Exit Pupil 4mm
- Eye Relief 15mm
- Dioptre Adjustment -5D to +3D
- Image Pro Yes
- Protection Level IP67
- Weight 455g (without battery)
- Dimensions 190.3mm × 58.3mm × 65.2mm
- Operating Temperature -30°C to 55°C; Humidity ≤90%
- Video Recording Yes
- Snapshot Capture Yes
- Hotspot/Wi-Fi Yes
- Standby Mode Yes
- Storage Built-in 64GB memory
- PIP (Picture-in-Picture) Yes
- Hot Tracking Yes
- Distance Measurement Yes
- Audio Recording Yes
- Battery Type Replaceable and Rechargeable Li-ion Battery
- Battery Operating Time ≥5h (25°C, Hotspot Off)
- External Power Supply Type-C, 5V DC, 2A
- Outstanding thermal sensitivity: The <20mK NETD sensor, built with advanced VOx vanadium oxide technology, ensures exceptional image clarity by detecting the smallest heat differences between objects and background.
- High-resolution thermal detector: The 640x512 pixel sensor with a 12µm pixel pitch provides precise temperature readings and detailed imagery, ensuring accurate identification at any distance.
- Enhanced optical performance: A premium aspheric germanium lens with an f/0.9 aperture improves infrared capture by 19% compared to standard f/1.0 lenses, producing clearer and brighter thermal images.
- User-friendly design: The cylindrical body is compact, lightweight, and made from skin-friendly materials for comfort during extended use. It allows one-handed operation and is designed for both left- and right-handed users.
- Optimised controls: Large, tactile buttons with unique shapes allow fast, intuitive operation without visual confirmation, ensuring ease of use in total darkness or while wearing gloves.
- Reliable power options: The replaceable, rechargeable Li-ion battery provides up to 7 hours of operation, with the option to swap for a spare battery or connect to an external Type-C power bank for continuous use.
- Versatile functionality: Built-in video and audio recording, snapshots, hotspot sharing, picture-in-picture (PIP), hot tracking, and distance measurement enhance user capability in the field.
- Durable construction: IP67-rated for protection against dust and water ingress, ensuring dependable operation in harsh environments.
HIKMICRO Falcon FQ35 Pro Hand Held Thermal Imager Monocular - 35mm 640x512px 12µm 20mk
Carry Case
Quick Start Guide
USB Cable
Lens Cloth
x2 18650 Pip Top Batteries
HikMicro 2 slot Battery Charger
Neck Strap
Wrist Strap

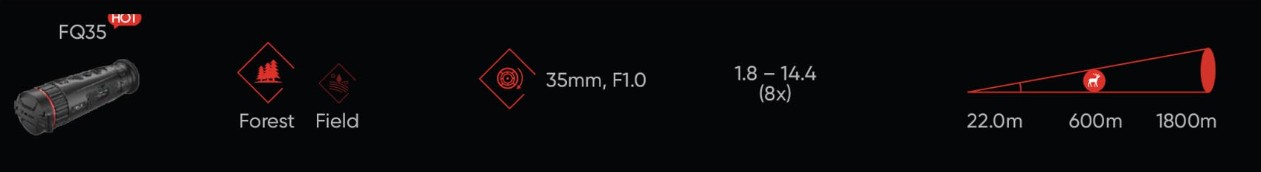

What is the FOV @ 100m ?
22.0m
What id the Identification range of a deer sized object?
600m
What is the detection range of a deer sized object?
1800m
What batterys does this unit use?
18650 pip top https://www.opticswarehouse.co.uk/hikmicro-18650-battery
How long do the batteries last?
Each battery should last roughly 4-5 hours
- Warranty period (main unit): 3 years
HIKMICRO has a full UK service and technical centre, complete with Hotline: 0203 514 0092 available to assist with any issues.
