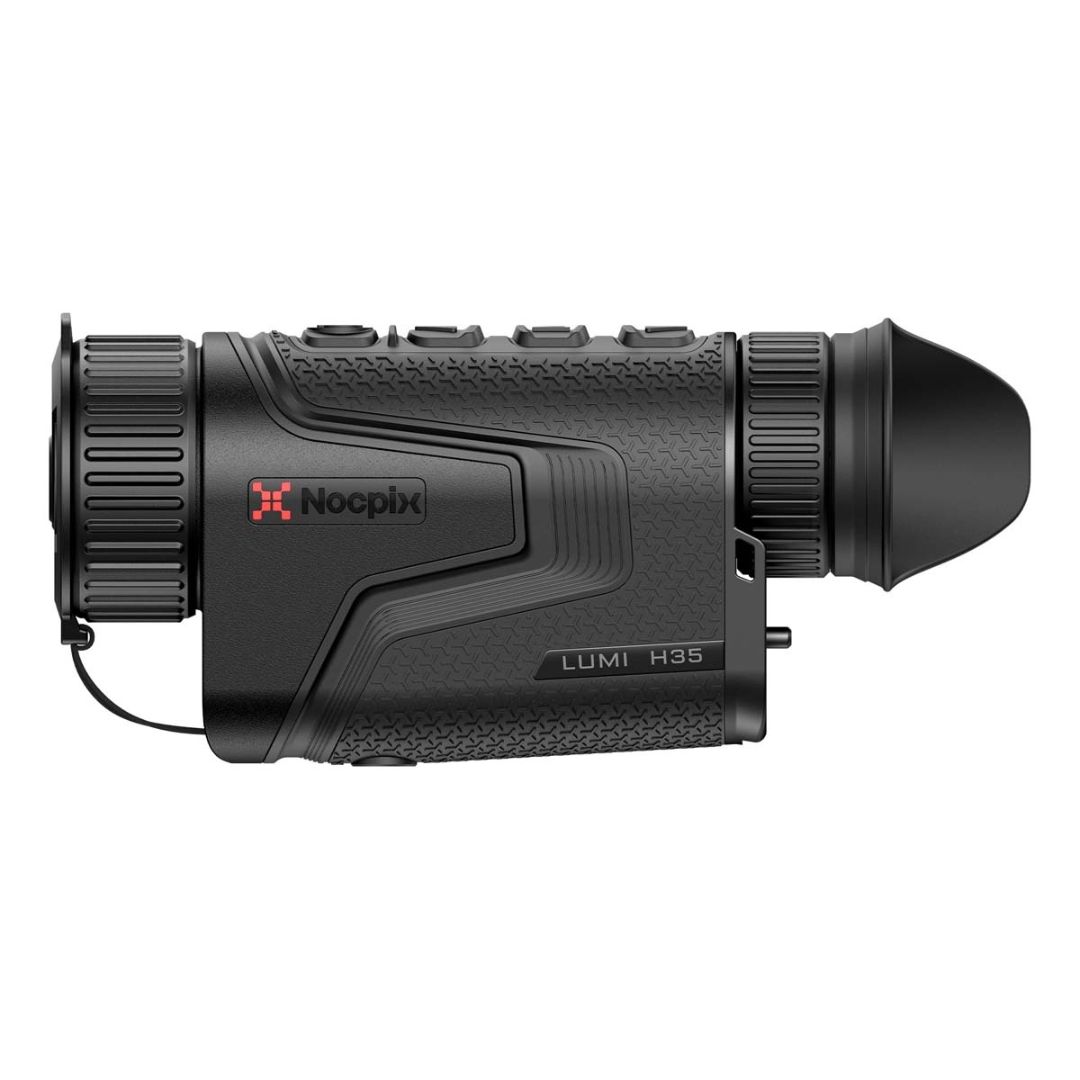

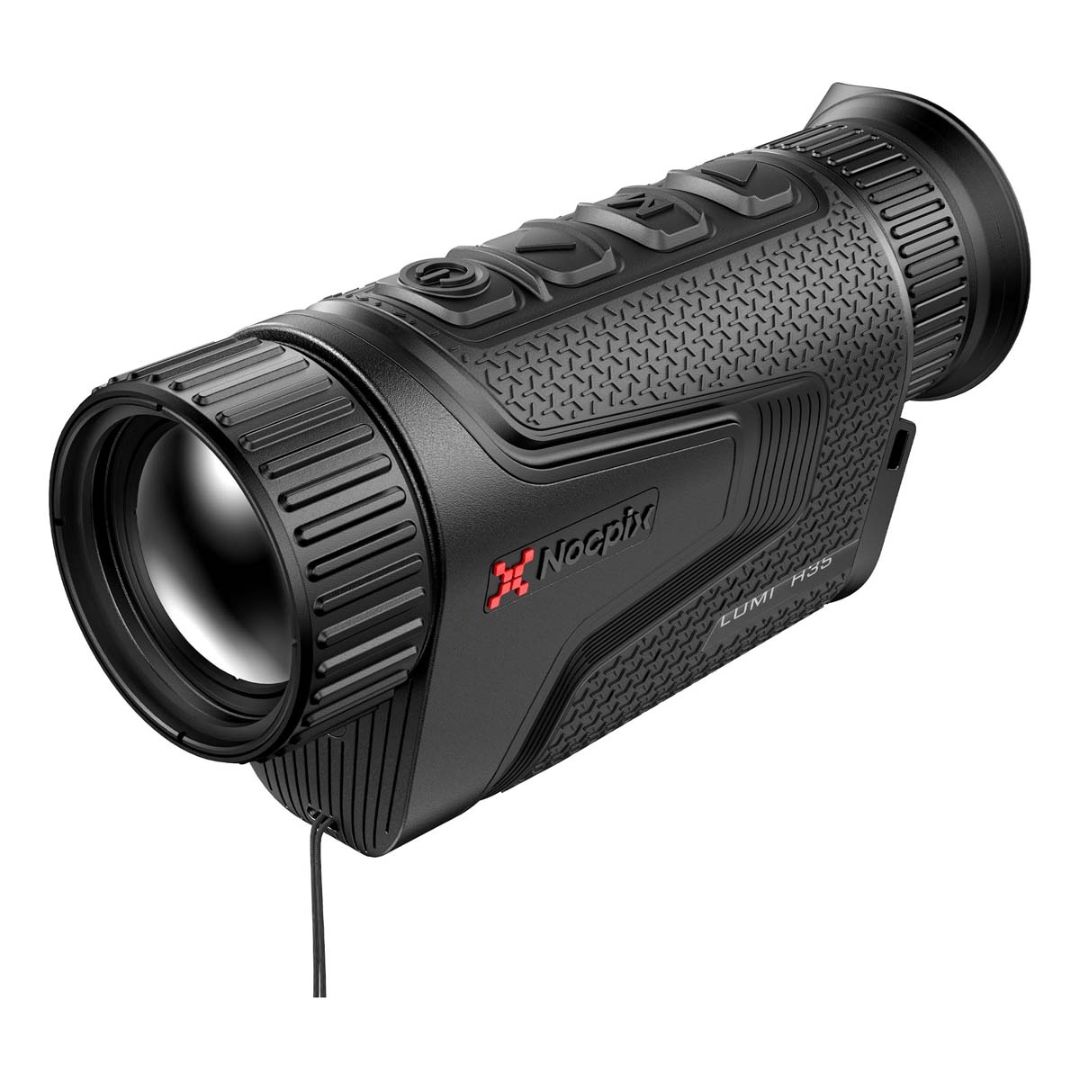

NocPix LUMI H35 Handheld Thermal Monocular - 35mm 12um 640x512 <18mK NETD
For the Lumi H35, a key highlight is its higher-resolution 640 × 512 thermal sensor with ≤18 mK NETD sensitivity, which enhances its ability to detect subtle heat variations and produces detailed thermal imagery even in challenging environmental conditions.- George
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The Nocpix LUMI H35 is a high-resolution thermal monocular designed for reliable use both day and night. It delivers exceptional image quality, even in challenging conditions like fog, smog, and rain, and can detect targets through obstacles such as branches, tall grass, and dense foliage that typically obstruct visibility.
Despite its powerful capabilities, the LUMI H35 is compact and lightweight, making it easy to carry and ideal for users on the move. Its versatile design supports a variety of applications, including hunting, observation, security, terrain navigation, and search and rescue operations.
- Resolution: 640 x 512
- Pixel Size: 12
- Thermal Sensor: 640 x 512 12μm
- NETD, mK: ≤18
- Frame Rate: 50
- Objective Lens: 35mm F0.9
- Field of View: 12.5 x 9.4
- Field of View (Linear): 22 x 16
- Magnification: 2.5~20
- Detection Range: 1800
- Eye Relief: 25
- Exit pupil Diameter: 10
- Diopter: -5 ~ +5
- Display Type: AMOLED
- Display Resolution: 1024 x 768
- Battery: Replaceable li-ion battery 18650
- Max. operating Time: 4.5
- Wi-Fi/APP: YES
- MIC: YES
- Memory Capacity: 32GB
- IP rating: IP67
- Max. Operating Temperature: -20 ~ +50
- Weight (oz): 12.17
- Weight (g): 345
- Dimensions (in): 5.63 x 1.85 x 2.91
- Dimensions (mm): 143 x 47 x 74
- Compact and lightweight
- 12μm detector
- F0.9 objective lens
- AMOLED 1024×768
- Rechargeable Battery 18650 for quick replacement
- 50Hz high frame rate
- Smooth digital zoom
- Ultraclear mode
- Eye protection with low brightness, color palette and warm hue
- Electronic image stabilisation
- NocPix LUMI H35 Handheld Thermal Monocular - 35mm 12um 640x512 <18mK NETD
What is the defining characteristic of the Lumi H35?
It features a 640 × 512 resolution thermal sensor.
What does ≤18 mK NETD represent?
It indicates the sensor’s ability to detect very small temperature differences.
How does the 35 mm lens affect performance?
It provides a general-purpose field of view suitable for scanning and observation.
Does the Lumi H35 support smooth image motion?
Yes, the refresh rate supports fluid image movement during panning.
How does higher sensor resolution affect digital zoom?
Higher resolution preserves image detail when digitally magnified.
Is the unit suitable for extended observation periods?
Yes, the display clarity helps reduce visual fatigue.
How does the device handle adverse weather?
Thermal performance remains consistent in rain, mist, and cold conditions.
Is the Lumi H35 portable?
Yes, it is compact and designed for easy transport.
What use case is the Lumi H35 best suited for?
Applications requiring high thermal image detail in a handheld format.
