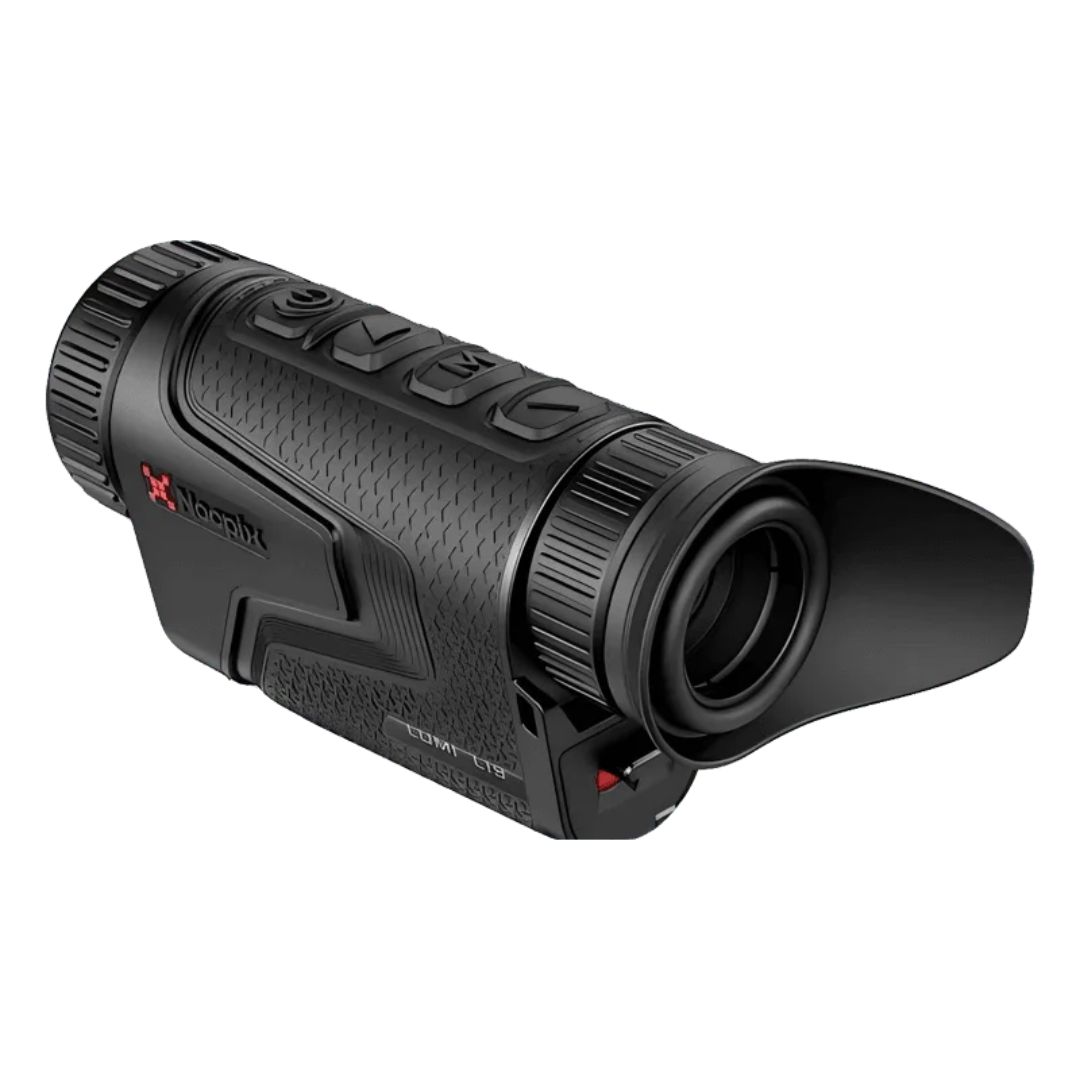

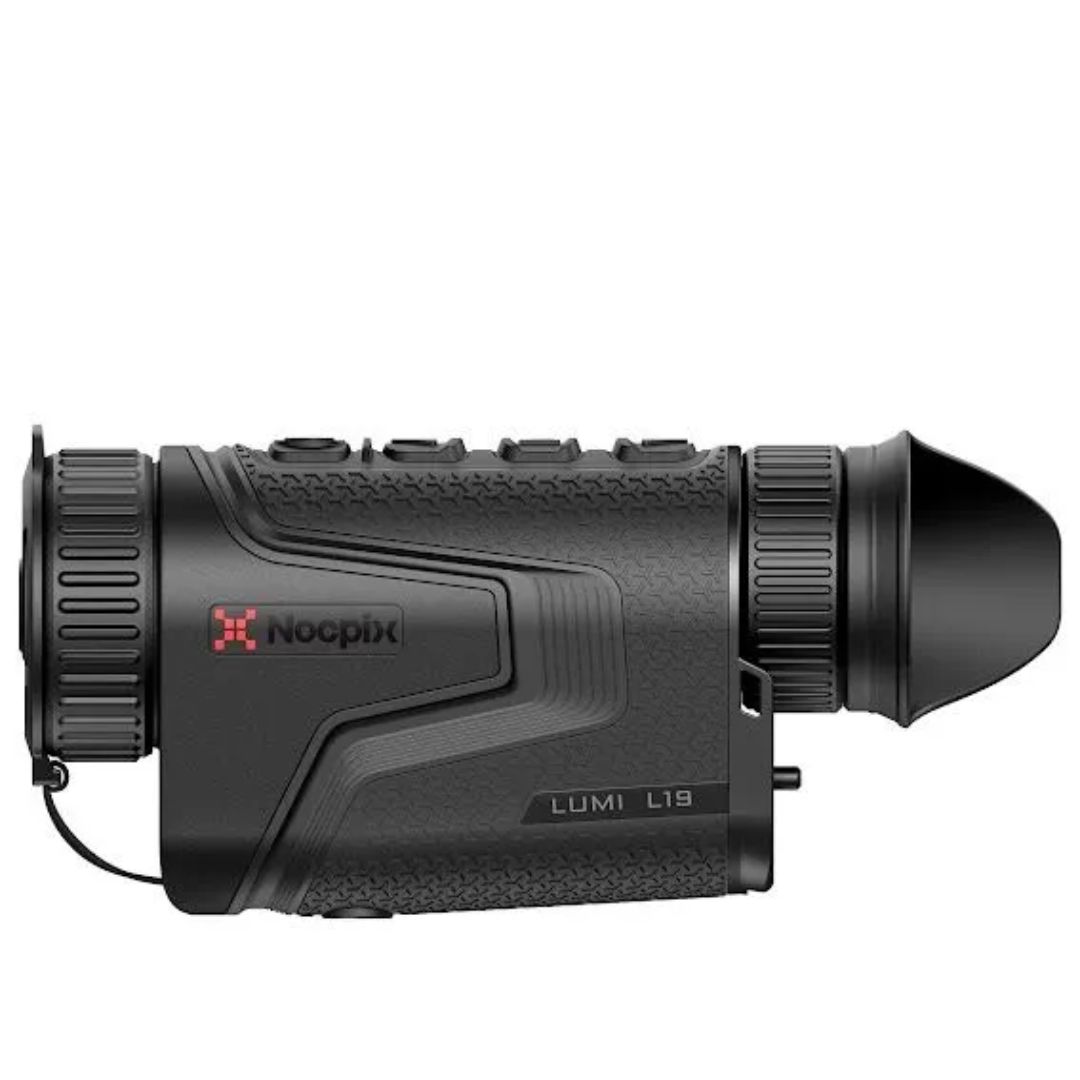

NocPix LUMI L19 Handheld Thermal Monocular - 19mm 12um 384x288 <18mK NETD
- Compact and lightweight
- 12μm detector
- F0.9 objective lens
- AMOLED 1024×768
- Rechargeable Battery 18650 for quick replacement
- 50Hz high frame rate
- Smooth digital zoom
- Ultraclear mode
- Eye protection with low brightness, color palette and warm hue
- Electronic image stabilization
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Compact and lightweight, the LUMI L19 is easy to carry, making it ideal for users who need portable thermal imaging. Its versatile design suits a wide range of applications, including hunting, observation, security, terrain navigation, and search and rescue operations.
- Resolution: 384 x 288
- Pixel Size: 12
- Thermal Sensor: 384 x 288 12μm
- NETD, mK: ≤18
- Frame Rate: 50
- Objective Lens: 19mm F0.9
- Field of View: 13.8 x 10.4
- Field of View (Linear): 24 x 18
- Magnification: 2~8
- Detection Range: 980
- Eye Relief: 25
- Exit pupil Diameter: 10
- Diopter: -5 ~ +5
- Display Type: AMOLED
- Display Resolution: 1024 x 768
- Battery: Replaceable li-ion battery 18650
- Max. operating Time: 4.5
- Wi-Fi/APP: YES
- MIC: YES
- Memory Capacity: 32GB
- IP rating: IP67
- Max. Operating Temperature: -20 ~ +50
- Weight (oz): 11.82
- Weight (g): 335
- Dimensions (in): 5.47 x 1.85 x 2.91
- Dimensions (mm): 139 x 47 x 74
- Compact and lightweight
- 12μm detector
- F0.9 objective lens
- AMOLED 1024×768
- Rechargeable Battery 18650 for quick replacement
- 50Hz high frame rate
- Smooth digital zoom
- Ultraclear mode
- Eye protection with low brightness, color palette and warm hue
- Electronic image stabilization
• LUMI series Thermal Imaging Monocular
• Portable bag
• 18650 Battery × 2
• 18650 battery charger
• Data cable
• Neck Strap
• Lens cleaning cloth
• Quick start guide
How portable and easy to carry is the Nocpix Lumi L19?
The Lumi L19 is built with an ultra-compact, "extreme pocket-size" design that is actually smaller than most standard smartphones. Weighing only about 11 ounces (approx. 315–345g), it is highly ergonomic and can easily be slipped into a jacket pocket or stored in its included MOLLE compatible pouch while you are on the move.
What kind of battery does it use, and can it be swapped in the dark?
The monocular is powered by a standard, widely available 18650 rechargeable battery. A major advantage of the Lumi series is its reverse polarity power system; you can insert the battery in either direction (positive or negative end first) and the device will operate perfectly. This removes the frustration of trying to orient the battery correctly when changing it in complete darkness.
Will operating the buttons spook wildlife or game?
No. The device features "ultimate silent buttons" that are specifically designed to have a completely quiet, tactile press. This ensures you can change color palettes, zoom, or start recording without making any clicking noises that could startle animals at close range.
Does using the monocular for extended periods cause eye strain?
To prevent the common issue known as "thermal eyes" (eye fatigue caused by staring at bright thermal screens in the dark), the Lumi L19 comes with a variety of color palettes. Among these are specialized red and green palettes engineered to reduce eye strain, allowing for much more comfortable viewing during long tracking or observation sessions.
Can I record video or take photos directly on the unit?
Yes. The Lumi L19 features built-in photo and video recording, which also includes an onboard microphone to capture audio from your environment. It comes with 32GB of internal storage, giving you plenty of space to save your field footage before transferring it to a phone or computer.
Can the controls be customized to suit my preferences?
Yes, the device offers great flexibility. By connecting the monocular to the dedicated Nocpix mobile app, you can customize and remap the physical button functions to better fit your personal handling habits, making it highly accommodating for both left and right handed users.
How does the body handle harsh weather and cold temperatures?
The Lumi L19 features an IP67 dustproof and waterproof rating, meaning it can easily handle rain, mud, and accidental splashes. Furthermore, the exterior is wrapped in a weatherproof, rubberized texture. This not only enhances your grip in wet conditions but also ensures the housing doesn't feel freezing or unpleasant to hold with bare hands in icy weather.
- NocPix 3 year warranty for main body
