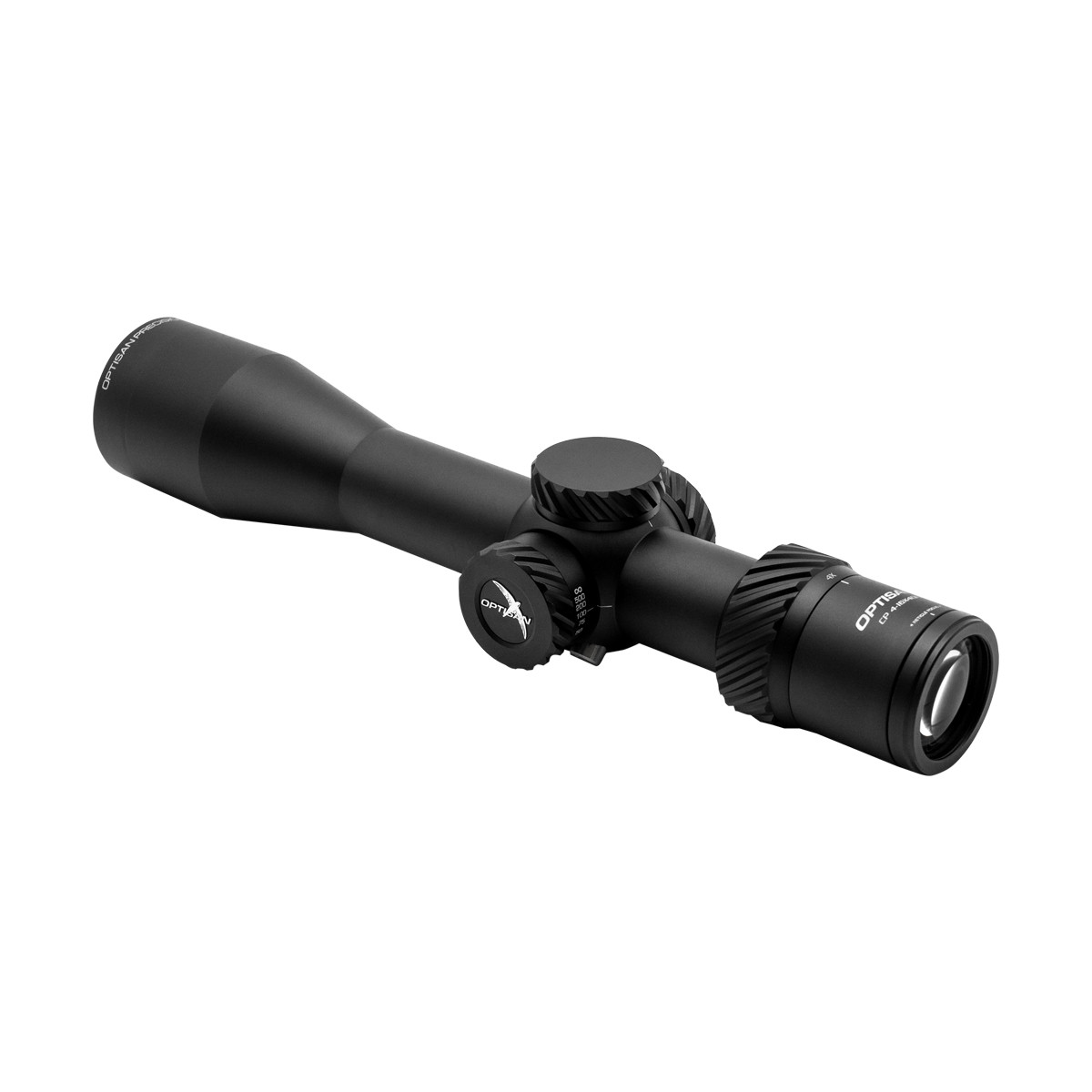

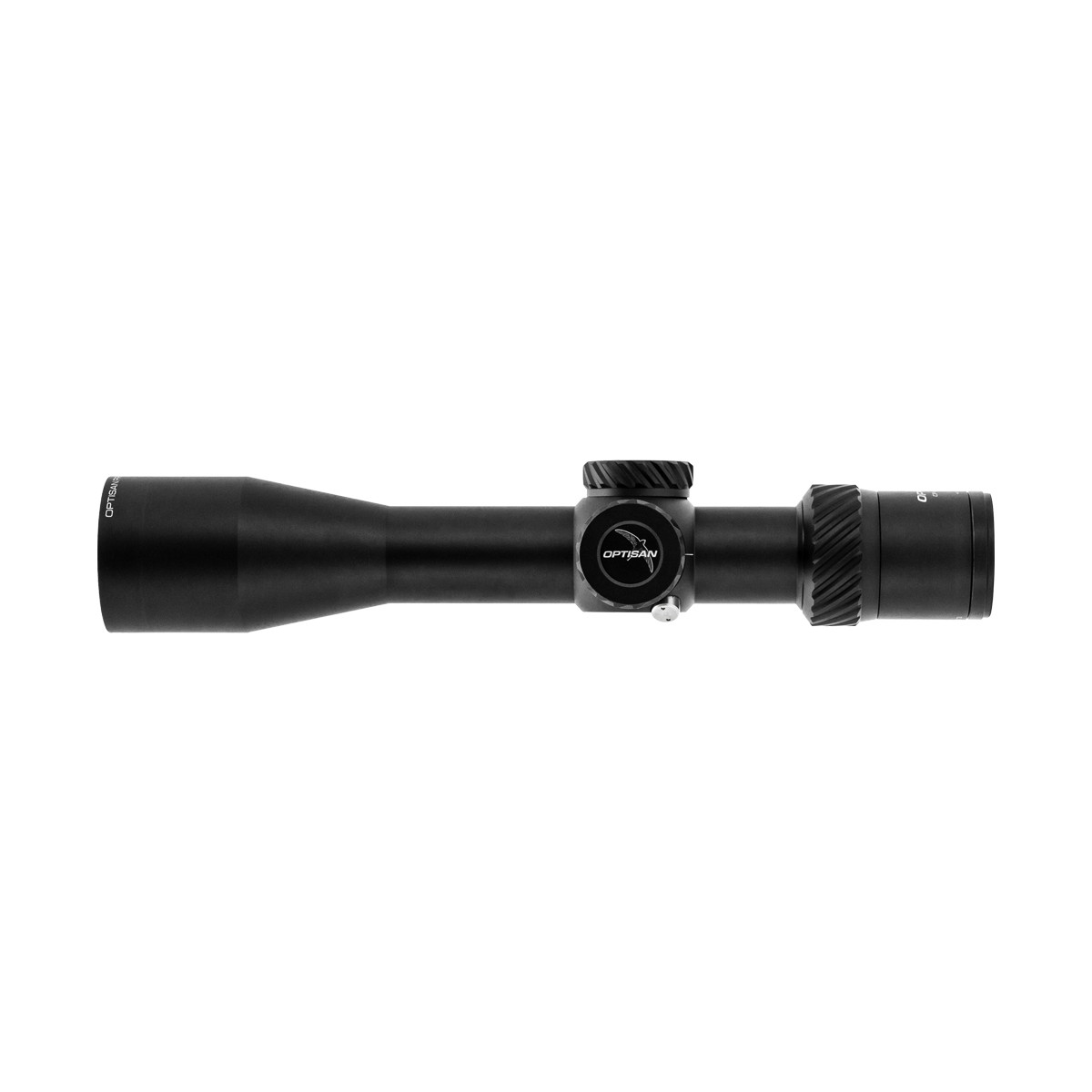

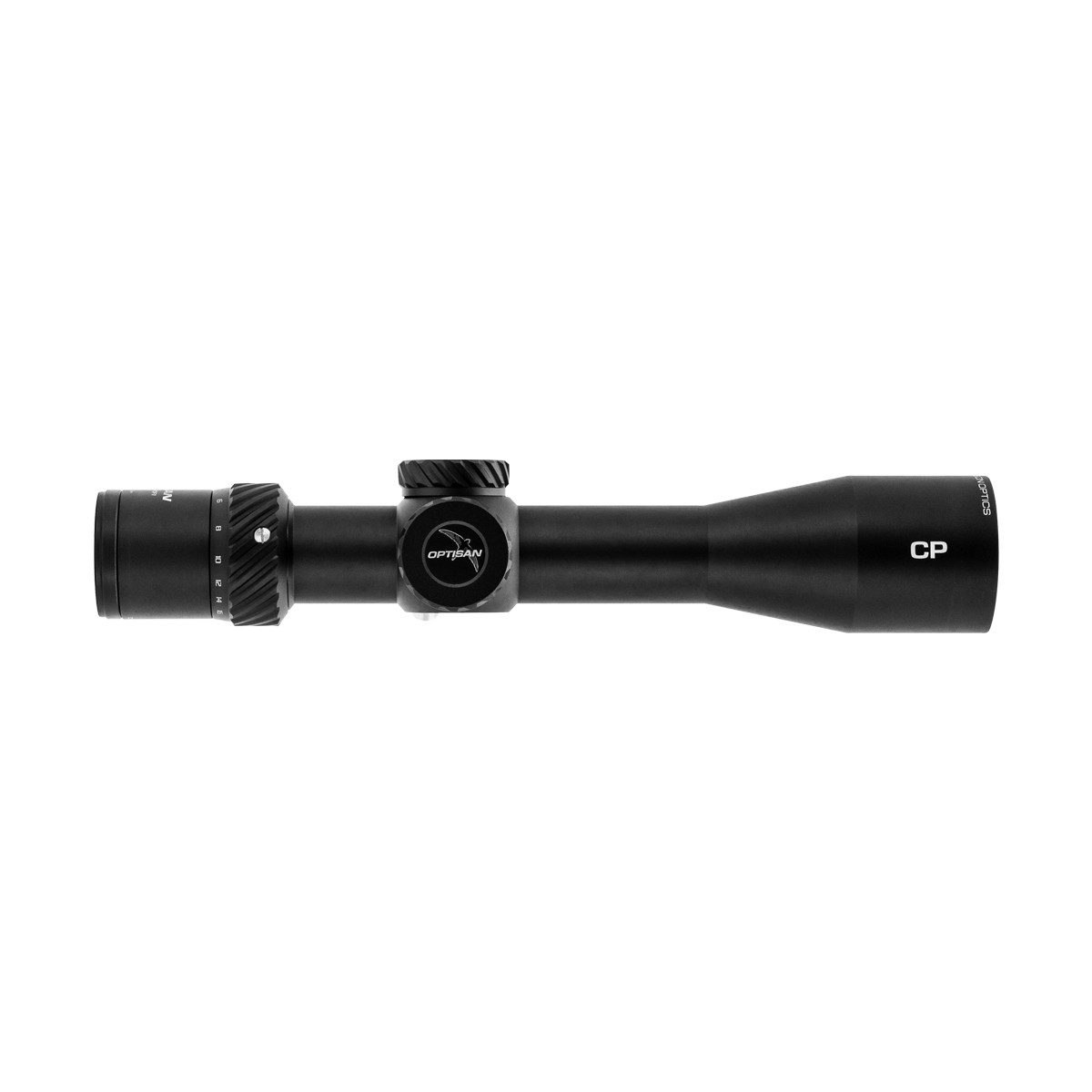

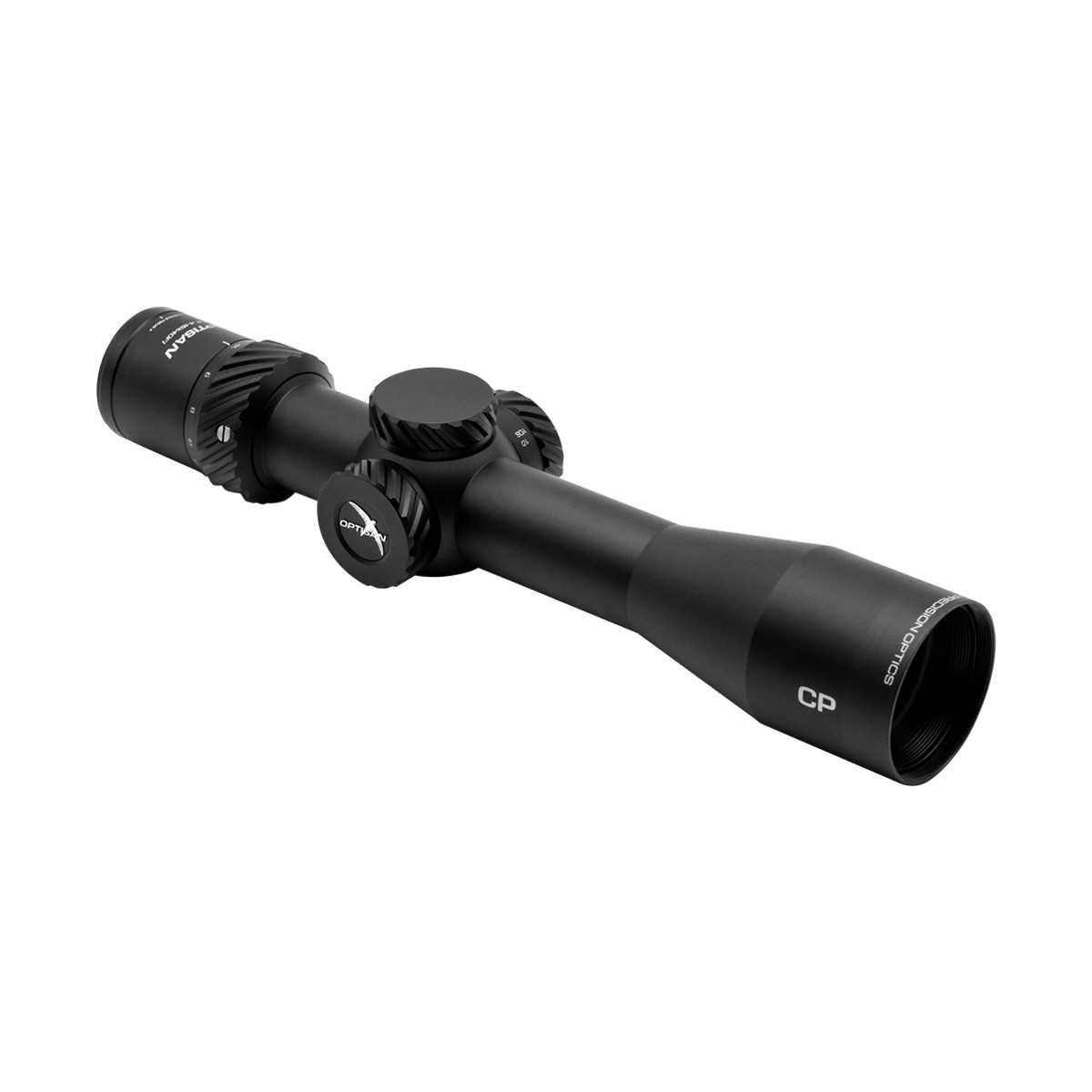

Optisan Optics CP 4-16x40 F1 FFP Non Illuminated F1MOA16 Side Focus 30mm Rifle Scope
The Optisan CP 4β16Γ40 is built for shooters who value precision, reliability, and simplicity.
With a lightweight yet durable design, this scope offers crystal-clear optics, smooth side-focus parallax adjustment, and your choice of either the F1 Mil-Dot or F1MOA reticle β all without the distraction of illumination.
Perfect for daylight shooting across a wide range of disciplines, the CP 4β16Γ40 delivers consistent performance in the field or on the range.
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
The highly anticipated Optisan CP first focal plane riflescopes have finally arrived. This scope is available in both MRAD-based reticles and MOA-based reticles. These come with matching click values to it make sit nice and easy whilst out in the field to make your adjustments and holdovers.
The main reason the first focal plane reticles were introduced to the CP'S was due to the fact that the first focal plane reticles are always consistent no matter what magnification you are on. So with this being an air rifle focus rifle scope, predominantly used by HFT and vermin control, having the ability to call holdoffs using your reticle on every magnification is incredibly useful. This was the feedback received by Optisan and they listened to bring you the Optisan CP 4-16x40.
Much like its second focal plane brother, the Optisan CP 4-16x40 FFP MOA measures only 268mm in length and weighs only 530 grams. It features a 30mm main tube and one-piece construction made from aircraft-grade aluminium. If you are buying the first focal plane MRAD riflescope you are going to get a 0.1 MRAD click, and if you are buying the first focal plane MOA, you are going to get a ΒΌ MOA click. The turrets on these are low profile and under caps.
Both the MRAD and the MOA versions of the Optisan CP 4-16x40 F1 come with a non-illuminated reticle and feature a hash-mark reticle which will provide the shooter with more than enough holdover points to accurately call wind calls without having to dial in the turrets, making it a perfect choice for Air Rifle Shooters.
To follow on, the Optisan CP 4-16X40 has parallax adjustments from 10 yards out to infinity and features fully multi-coated lenses which are consistent throughout the CP range of riflescopes which shooters are incredibly happy with.
Who itβs perfect for:
-
Shooters who prefer a clean, non-illuminated reticle for daytime clarity
-
Users who need reliable medium to long-range accuracy
-
Hunters and sports shooters looking for a lightweight scope with no excess features
What it solves:
-
No need to pay extra for illumination you wonβt use in daylight
-
Reduces visual clutter in the sight picture for improved focus on target
-
Easy handling and less fatigue thanks to a compact build
Common Questions:
-
Is it waterproof and fog-proof?
Yes β the scope is fully sealed and nitrogen-purged for dependable performance in all conditions. -
Whatβs the difference between F1 and F1MOA?
F1 uses Mil-Dot spacing, while F1MOA uses minute of angle (MOA) markingsβchoose based on your shooting preference or training background. -
Can I adjust parallax?
Yes β the side focus dial allows fine-tuned adjustment from 10 yards to infinity.
| Magnification (High) | 16X Β±5% |
| Magnification (Low) | 4X Β±5% |
| Objective Diameter (mm) | 40mm |
| Outer dia. Objective (mm) | 48mm |
| FOV (min.magοΌ(ft/100yds) | 26.20 |
| FOV (max.magοΌ(ft/100yds) | 6.55 |
| Eye relief (in) | 3.5'' - 3.3'' |
| Exit Pupil (Max mag.οΌ (mm) | 10 mm |
| Exit Pupil (min. mag.οΌ (mm) | 2.5 mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100yds pa free) |
| Coating | Fully Multi-coated |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 1/4 MOA |
| Windage Adjustment (value per click) | 1/4 MOA |

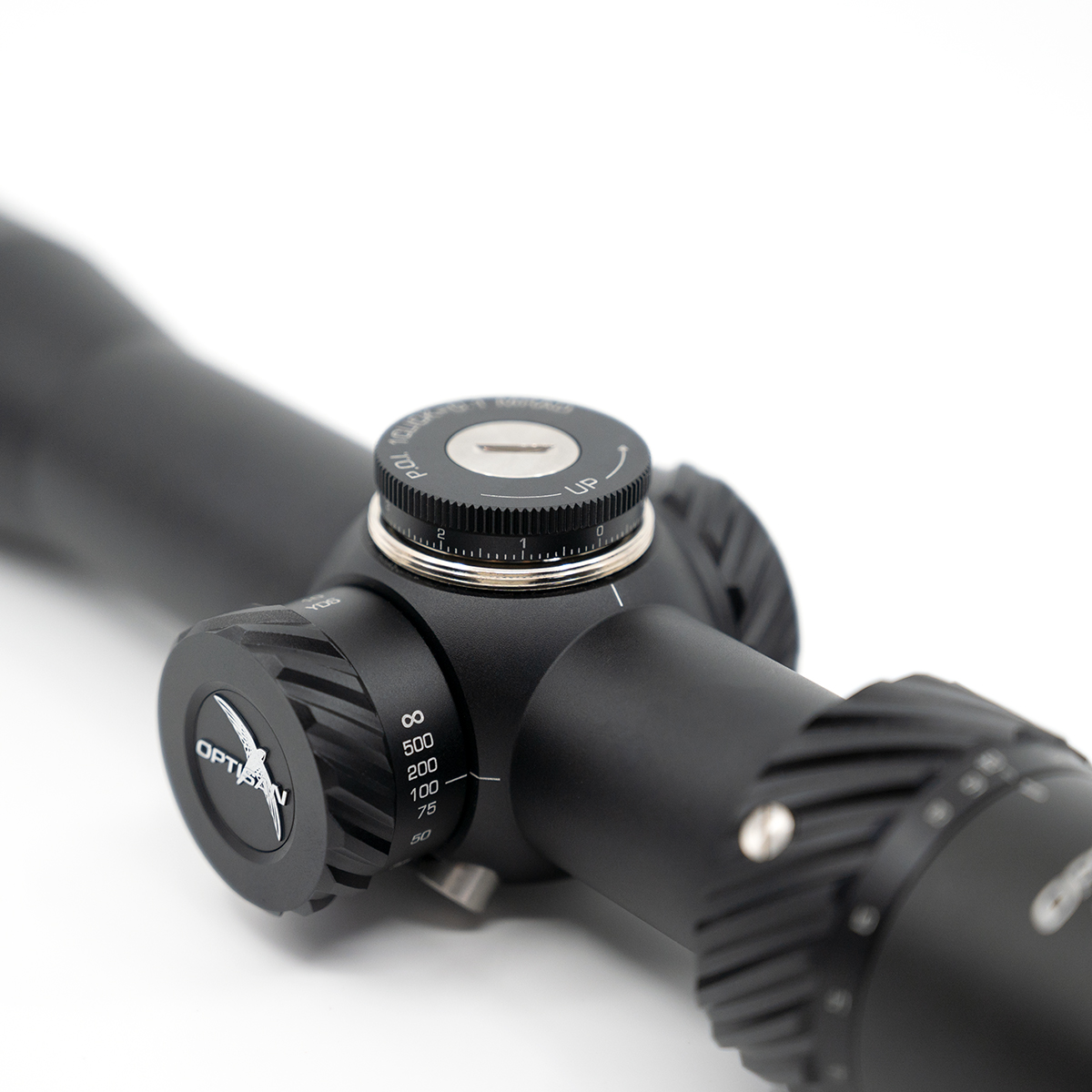

| Turret Style (Elevation) | Low profile |
| Turret Style (Windage) | Low profile |
| Elevation adj. range | β₯ 18 mrad |
| Windage adj. range | β₯ 18 mrad |
| Eye Piece Diameter (in) | 1.55'' |
| Eye Piece Diameter (mm) | 39.5 mm |
| Eye Piece Length (in) | 1.08'' |
| Eye Piece Length (mm) | 27.55 mm |
| Mounting Length rear (mm) | 55.70 mm |
| Mounting Length front (mm) | 30.00 mm |
| Tube Dia. (mm) | 30 mm |
| Length (in) | 10.55'' |
| Length (mm) | 268mm |
| Weight (g) | 530g |
| Weight (oz) | 18.69 oz |
| Surface Finish | Matte Black |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Reticle | F1MOA16 |
| Focal plane | SFP |
| Illumination | Non-Illuminated |

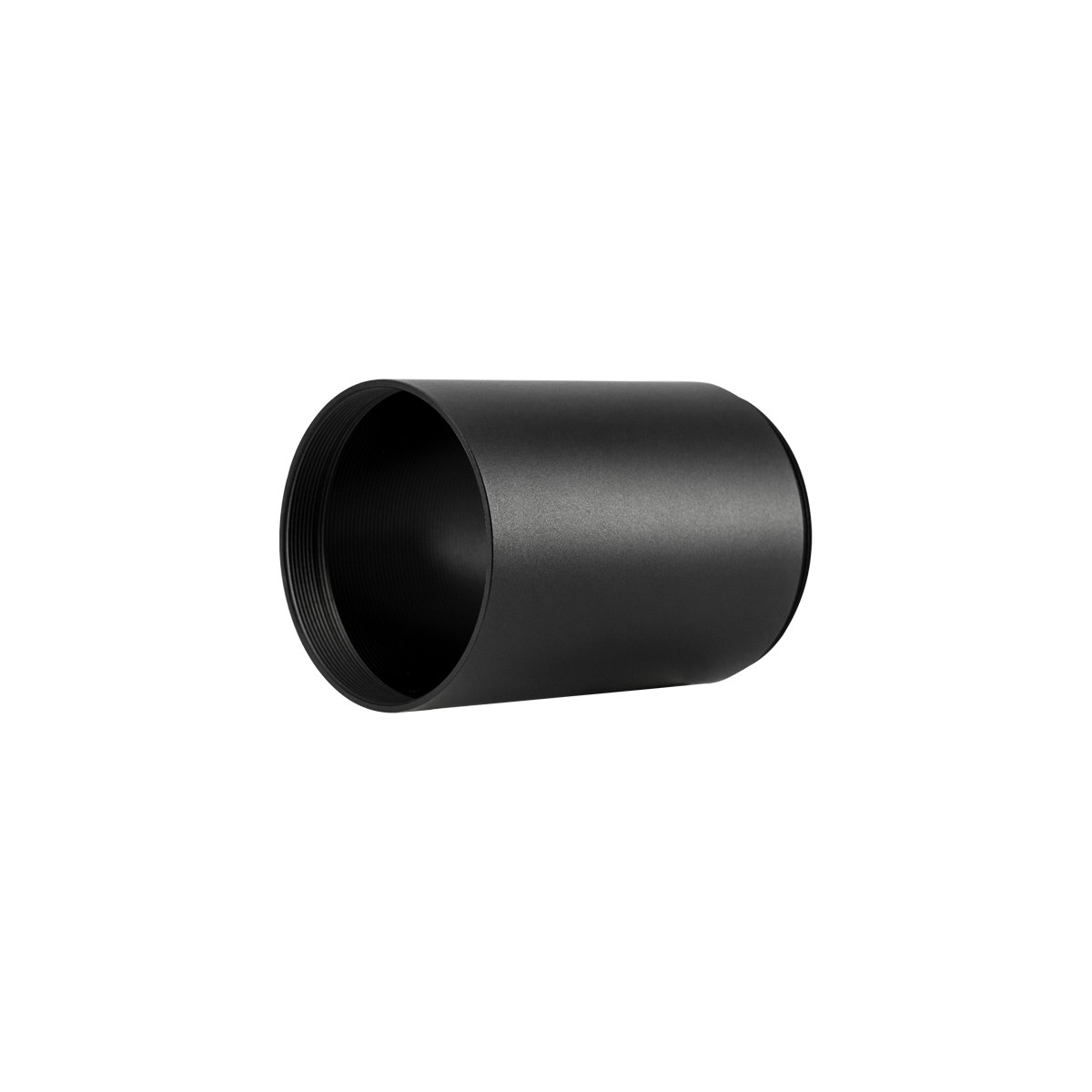

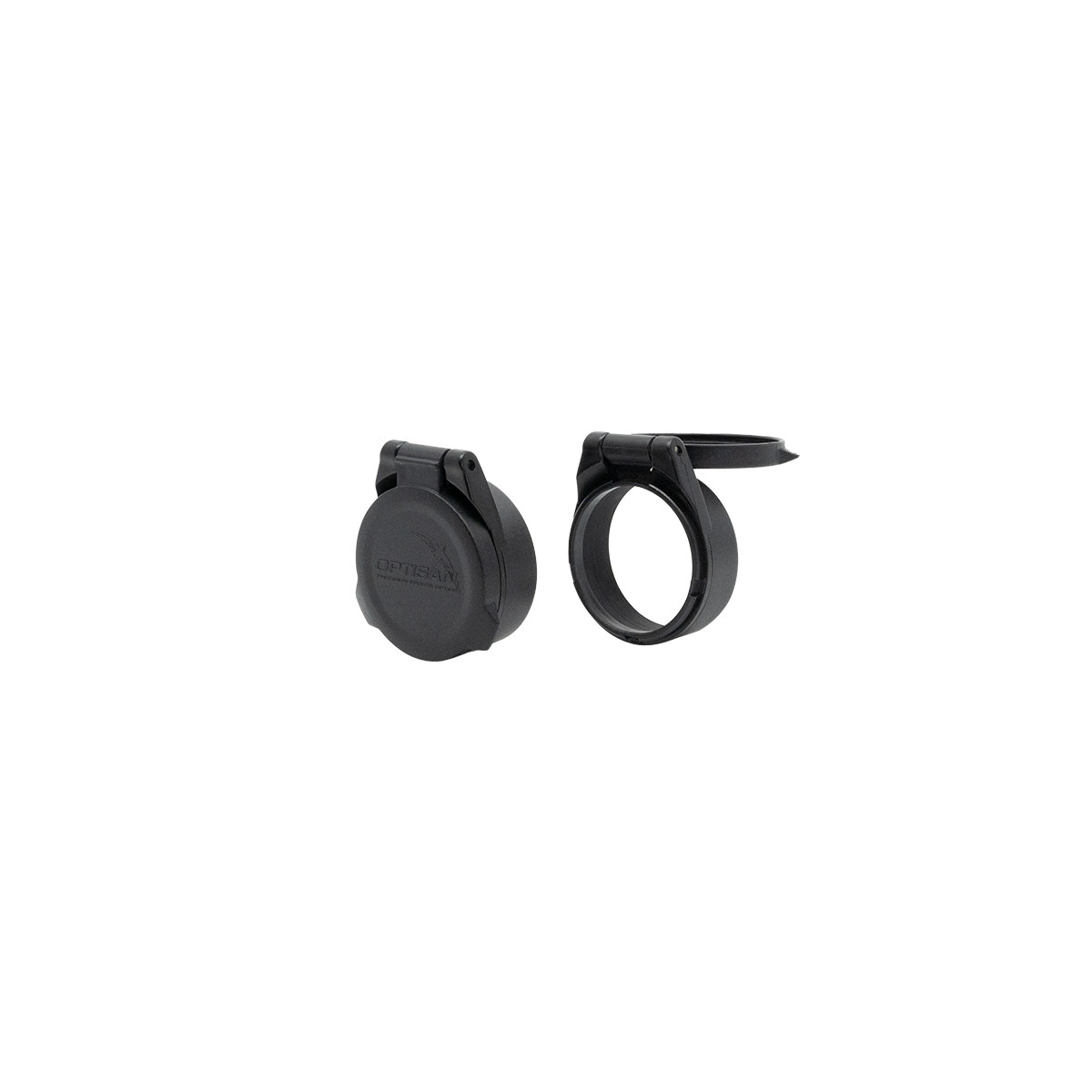

| Standard Accessories | 2.5'' sunshade, ABS flip up covers |
| Travel Per Rotation |
Optisan Optics CP 4-16x40 F1 (F1MOA16) Non-Illuminated Rifle Scope.
About FFP (First Focal Plane) reticles:
With an FFP reticle, the scale of the reticle changes with magnification. This means holdover marks stay true and accurate across the entire zoom range, making them perfect for long-range shooting and dynamic situations.
Q: Why FFP reticle?
A: Being first focal plane, the hash-mark subtensions remain accurate at all zoom levelsβideal for holdover without turret adjustment.
Q: Why choose FFP?
A: It ensures your holdover and windage references are always correct at any magnification.
Q: Is FFP better than SFP?
A: It dependsβFFP is great for precision and long range, while SFP can feel less cluttered at low power.
Q: Does the reticle get too small on low magnification?
A: It can appear finer at lower zoom, but remains visible and usable.
Q: Can I set parallax and leave it?
A: Yesβside-focus allows you to set it (e.g., at 25 yards) and shoot multiple distances without noticeable POI shift.
Q: Is it lightweight?
A: Veryβat just around 530 g and 268 mm long, itβs great for compact rifles.
Q: How robust is it?
A: Extremelyβthis scope has been springer-tested and withstands recoil typically associated with high-energy air rifles.
About non-illuminated reticles:
A non-illuminated reticle keeps things simple and reliable. With no battery needed, thereβs no risk of power failure in the field. The etched design remains clear and visible in good light, and is ideal for those who donβt need illumination in their shooting conditions.
Q: Why choose non-illuminated?
A: It removes the need for batteries and electronics, keeping the scope lighter and simpler.
Q: Is it visible in low light?
A: Yesβthe etched reticle remains visible, though it will not glow. For dawn, dusk, or night shooting, illuminated models are preferable.
Q: Does it save weight?
A: Slightly, as thereβs no battery housing or circuitry.
