Scope Mount Rings - By Type
30mm tube. Weaver/picatinny base. 20mm saddle - 69mm max outer lends case diameter.

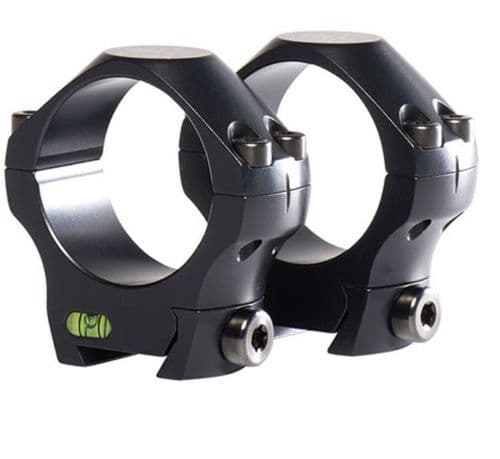

34mm tube. Weaver/Picatinny base. 18mm saddle. 69mm maximum outer lens case diameter
For 1" tube scope on picatinny base. 1" Extended design. High profile.
For 1" tube scope on picatinny base. 2" Extended design. High profile.
For 30mm tube scope on picatinny base. 1" Extended design. High profile.
For 30mm tube scope on picatinny base. 2" Extended design. High profile.
All rifle and pistol suitable, 25mm/1" Scopes upto 40-44mm lens with 9-11mm base Rail
Strongest BKL. 14mm base scope mounts. Perfect for magnum airguns and semi-auto rimfire actions. 19.5mm base to ring bottom.
Super strong 1 piece mount for 1" tube and 9-11mm and 3/8" dovetails. 0.774"/19.5mm base to ring bottom
Huge 120 MOA adjust range
1 Piece - 1"/25mm tube - 9-11mm dovetail base medium profile 13mm saddle best suit 30-42mm lens scopes.
1"/25mm tube - 9-11mm dovetail base HIGH profile 22mm saddle best suit 40-60mm lens scopes.
1 Piece - 30mm tube - 9-11mm dovetail base high profile 17mm saddle best suit 40-56mm lens scopes.
23mm saddle height
17mm saddle height
7mm saddle height
12mm saddle height
23mm saddle height
17mm saddle height
7mm saddle height
11mm saddle height
1 inch ring diameter. Weaver/Picatinny base fit. 25mm base to ring bottom
Extra-High with peep holes - 23mm base to ring bottom. For 1" tube scopes on 9-11mm dovetail dovetail. Max scope outer case diameter 70mm
High - 17mm base to ring bottom. For 1" tube scopes on 9-11mm dovetail. Max scope outer case diameter 58mm
Medium - 12mm base to ring bottom. For 1" tube scopes on 9-11mm dovetail. Maximum. Max scope outer case diameter 48mm
Extra High - 23mm base to ring bottom. For 1" tube scopes on weaver/Picatinny 20mm base. Max scope outer case diameter 58mm
High - 17mm base to ring bottom. For 1" tube scopes on weaver/Picatinny 20mm base. Max scope outer case diameter 58mm
Medium - 12mm base to ring bottom. For 1" tube scopes on weaver/picatinny base. Maximum. Max scope outer case diameter 48mm
Extra High - 23mm base to ring bottom. For 30mm tube scopes on 9-11mm dovetail. Max scope outer case diameter 75mm
High - 17mm base to ring bottom. For 30mm tube scopes on 9-11mm dovetail. Max scope outer case diameter 63mm
Medium - 11mm base to ring bottom. For 30mm tube scopes on 9-11mm dovetail. Max scope outer case diameter 51mm
High - 17mm base to ring bottom. For 30mm tube scopes on weaver/picatinny base - Max scope outer case diameter 63mm
Extra High - 23mm base to ring bottom. For 30mm tube scopes on weaver/picatinny base. Max scope outer case diameter 75mm
Suit both 1" and 30mm tubes as well as weaver/picatinny base and 11mm dovetails and most compact scopes. Truly versatile!
Cantilever design. Super flexible
For 34mm Tube scopes. fitting to picatinny base
20mm base to ring bottom - 33mm base to ring centerline to fit 1" tube optics with up to a 65mm OUTER objective diameter.
22mm base to ring bottom - 37mm base to ring centerline to fit 30mm tube optics with up to a 73mm outer objective diameter.
20mm base to bottom of ring "Saddle" and 32.7mm center height. Suit scopes with UPTO maximum 65mm OUTER objective diameter
10mm base to bottom of ring "Saddle" and 22.7mm center height. Suit scopes UPTO maximum 45mm OUTER objective
15mm base to bottom of ring "Saddle" and 27.7mm center height. Suit scopes UPTO maximum 55mm OUTER objective
15mm base to bottom of ring "Saddle" and 32mm center height. Suit scopes with UPTO maximum 63mm OUTER objective diameter
Low = 8.8mm (0.34") base to bottom of ring. Upto 36mm lens scopes.
Medium = 13.8mm (0.54") base to bottom of ring
High = 21mm (0.82") base to bottom of ring. Upto 56mm lens scopes.
Medium = 13.8mm (0.54") base to bottom of ring. Upto 42mm lens scopes.
High = 21mm (0.82") base to bottom of ring. Upto 62mm lens scopes.
High = 21mm (0.82") base to bottom of ring. Upto 62mm lens scopes.
Low = 8.8m (0.34") base to bottom of ring. Upto 36mm lens scopes.
Medium = 13.8mm (0.54") base to bottom of ring. Upto 46mm lens scopes.
Low = 10.3mm (0.4") base to bottom of ring
For 1" tube scopes. Weaver/picatinny base, 15mm base to ring bottom. Some stock in boxes marked as High NMWH, just wrong boxes is all
Low = 10.3mm 0.4" saddle to suit upto 32mm lens scopes.

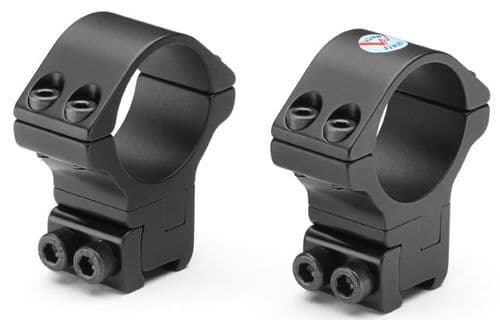

For airgun/rimfire 9-11mm dovetail bases. Upto 40 MOA elevation adjustment.
High Profile - 30mm tube. 9-11mm dovetail fit. Height Adjust. MOA adjust. saddle from 22.5-23.8mm
Extra High profile. For 1" tube scopes. Fit 9-11mm dovetail. MOA, Elevation and Windage Adjustable
For 30mm tube scopes. 9-11mm dovetail. Super recoil proof as well as adjustable. saddle from 25-27.5mm
Extra high profile. For 30mm tube scopes on weaver/picatinny base. Adjustable for windage, MOA elevation and height.
High, 20mm base to ring bottom. Tikka and Brno 1/2. on Tikka upto scope objective lens outer diameter 69mm
For 30mm tube scopes. Base to bottom 21mm good for most larger scopes 44-60mm lens
