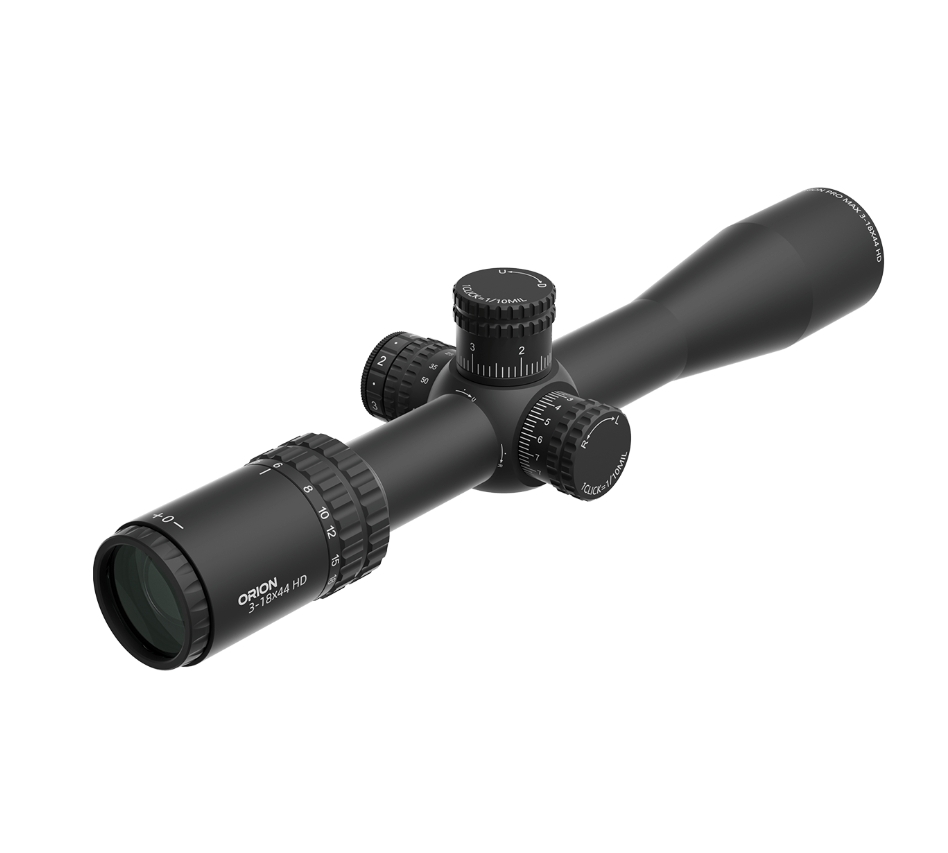

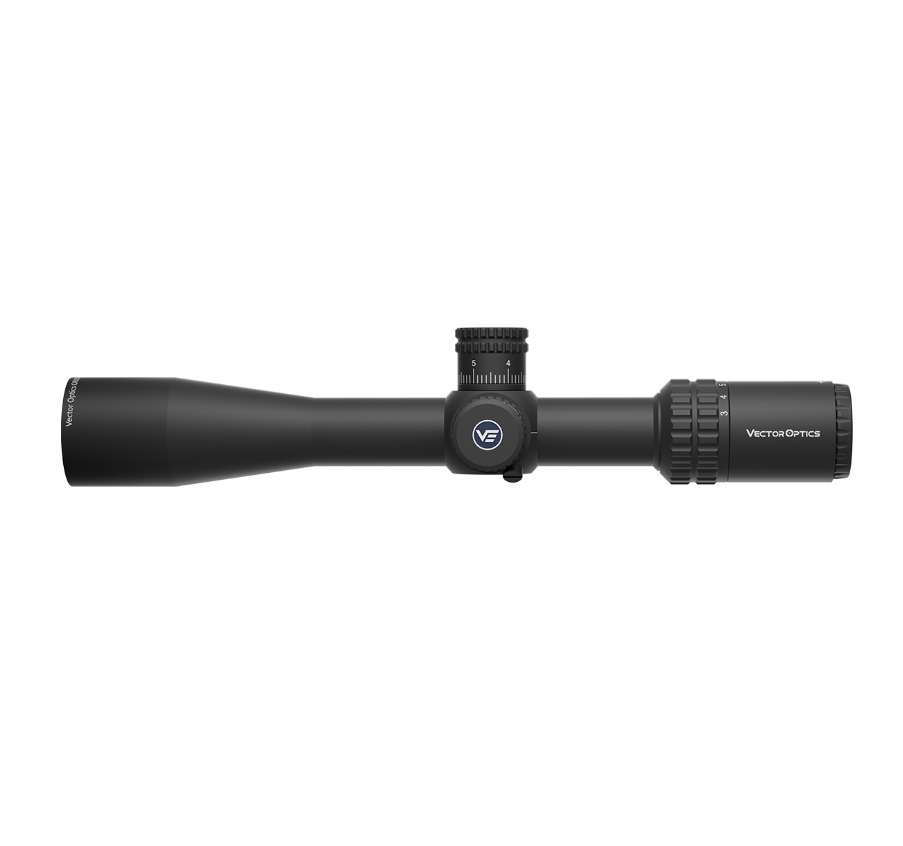

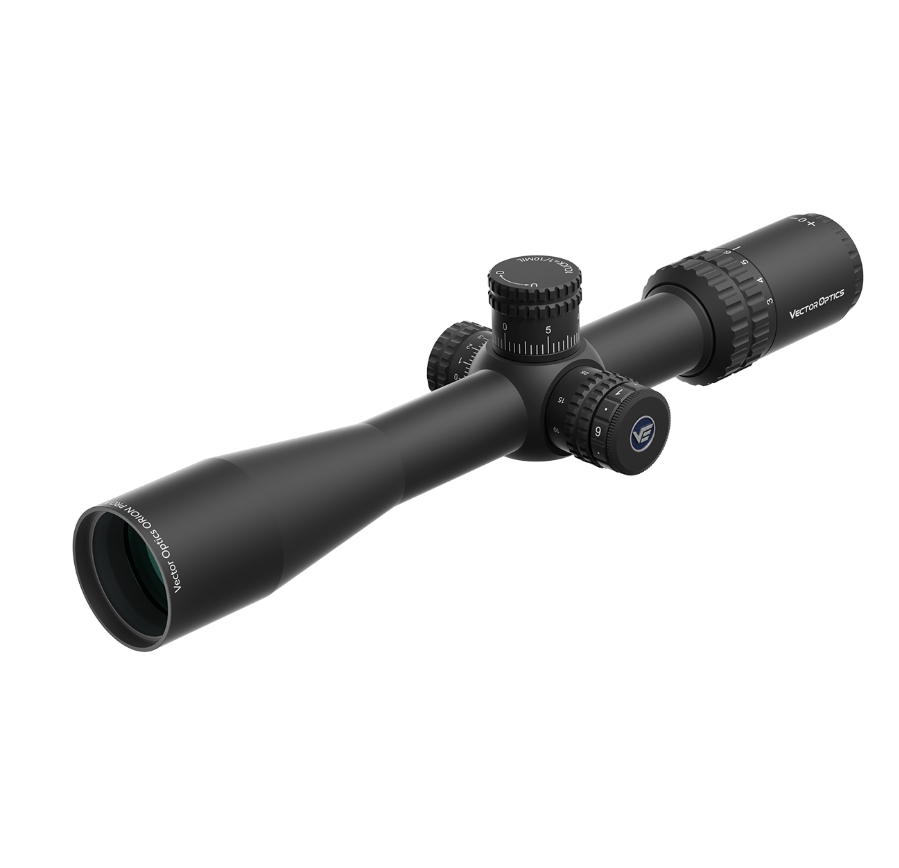

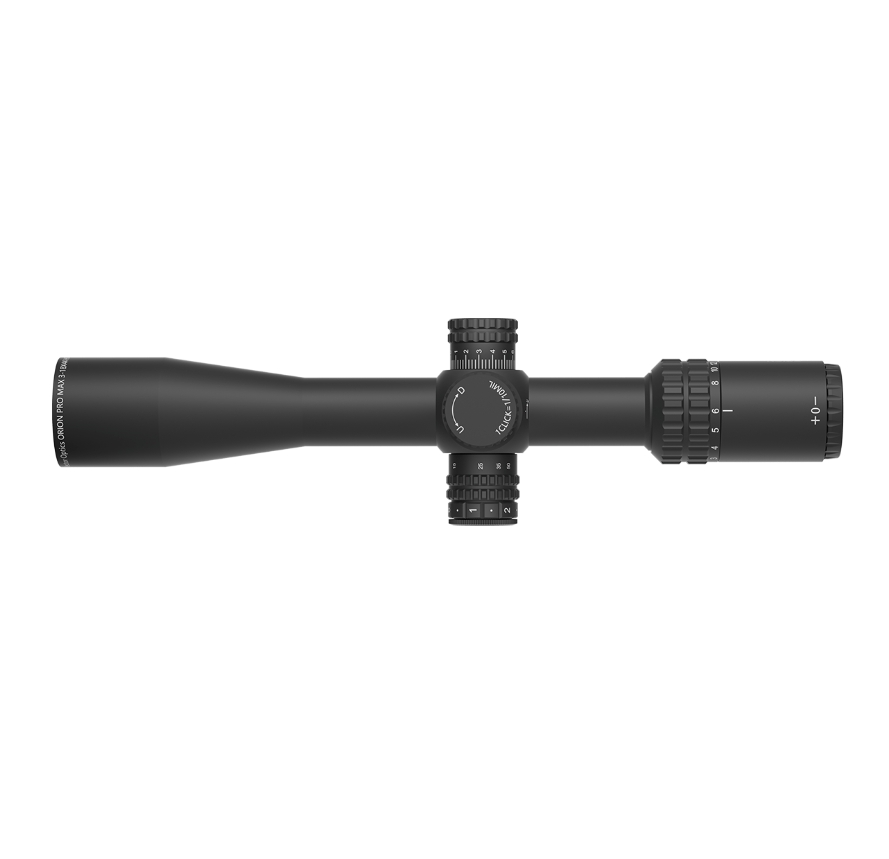

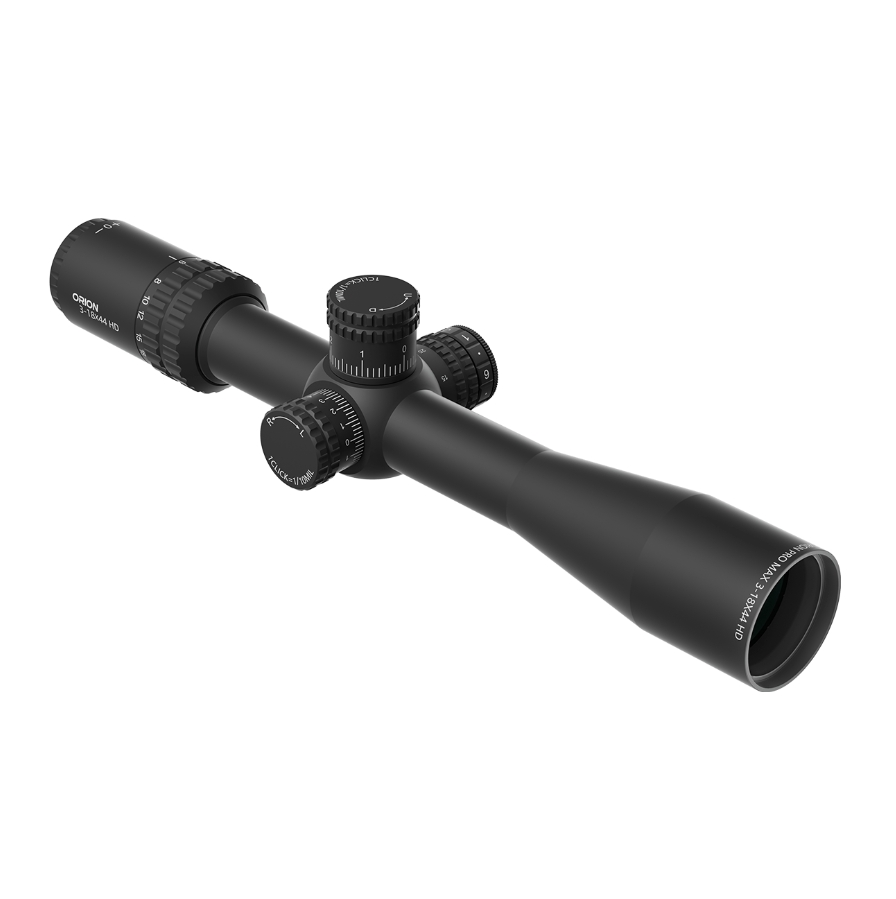

Vector Optics Orion MAX 3–18×44 FFP HD Rifle Scope 1/10 MIL 30mm Tube
Precision FFP Side Focus, Illumination, Clean MIL controls and HD glass
If you want a scope that bridges practical hunting distances and true precision shooting, the Orion MAX 3-18x44 sits right in the sweet spot. It delivers usable magnification, reliable tracking and a reticle that works the same way at every zoom level.
This is a scope for shooters who dial, hold, and shoot with intent — ideal magnification and size.
Flexible Magnification That Makes Sense
The 3-18× range gives you speed at the low end and precision at the top end, without the tunnel vision and wobble that often comes with ultra-high magnification scopes.
Ideal for:
- Medium to long-range shooting
- Hunting where distance varies
- Range work with repeatable results
First Focal Plane Accuracy
The First Focal Plane (FFP) reticle scales with magnification. That means your MIL holdovers and wind references remain accurate at any zoom level, not just one fixed setting. You don’t have to think about “what power am I on?” — the maths always works.
Illuminated reticle
6 gear illumination improves reticle visibility against dark targets and in low-light conditions such as woodland, overcast days, or dusk shooting — without overpowering the sight picture.
Clean, Usable MIL System

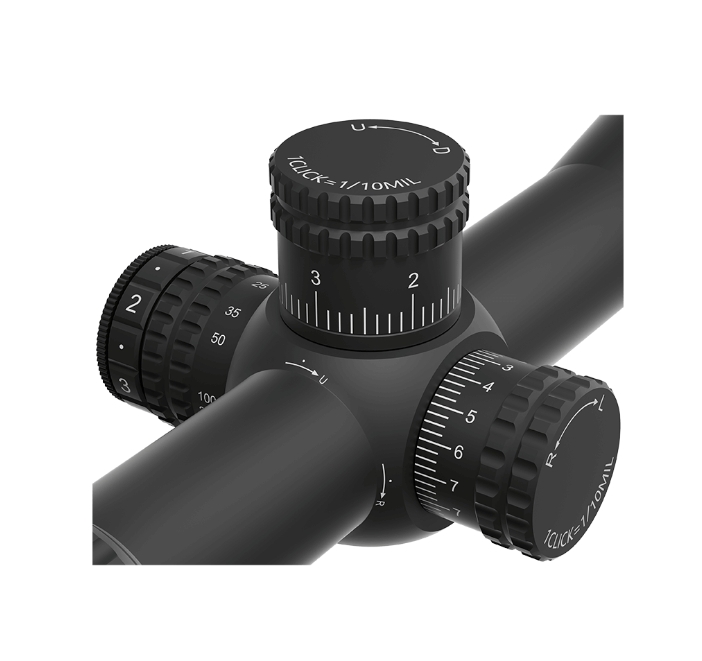

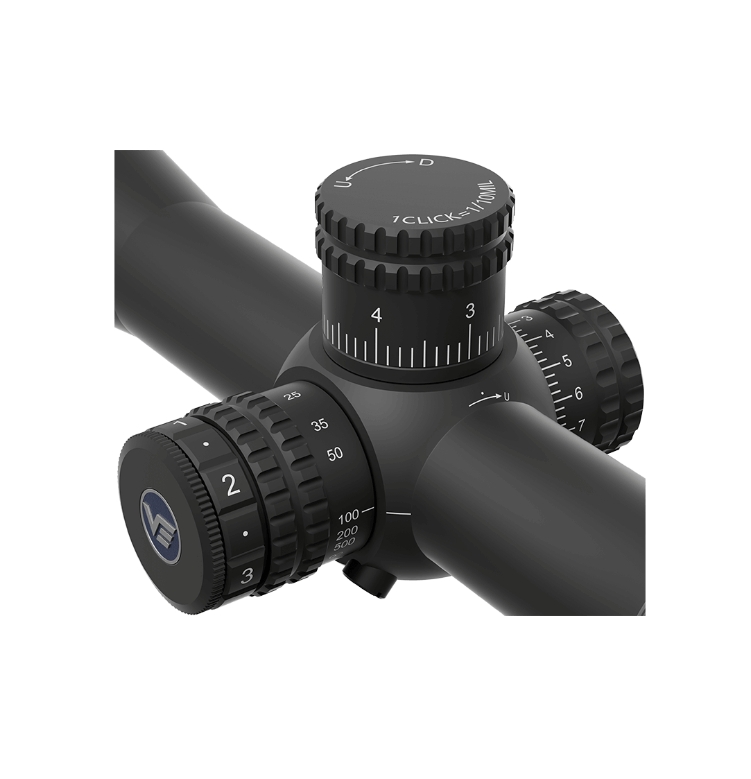

With 1/10 MIL turret clicks, adjustments are precise, predictable and easy to track. The MIL reticle and MIL turrets work together naturally, making corrections intuitive whether you dial or hold.
Side focus adjustment
Side focus allows you to fine-tune parallax and target sharpness at different distances, helping maintain a clear sight picture and reduce aiming error.
HD Optics Without the Bulk
The 44 mm objective paired with HD glass gives excellent clarity and contrast without the size and weight of larger 50–56 mm scopes. It balances well on hunting rifles, precision builds and rimfire platforms alike.
Who This Scope Is For
- Precision shooters
- Long-range rimfire & centrefire users
- Hunters who dial or hold at distance
- Shooters who want FFP without extreme size
When It’s Not the Best Fit
- Close-range only shooting
- Lightweight minimalist builds
- Shooters who prefer Second Focal Plane simplicity
Use-Case Focus
- Ideal for hunting, range and precision shooting
- True FFP MIL system – dial or hold confidently
- Clear sight picture without excessive bulk
- Strong, reliable construction for field use
Built to withstand harsh conditions, the Orion MAX is waterproof (IPX4), nitrogen-filled fogproof, and shockproof up to 750 G. Constructed from durable 6061-T6 aluminum alloy with a black matte finish, the scope measures 340 mm (13.4 inches) in length and weighs 798 g (28.1 oz).
Each scope kit includes essential accessories such as a cleaning cloth, lens caps, and a sunshade, ensuring your scope stays in top condition. NOTE- CR2032 battery for IR function is NOT included
- Magnification 3-18x
- Objective Lens Dia 44mm
- Focal Plane First Focal Plane
- Eye Relief 95 mm / 3.8 in
- Exit Pupil 8 mm–2.8 mm
- Lens Coating Coated
- Linear Field of View @ 100 yd 38.2 -6.3 ft @ 100 yards
- Linear Field of View @ 100 m 12.7 - 2.1 ft @ 100 meters
- Reticle VOR-4 MIL
- Tube Dia 30mm
- Side Focus 10 yards to Infinity
- Click Value 1/10 MIL
- Turret Function Zero Stop
- Elevation Adjustment Range 30 MIL
- Windage Adjustment Range 16 MIL
- Diopter Compensation +2 to -2
- Illumination Setting 6 Gears, On/off Switch
- Battery Type CR2032
- Waterproof IPX4
- Fogproof Nitrogen-filled
- Shockproof 750 G
- Housing Material 6061-T6 Aluminum Alloy
- Finish Black Matte

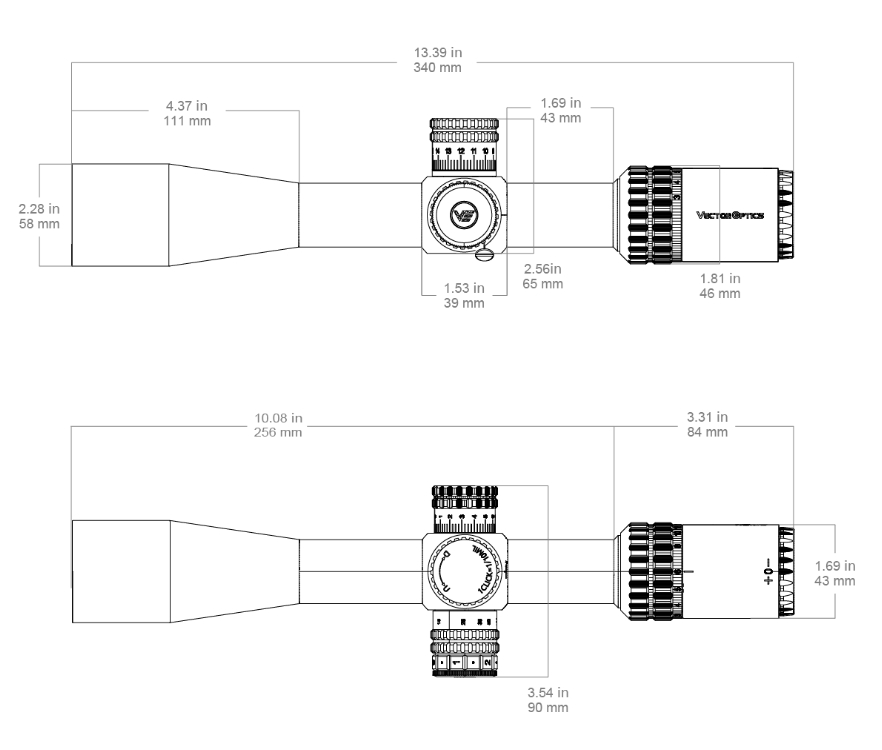

- Length 340 mm / 13.4 in
- Weight (net) 798 g / 28.1 oz
- Items in the Package cleaning cloth, lens caps, sunshade,etc.
- 6x Zoom Factor, 30mm Tube Tactical Scope, Designed for Mid- and Long-Range Shooting
- Lanthanum Lens Technology with Extra Low Dispersion Provides An Unparalleled Vision
- 6 Gear Illumination with On/off Switch for Better Reticle Visibility During Day and Twilight
- 1/10 MIL Adjustment with Zero Stop Feature, Return Effortlessly to a Pre-set Zero Point
- Vector Optics Orion MAX 4-18x44 FFP HD 1/10 MIL VOR-4 30mm Rifle Scope

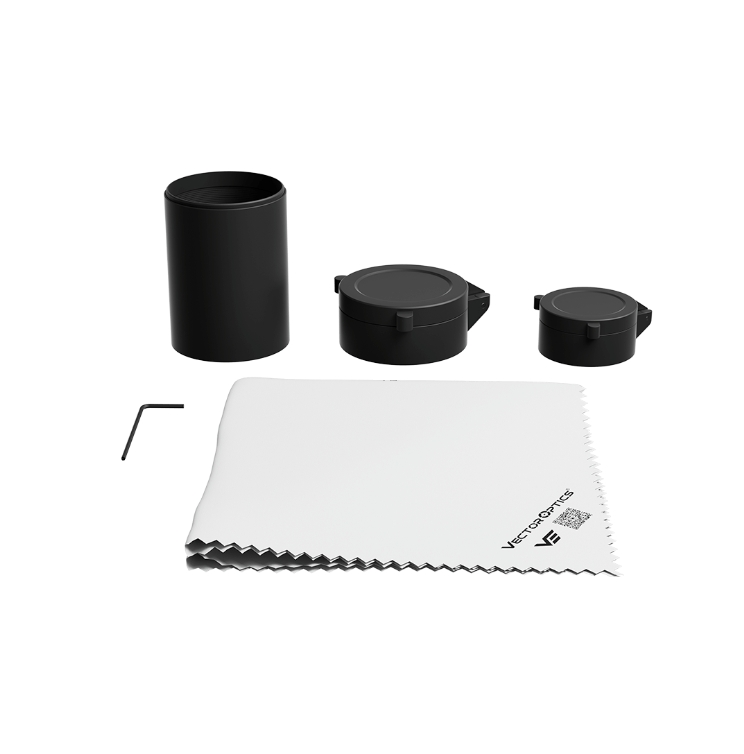

- Cleaning cloth
- Lens caps
- Sunshade
- NOT INCLUDED - CR2032 battery for illumination function.
Q: What type of shooter is this scope designed for?
A: The Orion MAX 3-18×44 is designed for shooters who want precision capability without excessive size. It suits hunters, long-range rimfire shooters and centrefire users who actively dial or use reticle holds.
Q: Why choose 3-18× instead of 5–25× or higher?
A: 3-18× offers a more usable range for most real-world shooting. It provides enough magnification for precision while remaining steadier, brighter and easier to manage than ultra-high magnification optics.
Q: What does First Focal Plane mean in practice?
A: In an FFP scope, the reticle scales with magnification. This keeps MIL markings accurate at all zoom levels, allowing consistent holdovers and ranging without mental conversion.
Q: Is FFP harder to use than SFP?
A: FFP requires a short learning curve, but once familiar, many shooters find it more intuitive — especially when shooting at varying distances.
Q: Why a MIL reticle and 1/10 MIL turrets?
A: MIL systems are clean and efficient for correction. 1/10 MIL clicks allow fine adjustments and pair naturally with MIL reticles for fast, logical corrections.
Q: How does the 44 mm objective perform in low light?
A: The HD glass and coatings provide excellent clarity and contrast. While larger objectives gather more light, the 44 mm size balances brightness with better handling and weight.
Q: What does the 30 mm tube add?
A: A 30 mm tube offers increased internal adjustment range and improved mechanical strength, especially useful for dialing elevation at distance.
Q: Is this scope suitable for hunting?
A: Yes. It’s particularly well suited to hunters who shoot across varied distances and value precise shot placement.
Q: Is it suitable for rimfire or air rifles?
A: Yes — especially long-range rimfire and FAC air rifles. Its size and FFP reticle make it a popular crossover precision optic.
Q: Is this a heavy scope?
A: It’s not ultra-light, but very well balanced for its capability. The design prioritises stability and precision rather than minimal weight.
- Vector Optics 5 year warranty
