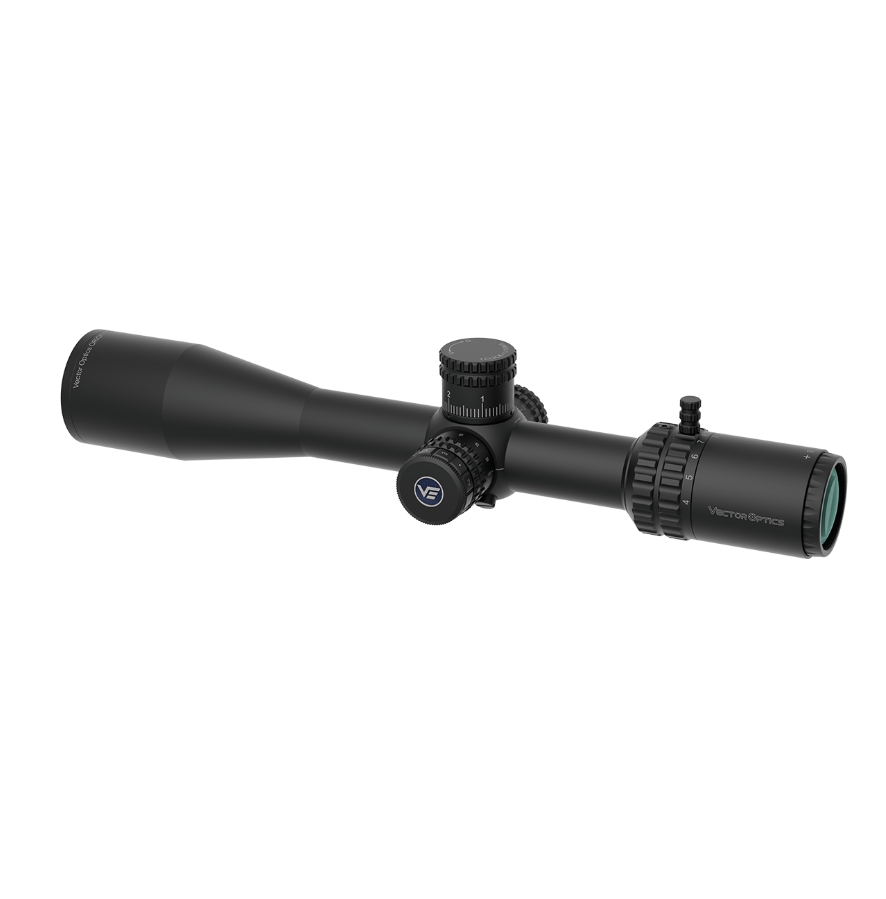

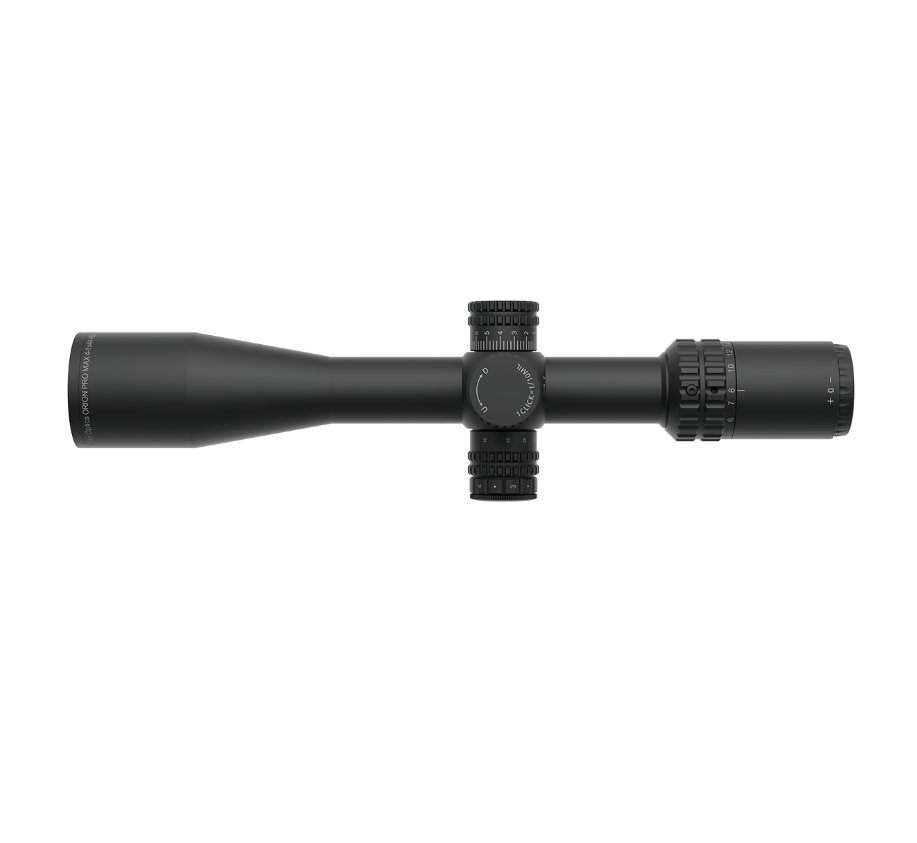

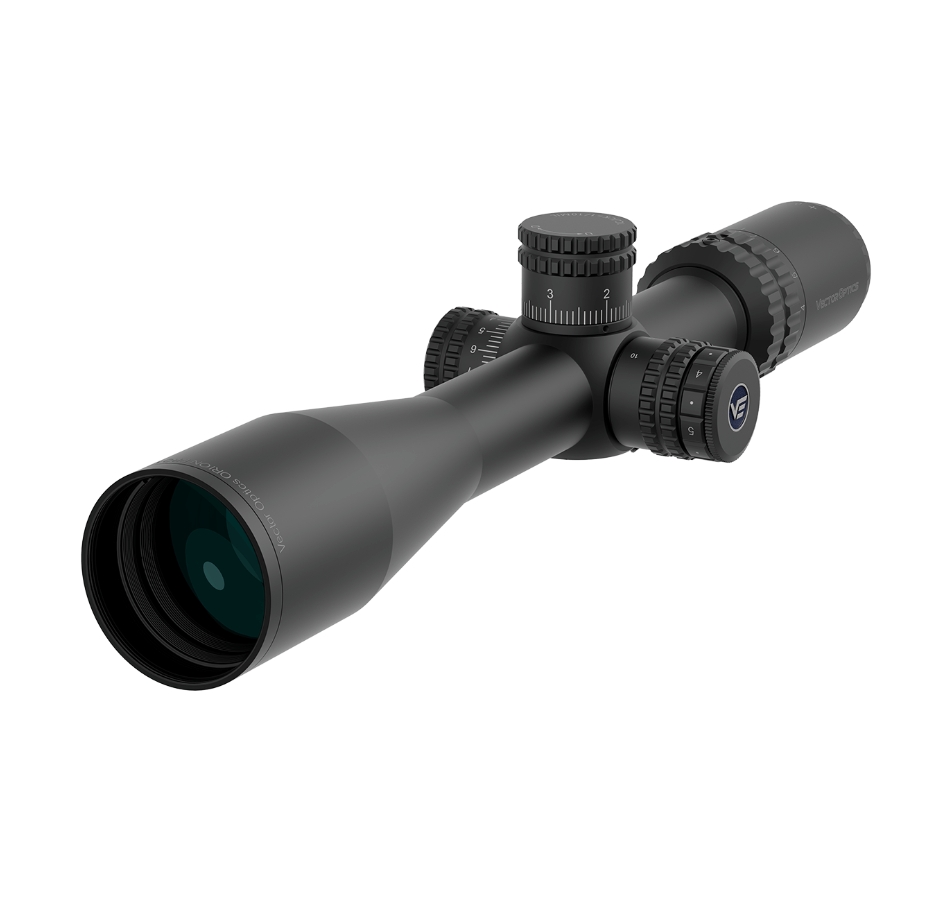

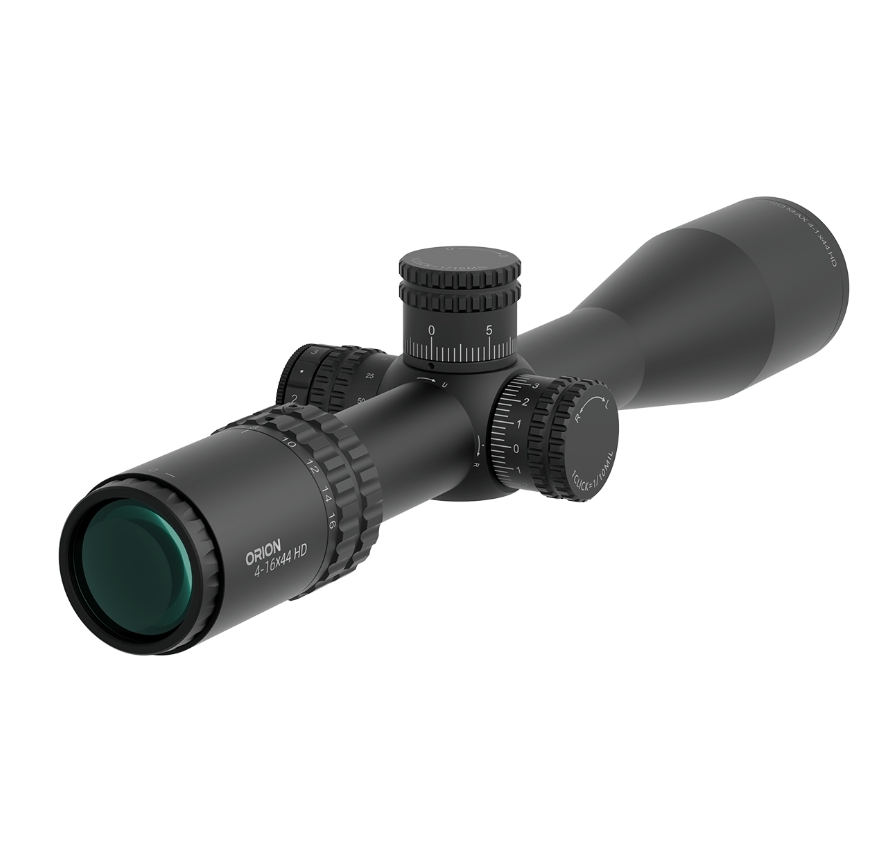

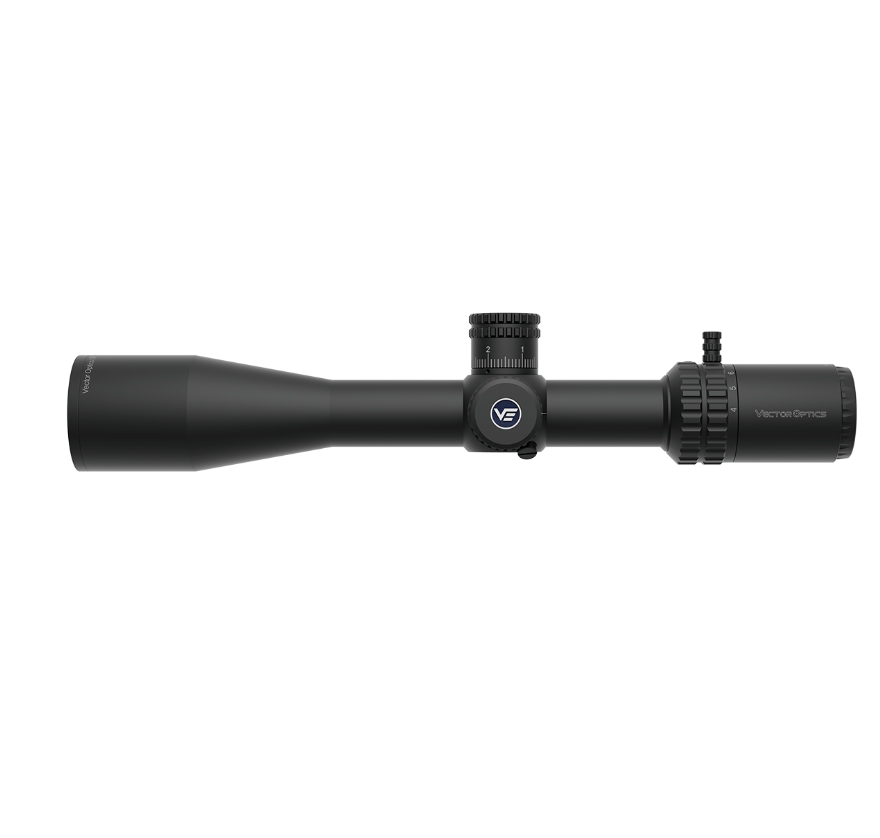

Vector Optics Orion Pro MAX 4-16x44 FFP HD VOR-4 1/10MIL 30mm Rifle Scope
High-definition Lanthanum lens, first focal plane VOR-4 MIL reticle, and zero-stop function
Durable 6061 T6 aluminum alloy construction, waterproof and fogproof design.
Fully Multi Coated Lanthanum - A rare earth metal which is very popular in Optics & Glassmaking where it is used in high-quality camera lenses and telescope optics to improve clarity, due to its high refractive index and low dispersion.
The Vector Optics Orion Pro MAX 4-16x44 FFP HD VOR-4 1/10MIL 30mm Rifle Scope is designed to elevate your shooting performance across various scenarios. This tactical scope has a 4x zoom factor within a robust 30mm tube.
Brilliant clarity with the high-definition Lanthanum lens, delivering crisper imagery and true-to-life color accuracy. Fully multi-coated lenses enhance light transmission, ensuring edge-to-edge clarity for every shot.

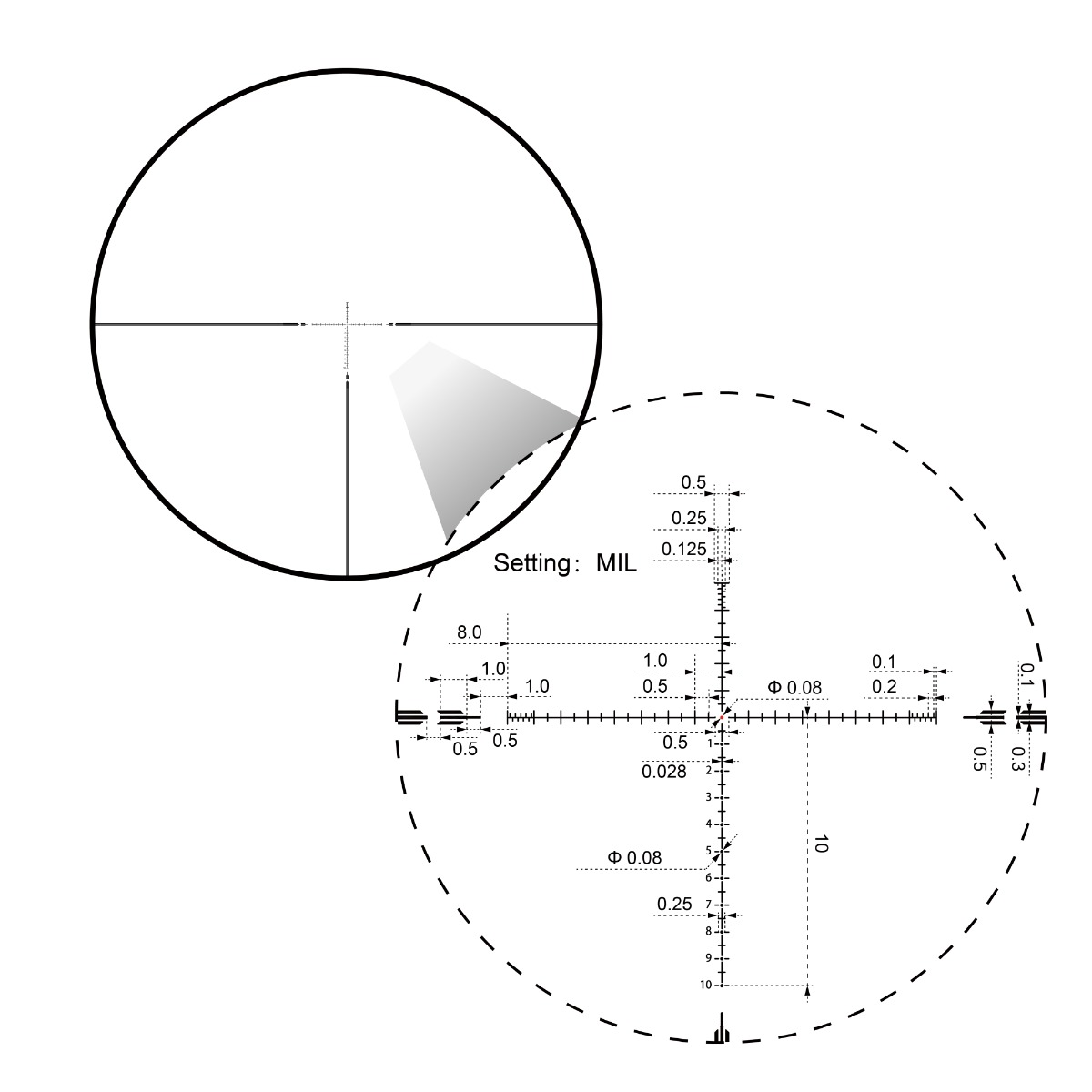

Equipped with a first focal plane etched glass VOR-4 MIL reticle, range estimations and holdovers become effortless.
Improve your long distances and bullet drop with ease, thanks to the big 32 MIL elevation travel and 18 MIL windage adjustment range.
Perfect for:
-
highland hunters needing clear optics and long adjustment range
-
Tactical shooters requiring holdover precision across magnification
-
Any setup demanding rugged dependability and illumination
- Magnification 4-16x
- Objective Lens 44 mm
- Focal Plane First Focal Plane
- Eye Relief 95 mm
- Exit Pupil 8-2.8 mm
- Lens Coating Fully Multi-coated
- Linear Field of View @ 100 yd 28.8-6.8 ft @ 100 yards
- Linear Field of View @ 100 m 9.6-2.2 m @ 100 meters
- Angular Field of View 5.5-1.3°
- Reticle VOR-4 MIL
- Tube Dia 30 mm

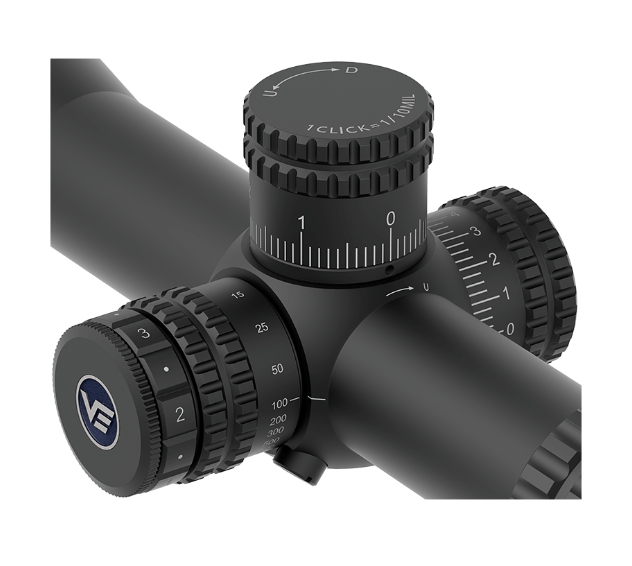

- Side Focus 10 yards to Infinity
- Click Value 1/10 MIL

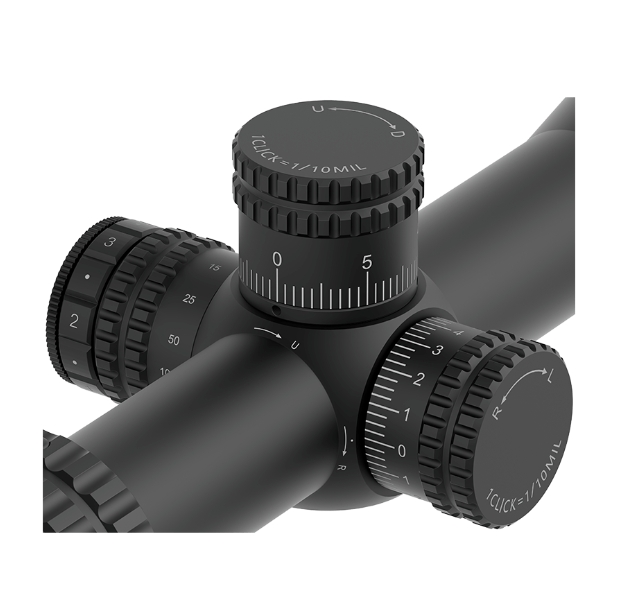

- Turret Function Zero Stop, Turret Lock
- Elevation Adjustment Range 32 MIL
- Windage Adjustment Range 18 MIL
- Diopter Compensation +2 to -2
- Illumination Setting 6 Gears, On/Off Switch
- Battery Type CR2032
- Waterproof IPX4
- Fogproof Nitrogen Filled
- Shockproof 750 G
- Housing Material 6061 T6 Aluminum Alloy
- Finish Matte Black

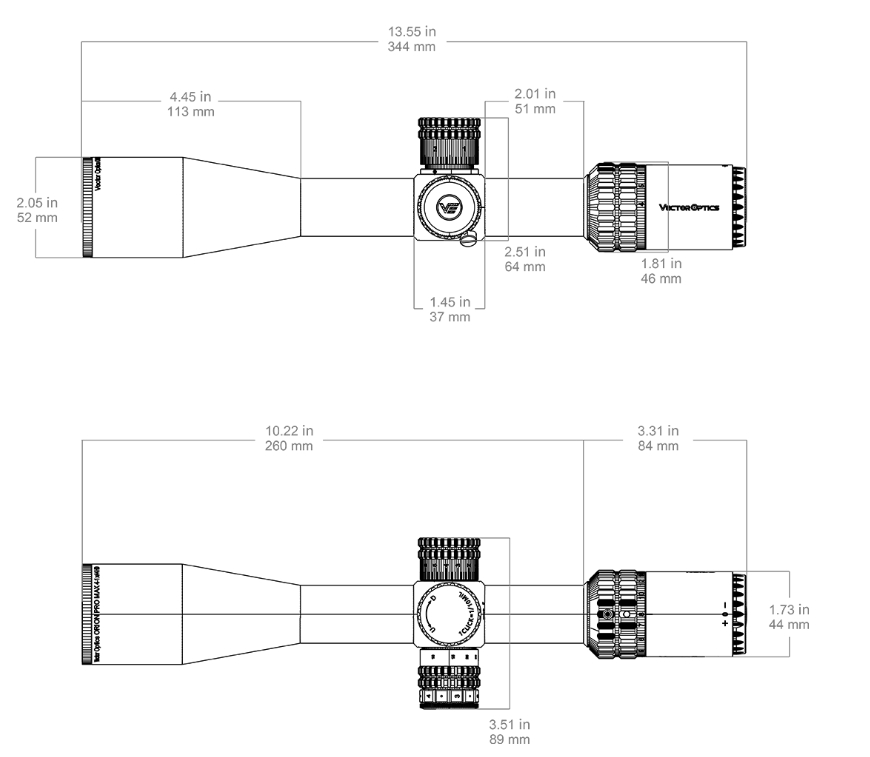

- Length 344 mm / 13.55 in
- Weight (net) 756 g / 26.6 oz
- Items in the Package User Manual, Cleaning Cloth, Flip-up Caps, Hex Keys, Sunshade, Power Throw Lever,etc.
- 4x Zoom Factor, 30mm Tube Tactical Scope, Versatile for Various Shooting Scenarios
- High Definition Lanthanum Lens for Crisper, Clearer Images and True-to-Life Color Accuracy
- Fully Multi-coated Lens Greatly Improve Light Transmission, Presenting Edge-to-Edge Image
- First Focal Plane Etched Glass VOR-4 MIL Reticle Enables Range Estimations and Holdovers
- Zero Stop Function, Return Effortlessly to a Pre-set Zero Point without Additional Adjustments
- Large Amounts of Elevation Travel (32 MIL), Compensate for Long Distances and Bullet Drop
- Vector Optics Orion Pro MAX 4-16x44 FFP HD VOR-4 1/10MIL 30mm Rifle Scope

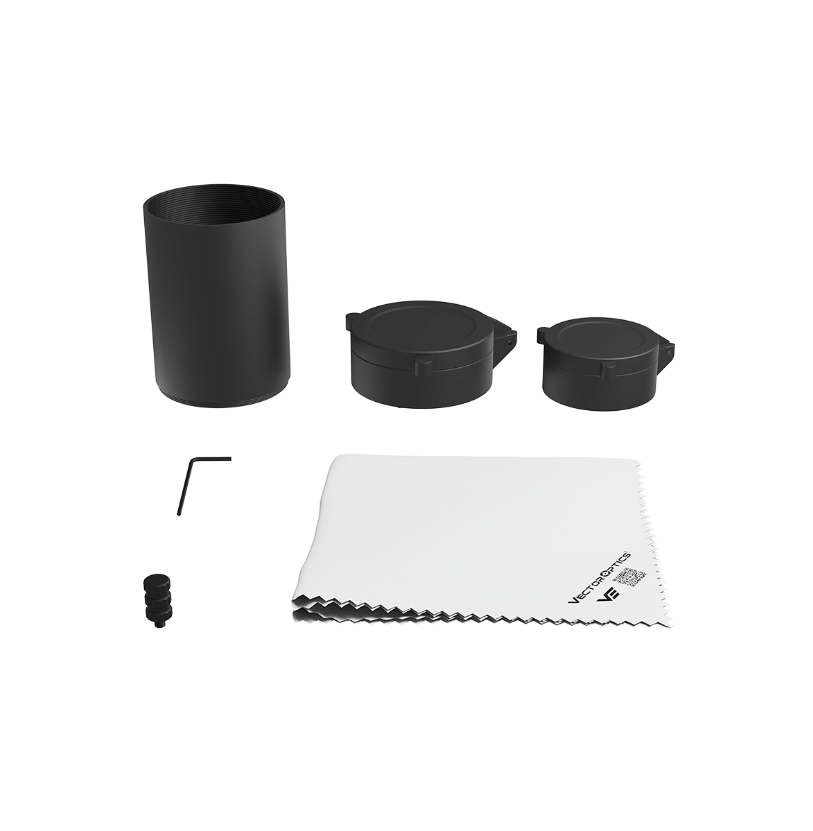

- User manual
- Cleaning cloth
- Flip-up Caps
- Hex keys
- Sunshade
- Power throw lever

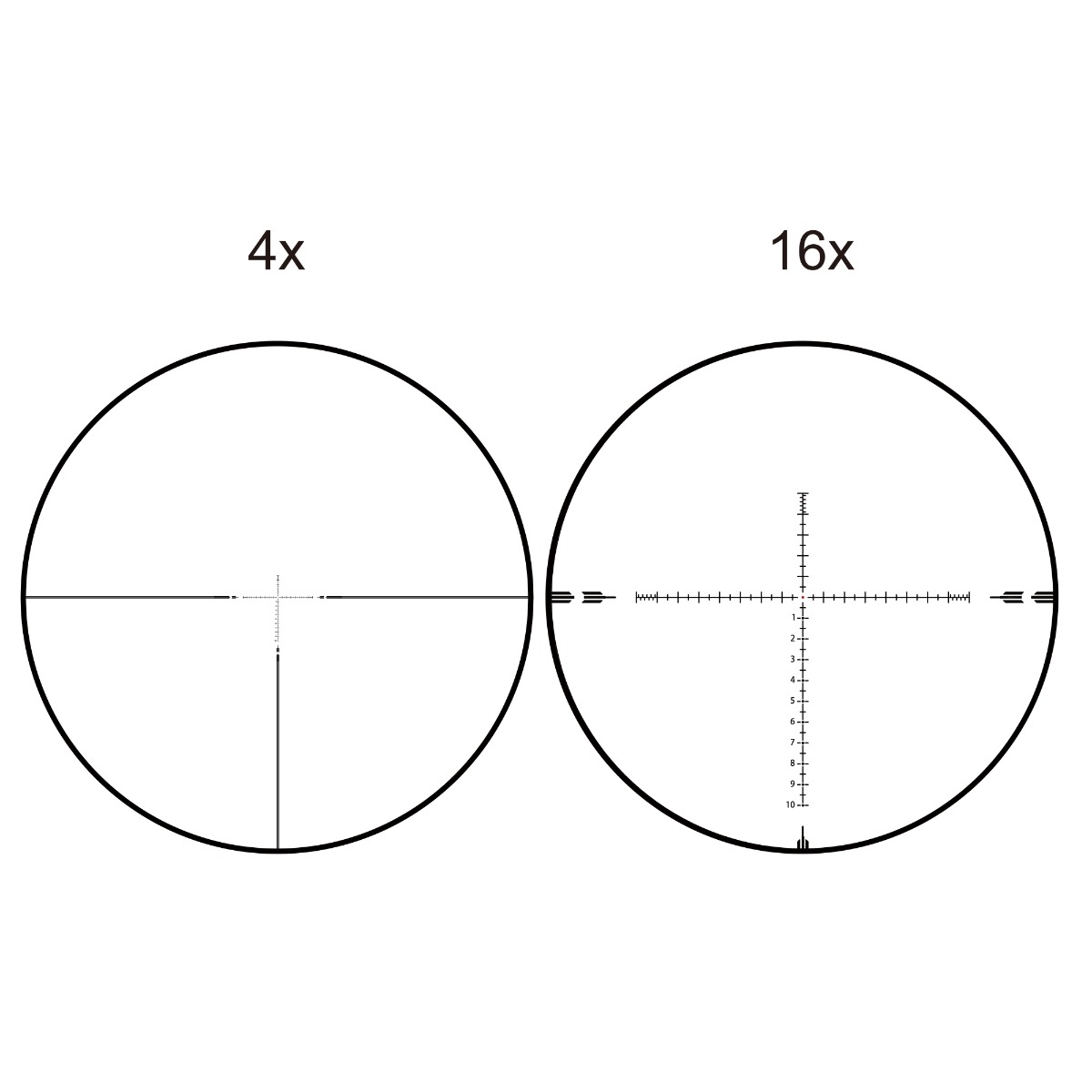

Q: Does the reticle remain accurate at different zoom levels?
A: Yes – being first focal plane, the VOR-4 MIL holds consistent subtensions across the entire zoom range.
Q: Is there any illuminated functionality?
A: Yes – the scope offers six bright illumination levels for low-light use.
Q: Can you zero without losing your zero point?
A: Yes – the zero-stop feature means you always return to your preset zero, and the turret locks for added security.
Q: Is this rugged enough for field use?
A: Yes – its strong 30 mm alloy body, waterproofing, nitrogen purge, and heavy-duty shock rating make it ideal for demanding environments.
- Vector Optics 5 year warranty
