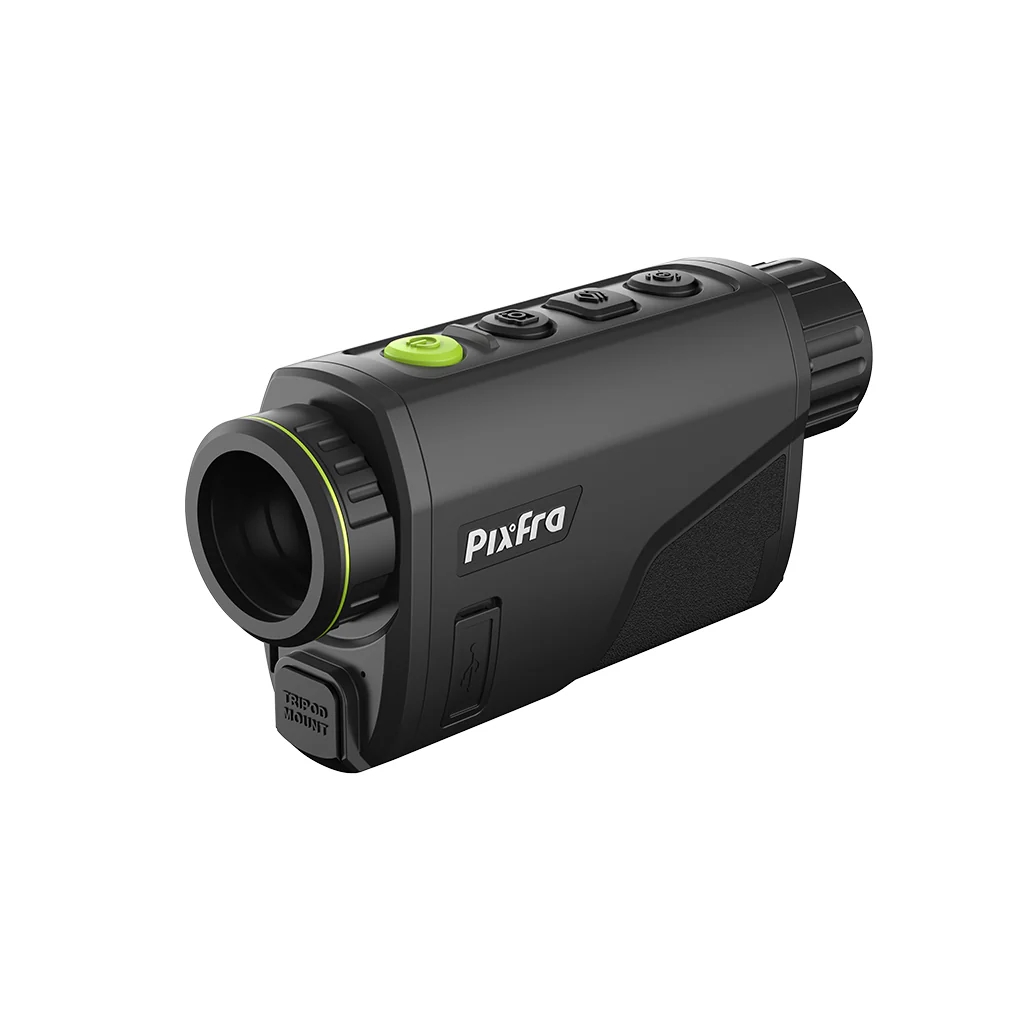

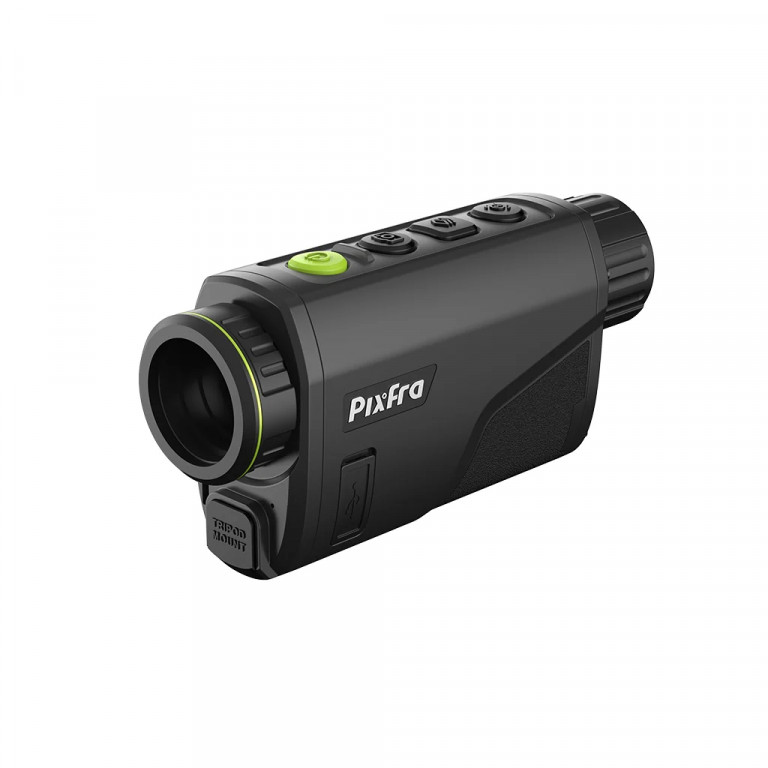

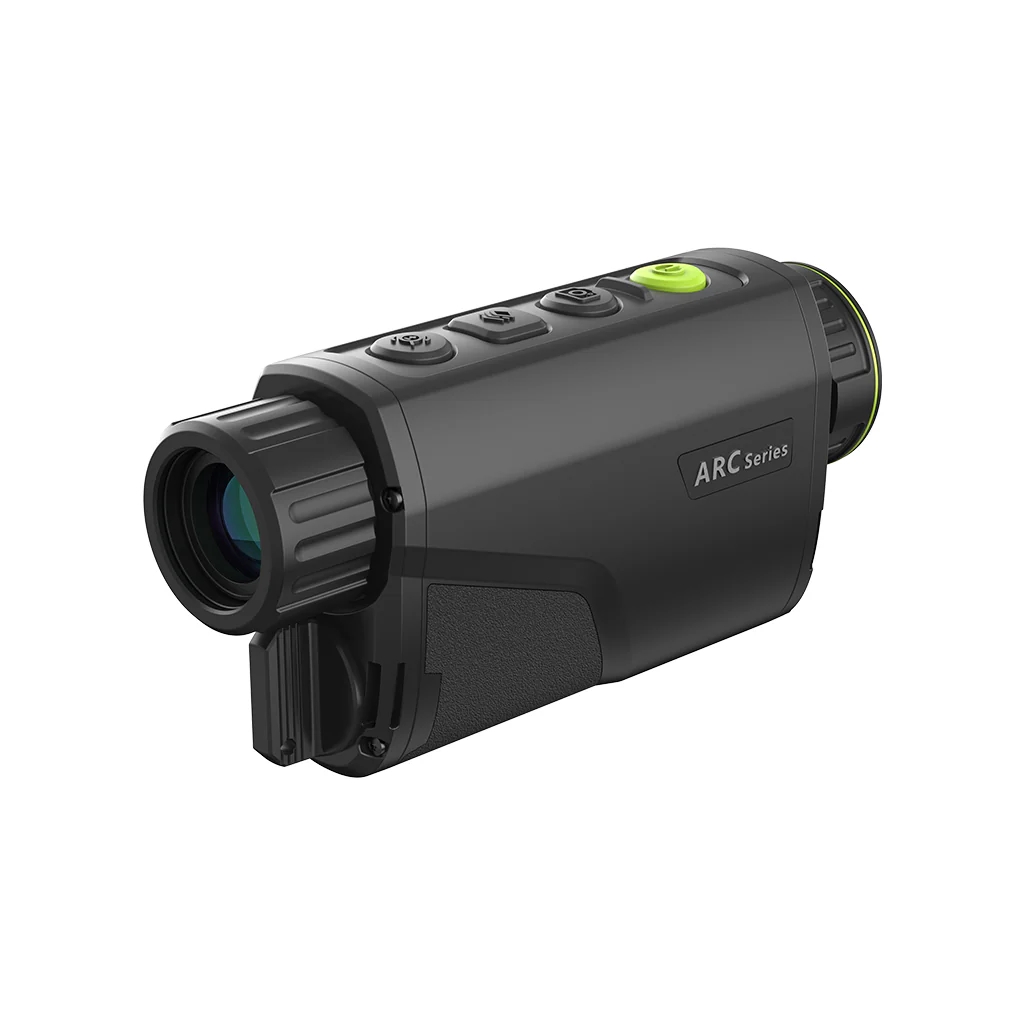

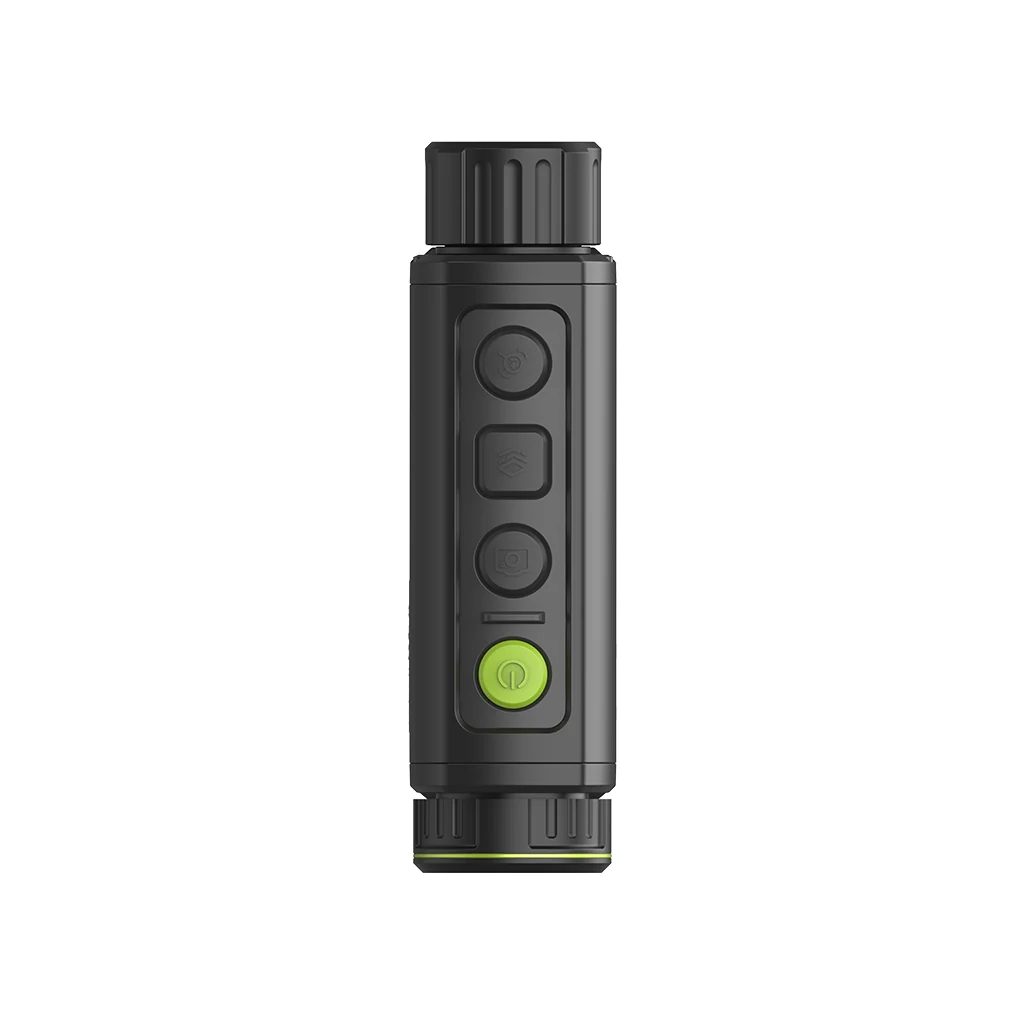

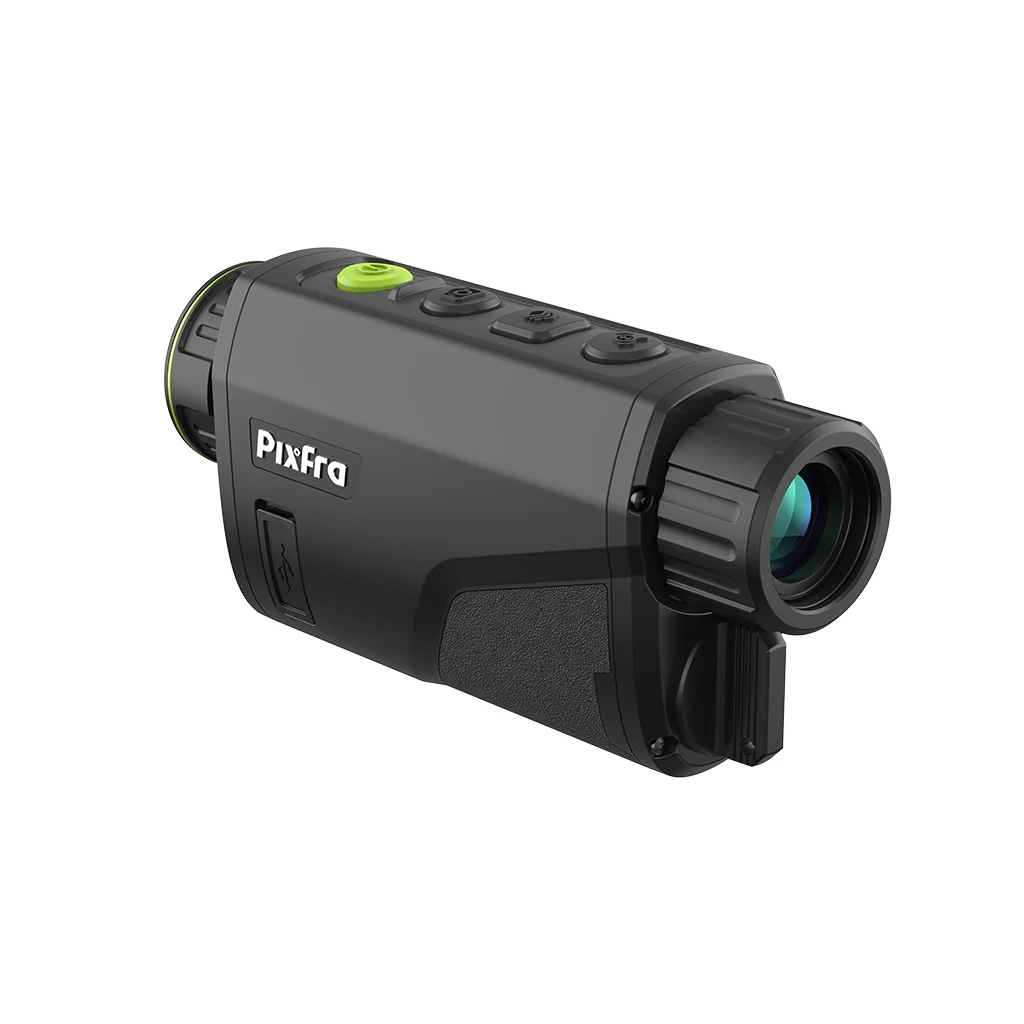

Pixfra ARC A419 Handheld Thermal Monocular - 384x288/12µm/19mm 30mk
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Designed to enhance every observation session, the Arc A419 is packed with advanced features. It includes a built-in video recorder and various color palettes, allowing users to capture high-quality recordings directly on the device’s built-in 32 GB storage. For group observations, the device supports live screen sharing via the Pixfra app, compatible with both iOS and Android. This app feature allows up to four people within 20 meters to view the live thermal feed, enabling collaborative observation without crowding over a single screen. With customizable zoom levels (up to 8x digital zoom) and a diopter range of -4D to +5D, the Arc A419 adapts seamlessly to each user's viewing needs.
The Arc A419 is built for resilience and ease of use in all conditions. Weighing just under 350 grams, its lightweight and ergonomic design minimizes fatigue during extended use and fits comfortably in a pack or pocket when not in hand. Its magnesium alloy casing provides durability and protection against knocks and drops, while its IP67 waterproof rating allows reliable performance in rain and adverse weather. In extreme conditions, the A419 operates consistently, even in temperatures ranging from -30°C to 50°C, ensuring that it is always ready to capture the moment.
With dual rechargeable batteries that offer up to 7.5 hours of runtime each, the A419 allows for continuous operation up to 14 hours, making it ideal for long nights in the field. Powered by a convenient Type-C USB charger, the device is easy to recharge, and its battery life is long enough to meet the needs of extended observations or surveys. Each Arc A419 kit comes with essential accessories, including two 18650 Li-ion batteries, a dual-bay USB-C charger, an L-shaped tripod adapter, a carry case, and a lens cleaning cloth—everything needed for a professional observation setup.
For those seeking a powerful, durable, and user-friendly thermal monocular, the Pixfra ARC A419 offers a feature-rich experience, designed to perform reliably in any environment.
- Thermal Sensor 384×288, 12μm, <30mK NETD
- Detector Type Vanadium oxide uncooled focal plane detector
- Spectral Range 8μm to 14μm
- Frame Rate 50 Hz
- Objective Lens 19mm f1.0
- Field of View Horizontal 14.4°, Vertical 10.8°
- Detection Range Up to 900m
- Magnification 2.1x optical
- Digital Zoom 1x, 2x, 4x, 8x
- Close Focus Distance 2m
- Colour Palettes 6 (White hot, Black hot, Iron red, Alarm, Amber, Emerald)
- Display Screen 0.41-inch OLED
- Screen Resolution 1440 x 1080
- Diopter Adjustment -4D to +5D
- Eye Relief 15mm
- Uniformity Correction Auto and Manual options
- Storage 32 GB built-in EMMC
- Video Recording Yes, up to 2 hours per clip
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Connectivity Yes
- Power Supply 5V Type-C
- Battery Type Rechargeable Lithium, 3200 mAh capacity
- Battery Life Up to 7.5 hours per battery
- Operating Temperature -30°C to +60°C (-22°F to +140°F)
- Storage Temperature -30°C to +70°C (-22°F to +158°F)
- Waterproof Rating IP67
- Product Dimensions 148.5 mm × 42.3 mm × 74.3 mm (5.85″ × 1.67″ × 2.93″)
- Net Weight ≤330 g (excluding battery)
- High-Resolution Thermal Imaging: Equipped with a sensitive thermal sensor, the device captures crisp images of even the smallest heat signatures at long distances.
- Extended Detection Range: Can detect heat signatures up to 900 meters away, ensuring broad field visibility in challenging environments.
- Vivid OLED Display: Presents thermal imagery on a full-color 1440x1080 OLED screen, providing sharp and lifelike visuals.
- Multiple Color Palettes: Six color palette options allow users to customize the view for varied scenarios, enhancing visibility and detail.
- Screen Sharing via App: Connects to the Pixfra app on up to four smart devices within 20 meters, allowing group observations without needing to share the device.
- Built-In Video and Audio Recording: Capture up to 2-hour video clips and audio directly onto the device, simplifying documentation and review.
- Dual Batteries for Extended Use: Equipped with two rechargeable, replaceable batteries, providing up to 14 hours of combined operating time.
- Compact and Lightweight Design: Weighing under 350g, the device is comfortable for prolonged use and portable for easy carrying.
- Ergonomic Build: Features a user-friendly button layout and comfortable body shell, minimizing fatigue during extended observations.
- Rugged and Weather-Resistant: Built with a robust magnesium alloy casing and rated IP67 waterproof, it can withstand tough environmental conditions and extreme temperatures from -30°C to 50°C.
- Accessories Included: Comes with useful accessories like a dual-bay USB-C charger, L-shaped tripod adapter, carry case, and lens cleaning cloth for a complete field-ready kit.
- Pixfra ARC A419 Handheld Thermal Monocular - 384x288/12µm/19mm 30mk
- 2 x 18650 Li-ion Batteries
- USB-C Dual Bay Charger
- L-Shaped Tripod Adapter
- Rubber Eyecup
- Carry Case
- Carry Pouch
- User Manual
- Lens Cleaning Cloth
- Pixfra 2 year warranty
