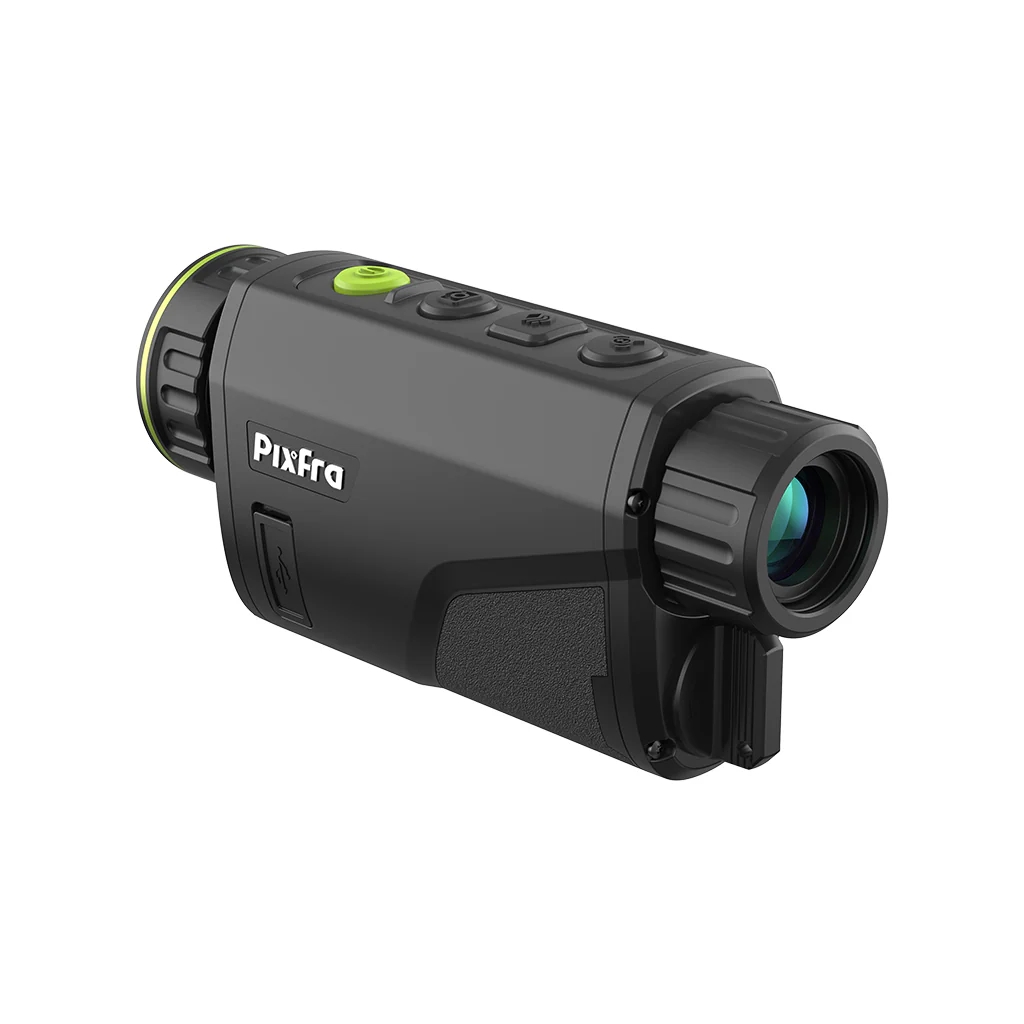

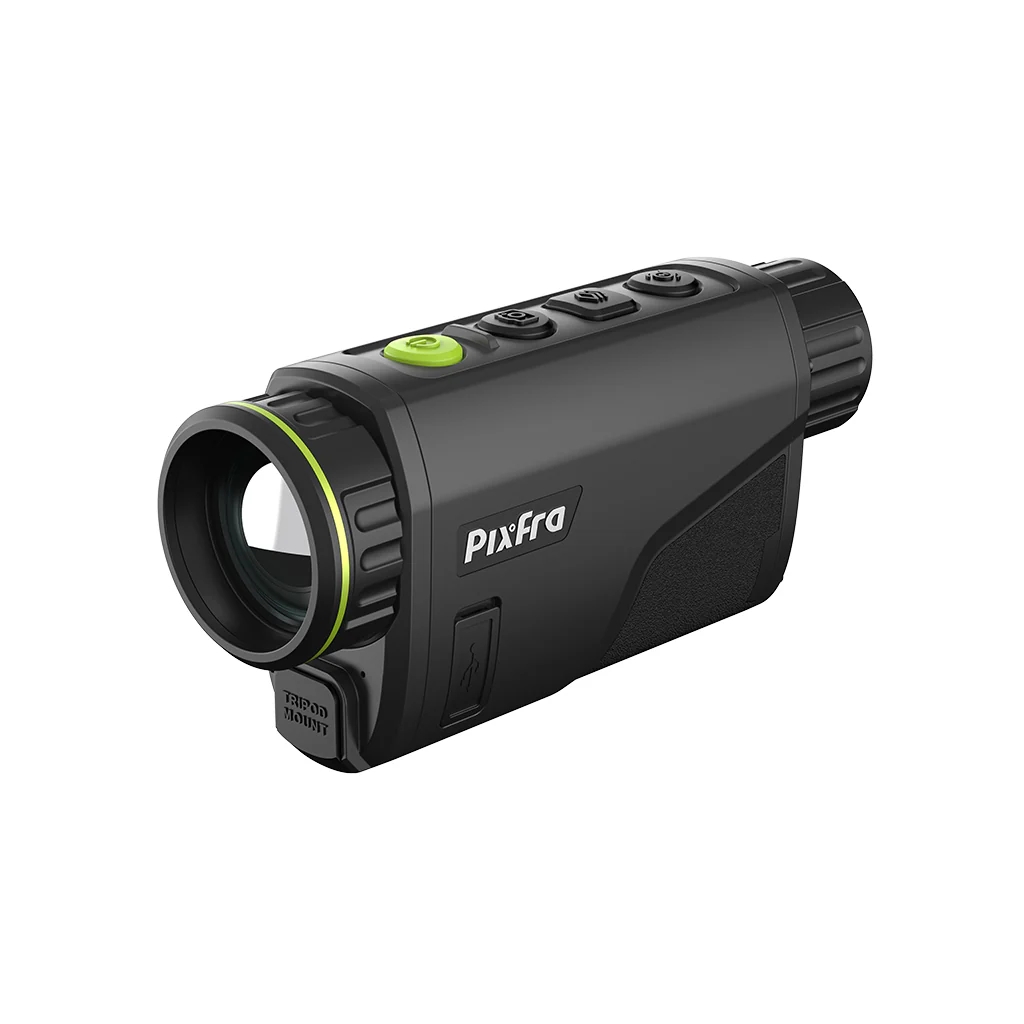

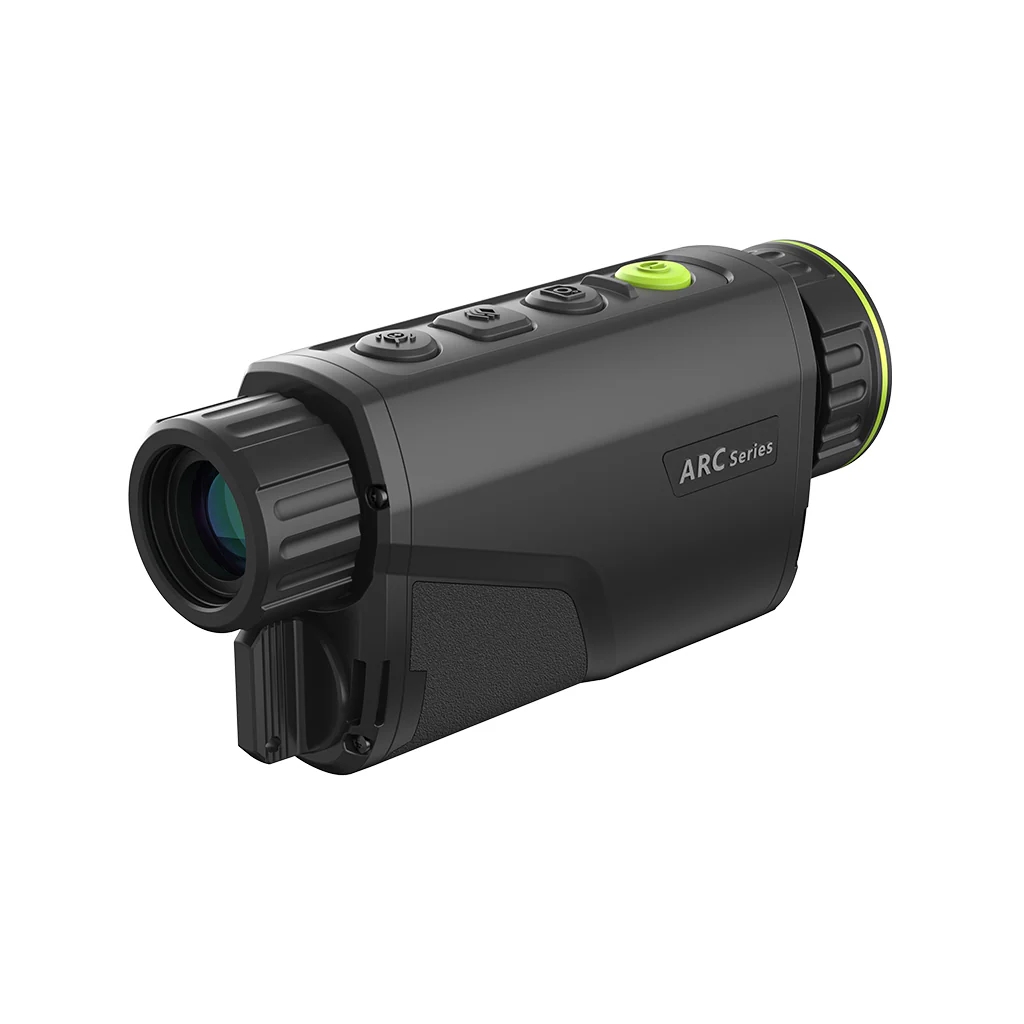

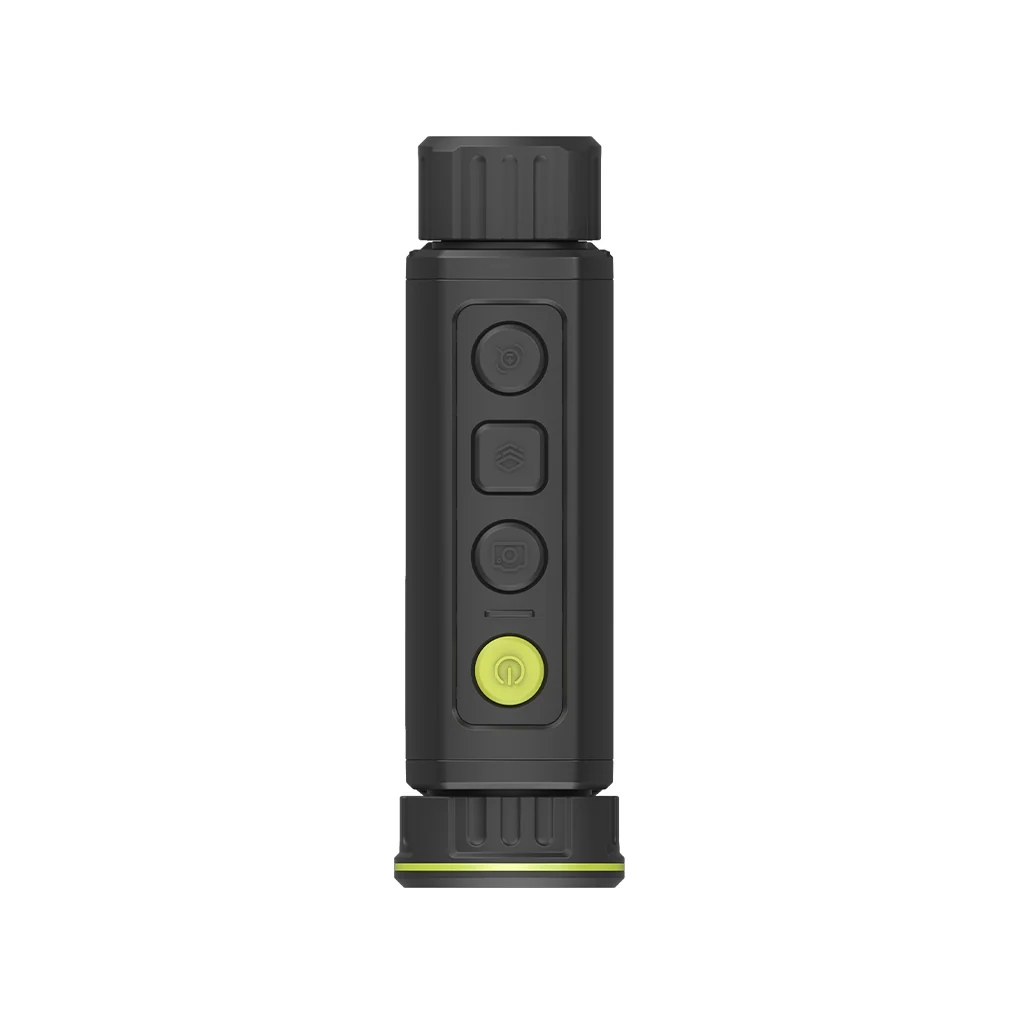

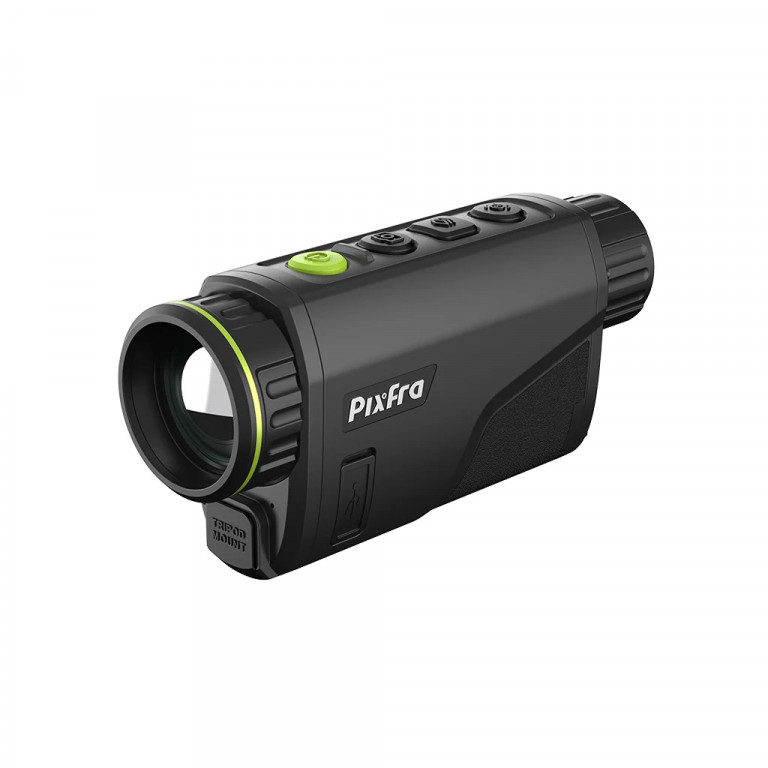

Pixfra ARC A435 Handheld Thermal Monocular - 384x288/12µm/35mm 30mk
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
Designed for long hours of observation, the Pixfra ARC A435 comes with two rechargeable lithium-ion batteries, providing up to 7.5 hours of power per battery for a combined total of 15 hours of continuous use. This ensures you can keep your observations going well into the night without the need for constant recharging. Additionally, the device features a built-in video recorder, allowing you to capture up to two hours of footage per clip, along with audio recording capabilities for more comprehensive documentation of your fieldwork.
The ARC A435 also stands out for its ability to connect with up to four smart devices through the free Pixfra app, enabling multiple users to view the same thermal imagery simultaneously. This is particularly useful for group observations, allowing everyone to stay on the same page while sharing the device’s thermal feed within a 20-meter range. The app, available for both Android and iOS, ensures seamless integration and enhances the collaborative experience.
Comfort and portability are key features of the Pixfra ARC A435. Weighing just 340g, it’s incredibly lightweight, making it easy to carry and handle during long observation sessions. The ergonomic design ensures comfortable use, with an intuitive button layout for effortless operation. Built to withstand tough conditions, the ARC A435 is housed in a robust magnesium alloy casing, protecting it from the inevitable bumps and scrapes encountered in the field. Its IP67 waterproof rating provides reliable protection against dust, water, and even submersion, while the device can operate in extreme temperatures ranging from -30°C to +50°C, ensuring reliable performance in all environments.
The Pixfra ARC A435 is a versatile thermal monocular that combines advanced features with a durable design, offering high-quality imaging, ease of use, and extended observation time. Whether you're conducting bat surveys, monitoring wildlife, or exploring remote terrains, this monocular ensures you have the tools you need to perform with precision and confidence.
- Thermal Sensor 384×288 resolution, 12μm, <30mK NETD
- Detector Type Vanadium oxide uncooled focal plane detector
- Spectral Range 8μm–14μm
- Frame Rate 50 Hz
- Objective Lens 35mm f1.0
- Field of View Horizontal
- Detection Range Up to 1800 meters
- Magnification 1.68x
- Colour Palettes 6 options (White Hot, Black Hot, Iron Red, Alarm, Amber, Emerald)
- Close Focus Distance 2 meters
- Digital Zoom 1x, 2x, 4x, 8x
- Display 0.41-inch OLED screen
- Screen Resolution 1440 x 1080
- Diopter Adjustment -4D ~ +5D
- Eye Relief 15mm
- Uniformity Correction Auto; Manual
- Storage Built-in EMMC (32 GB)
- Video Recording Yes (up to 2 hours per clip)
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes, for screen sharing with up to four devices
- Power Supply 5V Type-C
- Battery Type 1 rechargeable lithium-ion battery
- Battery Capacity 3200mAh
- Battery Operating Life Up to 7.5 hours
- Operating Temperature -30°C to +60°C (-22°F to +140°F)
- Storage Temperature -30°C to +70°C (-22°F to +158°F)
- Protection Rating IP67 (Waterproof and dustproof)
- Product Dimensions 151.8mm × 42.3mm × 74.3mm (5.98" × 1.67" × 2.93")
- Net Weight ≤340g (excluding battery weight)
-
High-Performance Thermal Imaging: Equipped with a sensitive 384×288, 12µm thermal sensor and a 35mm f1.0 objective lens, the ARC A435 provides a detection range of up to 1800 meters and delivers clear, detailed thermal imagery.
-
Full-Color OLED Display: The device features a 1440×1080 resolution OLED screen, offering crisp and vibrant thermal images for easy identification of heat signatures.
-
Long Battery Life: The Arc A435 includes two rechargeable lithium-ion batteries, each providing up to 7.5 hours of continuous use, offering a total of 15 hours of observation time.
-
Built-in Video & Audio Recording: Record up to 2 hours of video with audio to document observations, making it easy to capture and review footage for analysis or sharing.
-
Wi-Fi Connectivity: Connect the device to up to four smart devices via the free Pixfra app, allowing multiple users to view the same thermal imagery simultaneously from a range of up to 20 meters.
-
Multiple Color Palettes: The Arc A435 offers six customizable color palettes (White Hot, Black Hot, Iron Red, Alarm, Amber, and Emerald) to adjust the thermal image for various viewing preferences or conditions.
-
Digital Zoom: The monocular features 1x, 2x, 4x, and 8x digital zoom options to enhance your view and focus on distant objects with precision.
-
Ergonomic and Lightweight Design: Weighing just 340g, the monocular is lightweight and designed for comfort, making it easy to handle during extended periods of use without causing fatigue.
-
Durable and Weatherproof: Built with a robust magnesium alloy casing, the ARC A435 is IP67 waterproof-rated, ensuring it can withstand exposure to rain, dust, and even brief submersion.
-
Temperature Resilience: The monocular operates in extreme temperatures, from -30°C to +50°C, making it suitable for use in a variety of harsh environments.
-
Close Focus Capability: The ARC A435 can focus on objects as close as 2 meters, offering versatile observation for both near and distant targets.
-
User-Friendly Operation: With an intuitive button layout and an ergonomic body, the device ensures easy and comfortable operation, even for extended sessions.
-
Hot Spot Trace: The device can track the hottest spot in the thermal image, helping to highlight key areas of interest, such as animals or heat sources.
-
Portable and Convenient: The monocular comes with a carry pouch, L-shaped tripod adapter, and a lens cleaning cloth, making it easy to transport and maintain during fieldwork.
-
App Integration: The free Pixfra app enhances the user experience by allowing for screen sharing with multiple devices, offering an interactive and collaborative approach to observation.
- Pixfra ARC A435 Handheld Thermal Monocular - 384x288/12µm/35mm 30mk
- 2 x 18650 Li-ion Batteries
- USB-C Dual Bay Charger
- L-Shaped Tripod Adapter
- Rubber Eyecup
- Carry Case
- Carry Pouch
- User Manual
- Lens Cleaning Cloth
- Pixfra 2 year warranty
