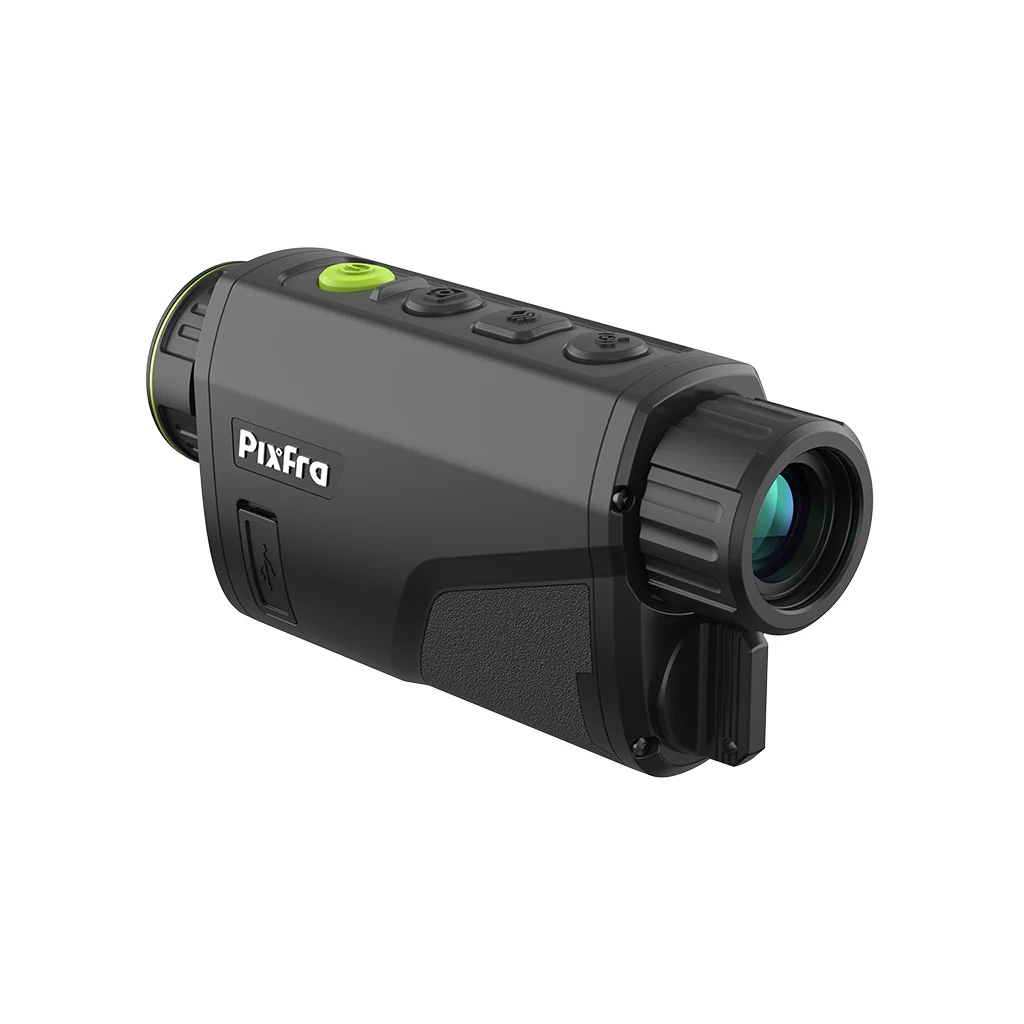

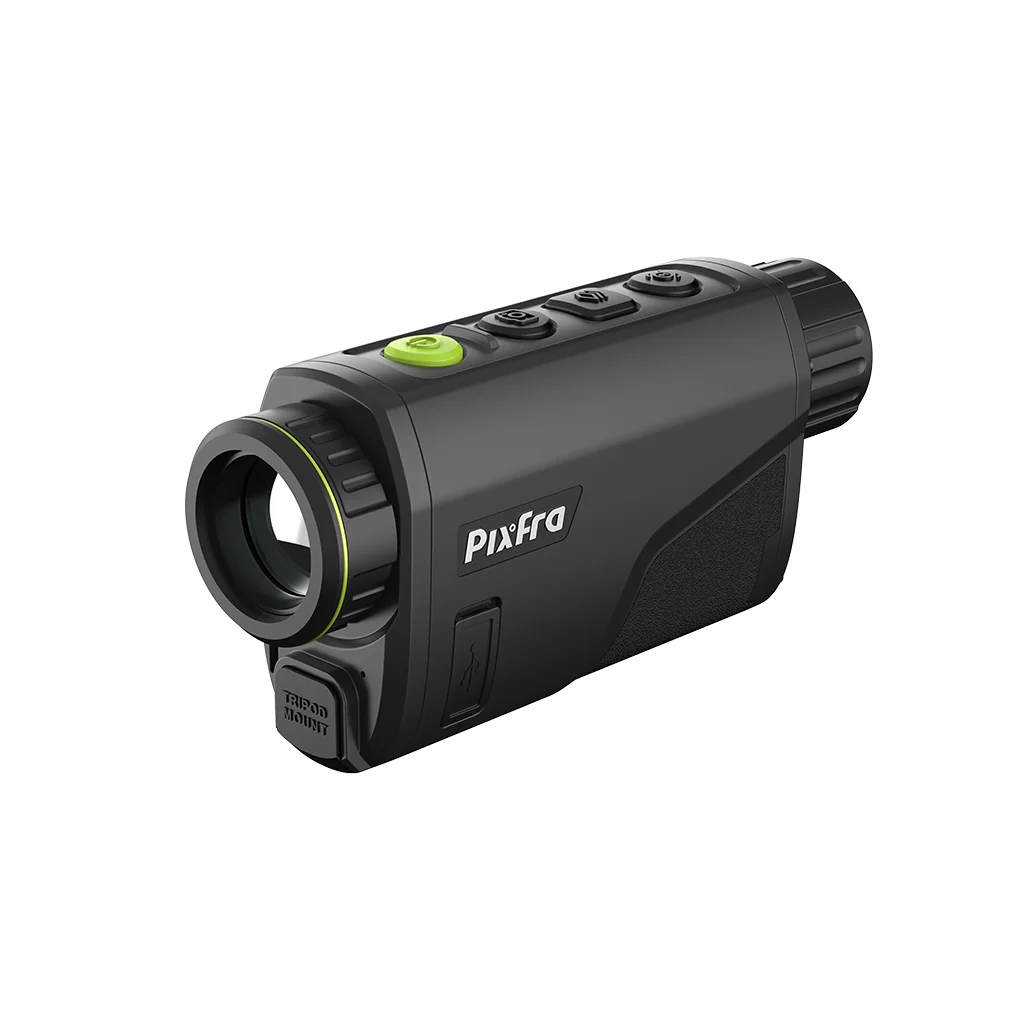

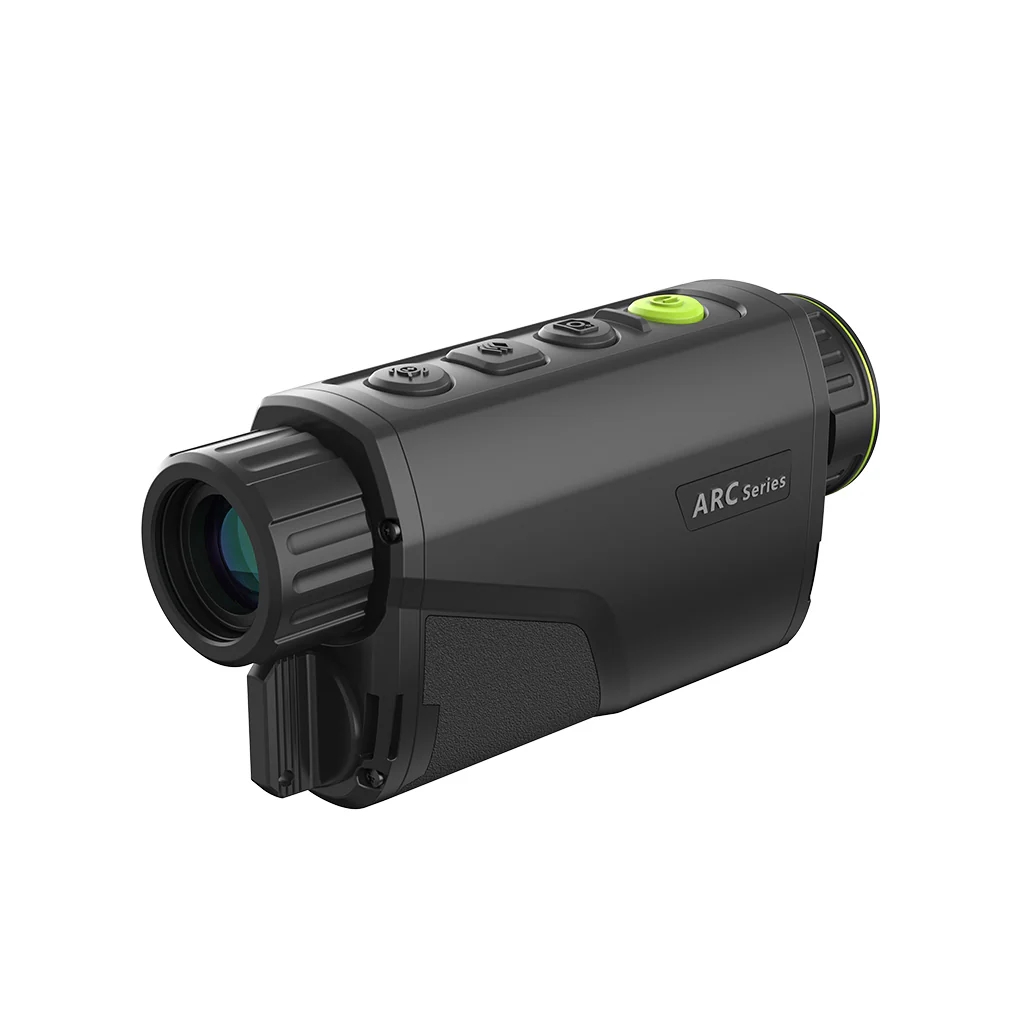

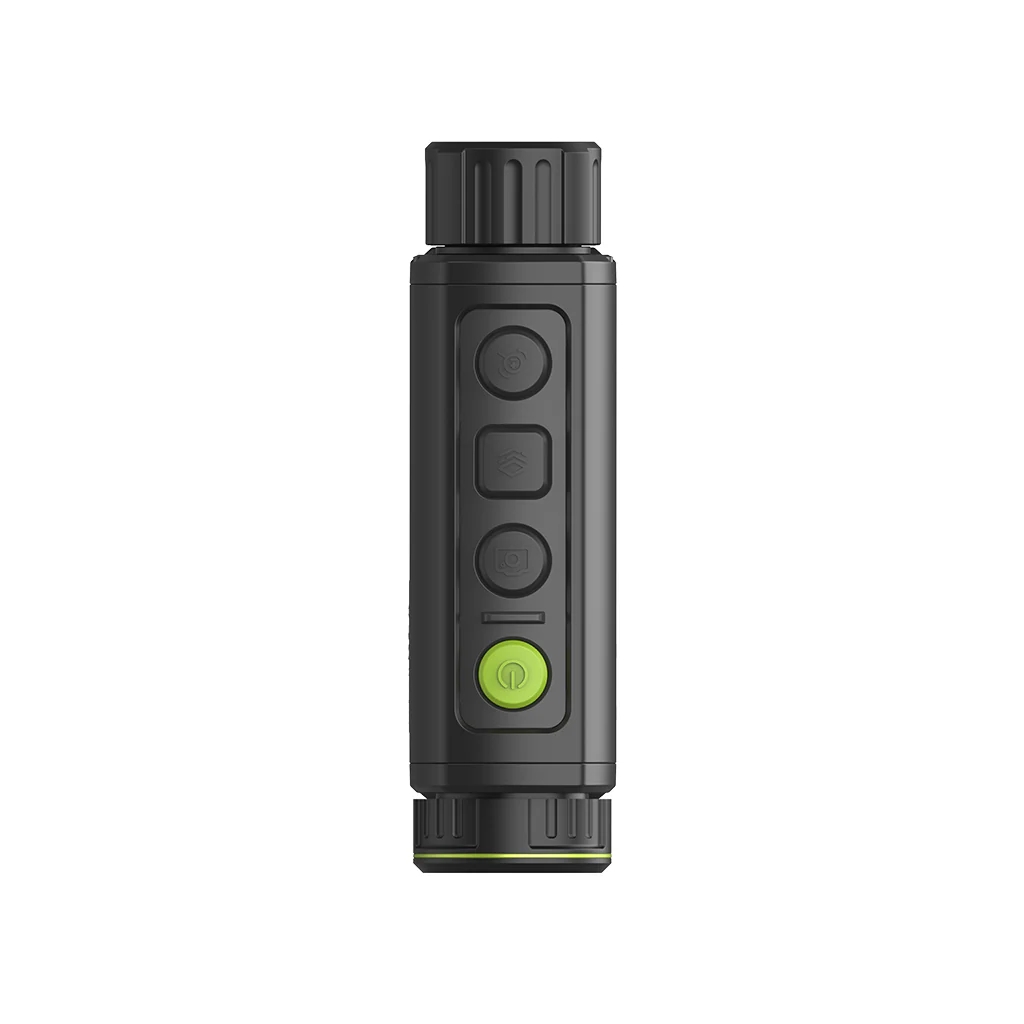

Pixfra ARC A625 Handheld Thermal Monocular - 640x512/12µm/25mm 30mk
Finance Calculator
Representative Calculation
Powered by Autify Digital Ltd
At the heart of the Arc A625 is a full-color 1440×1080 OLED display that presents thermal imagery in stunning detail, while offering a broad range of observation capabilities. The device supports six different color palettes, including white hot, black hot, iron red, alarm, amber, and emerald, giving users versatile options for various environments and scenarios. Additionally, the Arc A625 features built-in video and audio recording, allowing you to capture up to two hours of footage, which can be easily stored on its 32GB internal memory. It also supports hotspot tracking, enhancing the device’s ability to locate and follow heat sources efficiently.
For those needing extended usage in the field, the Pixfra Arc A625 is equipped with two replaceable, rechargeable batteries, providing a total operation time of up to 12 hours, ensuring that long observation sessions are never interrupted. When it's time to share findings, the Arc A625 integrates seamlessly with the Pixfra app, allowing up to four devices to connect and view the same thermal imagery from within 20 meters of the unit. This feature is ideal for group observations, as everyone can monitor the same target without crowding around the device.
Built for comfort and durability, the Arc A625 is designed with an ergonomic body and an intuitive button layout for easy operation, even during extended use. It weighs less than 350 grams, making it easy to carry and handle, while its robust magnesium alloy casing provides protection from drops and scratches. With an IP67 rating, the Arc A625 is fully waterproof and can endure the elements, making it suitable for use in challenging environments, including extreme temperatures ranging from –30°C to +50°C.
Whether you are conducting wildlife surveys, engaging in ecological studies, or simply exploring outdoor areas, the Pixfra Arc A625 Handheld Thermal Monocular is a powerful and reliable tool. Its impressive features, including high-resolution thermal imaging, long battery life, and versatile connectivity, make it the perfect companion for any thermal imaging needs.

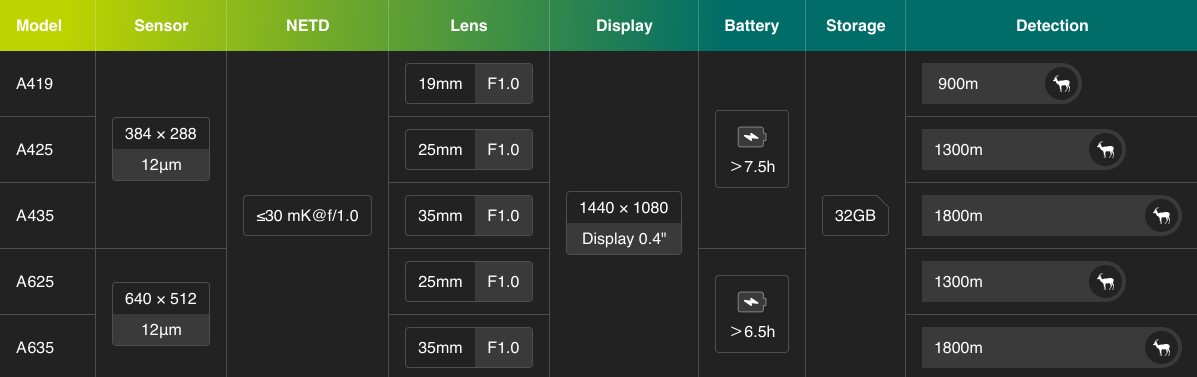

- Thermal Sensor 640×512, 12μm, <30mK NETD
- Detector Type Vanadium oxide uncooled focal plane detector
- Spectral Range 8μm–14μm
- Frame Rate 50 Hz
- Objective Lens 25mm f1.0
- Field of View Horizontal
- Detection Range 1300 meters
- Magnification 1.68x
- Colour Palettes 6 (white hot, black hot, iron red, alarm, amber, emerald)
- Close Focus Distance 2 meters
- Digital Zoom 1x, 2x, 4x, 8x
- Display Screen Dimensions 0.41 inch, OLED
- Screen Resolution 1440 x 1080
- Diopter -4D ~ +5D
- Eye Relief 15mm
- Uniformity Correction Auto; Manual
- Storage Built-in EMMC (32 GB)
- Video Recording Yes, up to 2 hours per clip
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5V Type-C
- Battery Type 1 rechargeable 1850 Lithium battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 6 hours
- Operating Temperature -30°C to +60°C (-22°F to +140°F)
- Storage Temperature -30°C to +70°C (-22°F to +158°F)
- Protection IP67 Waterproof rating
- Product Dimensions 148.5 mm × 42.3 mm × 74.3 mm (5.85" × 1.67" × 2.93")
- Net Weight ≤330g (excluding battery weight)
-
High-Resolution Thermal Imaging: The device features a 640×512 thermal sensor, delivering sharp, detailed thermal imagery at long ranges, ideal for professional use.
-
25mm f1.0 Objective Lens: The powerful objective lens ensures excellent light-gathering ability, providing superior image clarity, even in low-light conditions.
-
Long Detection Range: With a detection range of up to 1300 meters, the Arc A625 is capable of spotting heat signatures over vast distances, making it perfect for wildlife monitoring, search and rescue, and surveillance.
-
Full-Color OLED Display: The monocular uses a 1440×1080 OLED display, which offers vibrant and crisp thermal imaging, improving user visibility and comfort.
-
Multiple Color Palettes: The device offers six color palettes (white hot, black hot, iron red, alarm, amber, and emerald), giving users the flexibility to choose the best option for different environments and conditions.
-
Built-in Video and Audio Recording: Record up to two hours of video and audio with ease, capturing key moments for analysis, sharing, or documentation.
-
Hot Spot Tracking: The Arc A625 includes a hotspot trace feature, which allows users to track and highlight heat sources automatically, improving accuracy during observations.
-
Up to 12 Hours of Battery Life: The monocular is equipped with two replaceable, rechargeable batteries, offering up to 12 hours of total operational time—ideal for extended field use.
-
Pixfra App Connectivity: Share thermal imagery with up to four devices via the free Pixfra app, allowing group observations without needing to crowd around a single device.
-
Ergonomic and Comfortable Design: The Arc A625 features an ergonomic body with an intuitive button layout, ensuring ease of use and comfort during long observation sessions.
-
Lightweight and Portable: Weighing under 350 grams, the device is light and compact, easily fitting into a bag or being carried in hand without causing fatigue.
-
Durable and Rugged Construction: The robust magnesium alloy casing protects the device from everyday wear and tear, while the IP67 waterproof rating ensures it remains functional in wet or challenging environments.
-
Wide Operating Temperature Range: Designed to perform in extreme temperatures, the Arc A625 operates in environments ranging from –30°C to +50°C, making it suitable for diverse outdoor conditions.
-
Easy to Use in Various Lighting Conditions: The device’s diopter adjustment feature allows users to customize the focus for their vision, enhancing comfort for long-duration use without eye strain.
-
Built-in 32GB Storage: The 32GB internal storage ensures ample space for video, audio, and image recordings, making it convenient for fieldwork without the need for external storage.
-
Versatile Digital Zoom: The Arc A625 offers 1x, 2x, 4x, and 8x digital zoom options, allowing users to get a closer look at distant targets.
-
Waterproof and Shockproof: The device is IP67-rated for water resistance, meaning it is protected against water ingress and can withstand splashes or brief immersion.
-
Included Accessories: The product comes with useful accessories like a USB-C dual bay charger, tripod adapter, rubber eyecup, carry case, carry pouch, and lens cleaning cloth, ensuring you're ready to use it straight out of the box.
- Pixfra ARC A625 Handheld Thermal Monocular - 640x512/12µm/25mm 30mk
- 2 x 18650 Li-ion Batteries
- USB-C Dual Bay Charger
- L-Shaped Tripod Adapter
- Rubber Eyecup
- Carry Case
- Carry Pouch
- User Manual
- Lens Cleaning Cloth
- Pixfra 2 year warranty
