Compact and lightweight - well matched to the latest generation of compact rifles.
Optisan has developed the CP series to have minimal parallax error. This means you experience a minimal shift in the point of impact when shooting targets at varying distances, without adjusting your focus. This is especially useful when shooting HFT or hunting in the field when adjusting the parallax before each shot is not possible.
The 32mm objective and short overall length brings the weight towards the shooter; improving the balance and handling of the gun.
Optisan CP scopes have a standard length of eye relief allowing a suitable distance between your eye and objective, whilst shooting. This means that you can use this scope on guns with recoil such as Spring guns, Rimfire and Centrefire.
In particular as we are asked a lot - Springer rated - Yes
Field tested by champion shooters for more than for one year on spring air rifles it is a robust riflescope that is also capable of use larger caliber rifles including centerfire
Reticle

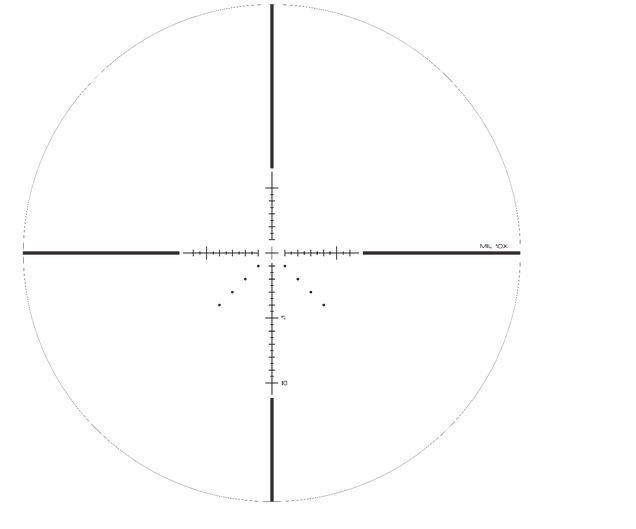

The MH10 reticle is an all-round MRAD(MIL) based reticle designed for precision ranging at 10X with uncluttered windage correction reference marks.
OPTICAL DATA
- Magnification 3-12X
- Objective Diameter: 32mm
- Outer dia. Objective: 40mm
- FOV (ft/100yds) 36-9
- Eye relief 3.5" - 3.3"
- Exit Pupil 2.6-10.6 mm
- Diopter Range +/- 2.0
- Parallax Adjustment 10yds - 500- infinity (100yds pa free)
- Coating: ully Multi-coated
MECHANICAL DATA
- Tube Construction: One-piece tube, aircraft aluminum
- Elevation & Windage Adjustment (value per click) 0.1 mrad
- Turret Style: Low-profile, Zero-resettable
- Travel Per Rotation: 10 mrad
- Adj. range: ≥ 20 mrad
- Eye Piece Diameter: 1.55" / 39.5mm
- Eye Piece Length: 1.08" / 27.55mm
- Mounting Length rear: 55.70 mm
- Mounting Length front: 30.00 mm
- Tube Dia. 30 mm
- Length: 9.52" / 242mm
- Weight: 487g / 17.17oz
- Surface Finish: Matte Black
ENVIRONMENT DATA
- Functional temperature: -20 ~ 50 degree celcius
- Storage temperature: -20 ~ 50 degree celcius
- Submersion tightness: JIS 7
RETICLE DATA
- Reticle: SFPMH10X
- Calibrated Ranging Power: 10X
- Focal plane: Second
- Illumination: Non-illuminated
Standard Accessories included
- 2.5" sunshade
- ABS flip up Lens covers
Optisan Lifetime Warranty
