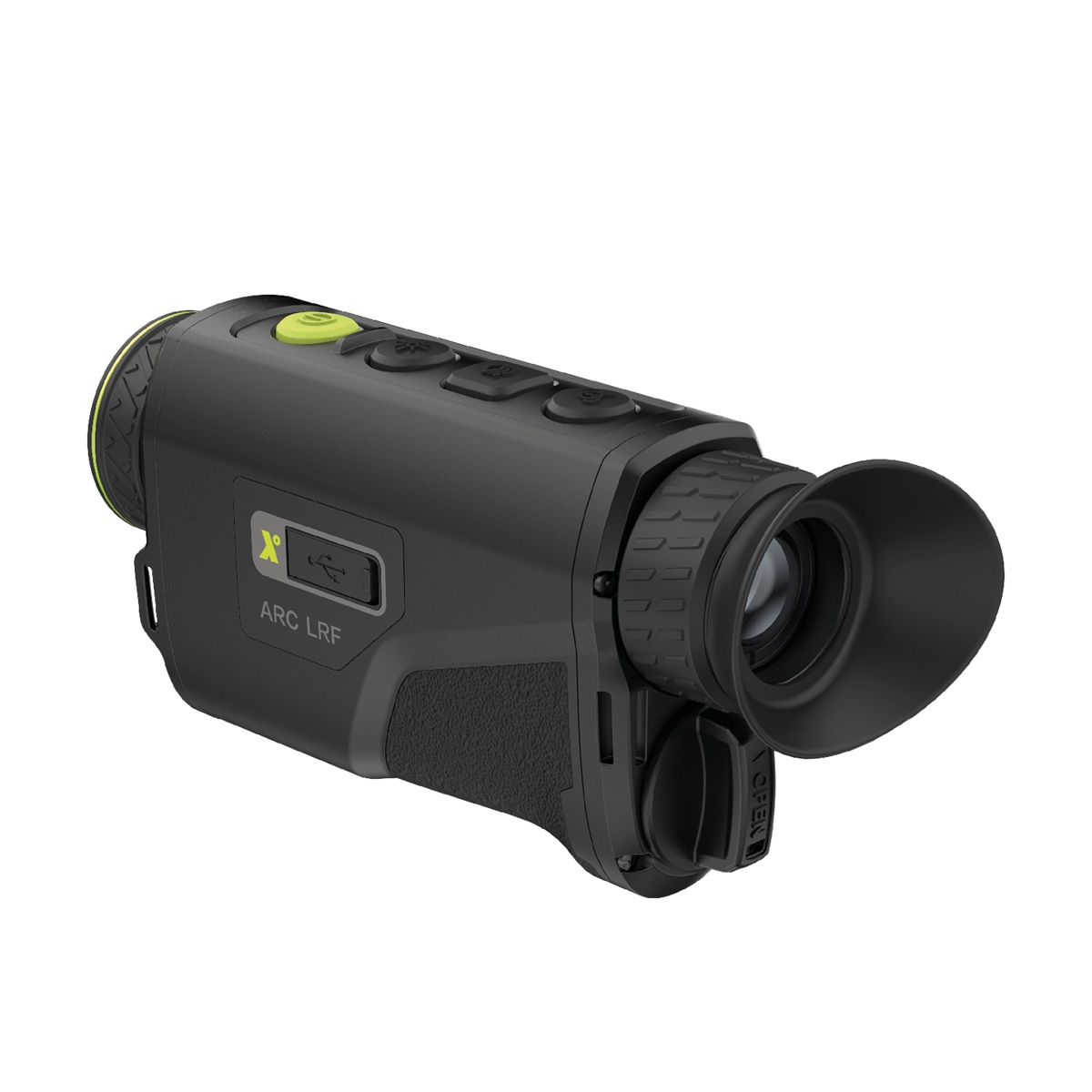

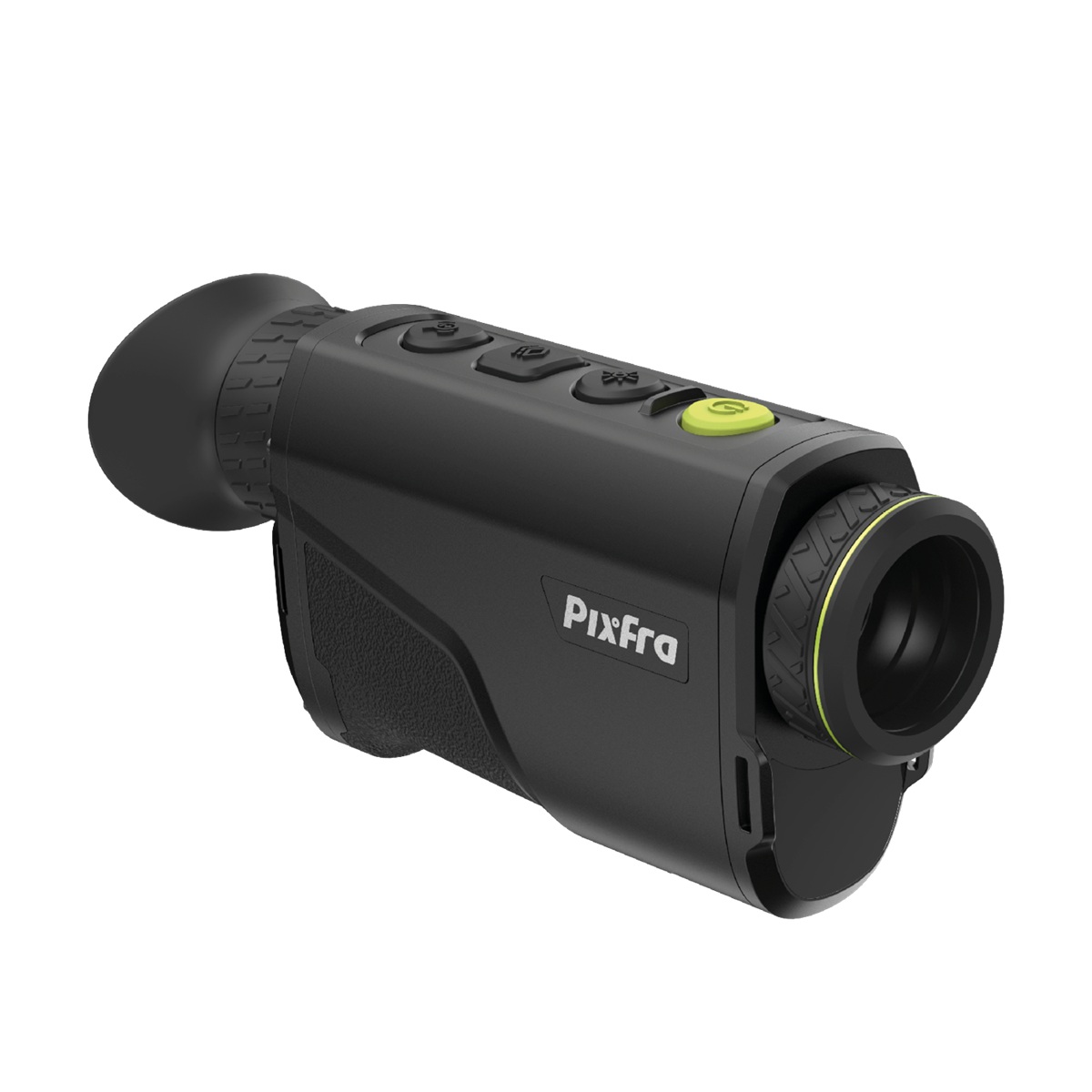

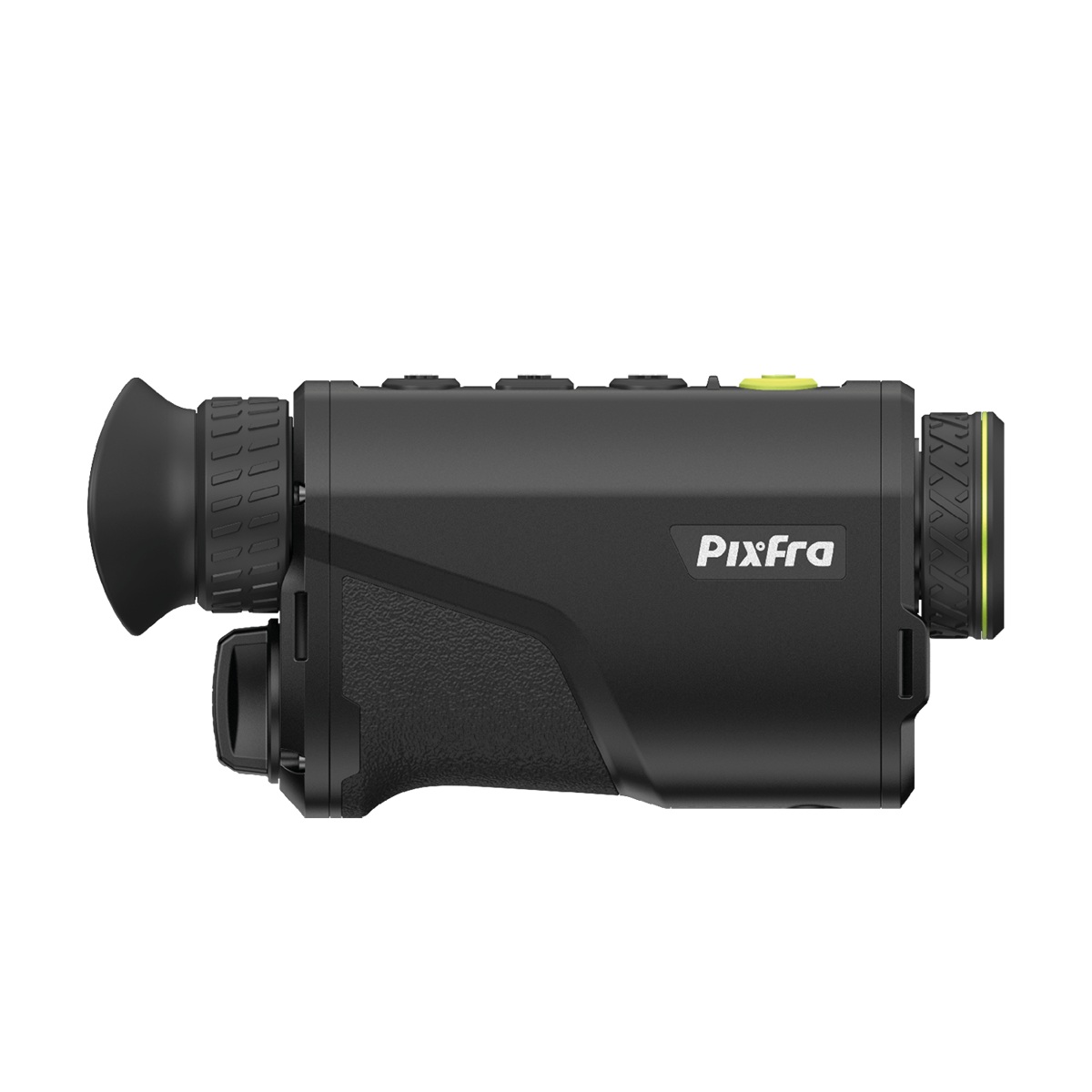

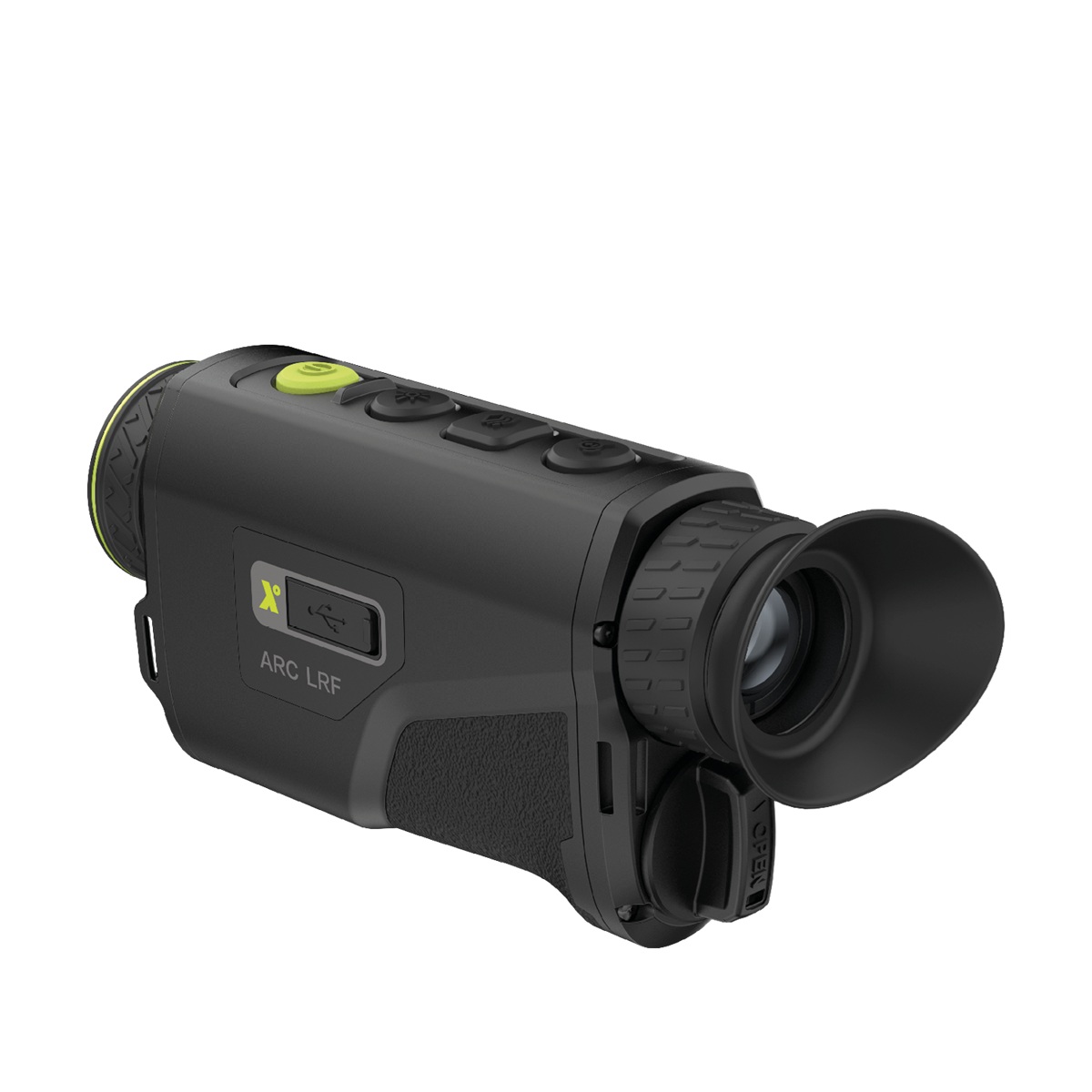

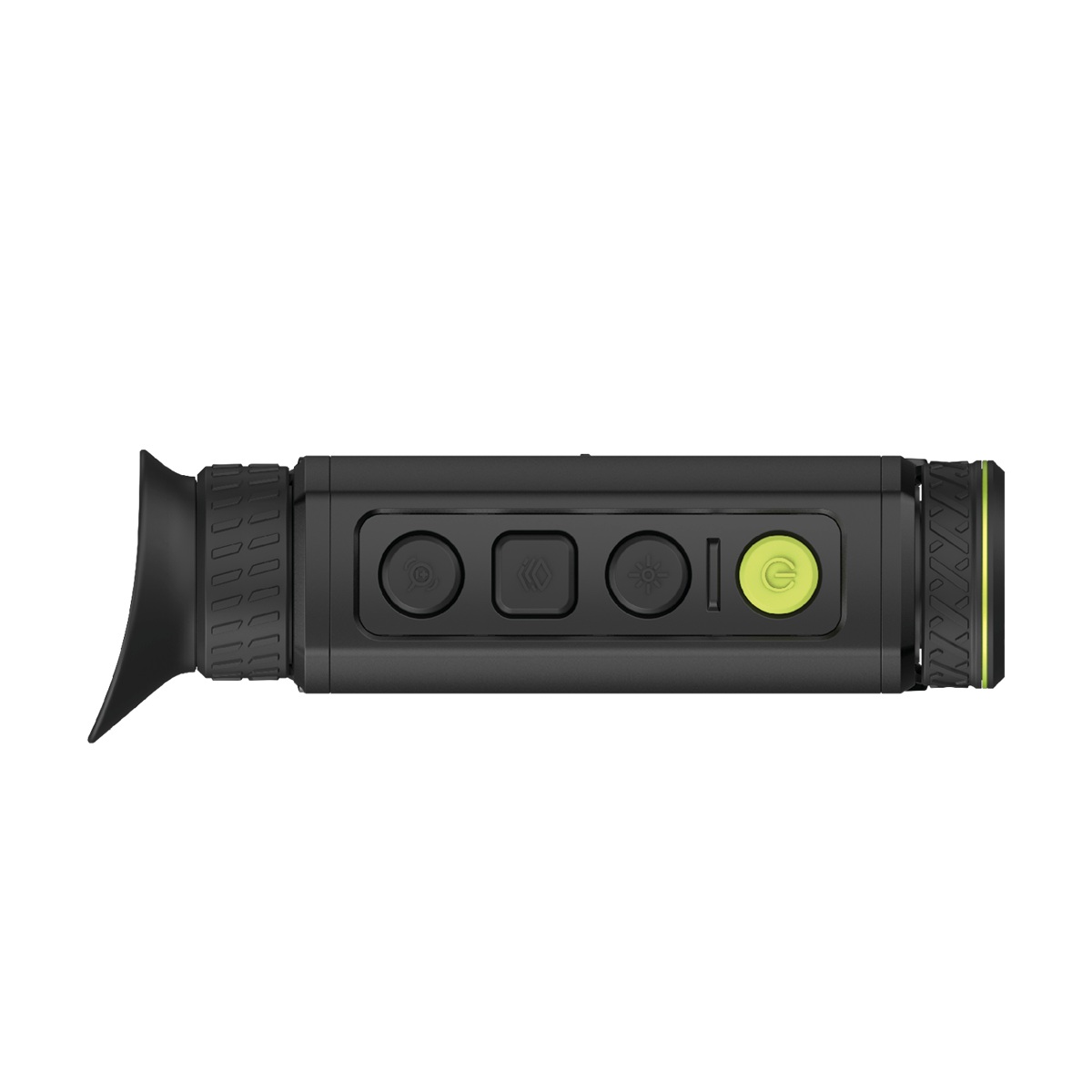

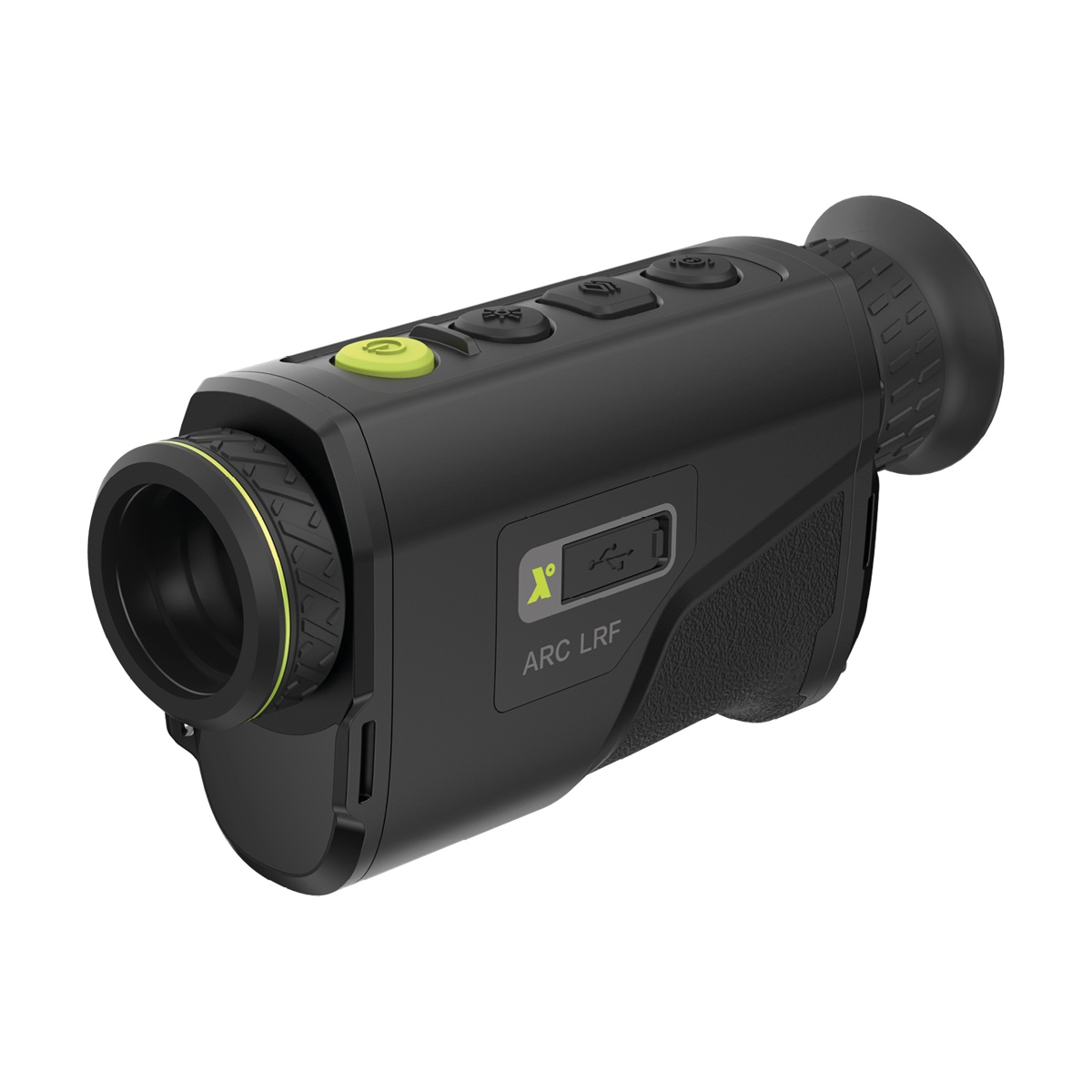

Pixfra™ Arc LRF A419 Pro Thermal Monocular w/Laser Rangefinder (384x288 12µm Detector/19mm Lens)
- High-sensitivity thermal imaging with a 384×288, 12µm, <20mK NETD sensor for exceptional clarity.
- Integrated precision laser rangefinder with 1000m range and ±1m accuracy.
- Wide field of view of 24.3 × 18.2m @ 100m for improved situational awareness.
- Ergonomic design upgrades including a contoured eyecup and textured rubber grip.
- Long-lasting power with replaceable 18650 batteries, delivering up to 7.5 hours runtime.
- Wireless sharing via Pixfra Outdoor app, allowing up to 4 users to view simultaneously.
The Pixfra™ Arc LRF A419 Pro Thermal Monocular combines advanced thermal imaging with seamless distance measurement technology, offering unmatched clarity and precision in the field. Featuring a highly sensitive 384×288, 12µm thermal sensor with <20mK NETD and a powerful 19mm f1.0 lens, this monocular delivers vivid, richly detailed imagery in all weather conditions. Its integrated laser rangefinder provides accurate distance readings up to 1000m, while ergonomic upgrades such as a contoured eyecup and textured grip ensure comfort during prolonged use. Lightweight yet rugged, with IP67 protection, the A419 Pro is built for reliability in challenging environments. With extended battery life, app connectivity for real-time sharing, and multiple viewing features, it’s the perfect tool for hunters, wildlife observers, and professionals who demand dependable thermal performance.
- Detector Type Vanadium oxide uncooled focal plane detector
- Thermal Sensor 384×288, 12µm, <20mK NETD
- Frame Rate 50 Hz
- Lens 19mm f1.0
- FOV (m @ 100 m) 24.3 × 18.2
- Thermal Focus Control Manual
- Close Focus Distance 2 m (6.56 ft)
- Rangefinder Built-in precision laser rangefinder
- Distance Measurement Range 1000 m
- Digital Zoom 1x, 2x, 4x, 8x
- Magnification 2.1x
- Colour Palettes 6 (white hot, black hot, iron red, alarm, amber, emerald)
- Display 0.41″ 1440×1080 OLED
- Storage 32 GB
- Uniformity Correction Auto, manual
- Picture in Picture (PiP) Yes
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5 VDC/1 A, USB Type-C
- Battery Type 1 replaceable 18650 battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 7.5 hours (depending on temperature)
- Environmental Protection IP67
- Product Dimensions 168 × 50 × 78 mm / 6.61″ × 1.97″ × 3.07″ (L × W × H)
- Packaging Dimensions 228 × 120 × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H)
- Weight 360 g
- Powerful Thermal Optics: Combines a sensitive <20mK NETD thermal sensor with a bright 19mm f1.0 lens for crisp imaging across varied conditions.
- Advanced Image Processing: Pixfra’s PIPS 2.0 reduces noise, enhances contrast, and ensures detailed thermal visuals.
- Integrated Laser Rangefinder: Provides accurate distance measurements up to 1000m without disrupting observation.
- Ergonomic Enhancements: Refined eyecup and textured rubberised grip ensure comfortable handling, even in poor weather.
- Lightweight but Durable: Compact magnesium alloy housing offers portability and resilience against knocks and harsh environments.
- All-weather Reliability: IP67-rated protection allows operation in heavy rain, fog, snow, and high humidity.
- Extended Observation Sessions: Two replaceable 18650 batteries support up to 7.5 hours of continuous use.
- App Connectivity: Wi-Fi connection with the Pixfra Outdoor app allows real-time sharing with up to four users within 20m.
- Practical Observation Tools: Includes Picture-in-Picture, Hot Spot Tracking, six colour palettes, and audio recording.
- Pixfra™ Arc LRF A419 Pro Thermal Monocular w/Laser Rangefinder (384x288 12µm Detector/19mm Lens)
- Pixfra 3 Year Warranty
