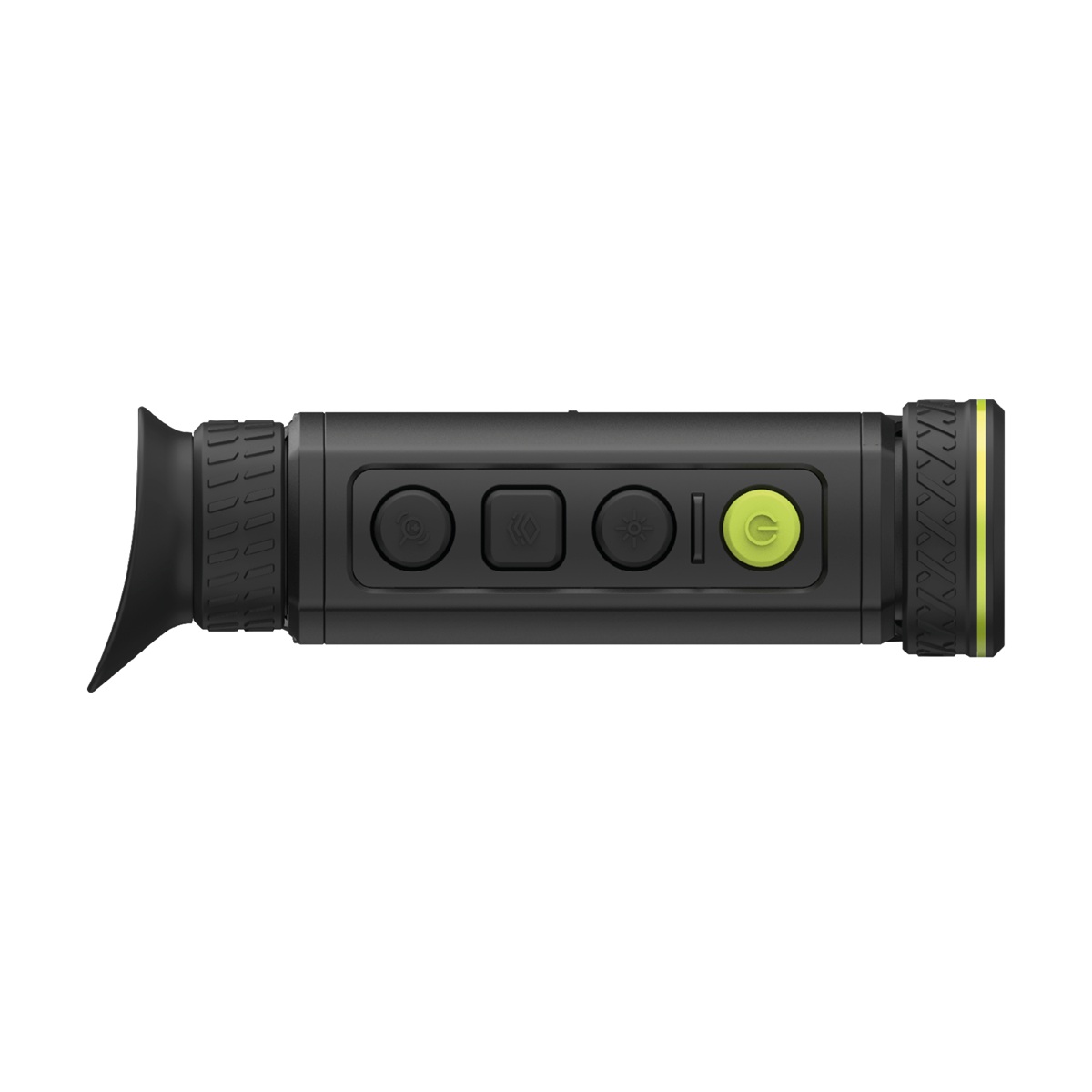

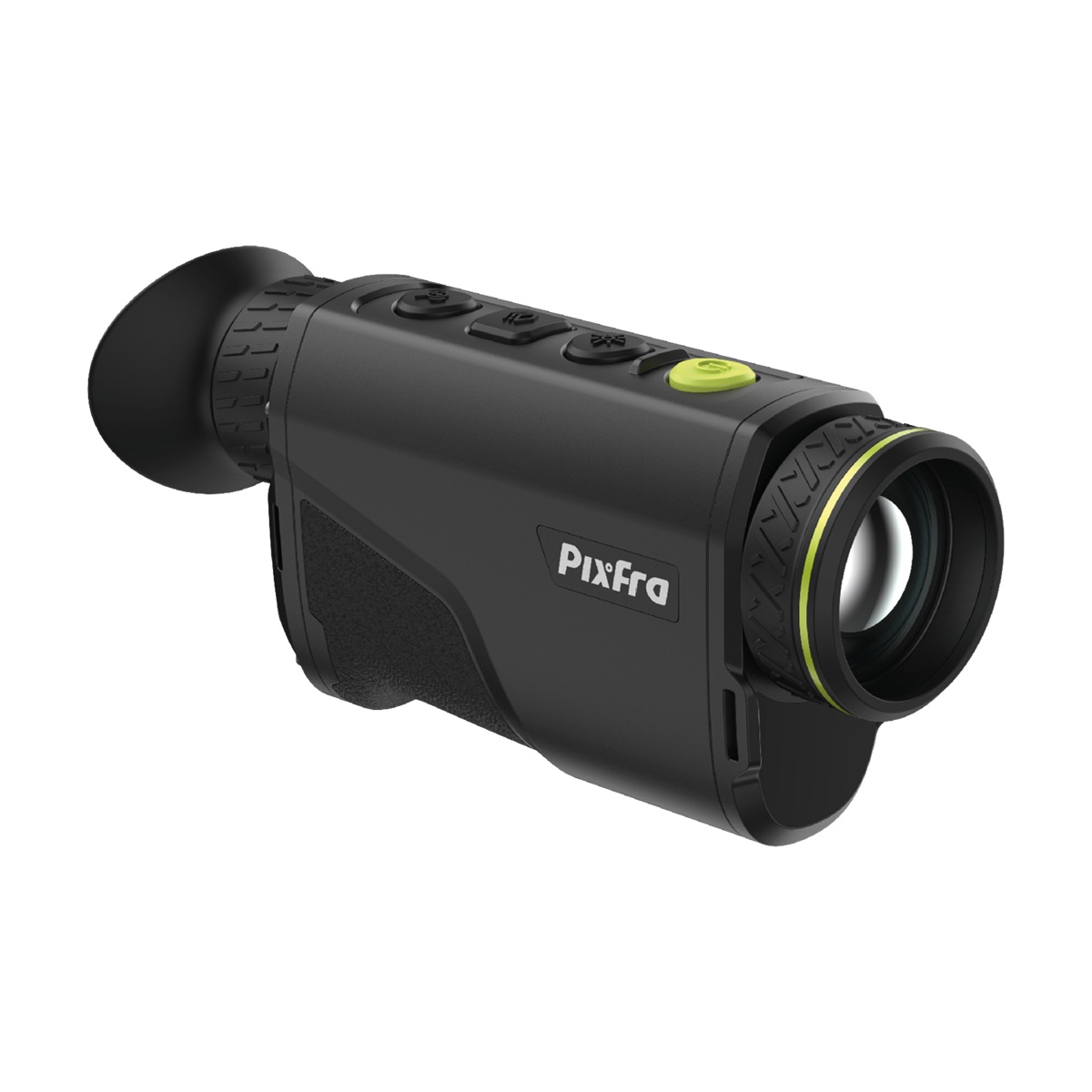

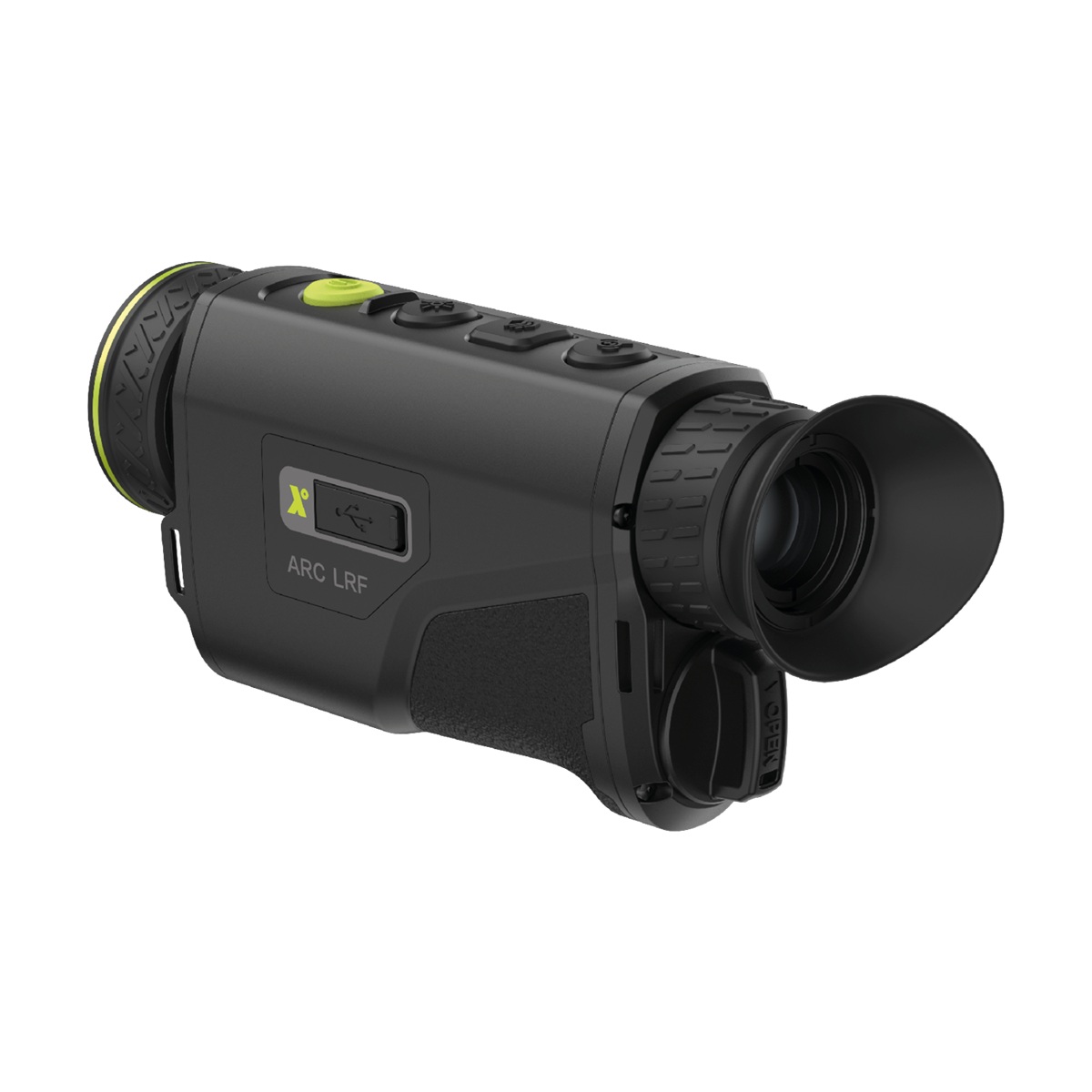

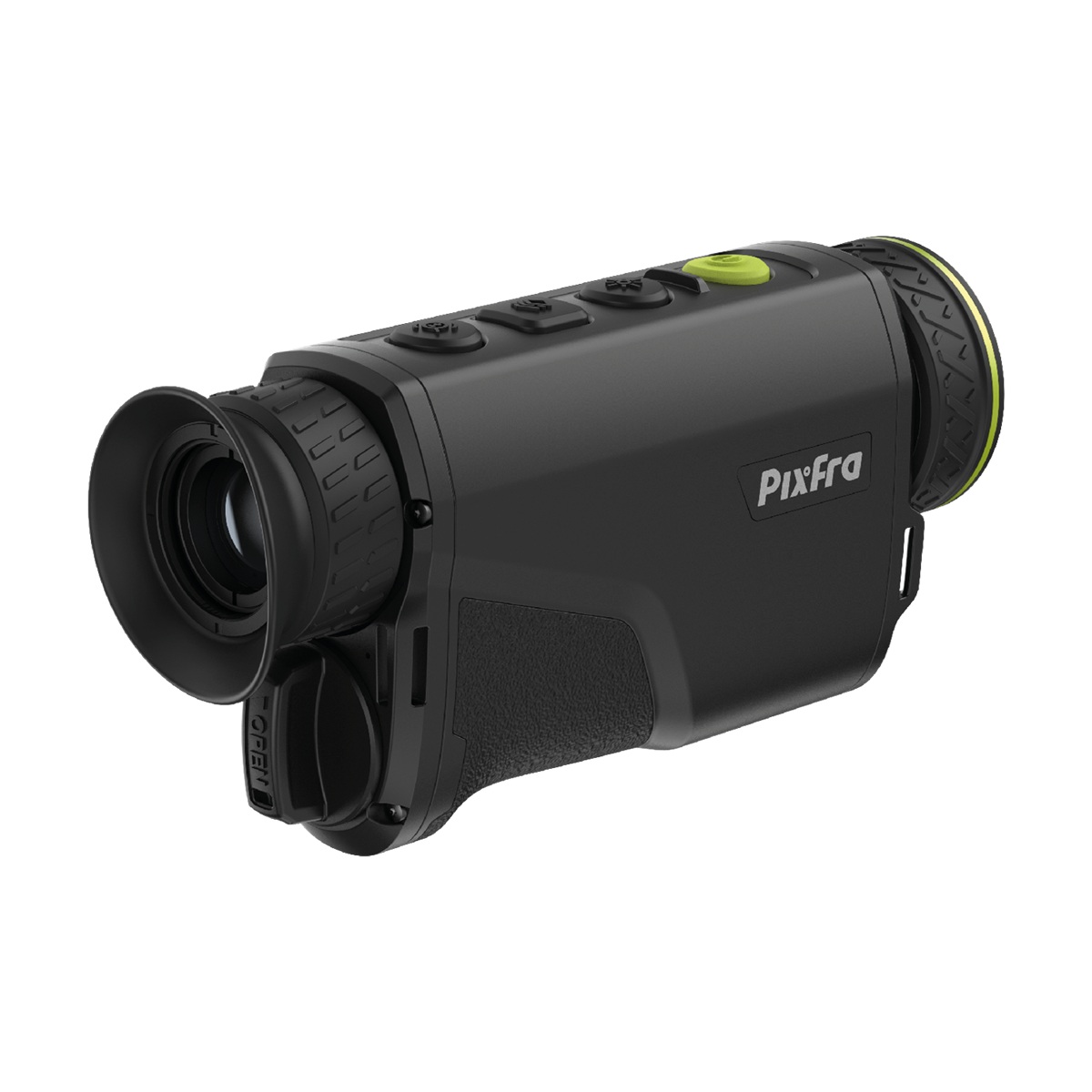

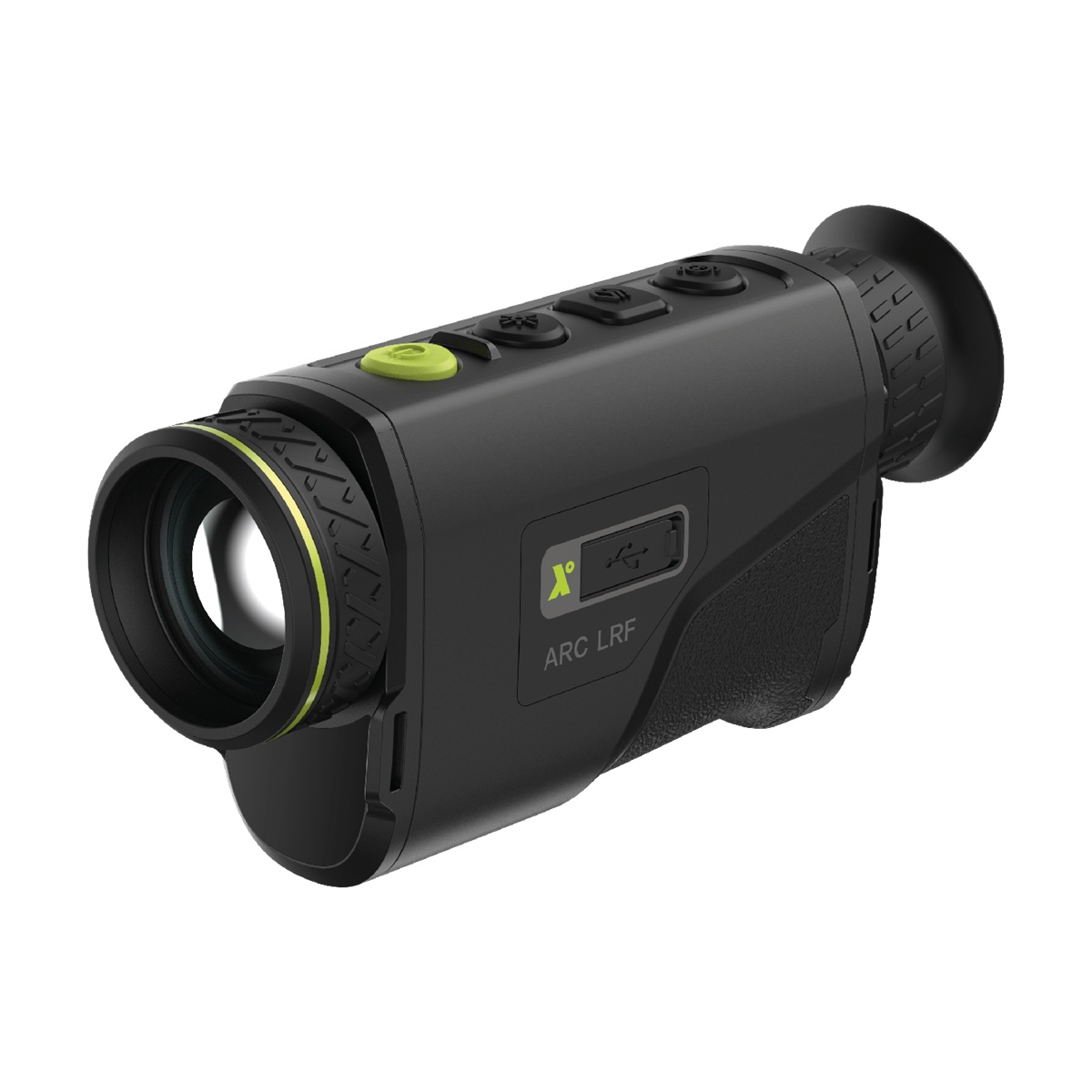

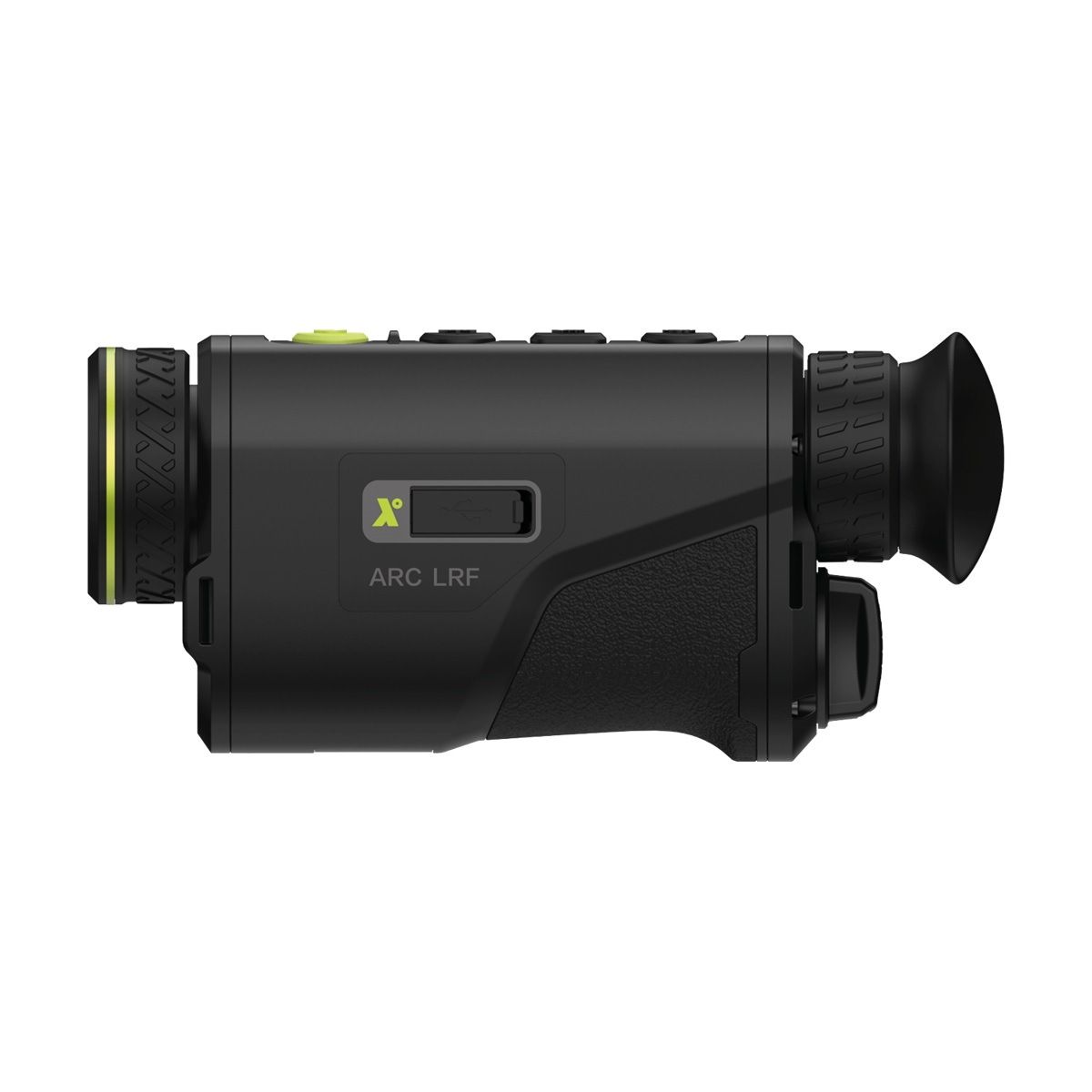

Pixfra™ Arc LRF A635 Pro Thermal Monocular w/Laser Rangefinder (640x512 12µm Detector/35mm Lens)
- High-performance thermal sensor: 640×512, 12µm <20mK NETD sensor delivers crisp, detailed thermal imagery.
- Powerful optics: 35mm f1.0 lens with a 21.9×17.6m @ 100m field of view and detection range up to 1800m.
- Integrated laser rangefinder: Accurate measurements up to 1000m with ±1m precision.
- Rugged, ergonomic design: Compact magnesium alloy housing with rubberised grip, contoured eyecup, and IP67 protection.
- Extended battery life: Up to 12 hours operation with two included 18650 rechargeable batteries.
- Seamless connectivity: Wi-Fi enabled with Pixfra Outdoor app support for live sharing with up to four users.
The Pixfra™ Arc LRF A635 Pro Thermal Monocular delivers powerful thermal performance with precision ranging capability, ensuring you can observe, detect, and measure with confidence in any condition. Featuring a highly sensitive 640×512, 12µm thermal sensor with <20mK NETD sensitivity, paired with a 35mm f1.0 lens, it produces vivid, richly detailed images with a wide 21.9×17.6m field of view at 100m. A built-in laser rangefinder provides accurate distance readings up to 1000m, making it ideal for wildlife observation, field research, and professional applications. Designed with ergonomics in mind, it combines a compact magnesium alloy body, rubberised grip, and weather-sealed IP67 protection for comfortable and reliable use in any environment. With up to 12 hours of uninterrupted operation (two 18650 batteries included), app connectivity, and multiple sharing options, the Arc LRF A635 Pro is an advanced thermal monocular built for those who demand precision and performance.
- Detector Type Vanadium oxide uncooled focal plane detector
- Thermal Sensor 640×512, 12µm, <20mK NETD
- Frame Rate 50 Hz
- Lens 35mm f1.0
- FOV (m @ 100 m) 21.9 × 17.6
- Thermal Focus Control Manual
- Close Focus Distance 2 m (6.56 ft)
- Rangefinder Built-in precision laser rangefinder
- Distance Measurement Range 1000 m
- Digital Zoom 1×, 2×, 4×, 8×
- Magnification 2.36×
- Colour Palettes 6 (white hot / black hot / iron red / alarm / amber / emerald)
- Display 0.41″ 1440×1080 OLED
- Storage 32 GB
- Uniformity Correction Auto, manual
- Picture in Picture (PiP) Yes
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5 VDC/1 A, USB Type-C
- Battery Type 1 replaceable 18650 battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 6 hours (per battery, depending on temperature)
- Environmental Protection IP67
- Product Dimensions 172 × 53 × 78 mm / 6.77″ × 2.09″ × 3.07″ (L × W × H)
- Packaging Dimension 228 × 120 × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H)
- Weight 375 gDetector Type
- Thermal Sensor 640×512, 12µm, <20mK NETD
- Frame Rate 50 Hz
- Lens 35mm f1.0
- FOV (m @ 100 m) 21.9 × 17.6
- Thermal Focus Control Manual
- Close Focus Distance 2 m (6.56 ft)
- Rangefinder Built-in precision laser rangefinder
- Distance Measurement Range 1000 m
- Digital Zoom 1×, 2×, 4×, 8×
- Magnification 2.36×
- Colour Palettes 6 (white hot / black hot / iron red / alarm / amber / emerald)
- Display 0.41″ 1440×1080 OLED
- Storage 32 GB
- Uniformity Correction Auto, manual
- Picture in Picture (PiP) Yes
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5 VDC/1 A, USB Type-C
- Battery Type 1 replaceable 18650 battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 6 hours (per battery, depending on temperature)
- Environmental Protection IP67
- Product Dimensions 172 × 53 × 78 mm / 6.77″ × 2.09″ × 3.07″ (L × W × H)
- Packaging Dimension 228 × 120 × 187 mm / 8.98″ × 4.72″ × 7.36″ (L × W × H)
- Weight 375 g
- Equipped with a 640×512, 12µm thermal sensor with <20mK NETD sensitivity, delivering exceptionally sharp and detailed thermal imagery.
- Features a 35mm f1.0 objective lens with a wide 21.9×17.6m field of view at 100m and a detection range of up to 1800m.
- Pixfra PIPS 2.0 image processing reduces noise, boosts contrast, and enhances fine details for vivid observation in all conditions.
- Integrated precision laser rangefinder provides accurate distance measurements up to 1000m with ±1m accuracy, seamlessly built into the design.
- Constructed from a lightweight magnesium alloy housing with a rubberised textured grip and contoured eyecup for improved handling and comfort.
- Fully IP67 weather-sealed, protecting the device against rain, snow, fog, and high humidity.
- Supplied with two replaceable 18650 batteries, each offering up to 6–7 hours of operation, with a secure twist-cap compartment for quick battery changes.
- Offers six colour palettes, picture-in-picture mode, hot spot trace, and built-in audio recording to enhance observation versatility.
- Wi-Fi enabled for connection with the Pixfra Outdoor app, allowing live screen sharing with up to four people within 20m.
- Pixfra™ Arc LRF A635 Pro Thermal Monocular w/Laser Rangefinder (640x512 12µm Detector/35mm Lens)
What are the detection range and image resolution capabilities of the Arc LRF A635 Pro?
The A635 Pro features a high-performance, ultra-sensitive 640×512 thermal sensor with a 12µm pixel pitch and a thermal sensitivity of ≤20mK NETD. Combined with its powerful 35mm f1.0 manual focus objective lens, it delivers a base magnification of 2.36x and can detect heat sources at an impressive distance of up to 1,800 meters. For closer identification, its recognition range is 1,100 meters, and its specific identification range is 700 meters.
How far can the integrated Laser Rangefinder (LRF) measure, and is it accurate?
The laser rangefinder is seamlessly built into the compact chassis of the monocular so it doesn’t add bulk or disrupt the device's balance. It is a Class 1 laser operating at a 905 nm wavelength, capable of measuring distances from a minimum of 10 meters up to a maximum of 1,000 meters. It provides instant distance data in the field with a high accuracy rating of ±1 meter.
What is the battery life, and can the batteries be replaced in the field?
Yes, the unit uses a replaceable, non-proprietary 18650 rechargeable battery (3,200 mAh capacity). It is designed with a secure, quick swap twist cap battery cover that makes changing the battery in the dark quick and easy. A single battery provides up to 6 to 7.5 hours of continuous operation (depending on external ambient temperatures and whether Wi-Fi/LRF are turned on). The retail package from Optics Warehouse typically includes two batteries, offering up to 12–15 hours of total observation time in the field.
Can I record video or share the live thermal view with other people?
Absolutely. The monocular comes with 32 GB of built in EMMC storage, allowing you to capture snapshots and record video (complete with built in audio recording). Additionally, it features a WiFi hotspot function. By pairing the monocular with the Pixfra Outdoor mobile app, you can share the live screen feed simultaneously with up to four other users within a 20 meter radius, meaning your hunting or observation group can see exactly what you are seeing without needing to pass the device around.
Is the Arc LRF A635 Pro rugged enough to handle bad weather?
Yes, the device is engineered for harsh outdoor environments. It features a lightweight but highly durable magnesium alloy bodyshell wrapped in a textured, rubberized non slip grip. It holds an IP67 weatherproof rating, which means it is completely protected against dust and can withstand being submerged in water up to 1 meter deep for half an hour. It operates seamlessly in extreme weather conditions, including heavy rain, snow, dense fog, and temperatures ranging from –30 °C up to +55 °C.
- Pixfra 3 Year Warranty
