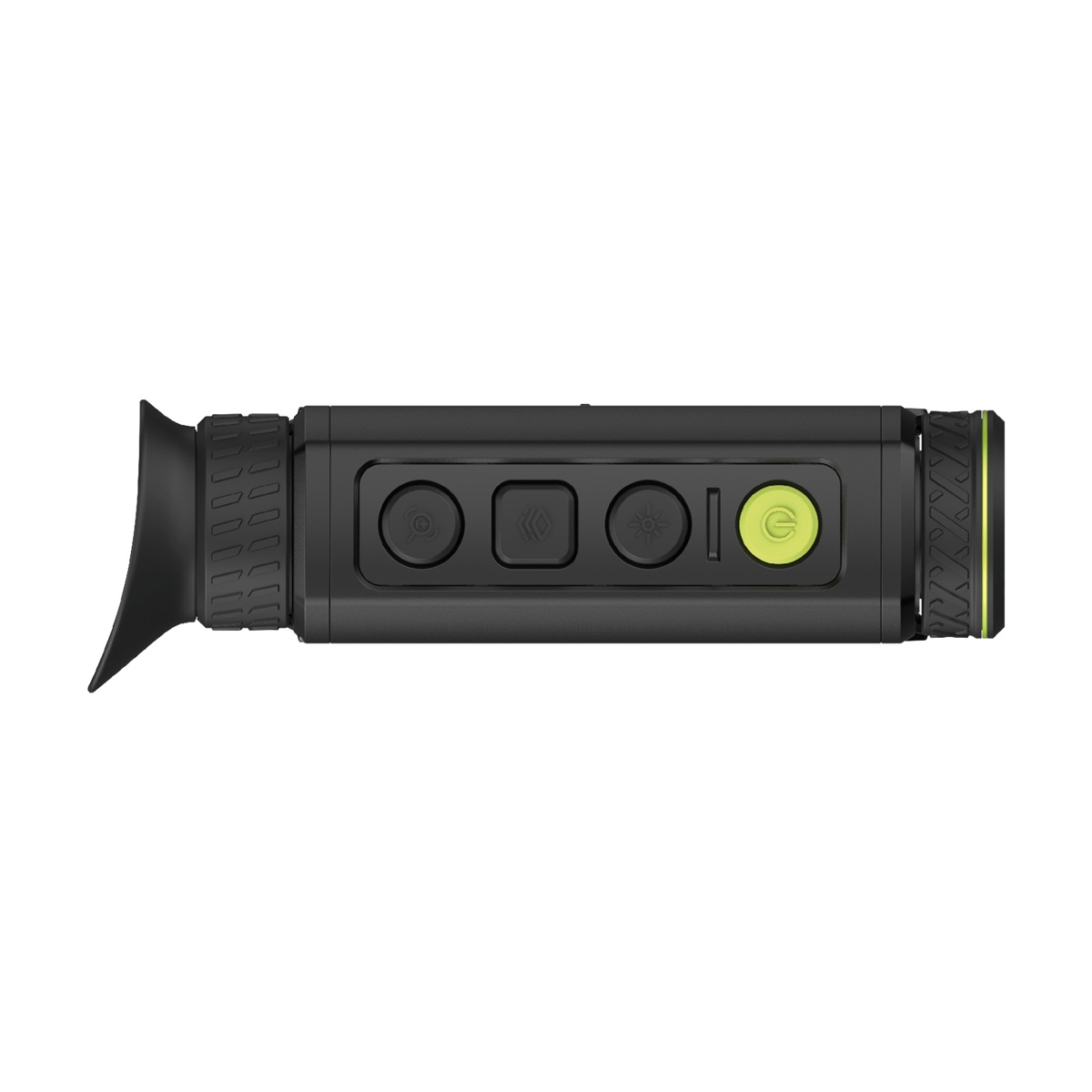

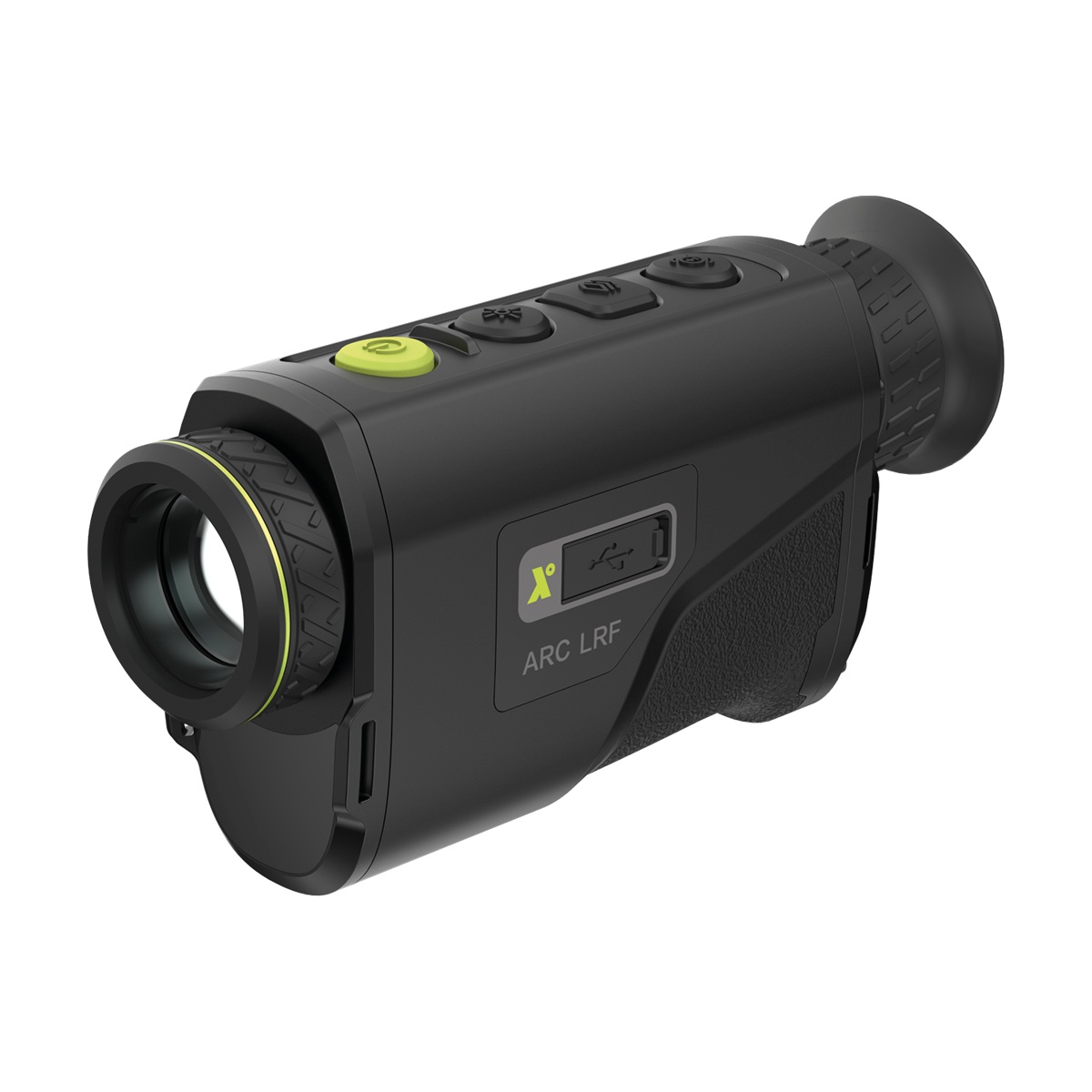

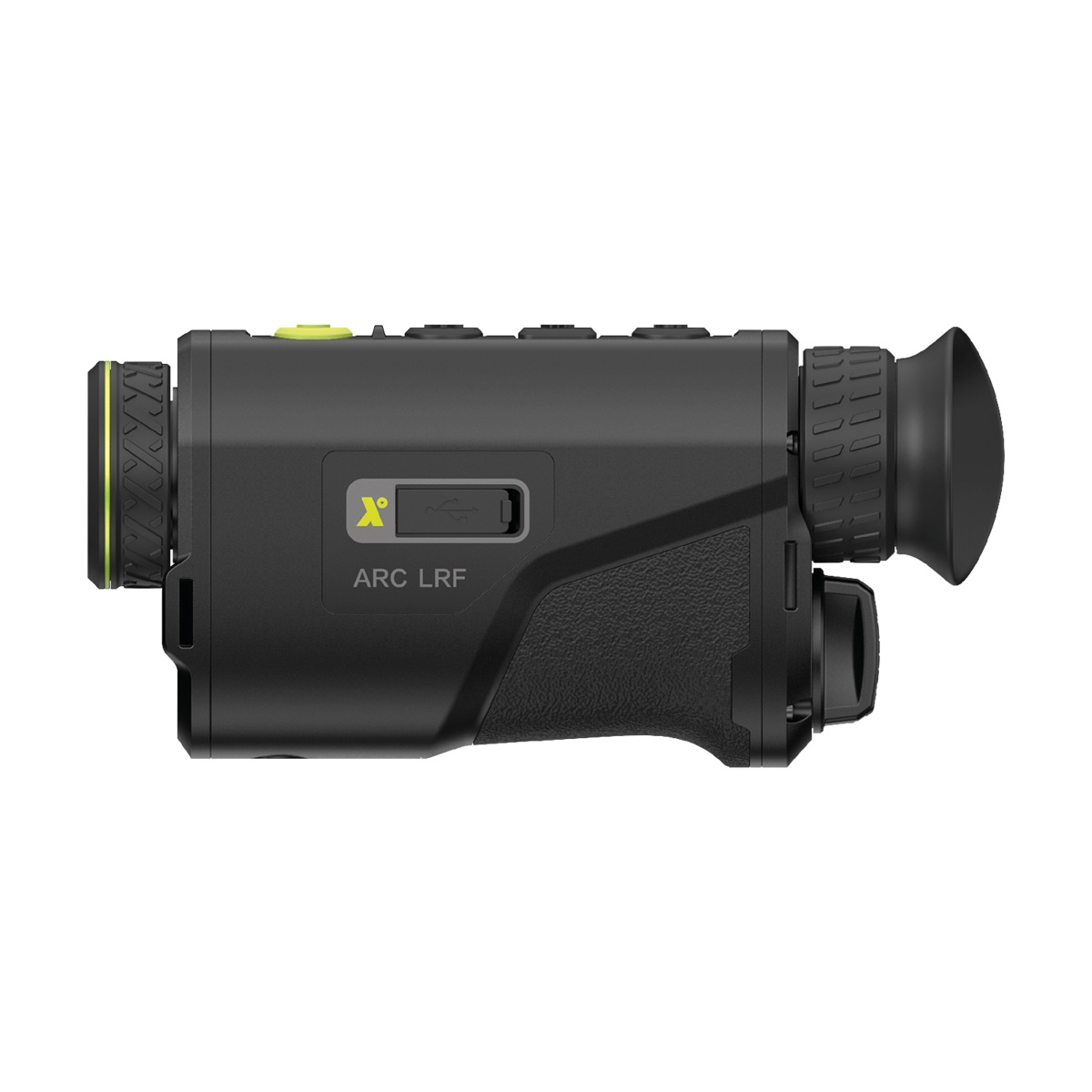

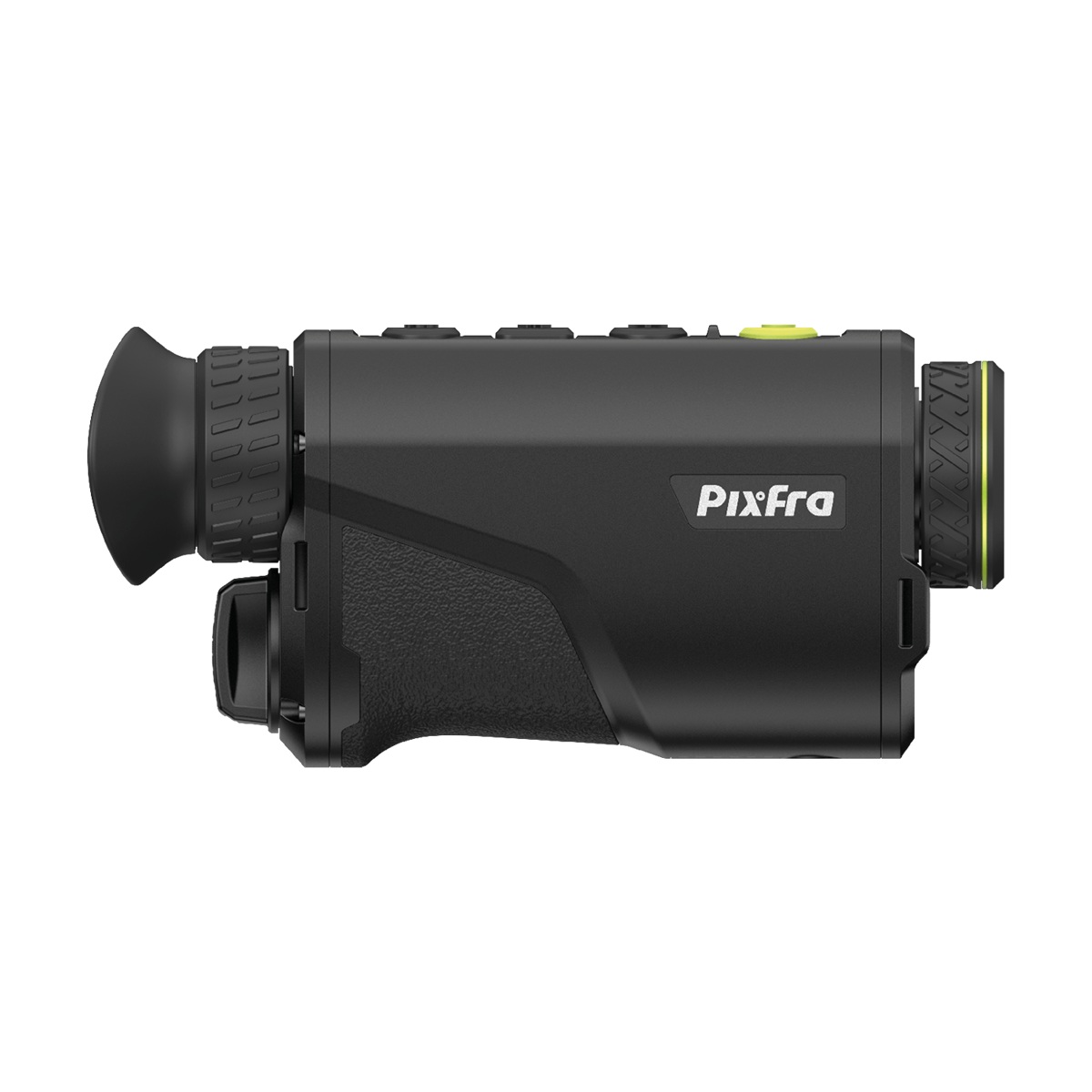

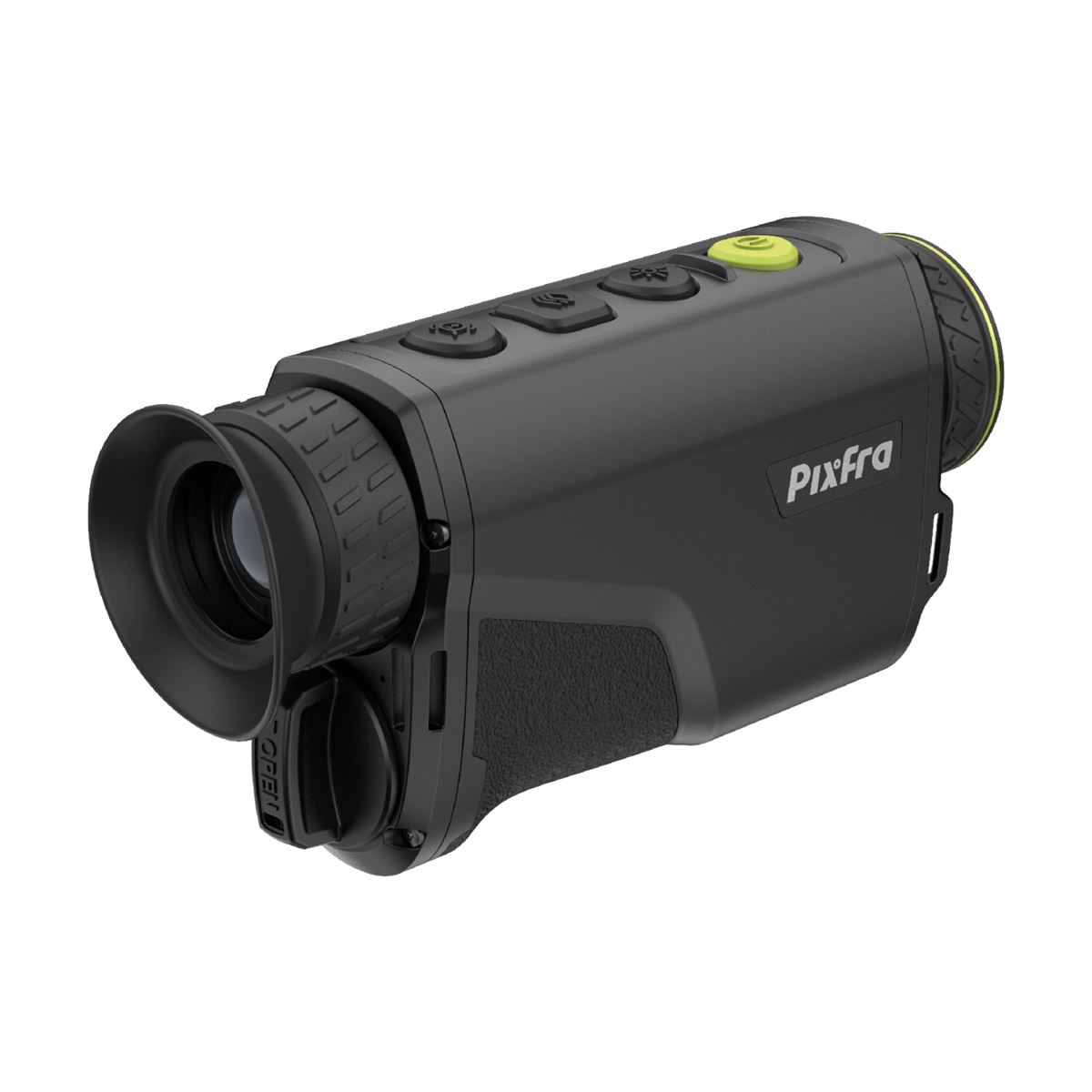

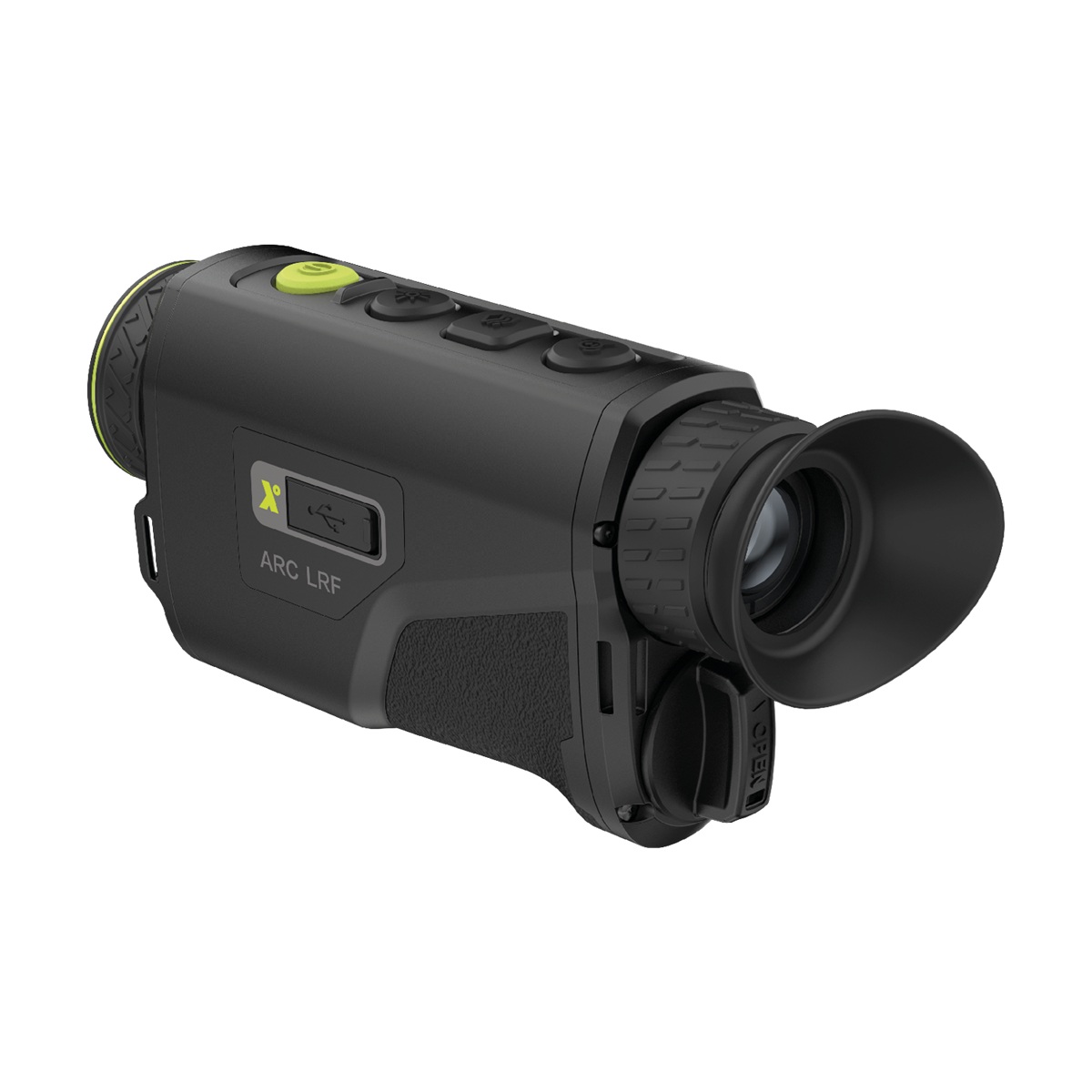

Pixfra™ Arc LRF A625 Pro Thermal Monocular w/Laser Rangefinder (640x512 12µm Detector/25mm Lens)
- High-resolution 640×512, 12µm thermal sensor with <20mK NETD sensitivity for exceptional image detail.
- Wide 30.7 × 24.6m field of view @ 100m with a 25mm f1.0 lens and up to 1300m detection range.
- Seamlessly integrated laser rangefinder with 1000m range and ±1m accuracy.
- Durable magnesium alloy housing with IP67-rated protection for all-weather reliability.
- Up to 6 hours runtime with replaceable 18650 batteries and USB-C charging.
- Wi-Fi connectivity with Pixfra Outdoor app for real-time sharing with up to four users.
The Pixfra™ Arc LRF A625 Pro Thermal Monocular combines advanced wide-field thermal imaging with precision rangefinding, offering professionals and enthusiasts exceptional performance in all conditions. Featuring a highly sensitive 640×512, 12µm thermal sensor with <20mK NETD and a fast 25mm f1.0 objective lens, this device delivers superior clarity and an expansive 30.7 × 24.6m field of view at 100m, with a detection range of up to 1300m. Its seamlessly integrated laser rangefinder ensures accurate distance measurements up to 1000m with ±1m precision, providing valuable field data without compromising the viewing experience. Lightweight yet rugged with IP67 protection, the A625 Pro is designed for comfortable, long-duration use. With extended battery life, wireless app connectivity, and versatile observation features, it is the ideal tool for hunters, wildlife observers, and security professionals who require dependable performance and precision.
- Detector Type Vanadium oxide uncooled focal plane detector
- Thermal Sensor 640×512, 12µm, <20mK NETD
- Frame Rate 50 Hz
- Lens 25mm f1.0
- FOV (m @ 100 m) 30.7 × 24.6
- Thermal Focus Control Manual
- Close Focus Distance 2 m (6.56 ft)
- Rangefinder Built-in precision laser rangefinder
- Distance Measurement Range 1000 m
- Digital Zoom 1x, 2x, 4x, 8x
- Magnification 1.68x
- Colour Palettes 6 (white hot, black hot, iron red, alarm, amber, emerald)
- Display 0.41″ 1440×1080 OLED
- Storage 32 GB
- Uniformity Correction Auto, manual
- Picture in Picture (PiP) Yes
- Audio Recording Yes
- Hot Spot Trace Yes
- Wi-Fi Yes
- Power Supply 5 VDC/1 A, USB Type-C
- Battery Type 1 replaceable 18650 battery
- Battery Capacity 3,200 mAh
- Battery Operating Life Up to 6 hours (depending on temperature)
- Environmental Protection IP67
- Product Dimensions 168 × 50 × 78 mm / 6.61″ × 1.97″ × 3.07″ (L × W × H)
- Weight 370 g
- Powerful Wide-field Optics: The 640×512 thermal sensor and 25mm f1.0 lens deliver crisp, detailed imaging and wide coverage for enhanced situational awareness.
- Enhanced Image Processing: Pixfra’s PIPS 2.0 technology reduces noise, sharpens contrast, and refines detail for consistently clear imagery.
- Integrated Rangefinder: Provides precise distance measurements up to 1000m with ±1m accuracy, seamlessly built into the device without affecting observation.
- Ergonomic Comfort: Features a contoured eyecup and textured rubber grip, ensuring comfort and stability even during extended use.
- Rugged Construction: Lightweight magnesium alloy body withstands impacts and harsh environments while remaining easy to carry.
- All-weather Performance: IP67 protection ensures functionality in heavy rain, fog, snow, and high humidity.
- Reliable Power Supply: Supplied with two 18650 batteries, providing up to 6 hours operation, with easy, secure battery swapping and USB-C charging.
- Wireless Sharing: Connect via the Pixfra Outdoor app to stream live viewing to up to four users within 20m.
- Versatile Observation Tools: Includes Picture-in-Picture, Hot Spot Tracking, six colour palettes, and audio recording for adaptable field use.
- Pixfra™ Arc LRF A625 Pro Thermal Monocular w/Laser Rangefinder (640x512 12µm Detector/25mm Lens)
- 3 Year Pixfra Warranty
