Night Vision

HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15

HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15
HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15
HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15
HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15
HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15

HIK Micro Lynx PRO 15mm 35mK 12µm Smart Thermal Monocular Handheld Night Vision LH15

£969.95 £808.29 (ex. VAT)
Stock Status: In Stock
35mK 384x288 12um Step up from L15 and LE10 Deer sized target detection/ID max range approx. 700m
You Will Earn 969 points with this purchase

Make 6 weekly payments of £161.66.

Interest free. Learn More

See our thermal education page to learn more about thermal vision technology and what all the terms mean - See HERE

Introducing the Lynx Pro 15mm. Building on the success of the Lynx 15mm the new (2021) Pro model introduces a few subtle improvements to boost the performance of the best-selling, entry-level Thermal Monocular in the HIKMICRO range.

The Lynx Pro 15mm shares the larger 10mm screen that is found in the premium 19mm and 25mm Lynx Pro models. This gives you a large display that is easy to view and gives you the best view of your surroundings.

The Lynx Pro also uses the latest 384x288px, 12µm, sub-35mK, NETD Thermal Sensor from HIKMICRO.

This highly accurate sensor delivers a detailed image while the move from 17µm to 12µm boosts the optical magnification up to 1.5x.

This extra magnification is useful for identifying small heat sources and adds detail while retaining the wide Field-of-View which is useful for quickly scanning a wide area.

35mK NETD Rating = One of the most sensitive sensors available on the market, detecting even the smallest temperature differences!

IP67 rating guarantees a robust chassis capable of repelling dust and rain, protecting you from the worst of the weather.

This is all backed up by a 3 year UK warranty.

T-VISION APP: Connect – Control – Stream
The Wi-Fi and App alow you to connect your smartphone and take control of all features of the  HIK Smart Thermal Monoculars .

The T-Vision app allows you to stream the output in real-time allowing you to share your viewpoint with a friend.

FEATURING:

  • High-quality, lagless video stream to share your hunting and wildlife observation views with friends.
  • Record and capture images straight to your phone.
  • Configure and optimise the device: colour profile, fine-tune brightness and contrast.



HOT TRACK
Activate Hot Tracking and your Lynx 15 will highlight the hottest spot detected in the current frame with a green crosshair.

This is useful to highlight small heat sources as you scan around.

This feature is activated and deactivated in the unit menu not via the App.




Support
Backed with a 3 year UK warranty, the HIK Lynx Pro 15mm Smart Thermal Monocular is a superb package for the price!


Videos -

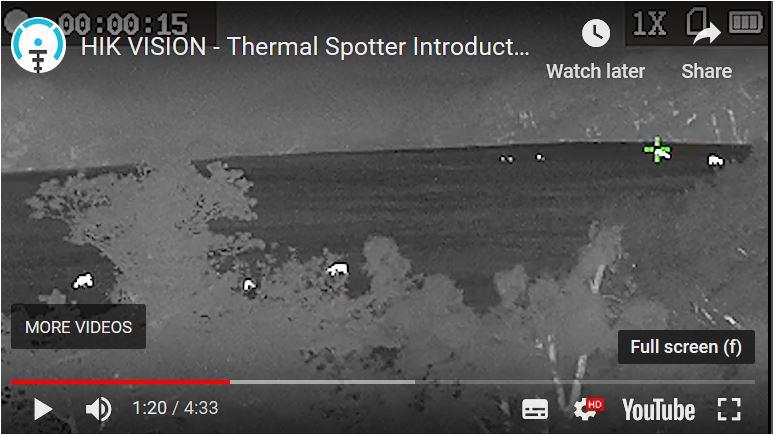

HIK VISION - Thermal Spotter Introduction





HIK VISION - T-Vision App Demonstration


Who is HIK VISION?


Specifications

  • Unit Type: Thermal
  • Colour Palettes: Yes
  • Detection Range: 700m
  • Display Resolution: 1280x960
  • Display Type: LCOS
  • FOV @ 100 yards: 17.5°
  • Magnification (Digital): 8x
  • Magnification (Optical): 1.4x
  • NETD: <35mK
  • Objective Lens Diameter: 15mm
  • Operating Temperature: -20/+40°C
  • Pixel Pitch: 12μm
  • Rangefinder: Stadiametric
  • Refresh Rate: 50HZ
  • Sensor Resolution: 384x288
  • Video Recording: Yes
  • Wi-Fi: Yes

Download the HIK App here: https://www.hikvision.com/en/support/download/software/t-vision/

Detailed Specifications

MAIN
Sensor 384×288px @ 12µm
Objective Lens 15 mm
Detection Range (Vehicle 1.4 x 4m) 1353 m
Detection Range (Human 1.8 x 0.5m) 708 m

SENSOR
Type Vanadium Oxide Uncooled Focal Plane Arrays
Resolution, pixels 384 × 288 px
Pixel pitch, µm 12µm
Frame rate, Hz 50 Hz
NETD Rating 35mK

OPTICS
Objective lens F1.0
Magnification (Optical) 1.47x
Magnification (Digital) 1x, 2x, 4x, 8x
Field of view 17.5° × 13.1° (H × V)

DISPLAY
Type 5.08mm, LCOS
Resolution, Pixels 1280 × 960
Colour Palettes Black Hot, White Hot, Red Hot, Fusion

VIDEO & SOUND
Video Recorder YES
Sound Recorder NO
Build in memory, Gb 8 Gb

ADDITIONAL FEATURES
Hot Tracking YES
WiFI hot spot YES
T-Vision App support YES

ENVIRONMENTAL
Degree of protection, IP code IP67
Dust protection Protected against dust ingress
Water protection Protected against temporary submersion in water
Operating temperature range -20 °C to 55 °C

WEIGHT & SIZE
Dimensions, mm 158 mm × 61 mm × 57 mm
Weight, kg 0.29 kg

POWER SUPPLY
Operating time on battery
(WiFi & Hot tracking disabled) 7 hours continuous running
Charging interface USB-C
Battery capacity after 1000 cycles 80%
  • EAN:
    6974004640064
  • MPN:
    LH15
  • Brand:
    HIK Micro
  • Product Code:
    NW2505
  • Weight:
    0.77kg
