Hawke 30mm Steel Precision Weaver/Picatinny Rifle Scope Mount Rings - HIGH 23017
Pair - 2 rings supplied
Base fit - Weaver/Picatinny base -
- For base rails that look like the one pictured below. (Base rail NOT included)
- 20-22mm wide with horizontal slots.
- May vary in length and be 2 smaller sections on some rifles.
- If you do not have a base that looks similar to this, and have for example, an 11mm wide dovetail groove then the mounts can only be made to fit by also purchasing an adapter.
- Please ask us if unsure.
30mm Tube -
- Ring is 30mm diameter.
- To suit scopes with 30mm diameter tubes.
High Profile Height -
- 13mm base to bottom of ring "Saddle" - about 18mm including distance to clamp bottom. Use 18mm for clearance calculations
- In practice this means in most cases scopes upto approx. 56mm lens when on a flat base.
- However if base is raised or end of scope will be over barrel with more space then larger lens scopes may be used.
- This is down to the user to determine we can only give broad guidelines.
- See scope clearance guide at bottom of page.
Mount Rings Detail
- Quick release lever
- Double torx screws to hold your scope firmly in place
- Designed for Weaver/Picatinny rail fitting
- Solid steel construction for superior strength
- Configuration: 2 Piece
- Ring Size (Diameter): 30mm
- Height: High
- Rail: Weaver
- Fixings (Rail & Top Cap): Double Torx Screw
- Internal Cushion: NO
- Retractable 'Recoil Stop' Pin: NO

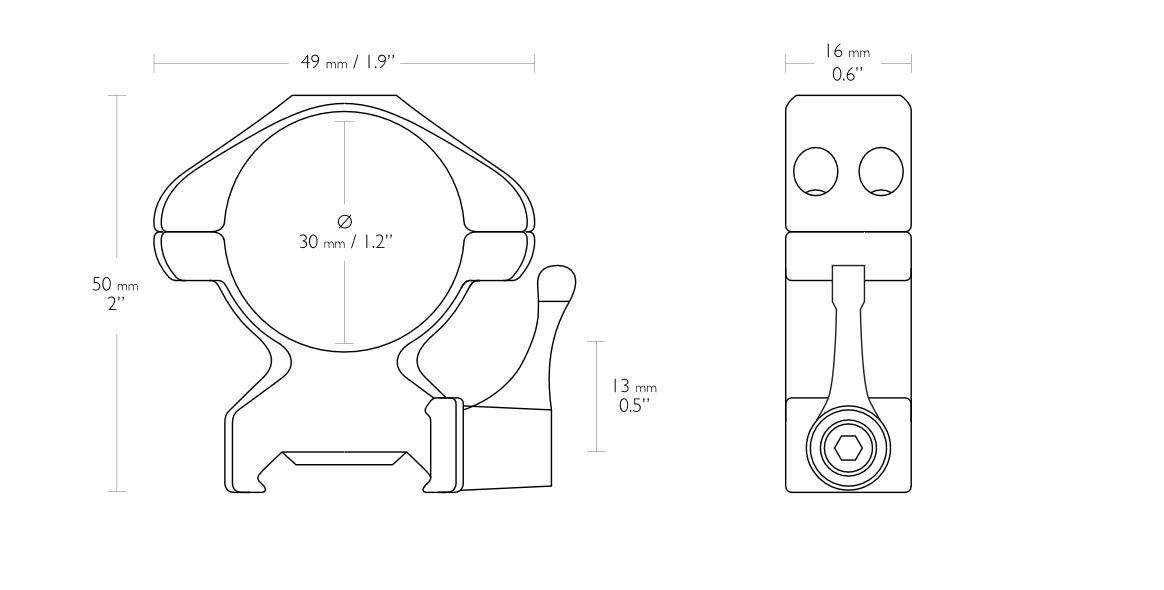

- Height: 50mm / 2″
- Weight: 196g / 6.9oz
Calculating scope to rifle body clearance
The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.
For scopes with a 1" diameter body tube diameter this would mean deducting 12.7mm and 15mm for scopes with a 30mm diameter body tube.
Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.
The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring, in this mount it is 20mm.
The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body.
- A 42mm objective lens scope is measured and found to have an outer case measurement of 50mm.
- 50 divided by 2 = 25
- 30mm scope so deduct 15mm = 10mm
- So the mount must have a measure (bottom of mount to bottom of the ring) greater than 10mm or else it will ground out on the rifle body.
Calculating your rifle scopes clearance in this way does assume the base is basic flat, not raised above or below your rifles barrel. Note some rifles with high or adjustable cheek pieces may require higher scope mounts or risers so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.
